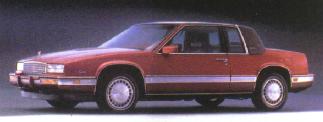

1987 Eldorado
The 20th anniversary version of the Eldorado featured changes in its suspension and engine damping. The use of deflected disc strut valves on cars with the touring suspension provided a more comfortable ride and better road manners. New hydro-elastic engine mounts were also used. New vehicle-sensitive rear seat belts were used on all Eldorados. A new cashmere cloth and leather interior trim was offered. Twelve new exterior colors, for a total of 19, were introduced. Larger P205/75R14 standard tires was also used. For the first time, Cadillac offered the cabriolet top as an option for the base Eldorado. The Biarritz had a redesigned cabriolet top.
Model Number |
Style Number |
Body Type |
Seating | Factory Price |
Shipping Weight |
Production Total |
6E | L57 | 2-door Coupe | 6 | $23740 | 3360 lb | 17,775 |
Type | 90-degree, overhead valve, V-8, aluminum block and cast iron cylinder liners, cast iron cylinder heads |
Displacement | 250.4 cu. in. (4.1 liters) |
Bore & stroke | 3.47 in. x 3.31 in. |
Compression ratio | 8.5:1 |
Brake horsepower | 130 @ 4200 rpm |
Torque | 200 lb.-ft. @ 2200 rpm |
Main Bearings | Five main bearings |
Valve Lifters | Hydraulic valve lifters |
Fuel Delivery | Digital electronic fuel injection |
Wheelbase | 108.0 in. |
Overall Length | 191.2 in. |
Height | 53.7 in. |
Width | 71.3 in. |
Front Tread | 59.9 in. |
Rear Tread | 59.9 in. |
Standard Tires | P205/70R14 |
Touring Tires | Goodyear Eagle GT+4 P215/65R15 |
Transmission | THM 440-T4 automatic four-speed (includes overdrive and viscous converter clutch) |
Steering | power-assisted rack and pinion |
Steering Ratios | 16.5:1; Touring: 15.6:1 |
Front Suspension | Independent MacPherson strut with coil springs, strut-type shock absorbers and stabilizer bar |
Rear Suspension | fully independent with coil springs. Automatic level control and strut-type superlift shock absorbers |
Brakes | power discs, front and rear |
Body Construction | integral body frame |
Fuel Tank | 18.8 gal. |
