1918 Cadillac History

TYPE 57

TYPE 57 was similar to Type 55 except:

Bodies

Top line of hood and cowl now a continuous straight line to the windshield on most body styles.
Headlight reflectors tilted by mechanical linkage to lever on steering post.
Nine hood louvers tilted six degrees.
Windshield on all open cars tilted six degrees.
Club Roadster, Coupe, Convertible Touring, and Touring Couplet dropped from the line.
Town Limousine and Town Landaulet added.
The main compartment of these two bodies was approximately ten centimeters narrower than on the standard Limousine.
Suburban added in mid-year.

Chassis: No significant change from Type 55.

Drive Line:

Engine

1918 Cadillac

Serial numbers were not used.
Engine numbers were stamped on the crankcase just back of the right hand bank of cylinders, and on a plate on the dash.
Also stamped on the fan shaft housing.
Engine No.: 57-A-1 through 57-Z-1000 with 1919.

Style No.	Doors	Type Name	Seating	Price	Weight
NA	4	Touring	7	$2590	1834 kg
NA	4	Phaeton	4	$2590	1784 kg
NA	2	Roadster	2/4	$2590	1757 kg
2750	2	Convertible Victoria	4	$3075	1805 kg
2730	4	Brougham	5/7	$3535	1950 kg
NA	4	Brougham	7	$4125
2740	4	Limousine	7	$4085	2011 kg
2820		Limousine
2680	4	Town Limousine	6	$4100	1952 kg
3110		U.S. Government Limousine
2760	4	Imperial	7	$4285
2770	4	Landaulet	7	$4235	2050 kg
2840	4	Town Landaulet	6	$4250	1977 kg
2910	4	Suburban	7	$4090	1977 kg
NA		Police Patrol		$3850
NA		Ambulance		$4350
NA		Hearse		$4685

Click to supersize

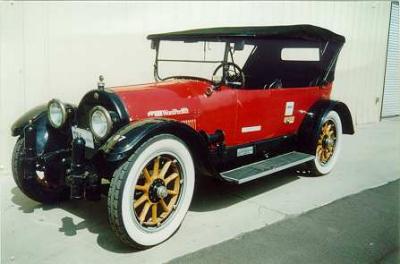

1918 Cadillac V-8 - 5 pass.

Note: Prices increased several times during the war years, partly due to war taxes. The lowest prices for the body style are given.

Description	Ninety degree V-8 L-head. Heads detachable. Cast iron blocks of four on Aluminum crankcase
Bore & Stroke	79.4mm x 130.2mm
Displacement	5.153 Liters
S.A.E./N.A.C.C. Horsepower	31.25
Main bearings	Three
Valve lifters	Rockers with roller cam follower acting on mechanical lifters
Carburetor	float feed with auxiliary air control; manufactured by Cadillac under C. F. Johnson patents

	Type 57	Type 57 Roadster	Type 57 Limo, Land, Imp, Town Limo, Town Land	Special Chassis
Wheelbase	3175mm	3175mm	3353mm	3683mm
Front/Rear Tread	1422mm	1422mm	1422mm	1422mm
Tires	35 x 5	34 x 4-1/2	35 x 5	35 x 5

Transmission	Selective, sliding gear transmission. Case in unit with engine
Speeds	3 Forward and one Reverse
Steering position	Left drive, center control (Right hand drive optional)
Clutch	Multiple disc, dry plate, 17 discs
Drive	Shaft drive
Axle	Spiral bevel, full floating rear axle
Overall ratio	4.44:1
Brakes	Mechanical brakes on two wheels, one external, one internal
Wheels	Wood artillery wheels, demountable rims (R-W wire wheels optional)
Wheel size	25 in.
Optional Final drive ratios	3.94:1, 5.07:1

1917 Cadillac

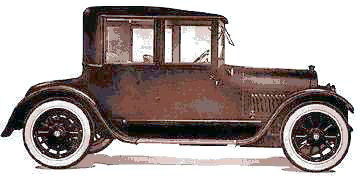

1918 Cadillac Victoria
