The Type 61 was similar to the Type 59 of 1920-21, with the following exceptions:
Bodies
Chassis
Drive Line
Engine
Serial numbers were not used.
Engine numbers were stamped on the crankcase just back of the right hand bank of cylinders, and on a plate on the dash.
Engine No.: 61-A-1 through 61-Z-18006.
First Design | ||||
---|---|---|---|---|
Style No. | Body Type | Seating | Price | Weight |
- | 4-door Touring | 7 | $3940 | 1830 kg |
- | 4-dr. Phaeton | 4 | $3790 | 1798 kg |
- | 2-dr. Roadster | 2/4 | $3790 | 1782 kg |
4420 | 2-dr. Victoria | 4 | $4540 | 1870 kg |
4470 | 2-dr. Coupe | 2 | $4540 | 1768 kg |
4440 | 2-dr. Coupe | 5 | $4690 | 1877 kg |
4430 | 4-dr. Sedan | 5 | $4950 | 1918 kg |
4400 | 4-dr. Suburban | 7 | $5190 | 1918 kg |
4450 | 4-dr. Limousine | 7 | $5290 | 2000 kg |
4460 | 4-dr. Imperial Limousine | 7 | $5390 | 2023 kg |
4480 | 4-dr. Town Brougham | 7 | - | - |
5160 | 4-dr. Landau Sedan | 5 | - | - |
Second Design | ||||
---|---|---|---|---|
Style No. | Body Type | Seating | Price | Weight |
- | 4-dr. Touring | 7 | $3150 | 1830 kg |
- | 4-dr. Phaeton | 4 | $3150 | 1798 kg |
- | 2-dr. Roadster | 2/4 | $3100 | 1782 kg |
4430 | 2-dr. Victoria | 4 | $3875 | 1870 kg |
5080 | 2-dr. Coupe | 2 | $3875 | 1809 kg |
5050 | 2-dr. Coupe | 5 | $3925 | 1877 kg |
5040 | 4-dr. Sedan | 5 | $4100 | 1918 kg |
4410 | 4-dr. Suburban | 7 | $4250 | 2009 kg |
5060 | 4-dr. Limousine | 7 | $4550 | 2000 kg |
5070 | 4-dr. Imperial Limousine | 7 | $4600 | 2023 kg |
- | 4-dr. Town Brougham | 7 | - | - |
- | 4-dr. Landau Sedan | 5 | - | - |
Third Design | ||||
---|---|---|---|---|
Style No. | Body Type | Seating | Price | Weight |
- | 4-dr. Touring | 7 | $2885 | 1830 kg |
- | 4-dr. Phaeton | 4 | $2885 | 1752 kg |
- | 2-dr. Roadster | 2/4 | $2885 | 1782 kg |
5090 | 2-dr. Victoria | 4 | $3675 | 1870 kg |
- | 2-dr. Coupe | 2 | - | 1809 kg |
- | 2-dr. Coupe | 5 | $3750 | 1877 kg |
- | 4-dr. Sedan | 5 | $3950 | 1918 kg |
5020 | 4-dr. Suburban | 7 | $3990 | 2009 kg |
- | 4-dr. Limousine | 7 | $4300 | 2000 kg |
- | 4-dr. Imperial Limousine | 7 | $4400 | 2023 kg |
- | 4-dr. Town Brougham | 7 | - | - |
- | 4-dr. Landau Sedan | 5 | $3950 | - |
Note: Introductory prices were much the same as for Type 59. In January, 1922 came a drastic price reduction, followed by a smaller reduction in December, 1922. These were the first price reductions for Cadillac and followed an industry trend. Increased production schedules, higher efficiency in the new manufacturing facilities, and economic pressures combined to make the reductions possible as well as necessary.
Engine Type | Ninety degree V-8. L-Head. Cast iron blocks of four on Aluminum crankcase. |
Bore and Stroke | 79.4mm x 130.2mm |
Displacement | 5.153 Liters |
Brake Horsepower | "over 60 horsepower" |
S.A.E./N.A.C.C. H.P. | 31.25. |
Main bearings | Three |
Valve lifters | Rockers with roller cam follower acting on mechanical lifters |
Carburetor | float feed, auxiliary air control; manufactured by Cadillac under C. F. Johnson patents. |

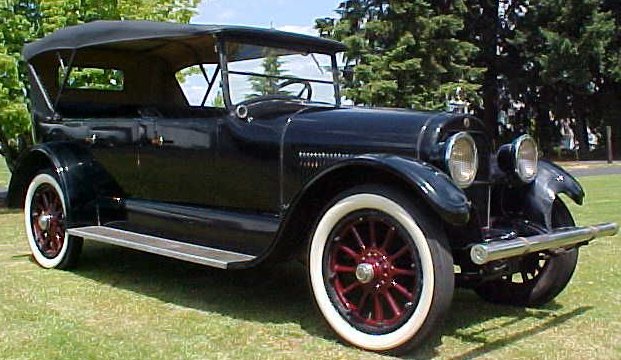

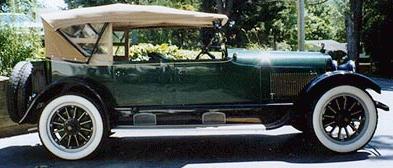

1922 Cadillac Touring
Wheelbase | 3353mm |
Front/Rear Tread | 1422mm |
Tires | 33 x 5 |
Transmission | Selective sliding gear transmission. Case in unit with engine |
Speeds | 3 Forward and 1 Reverse |
Controls | Left drive, center control (right hand drive optional) |
Clutch | Multiple disc, dry plate clutch |
Drive | Shaft drive |
Axle | Spiral bevel, full floating rear axle |
Overall ratio | 4.50:1, 4.91:1 |
Brakes | Mechanical brakes on two wheels, one external, one internal. |
Wheels | Wood artillery wheels, demountable rims, 12 spoke |
Wheel size | 23 in. |
Optional Drive ratio | 4.15:1 |
1922-23 Cadillac Notes
