2003 CORVETTE

ENGINE

Type	ohv V-8	ohv V-8
Displacement, liters/cu inch	5.7/350	5.7/350
Bore and stroke, inches	3.90 x 3.62	3.90 x 3.62
Fuel management	Sequential Injection	Sequential Injection
Horsepower @ rpm	350 @ 5,600	405 @ 6,000
Torque @ rpm, pound-foot	375 @ 4,400	400 @ 4,800

DRIVETRAIN

• Transmission
  • 4-speed automatic
  • 6-speed manual
• Axle Ratio
  • Standard axle ratio:
    • Automatic: 2.73:1
    • Manual: 3.42:1
  • Performance axle ratio: 3.55:1

CHASSIS

Feature	Hatchback	Convertible	Coupe
Wheelbase	2654mm (104.5 in.)	2654mm (104.5 in.)	2654mm (104.5 in.)
Length	4564mm (179.7 in.)	4564mm (179.7 in.)	4564mm (179.7 in.)
Width	1869mm (73.6 in.)	1869mm (73.6 in.)	1869mm (73.6 in.)
Front Track	1577mm (62.1 in.)	1577mm (62.1 in.)	1577mm (62.1 in.)
Rear Track	1580mm (62.2 in.)	1580mm (62.2 in.)	1580mm (62.2 in.)
Height	1214mm (47.8 in.)	1212mm (47.7 in.)	1217mm (47.9 in.)
Curb weight	1475 kg (3246 lb)	1476 kg (3248 lb)	1417 kg (3118 lb)

SUSPENSION

• Front: Independent; upper and lower A-arms, transverse composite monoleaf spring, tube shock absorbers, antiroll bar
• Rear: Independent, upper and lower A-arms, toe links, transverse composite monoleaf springs, tube shock absorbers, antiroll bar

BRAKES

• Front: anti-lock 12.6-inch disc
• Rear: anti-lock 11.6-inch disc

WHEELS & TIRES

• Front: P245/45ZR-17 (Z06, P265/40ZR-17)
• Rear: P275/40ZR-18 (Z06, P295/35ZR-18)

PERFORMANCE

Acceleration	350 hp, 6-speed manual
0-60 mph, sec	4.9
0-100 mph, sed	11.5
1/4-mile, sec @ mph	13.4 @ 101.1

PRICE

Model	Vehicle Production	Base Price
2-door hatchback	12,812	$43,895.00
2-door Z06 coupe	8,635	$51,155.00
2-door convertible	14,022	$50,370.00

OPTIONS

Option	Production	Price
Preferred Equipment Group (hatchback)	7,310	$1,200.00
Preferred Equipment Group (convertible)	6,643	$1,200.00
50th Anniversary Edition (hatchback)	4,085	$5,000.00
50th Anniversary Edition (convertible)	7,547	$5,000.00
Commemorative Edition (convertible)	2,659	$3,700.00
6-Speed Manual Transmission	8,590	$915.00
Body Side Moldings	22,243	$150.00
Corvette Museum Delivery	787	$490.00
Dual Removable Roof Panels	5,184	$1,200.00
Electrochromatic Mirrors (Z06)	8,227	$120.00
Front License Plate Frame	20,605	$15.00
Magnesium Wheels	293	$1,500.00
Magnetic Selective Ride Control	14,992	$1,695.00
Memory Package (Z06)	8,241	$175.00
Millennium Yellow w/tint coat	3,900	$750.00
Performance Axle (3.15 ratio, automatic only)	9,785	$395.00
Performance Handling Package	2,592	$395.00
Polished Alloy Wheels	10,290	$1,295.00
Remote 12-Disc Changer	15,979	$600.00
Removable Roof Panel, blue tint	3,150	$750.00
Stereo with Cassette (replaces std radio)	4,664	N/C

COLOR

Color Choice	Production

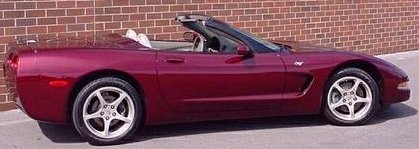

Anniversary Red	11,632
Black	5,597
Electron Blue	2,770
Medium Spiral Gray	3,299

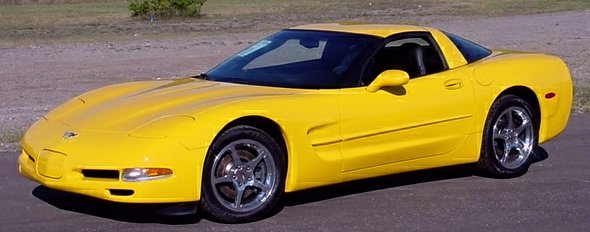

Millennium Yellow	3,900
Quicksilver	2,387

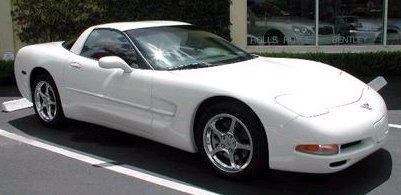

Speedway White	679
Torch Red	5,205
