VIN Location | On top of dash at left, viewable through windshield | |
---|---|---|
Position | Character | Description |
1 | 2 | General Motors: Pontiac Division |
2 | S | Basic Firebird |

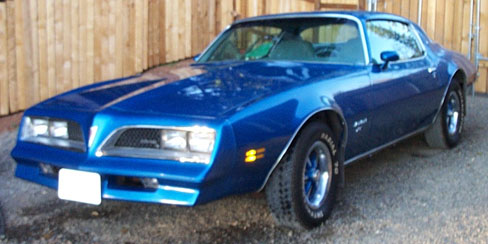

T | Firebird Esprit | |

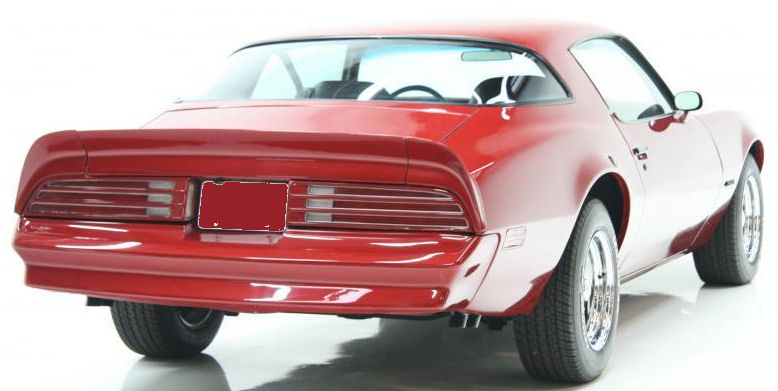

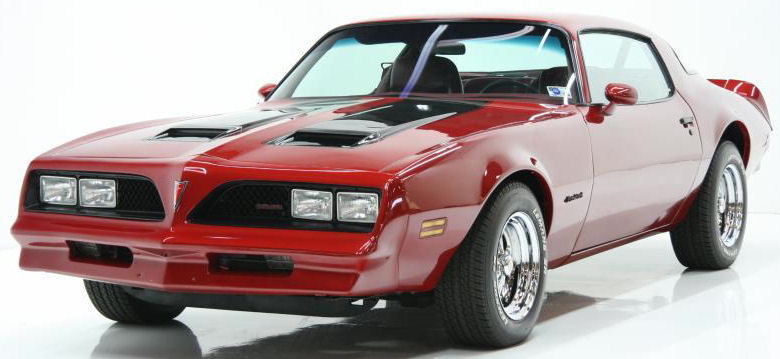

U | Firebird Formula | |

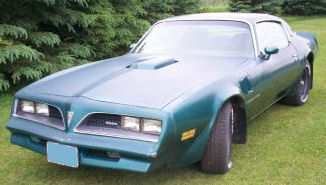

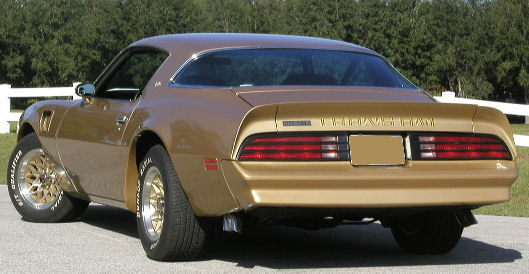

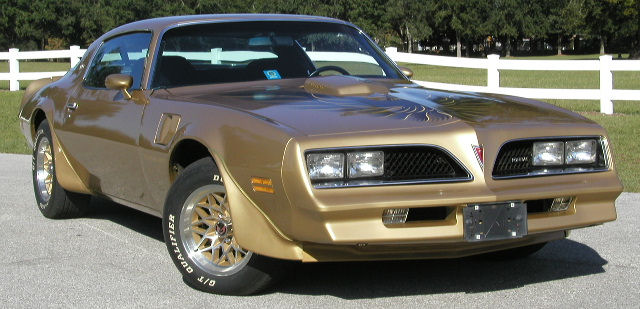

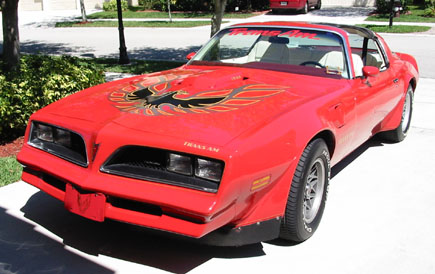

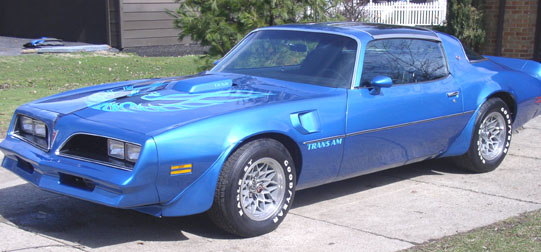

W | Trans Am | |
3 & 4 | 87 | hardtop coupe |
5 | Engine code |
|
6 | 8 | Year: 1978 |
7 | _ | Assembly plant |
8 to 13 | 100001 and up | production sequence |
Model Number | Style Number | Body Type | Seating | Factory Price | Shipping Weight | Production Total |
---|---|---|---|---|---|---|
2F | S87 | 2-door Hardtop Base Firebird - V6 | 4 | $4545 | 3285 | 32,672 both 6 & V8 |
2F | S87 | 2-door Hardtop Base Firebird - V8 | 4 | $4695 | 3377 | |
2F | T87 | 2-door Hardtop Esprit - V6 | 4 | $4842 | 3285 | 36,926 |
2F | T87 | 2-door Hardtop Esprit - V8 | 4 | $4992 | 3408 | |

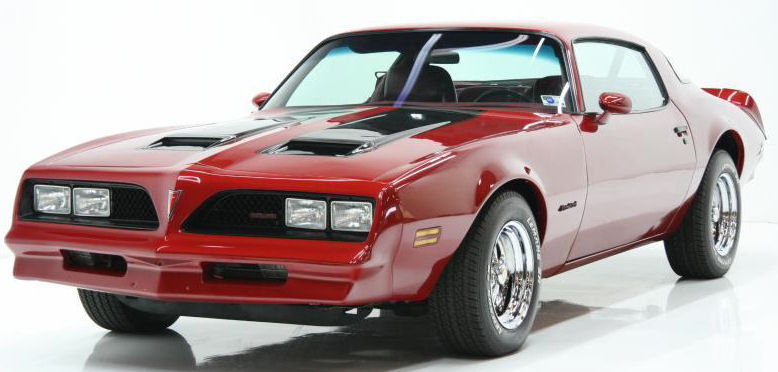

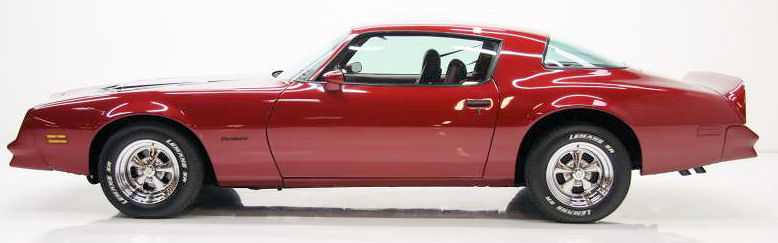

2F | U87 | 2-door Hardtop Formula | 4 | $5448 | 3452 | 24,346 |

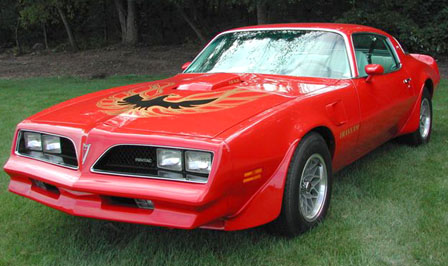

2F | W87 | 2-door Hardtop Trans Am | 4 | $5799 | 3511 | 93,341 |
VIN Code | A (Buick) | Y | U | X | R (Olds) | L (LM1) (Chev) | Z | K (Calif) |
---|---|---|---|---|---|---|---|---|
Cylinders | 90° V-6 | 90° V-8 | 90° V-8 | 90° V-8 | 90° V-8 | 90° V-8 | 90° V-8 | 90° V-8 |
Valving | Overhead valve | Overhead valve | Overhead valve | Overhead valve | Overhead valve | Overhead valve | Overhead valve | Overhead valve |
Block | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron |
Head | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron | Cast-iron |
Bore & Stroke | 3.80 x 3.40 in. | 4.00 x 3.00 in. | 3.74 x 3.48 in. | 3.88 x 3.75 in. | 4.06 x 3.38 | 4.00 x 3.48 | 4.12 x 3.75 | 4.35 x 3.38 |
Displacement | 231 cid (3.8 liters) | 301 cid (5.0 liters) | 305 cid (5.0 liters) | 350 cid (5.7 liters) | 350 cid (5.7 liters) | 350 cid (5.7 liters) | 400 cid (6.6 liters) | 403 cid (6.6 liters) |
Compression ratio | 8.0 : 1 | 8.2 : 1 | 8.4 : 1 | 8.0 : 1 | 7.9 : 1 | 8.2 : 1 | 7.7 : 1 (opt: 8.1 : 1) | 8.0 : 1 |
Brake H.P. | 105 @ 3200 rpm | 135 @ 3800 | 145 @ 3800 rpm | 170 @ 4000 rpm | 170 @ 3800 rpm | 170 @ 3800 rpm | 180 @ 3600 rpm (opt: 220 @ 4000 rpm) | 185 @ 3600 rpm |
Torque (lb-ft) | 185 @ 2000 rpm | 235-245 @ 2000 rpm | 245 @ 2400 rpm | 280 @ 1800 rpm | 275 @ 2000 rpm | 270 @ 2400 rpm | 325 @ 1600 rpm (opt: 320 @ 2800 rpm) | 320 @ 2200 rpm |
Main bearings | Four | Five | Five | Five | Five | Five | Five | Five |
Valve lifters | Hydraulic | |||||||
Carburetor | 2-barrel Rochester 2GC | 2-barrel Rochester | 2-barrel Rochester 2GC | 4-barrel Rochester M4MC | 4-barrel Rochester M4MC | 4-barrel Rochester M4MC | 4-barrel Rochester M4MC | 4-barrel Rochester M4MC |
Three-speed manual floor shift |
Four-speed manual shift |
Three-speed automatic |
FEATURE | Firebird | Esprit | Formula | Trans Am |
---|---|---|---|---|
Wheelbase | 108.1 in. | 108.1 in. | 108.1 in. | 108.1 in. |
Overall length | 196.8 in. | 196.8 in. | 196.8 in. | 196.8 in. |
Height | 49.3 in. | 49.3 | 49.5 | 49.5 |
Width | 73.4 | 73.4 | 73.4 | 73.4 |
Front tread | 60.9 | 60.9 | 61.3 | 61.2 |
Rear tread | 60.0 | 60.0 | 60.4 | 60.3 |
Tires | FR78x15 | FR78x15 | FR78x15 | GR70x15 |
Steering | Recirculating ball | |||
Front suspension | coil springs with lower trailing links and anti-sway bar | |||
Rear suspension | semi-elliptic leaaf springs with anti-sway bar | |||
Brakes | Front disc, rear drums | |||
Ignition | Electronic | |||
Body construction | Unit with separate partial frame | |||
Fuel tank | 21 gal |
1978 Firebird Notes
