Dream Car Giveaway



1992 CORVETTE

flag

Another year of little change in the makeup of the Corvette line.

  • The ZR-1 was basically a carry-over from the previous year with new model badges above the rear fender vents.
  • Standard Corvette models received an upgraded 300-hp 5.7-liter V-8 as well as Acceleration Slip Regulation.
  • The ZR-1 was again powered by the 32-valve DOHC 5.7-liter V-8 matched with a six-speed transaxle.
  • Corvette models used the aforementioned more powerful 5.7-liter V-8 fitted with the four-speed overdrive automatic or optional six-speed manual transmission.
  • Both models had new rectangular exhausts.
  • A new all-black dash treatment, relocated digital speedometer and improved instrument graphics were adopted.
  • A Traction Control system became standard equipment along with new Goodyear GS-C tires.
  • Corvettes colors were
    • White
    • Yellow
    • Black
    • Bright Aqua Metallic
    • Polo Green II Metallic
    • Black Rose Metallic
    • Dark Red Metallic
    • Quasar Blue Metallic
    • Bright Red
  • Interiors came in Blue; Beige; Black; Light Beige; Light Gray; Red; and White.
  • Standard features included a removable body-color roof panel for hatchbacks or a convertible top.
  • All Corvette convertible buyers had a choice of Beige, Black, and White top colors and a Blue top was available with White Corvettes only.
  • Also standard was Black cloth upholstery.

V.I.N. NUMBERS

  • The serial number [Vehicle Identification Number -- VIN] was stamped on a plate on the inner vertical surface of the left windshield pillar visible through the windshield.
  • The coupe serial numbers ranged from 1G1YY23P*N5100001 to 1G1YY23P*N5119977
  • The convertible serial numbers ranged from 1G1YY33P*N5100001 to 1G1YY33P*N5119977
  • The ZR1 serial numbers ranged from 1G1YZ23J*N5800001 to 1G1YZ23J*N5800501
Position Character Description
1 1 US built
2 G General Motors product
3 1 Chevrolet Motor Division vehicle
4 & 5 YY Basic Corvette
YZ Corvette ZR-1
6 2 or 3 Body style number
  • 2 = Two door hatchback style 07, 08, 77, or 87
  • 3 = Two door convertible style 67
7 1 or 2 1=Manual seat belts
2=Active manual belts with driver and passenger inflatable restraint system
3=Active manual belts with driver-inflatable restraint system
4=Passive automatic belts
5=Passive automatic belts with driver inflatable restraint system
8 P LT1 5.7-liter Multiport-Fuel-Injection (MFI) Chevrolet or GM of Canada V8
J LT5 - 5.7-liter MFI V-8
9 ? A check digit that calculates the characters in the serial number and gives it a single digit code and can be used to verify that the serial number is legitimate
10 N The model year where 1992
11 5 Bowling Green, KY
12-17 100001 and up production sequence for coupes and convertibles
800001 and up production sequence for ZR-1s
  • Corvette engines have the last six digits of the VIN stamped on the block just ahead of the cylinder head on the right-hand side combined with a three-letter engine code suffix
  • Also cast into the top rear of the block is a four-symbol code indicating when the engine was built
    • The first letter of the date code shows the month the block was cast
    • The one or two numbers shows the month
    • The last digit shows the year
  • Engine suffixes:
Code Engine Horsepower Compression Transmission Fuel Supply Extra features
ZAC LT1 350-cid 300-hp V-8 10.3:1 automatic multi-port injection
ZUB LT1 350-cid 300-hp V-8 10.3:1 manual multi-port injection
ZAA LT5 350-cid 375-hp V-8 11.0:1 manual multi-port injection
  • The 1992 Corvette exterior colors were:
    • 10 = White
    • 35 = Yellow
    • 41 = Black
    • 43 = Bright Aqua Metallic
    • 45 = Polo Green II Metallic
    • 73 = Black Rose Metallic
    • 75 = Dark Red Metallic
    • 80 = Quasar Blue Metallic
    • 81 = Bright Red
  • Upholstery Codes
Color Cloth Upholstery Leather Upholstery
Black 19C 193
White   103
Light Gray   143
Light Blue   643
Red   733

IDENTIFICATION

Model Model No. Body/Style No. Body Type Factory Price Shipping Weight Production Total
Coupe 1YY Y07
2-dr. Hatch Coupe - 2 passenger

2-dr. Hatch Coupe - 2 passenger

 $33,635 3223 14,604
Convertible 1YY Y67
2-dr. Convertible - 2 passenger

2-dr. Convertible - 2 passenger

 $40,145 3263 5,875
ZR-1 1YZ Z07
2-dr. Hatch Coupe - 2 passenger

2-dr. Hatch Coupe - 2 passenger

 $65,318 3465 502

ENGINE

Feature Standard Engine (RPO LT1) ZR-1 Engine (RPO LT5)
Type V-8, 90-degree Overhead valve V-8, 90-degree Overhead valve with 4 valves per cylinder and 4 overhead camshafts
Block Cast iron block and cylinder head Cast iron block and cylinder head
Displacement 350 cid (5.7 liters) 350 cid (5.7 liters)
Bore & Stroke 4.00" x 3.48" 4.00" x 3.48"
Compression ratio 10.3:1 11.0:1
Brake horsepower 300 @ 5000 375 @ 5800 rpm
Torque 330 lb-ft @ 4000 370 lb-ft @ 5600
Main bearing five five
Valve lifters hydraulic hydraulic
Fuel supply Multi-port injection (MPI) system Multi-port injection (MPI) system

TRANSMISSION

  • Four Speed Turbo Hydra-Matic Automatic Transmission (TMH 700-R4) with floor-mounted gear shifter
  • Six-speed Manual with overdrive and floor-mounted gear shifter

CHASSIS

Feature Coupe Convertible ZR-1
Wheelbase 96.2 inches (2.443 m) 96.2 inches (2.443 m) 96.2 inches (2.443 m)
Overall length 176.6 inches (4.486 m) 176.6 inches (4.486 m) 178.5 inches (4.534 m)
Overall width 71.1 inches (1.806 m) 71.1 inches (1.806 m) 73.1 inches (1.857 m)
Overall height 46.3 inches (1.176 m)   46.3 inches (1.176 m)
Front tread 57.7 inches (1.466 m) 57.7 inches (1.466 m) 57.7 inches (1.466 m)
Rear tread 59 inches (1.499 m) 59 inches (1.499 m) 60.6 inches (1.539 m)
Front Tires P275/40ZR-17 Goodyear Eagle GT P275/40ZR-17 Goodyear Eagle GT P275/40ZR-17 Goodyear Eagle GT
Rear Tires P275/40ZR-17 Goodyear Eagle GT P275/40ZR-17 Goodyear Eagle GT P315/35ZR-17 Goodyear Eagle GT
Steeringrack and pinion (power assisted)
Front suspensionSingle fiberglass composite monoleaf transverse spring with unequal-length aluminum control arms and stabilizer bar
Rear suspensionFully independent five-link system with transverse fiberglass single-leaf springs, aluminum upper/lower trailing links and strut-rod tie-rod assembly
BrakesFour-wheel power disc
Body constructionFiberglass; separate ladder frame with cross-members
Fuel tank20 US Gal (16.7 Imp Gal) (76 liters)

OPTIONS

RPO AC1 Power passenger seat $305
RPO AC3 Power driver seat $305
RPO AQ9 Leather sports seats $1,100
RPO AQ9 White leather sports seats $1,180
RPO AR9 Base leather seats $425
RPO AR9 Base White leather seats $555
RPO CC2 Auxiliary hardtop for convertible $1,995
RPO C2L Dual removable roof panels for coupe $950
RPO 24S Removable roof panels with blue tint for coupe $650
RPO 64S Removable roof panels with bronze tint for coupe $650
RPO C68 Electronic air conditioning control $205
RPO FX3 Electronic Selective Ride & Handling system $1,695
RPO G92 Performance axle ratio 3.07:1 $50
RPO MN6 Six-speed manual transmission no-cost option
RPO NN5 California emissions requirements $100
RPO UJ6 Low tire pressure warning indicator $325
RPO UU8 Delco-Bose stereo system $823
RPO UlF Delco-Bose stereo system with compact disc changer $1219
RPO V56 Luggage rack for convertible $140
RPO Z07 Adjustable suspension package tor hatchback coupe $2,045
RPO ZR-1 Special performance package for hatchback coupe $31,683

HISTORICAL NOTES

1992 Corvette Notes

  • Model-year production: 20,479.
  • Calendar-year sales: 19,819.
  • The 1,000,000th Corvette was produced on July 2,1992.
  • It was a 1992 Corvette convertible and was posed for a factory publicity photograph alongside a first-year 1953 Corvette.
  • With the introduction of the base LT1 V-8, the introduction of an Acceleration Slip Regulation (ASR) traction-control system as standard equipment and the standard use of Goodyear Eagle GS-C high-performance tires with directional and asymmetrical tread design, Chevrolet Motor Division could advertise that "The all-around performance of the Corvette has been raised to the highest point in the car's 39-year history."
  • Eight major factors contributed to the increased power of the LT1 engine:
    1. A reverse-flow cooling system
    2. Computer-controlled ignition timing
    3. A low-restriction exhaust system incorporating a two-piece converter and exhaust-runner assembly for easier service access
    4. The use of high-compression-ratio pistons
    5. The use of a new camshaft profile
    6. The use of new free-flowing cylinder heads
    7. The use of four-bolt main bearing caps on the three center bearings
    8. The use of new synthetic SW-30 engine oil (also eliminating the need for a separate engineoil cooler).
  • An LT1-powered Corvette with automatic transmission was tested for 0-to-60 mph in 5.26 seconds and did the quarter mile in 13.9 seconds at 102.2 mph.
  • An LT1-powered Corvette with the six-speed manual transmission was tested for 0-to-60 mph in 4.92 seconds and did the quarter mile in 13.7 seconds at 103.5 mph.
  • A 1992 Corvette ZR-1 with standard manual transmission was tested for 0-to-60 mph in 4.3 seconds and did the quarter mile in 12.9 seconds.
  • This proved that the LT1 engine had dramatically narrowed the performance gap between the base Corvette and the much more expensive ZR-1 Corvette.
  • On August 28, 1992, Chevrolet Motor Division announced that David McLellan would be retiring as Corvette chief engineer.
  • McLellan had taken over the Corvette program after the retirement of Zora Arkus-Duntov in 1975.
  • Chevy's assistant manager of public relations Tom Hoxie said in 1992, "During McLellan's 18-year tenure he transformed the Corvette from an American muscle car into an internationally-acclaimed, high-performance sports car that runs rings around a host of more expensive European and Japanese models."
  • Said McLellan, "I can't think of a better time for me to be leaving.
  • No manufacturer has ever built one million sports cars and at the age of 40 the Corvette is stronger than it's ever been.
  • Our all-new car is a few years old and it's time to let someone else put their stamp on it."

PHOTOS

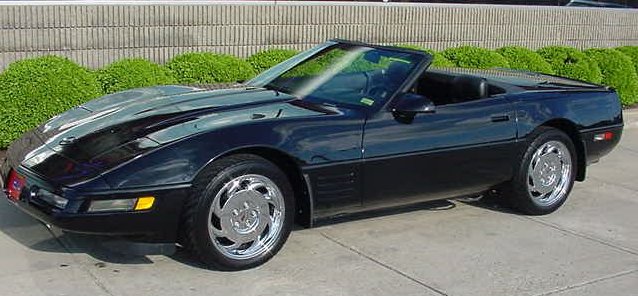

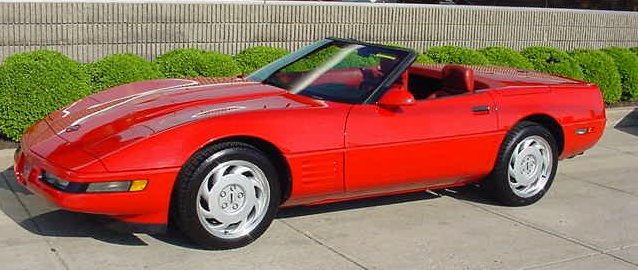

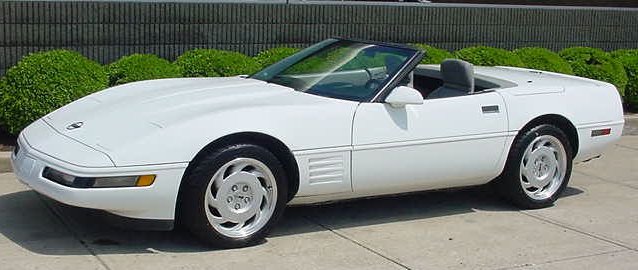

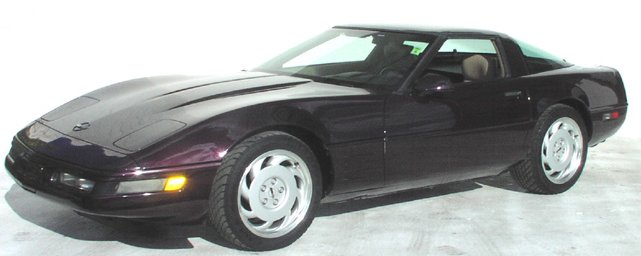

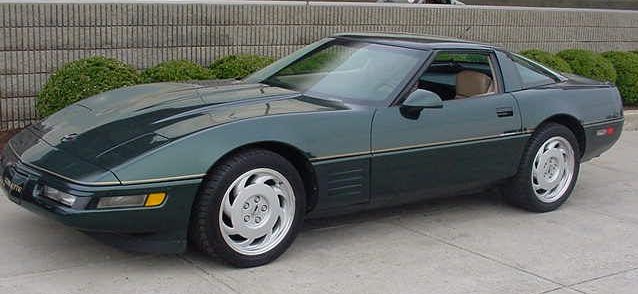

1992 Corvette
