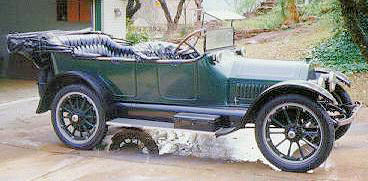

1914 Cadillac Touring

Same as 1913 except:


Bodies

  • Torpedo body no longer available.
  • Landaulet treatment on Coupe.
  • Five passenger "Inside drive Limousine" (actually a center door sedan) is a new style.
  • Hinged steering wheel and hinged driver's seat cushion facilitate entrance and exit for front seat passengers at right side of car.
  • With smaller side lamps, bodies now have the appearance of enclosing the occupants and all the machinery.

Chassis

  • Hinged steering wheel.
  • Speedometer drive located in left steering knuckle.

Drive line:

  • Rear axle changed to Timken two-speed.

Engine

  • Second ignition system for auxiliary use only.
  • One distributor, one set of spark plugs.
  • Fuel tank moved to rear of chassis.
  • Hand pump on dash to pressurize tank for starting, camshaft driven pump for running.
  • Power tire pump standard equipment.

I.D. DATA

There were no serial numbers for the 1914 Cadillac.

Engine numbers were stamped on top surface of crankcase--in front of and to the left of number one (front) cylinder.

Engine No.: 91005-99999: A-1 - A-5008.

STYLE

Model Number Body Series Passengers Price
NA 4-dr. Touring 7 $2075
NA 4-dr. Touring 5 $1975
NA 4-dr. Phaeton 4 $1975
NA 2-dr. Roadster 2 $1975
NA 2-dr. Landaulet Coupe 3 $2500
NA 4-dr. Standard Limousine 7 $3250
NA 2-dr. Inside Drive Limousine 5 $2800

ENGINE

Description Vertical, in-line, L-head. Four cylinder. Individual cast iron cylinders, copper water jacket
Bore & Stroke 114.3mm x 146.1mm
Displacement 5.997 Liters
Brake Horsepower 40-50 N.A.C.C. H.P.: 32.4
Main bearings Five
Valve lifters Mechanical -- push rod -- roller cam followers
Carburetor Float feed; made by Cadillac to C. F. Johnson patents

CHASSIS

1914 Cadillac

Click to supersize

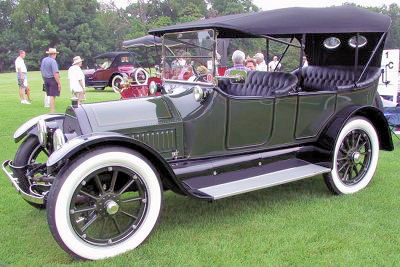

1914 Cadillac Touring

Standard Wheelbase 3048mm
Special Chassis Wheelbase 3404mm
Front/Rear Tread 1422mm; optional: 1549mm
Tires 36 x 4-1/2

DRIVETRAIN

Transmission Selective, sliding gear transmission
Speeds 3 Forward and one Reverse
Steering position Right hand drive, controls to right
Clutch Leather faced cone clutch
Drive Shaft drive
Axle Full floating rear axle
Differential two-speed bevel drive, bevel gear differential
Overall ratio 3.67:1 or 2.5:1
Brakes Mech. brakes on two wheels -- service / foot / contracting -- emerg./lever/expanding
Wheels Wood artillery wheels, 10 & 12 spoke, demountable rims
Wheel size 27 in.
Optional Final drive ratios 4.07 or 2.50:1

OPTIONS

Seat covers $32.50 - 65.00
Handy lamp $2.00

HISTORICAL NOTES

1914 Cadillac Notes

  • Introduced July, 1913.
  • Innovations: Production two-speed rear axle.
  • Model year sales: 14,002.
  • Henry M. Leland was president and general manager
  • D. McCall White replaced Frank Johnson as chief engineer
  • Earl C. Howard was general sales manager
  • Cadillac introduces a high-speed V-8 engine in September of 1914 for the 1915 model year
  • The last four cylinder Cadillac for 67 years; and the final use by Cadillac of Alanson Brush design features.
  • A 1914 Cadillac Touring (engine number 92,524) was awarded the 1913 Dewar Trophy as a result of electrical and two-speed-axle performance during a 1000-mile test conducted in September/October 1913.
