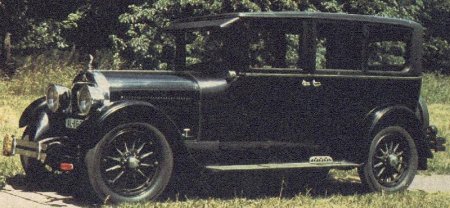

The V-63 was a continuation of the 1924 line, expanded to include the "Custom" line introduced in October, 1924.
Serial numbers were not used.
Engine numbers were stamped on the crankcase just back of the right hand bank of cylinders, and on a plate on the dash.
Starting: 63-H:1551. Ending: 63-M-2572.
Standard Body Styles | |||
---|---|---|---|
Style No. | Body Type | Seating | Price |
1149 | 4-dr. Touring | 7 | $3185 |
1150 | 4-dr. Phaeton | 4 | $3185 |
1151 | 2-dr. Roadster | 2/4 | $3185 |
5690 | 2-dr. Victoria | 4 | $3485 |
6150 | 4-dr. Sedan | 5 | $3835 |
5700 | 4-dr. Landau Sedan | 5 | $3835 |
5680 | 4-dr. Sedan | 7 | $3885 |
6030 | 4-dr. Imperial Sedan | 7 | $4010 |
6010 | 2-dr. Coach | 5 | $3185 |
"Custom" Body Styles | |||
---|---|---|---|
Style No. | Body Type | Seating | Price |
5750 | 4-dr. Sedan | 5 | $4550 |
5720 | 4-dr. Suburban | 7 | $4650 |
NA | 4-dr. Imperial Sedan | 5 | - |
5760 | 4-dr. Limousine | 7 | - |
5730 | 4-dr. Imperial Suburban | 7 | $4950 |
5770 | 4-dr. Town Brougham | 7 | $- |
5740 | 2-dr. Coupe | 5 | $4350 |
5710 | 2-dr. Coupe | 2 | $3975 |
Engine Type | Ninety degree V-8. L-Head. Cast iron blocks of four on Aluminum crankcase. |
Bore and Stroke | 79.4mm x 130.2mm |
Displacement | 5.153 Liters |
Brake Horsepower | "over 80 horsepower" |
S.A.E./N.A.C.C. H.P. | 31.25. |
Main bearings | Three. |
Valve lifters | Rockers with roller cam follower acting on mechanical lifters |
Carburetor | float feed, auxiliary air control; manufactured by Cadillac under C. F. Johnson patents. |
All Standard body styles & Custom 2-P Coupe | Special Chassis | All Custom body styles except 2-P Coupe | |
---|---|---|---|
Wheelbase | 3353mm | 3683mm | 3505mm |
Front/Rear Tread | 1422mm | 1422mm | 1422mm |
Tires | 33 x 5 | 33 x 5 | 33 x 5 |
Transmission | Selective sliding gear transmission. Case in unit with engine |
Speeds | 3 Forward and 1 Reverse |
Controls | Left drive, center control (right hand drive optional) |
Clutch | Multiple disc, dry plate clutch |
Drive | Shaft drive |
Axle | Spiral bevel, full floating rear axle |
Overall ratio | 4.50:1, 4.91:1 |
Brakes | Mechanical brakes on four wheels |
Wheels | Wood artillery wheels, demountable rims, 12 spoke |
Wheel size | 23 in. |
Optional Drive ratio | 4.15:1, 5.55:1 |
