General Features

EXTERIOR
- Front and rear body color bumpers
- Coefficient of drag: 0.29
- Day time running lights
- Driver and passenger power heated body color door mirrors
- Conventional lens halogen bulb concealed headlights
- Heat reflective glass
- Luxury trim leather on gearknob
- Metallic paint, black paint, gloss paint
- Rear window
- Tinted glass on cabin
- Windshield wipers with variable intermittent wipe
INTERIOR
- Air conditioning with climate control
- Fixed mast antenna
- Peripheral anti-theft protection
- Front ashtray
- Audio anti-theft protection: code
- Bose audio system with AM/FM
- Cargo area light
- Cargo capacity: all seats in place (liters): 377
- Front seats cigar lighter
- Clock
- Computer with average speed, average fuel consumption, instantaneous fuel consumption and range for remaining fuel
- Dashboard full console , floor full console with covered storage box
- Delayed/fade courtesy lights
- Cruise control
- Front seats cup holders
- Door ajar warning
- External temperature
- Floor covering: carpet in load area
- Floor mats
- Driver front airbag , passenger front airbag with occupant switch off
- Sports seat , sports seat
- 3-point reel front seat belts on driver seat and passenger seat
- Front seat center armrest
- Lockable glove compartment
- Two head restraints on front seats
- Illuminated entry system
- Low fuel level warning
- Low washer fluid level warning
- Remote power locks includes trunk/hatch
- Vehicle speed proportional power steering
- Front power windows with two one-touch
- Front reading lights
- Rear view mirror
- Remote fuel filler door release
- Remote control remote trunk/hatch release
- Leather seat upholstery with additional vinyl
- Seating: two seats
- Six speakers
- Leather covered steering wheel
- Tachometer
- Driver and passenger illuminated vanity mirror
- Ventilation system with recirculation setting
INTERNAL DIMENSIONS
- front headroom: 960mm (37.8")
- front hip room: 1377mm (54.2")
- front leg room: 1,085mm (42.7")
- front shoulder room: 1,405mm (55.3")

V.I.N. NUMBERS

IDENTIFICATION

Series No.	Body/Style No.	Body Type	Factory Price	Shipping Weight	Production Total
____	37	2-dr. Coupe - 2 passenger	$40,805	____ lb	____
____	67	2-dr. Conv - 2 passenger	$47,330	____ lb	____
____	__	2-dr. Hardtop - 2 passenger	$49,505	____ lb	____

ENGINE

Feature	5.7L-V8 (LS6)	5.7L-V8 (LS1)
Standard Availability	Z06	Coupe & Convertible
Displacement	5665cc (5.7 liters) (346 cu.in)
Type	OHV - V8 - front engine
Bore & Stroke	99mm x 92mm (3.90" x 3.62")
Compression ratio	10.5:1	10.1:1
Valving	Two valves per cylinder
Valve Lifters	Hydraulic Roller
Firing Order	1 - 8 - 7 - 2 - 6 - 5 - 4 - 3
Block	Cast Aluminum
Cylinder Head	Cast Aluminum
Fuel	Premium unleaded (93 octane)
Fuel supply	Multi-port sequential injection
Horsepower	405 hp @ 6000 rpm (302 kW)	350 hp @ 5600 rpm (261 kW)
Torque	400 lb-ft @ 4800 rpm (542 Nm)	375 lb-ft @ 4400 manual (508 Nm) 360 lb-ft @ 4000 rpm (489 Nm)automatic
Fuel Shut Off	6600 rpm	6000 rpm
Emissions Controls	Catalytic Converter Three-Way Catalyst Air Injection Reaction Positive Crankcase Ventilation
Assembly Location	St. Catharines, ON

EPA estimated fuel economy

	CITY	HIGHWAY	COMBINED
5.7L V8 LS1 (manual trans. coupe & conv.)	19mpg (12.4 L/100km)	28mpg (8.4 L/100km)	23mpg (10.2 L/100km)
5.7L V8 LS1 (auto trans. coupe & conv.)	18mpg (13.1 L/100km)	25mpg (9.4 L/100km)	21mpg (11.2 L/100km)
5.7L V8 LS6 (manual trans.)	19mpg (12.4 L/100km)	28mpg (8.4 L/100km)	23mpg (10.2 L/100km)

TRANSMISSION

	4-speed automatic	6-speed manual	6-speed manual
Available	standard on coupe & convertible	optional on coupe	standard on Z06
First gear ratio	3.06:1	2.66:1	2.97:1
Second gear ratio	1.63:1	1.78:1	2.07
Third gear ratio	1.00:1	1.30:1	1.43
Fourth gear ratio	0.70:1	1.00:1	1.00
Fifth gear ratio		0.74:1	0.84
Sixth gear ratio		0.50:1	0.56
Reverse gear ratio	2.29:1	2.90:1	3.28:1
Final drive ratio	2.73:1 (Std.) 3.15:1 (Opt.)	3.42:1	3.42:1

CHASSIS

Feature	Convertible	Coupe	Z06
Wheelbase	2656 mm (104.5 in.)	2656 mm (104.5 in.)	2656 mm (104.5 in.)
Length	4566 mm (179.7 in.)	4566 mm (179.7 in.)	4566 mm (179.7 in.)
Width	1869 mm (73.6 in.)	1869 mm (73.6 in.)	1869 mm (73.6 in.)
Height	1215mm (47.8 in.)	1212 mm (47.7 in.)	1212 mm (47.7 in.)
Curb weight	1456 kg. (3248 lb.)	1458 kg. (3246 lb.)	1414 kg. (3119 lb.)
Front track	1572mm (61.9")	1572mm (61.9")	1585mm (62.4")
Rear track	1574mm (62.0")	1574mm (62.0")	1590mm (62.6")
Brakes	Four disc brakes including four ventilated discs
Brake assist	ABS
Brake control	Electronic traction control via ABS & engine management
Front Tires	P245/45ZR-17 Goodyear Eagle F1 GS		P265/40ZR-17 Goodyear Eagle F1 SC Asymmetric Tread
Rear Tires	P275/40ZR-18 Goodyear Eagle F1 GS		P295/35ZR18 Goodyear Eagle F1 SC Asymmetric Tread
Spare Tire	Not available (assistance: emergency tire-inflator kit)
Immobilizer	yes
Limited slip differential	yes
Stability control	yes
Suspension	Double wishbone front and rear suspension with stabilizer bar independent with leaf springs
Steering	Speed sensitive power-assisted rack-and-pinion
Steering ratio	16.1:1
Steering turns(lock-to-lock)	2.66
Turning circle (curb to curb )	12,253mm (40.2')
Fuel tank	70 liter (18.5 US gal.) (15.4 Imp. gal.) premium unleaded
Cargo capacity	394 litres (13.9 cu. ft.)	702 litres (14.8 cu. ft.)	377 litres (13.3 cu. ft.)
Warranty	3 yrs/60,000 km (40,000 miles)

OPTIONS

in construction

HISTORICAL NOTES

2002 Corvette Notes

Durability was an important part of the Z06 design. Testing included 250 miles of autocross, 24 hours on the racetrack, and driving flat out at 275 kph for a full tank of fuel. Dave Hill says about the 24 hour track test, "It's one test that is severe enough to give Corvette the robustness our owners expect."
GM expects about 20% of the estimated 35,000 Corvettes to be built for the 2002 model year will be Z06 models.
The Z06 Corvette was designed for serious performance enthusiasts
2002 Corvette Z06 did the zero to 60 mph in 3.9 seconds
It did the quarter mile in 12.4 seconds

PHOTOS

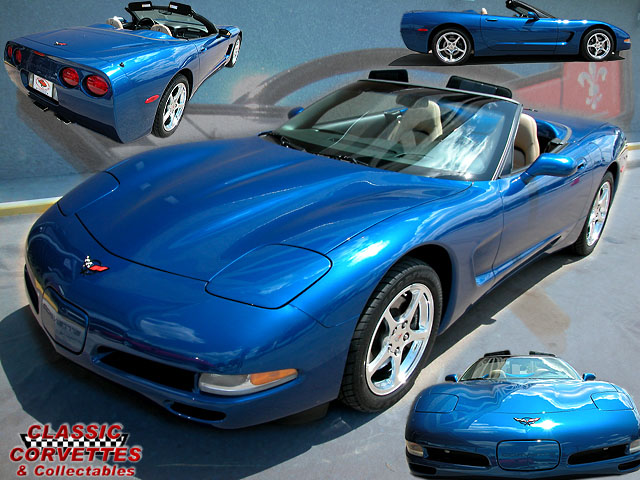

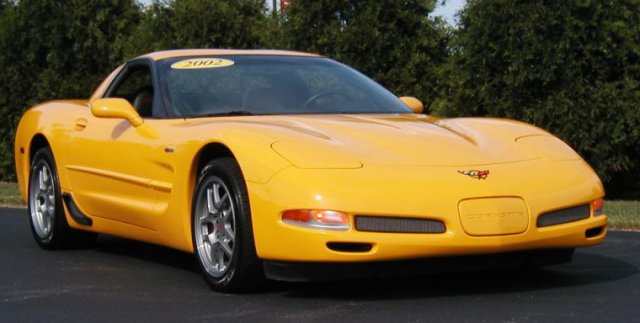

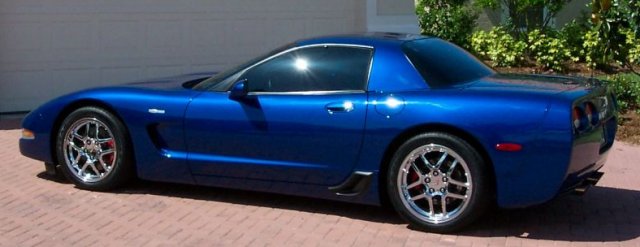

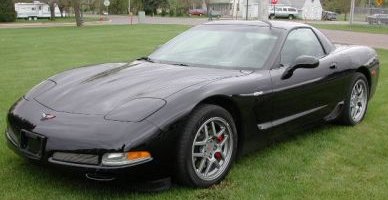

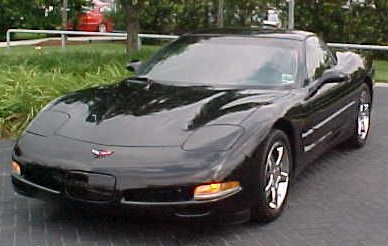

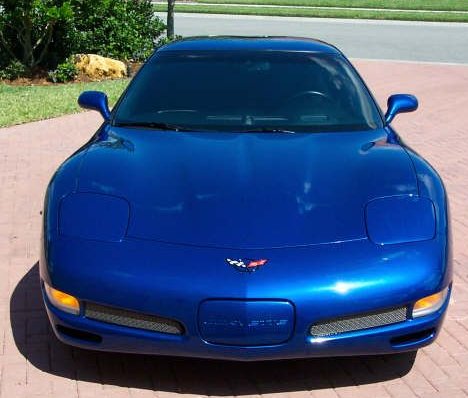

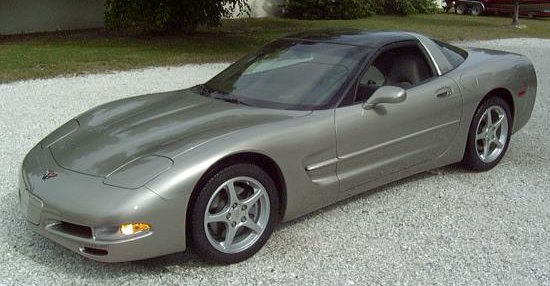

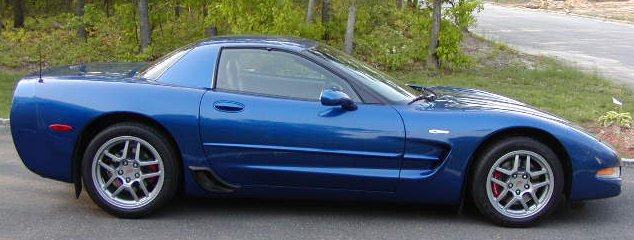

2002 Corvette
