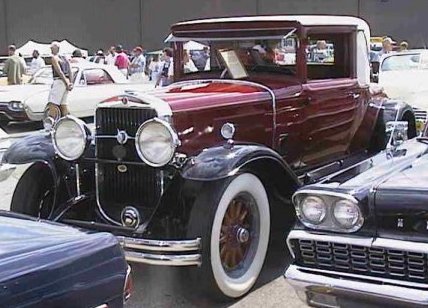

1929 Cadillac Sport Coupe
The series 341-B was similar to 1928 Cadillac Series 341-A except:
Bodies
Chassis:
Drive line:
Engine
Click to supersize

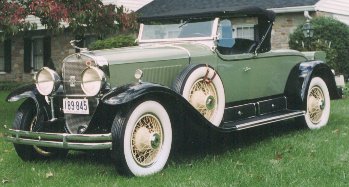

1929 Cadillac
There were no serial numbers used.
Engine numbers were stamped on the front of the dash and on the crankcase just below the water inlet on the right side.
Starting 320002. Ending: 338104.
| Fisher -- 140 in. wheelbase | |||||
|---|---|---|---|---|---|
| Style No. | Doors | Body Type | Seating | Price | Weight |
| 1182 | 4-dr. | Touring | 7P | $3450 | 2170 kg |
| 1193 | 4-dr. | Phaeton | 7P | $3450 | 2107 kg |
| 1183-B | 4-dr. | Sport Phaeton | 4P | $3950 | 2323 kg |
| 1184 | 2-dr. | Roadster | 2/4P | $3350 | 2126 kg |
| 8620 | 4-dr. | Sedan | 7P | $3795 | 2339 kg |
| 8630 | 4-dr. | Imperial Sedan | 7P | $3995 | - |
| 8640 | 4-dr. | Sedan | 5P | $3695 | 2285 kg |
| 8650 | 4-dr. | Imperial Sedan | 5P | - | - |
| 8660 | 4-dr. | Town Sedan | 5P | $3495 | 2285 kg |
| 8670 | 2-dr. | Coupe | 5P | $3595 | 2221 kg |
| 8680 | 2-dr. | Convertible Coupe | 2/4P | $3595 | 2180 kg |
| 8690 | 2-dr. | Coupe | 2/4P | $3295 | 2231 kg |
| Semi-Commercial - 152 in. wheelbase | |||||
|---|---|---|---|---|---|
| Style No. | Doors | Body Type | Seating | Price | Weight |
| NA | - | Limousine Funeral Coach | - | - | - |
| NA | - | Limousine Ambulance | - | - | - |
| Fleetwood - 140 in. wheelbase | |||||
|---|---|---|---|---|---|
| Style No. | Doors | Body Type | Seating | Price | Weight |
| 3830 | 4-dr. | Imperial | 5P | $4345 | 2332 kg |
| 3830-S | 4-dr. | Sedan | 5P | $4195 | 2327 kg |
| 3830-C | 4-dr. | Collapsible Imperial | 5P | $5045 | - |
| 3830-SC | 4-dr. | Collapsible Sedan | 5P | $4895 | - |
| 3830-L | 4-dr. | Imperial (leather back) | 5P | $4445 | - |
| 3930-SL | 4-dr. | Sedan (leather back) | 5P | $4295 | - |
| 3861 | 4-dr. | Imperial Town (club) Sedan | 5P | - | - |
| 3861-S | 4-dr. | Club Cabriolet | 5P | $4395 | 2327 kg |
| 3861-C | 4-dr. | Collapsible Imperial Club Cabriolet | 5P | - | - |
| 3861-SC | 4-dr. | Collapsible Club Cabriolet | 5P | $5095 | - |
| 3855 | 4-dr. | Imperial Cabriolet | 5P | $4345 | 2332 kg |
| 3855-S | 4-dr. | Sedan Cabriolet | 5P | $4195 | 2327 kg |
| 3855-C | 4-dr. | Collapsible Imperial Cabriolet | 5P | $5045 | - |
| 3855-SC | 4-dr. | Collapsible Sedan Cabriolet | 5P | $4895 | - |
| 3875 | 4-dr. | Imperial | 7P | $4545 | 2368 kg |
| 3875-S | 4-dr. | Sedan | 7P | $4295 | 2364 kg |
| 3875-C | 4-dr. | Collapsible Imperial | 7P | $5245 | - |
| 3875-L | 4-dr. | Imperial (leather back) | 7P | $4645 | - |
| 3875-SL | 4-dr. | Sedan (leather back) | 7P | $4395 | - |
| 3875-SC | 4-dr. | Collapsible Sedan | 7P | $4995 | - |
| 3875-X | 4-dr. | Imperial (full leather quarter) | 7P | $4795 | - |
| 3875-SX | 4-dr. | Sedan (full leather quarter) | 7P | $4545 | - |
| 3180 | - | All Weather Phaeton | 5P | $5750 | 2332 kg |
| 3880 | 4-dr. | Imperial All Weather Phaeton | 5P | $5995 | 2336 kg |
| 3512 | 4-dr. | Trans. Town Cabriolet | 5/7P | $5250 | 2355 kg |
| 3512-C | 4-dr. | Collapsible Touring Town Cabriolet | 5/7P | $5950 | 2355 kg |
| 3520 | 4-dr. | Trans. Town Cabriolet | 7P | $5500 | 2355 kg |
| 3520-C | 4-dr. | Collapsible Touring Town Cabriolet | 7P | $6200 | 2355 kg |
| 3525 | 4-dr. | Trans. Town Cabriolet | 7P | $5500 | 2355 kg |
| 3525-C | 4-dr. | Collapsible Touring Town Cabriolet | 7P | $5500 | 2355 kg |
| 3591 | 4-dr. | Touring Limousine Brougham | 7P | $5500 | 2355 kg |
| 3591-C | 4-dr. | Collapsible Touring Landau Brougham | 7P | $6200 | 2355 kg |
| 3550 | 4-dr. | Full Collapsible Touring Cabriolet | 7P | $6700 | - |
1929 Cadillac
1929 Cadillac Model 341
| Engine description | Ninety degree V-8, L-head. Eight cylinder. Cast iron block on Copper/Aluminum crankcase. |
| Bore and Stroke | 84.1mm x 125.4mm |
| Displacement | 5.581 Liters |
| Compression ratio | 5.3:1 std. 4.8:1 opt. |
| Brake H.P. | 90 plus advertised. |
| SAE/Taxable/N.A.C.C. H.P. | 35.1 |
| Main bearings | Three |
| Valve lifters | Mechanical, with rollers riding on cams |
| Carburetor | Manufactured by Cadillac under C. F. Johnson patents. |
| Compression | 90-92 psi @ 1000 R.P.M., 105-107 psi @ 1000 RPM with hi-compression heads |
Click to supersize

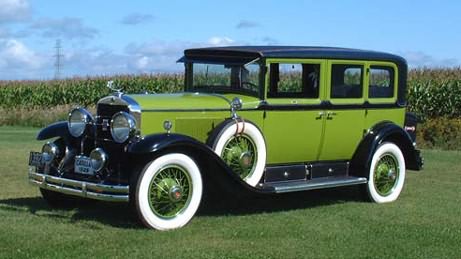

1929 Cadillac
| Series 341-B | Series 341-B Commercial Chassis | |
|---|---|---|
| Wheelbase | 3556mm | 3861mm |
| Overall Length | 5417mm | - |
| Front Tread | 1422mm | 1422mm |
| Rear Tread | 1473mm | 1473mm |
| Tires | 7.00-20 (32 x6.75) | 7.00-20 (32 x 6.75) |
Click to supersize

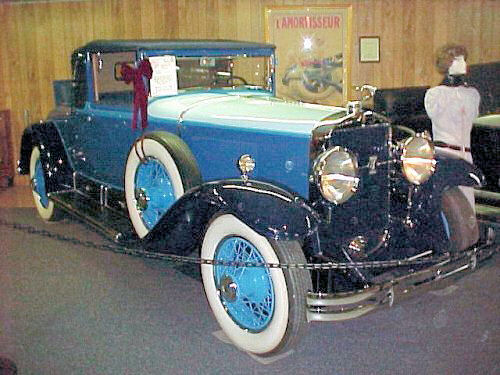

1929 Cadillac
| Transmission | Selective synchromesh transmission |
| Speeds | 3 Forward, 1 reverse |
| Controls | Left drive, center control (rhd opt) |
| Clutch | Twin disc clutch |
| Drive | Shaft drive (torque tube) |
| Axle | Full floating rear axle, spiral bevel drive |
| Overall ratio | 5.08:1 std; 4.75:1, 4.39:1 opt. |
| Brakes | Duplex-mechanical brakes on four wheels. All shoes inside drums |
| Drum size | 16-1/2 in. |
| Wheels | Wood artillery wheels (wire and disc opt) |
| Wheel size | 20 in. |
1929 Cadillac
1929 Cadillac
Click to supersize

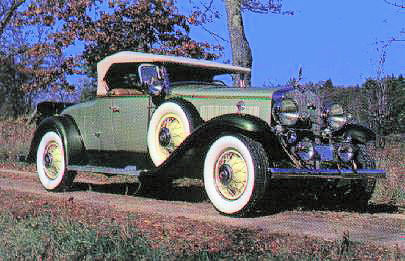

1929 Cadillac
1929 Cadillac Notes
