SERIES 341-A

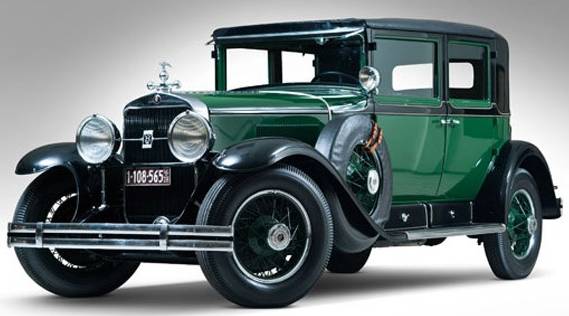

1928 Cadillac V8 Town Sedan owned by Al Capone
1928 Cadillac V8 Town Sedan owned by Al Capone

Body

  • General Motors now owned 100% of Fisher and had purchased Fleetwood and made it a division of Fisher.
  • Practically all of Fleetwood's output was now on Cadillac/LaSalle chassis, and most Cadillac/LaSalle catalog or full customs were by Fleetwood.
  • By using several variations and combinations of treatment above the belt line on a few basic body shells, Fleetwood was able to satisfy most customers' special desires and still offer short delivery (3-7 weeks).
  • For the few who wanted something truly unique, Fleetwood produced full customs to order (4 months delivery).
  • The Fisher and Fisher "Custom" lines were merged.
  • The Victoria was dropped.
  • The two door Brougham was replaced by the four door Town Sedan.
  • Funeral Coaches, Ambulances, and a combination of the two were offered on the new 3861mm wheelbase chassis; bodies by Superior.
  • All passenger car bodies were on a 3556mm chassis.
  • The longer wheelbase and underslung rear springs allowed for long, low-slung body lines.
  • The deep, narrow, cellular radiator slung low in the frame and the slatted metal cover sweeping down over the fuel tank contributed to this effect, but the kick panels under the doors detracted somewhat.
  • Massive 300mm bullet type headlights were mounted on a crossbar between the fenders.
  • A monogram rod was attached between the headlights and nickeled wire-conduit stanchions were placed between headlights and frame.
  • Matching sidelights were mounted on the cowl.
  • Dual ball-shaped rear lights were fender mounted.
  • The top of the hood and radiator shell were flattened and thirty narrow louvers were set toward the rear of the side panels.
  • Dual ventilator doors were in the top of the cowl on open cars and in the sides on closed cars.
  • The wind split on the lights was also featured in panels and moldings on the hood and cowl.
  • An extra wide single belt molding blended into the cowl and hood, as well as the pillars.
  • The monogram panel on four door open bodies was back to rear-doors-only.
  • Fleetwood bodies featured a molding sweeping down and forward on the sides of the cowl, except on the transformables, which had a bold molding sweeping up the cowl and forward across the top of the hood.
  • Other body details included 89mm wider rear compartment (rear tread had been increased by 51mm), adjustable front seats on all but Imperials, and bumpers as standard equipment on all cars.

Chassis

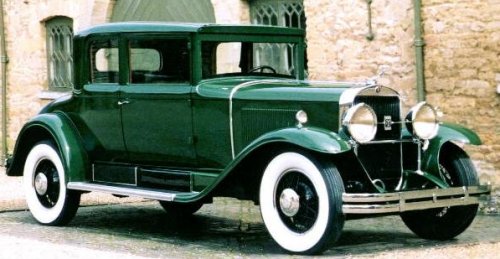

1928 Cadillac Victoria
1928 Cadillac Victoria
  • Front brake drums increased from 406mm to 432mm in midyear.
  • Rear springs under-slung.
  • Fuel tank filler neck extended outside frame side rail.
  • Hydraulic shock absorbers.
  • Rear tread increased to 1473mm

Drive line:

  • New twin disc clutch, cast iron transmission housing, torque tube drive.

Engine

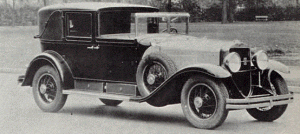

1928 Cadillac 314 Victoria Coupe
1928 Cadillac 314
Victoria Coupe
  • New bore and stroke dimensions of 84mm x 125mm were the first change for the Cadillac V-8 since the Type 51.
  • The transition which had started with the final version of the Series 314 engine was now complete; the 341 Cadillac engine and the 303 LaSalle engine were practically identical in configuration.
  • The 341 now had offset blocks, side by side connecting rods, single exhaust system, horizontal starter along right side of transmission, oil filter mounted on engine, oil level indicator behind right hand block, manifold vacuum plus vacuum pump operating fuel feed system and windshield wipers.
  • Aside from differences due to displacement and power, the only noticeable difference was the enameled heat deflector over the Cadillac carburetor.

I.D. DATA

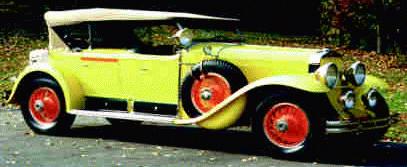

1928 Cadillac Sport Phaeton
1928 Cadillac Sport Phaeton
  • There were no serial numbers used.
  • Engine numbers were stamped on plate on front of dash and on crankcase just below the water inlet on the right side.
  • Starting: 300001. Ending: 320001.

STYLE

Fisher -- 140 in. (3556mm) wheelbase
Style No.DoorsBody TypeSeatingPriceWeight
11732-dr.Roadster2/4P$33502086 kg
11714-dr.Touring7P$34502105 kg
11724-dr.Phaeton4P$34502109 kg
1172-B4-dr.Sport Phaeton4P$39502339 kg
79202-dr.Coupe2/4P$32952191 kg
79802-dr.Convertible Coupe2/4P$34952120 kg
79702-dr.Coupe5P$34952164 kg
79504-dr.Sedan5P$35952218 kg
79604-dr.Town Sedan5P$33952216 kg
7960-L4-dr.Town Sedan5P$33952216 kg
79304-dr.Sedan7P$36952257 kg
79904-dr.Imperial Sedan5P$37452239 kg
7990-L4-dr.Imperial Cabriolet5P$37452239 kg
79404-dr.Imperial Sedan7P$38952284 kg
7940-L4-dr.Imperial Cabriolet7P$38952284 kg
Semi-Commercial -- 152 in. (3861mm) wheelbase:
Style No.DoorsBody TypeSeatingPriceWeight
NA-Limousine Funeral Coach---
NA-Limousine Ambulance---
Fleetwood -- 140 in. (3556mm) wheelbase
Style No.DoorsBody TypeSeatingPriceWeight
80204-dr.Sedan5P$40952327 kg
8020-L4-dr.Sedan (leather back)5P--
80304-dr.Imperial Sedan5/7P$42452311 kg
8030-L4-dr.Imperial Sedan (leather back)5/7P--
80254-dr.Sedan Cabriolet5P$40952327 kg
80354-dr.Imperial Sedan Cabriolet5/7P$42452311 kg
80454-dr.Sedan Cabriolet6P$40952327 kg
8045-C4-dr.Collapsible Landau5P$4795-
80554-dr.Imperial Sedan Cabriolet5/7P$42452311 kg
80004-dr.Sedan7P$41952291 kg
8000-L4-dr.Sedan (leather back)7P--
80104-dr.Imperial7P$44452355 kg
8010-L4-dr.Imperial (leather back)7P--
80054-dr.Sedan Cabriolet7P$41952291 kg
80154-dr.Imperial Cabriolet7P$44452355 kg
35254-dr.Trans. Town Cabriolet7P$55002355 kg
3525-C4-dr.Touring Town Collapsible Landeau7P$6200-
35124-dr.Trans. Town Cabriolet5/7P$50002355 kg
3512-C4-dr.Touring Town Collapsible Landeau-$5700-
35204-dr.Trans. Town Cabriolet7P$55002355 kg
3520-C4-dr.Touring Town Collapsible Cabriolet7P$6200-
35914-dr.Touring Limousine Brougham7P$55002355 kg
3591-C4-dr.Touring Collapsible Limousine Brougham.7P--
3550-Full Collapsible Cabriolet (on order)---
3550-C-(Town Car with full collapsible top)7P--

Note: The following body styles are listed as Fleetwood 341, 341-A, 341-B, but are unconfirmed. All are on 3556 mm wheelbase except as noted. Included must be full customs and one-off variations of catalog customs.

1928/1929 CADILLAC
SERIES 342-A, 341-B
Style No.Body TypeSeating
3015Limousine 138" wheelbase7
3097Limousine5
3133All Weather Touring5
3135Special Town Cabriolet-
3144Sedan 132" wheelbase4
3174Sport Cabriolet5
3185Sedan7
3199Coupe2
3208Imperial Cabriolet 152" wheelbase5
3238Club Cabriolet5
3274Sport Cabriolet Sedan5
3300Convertible Cabriolet7
3360Sedan5
3360-SImperial5
3361Sedan5
3361-SImperial5
3375Sedan7
3375-SImperial7
3376Sedan7
3412Town Car 152" wheelbase7
3435Town Car 152" wheelbase7
3475Limousine7
3512-PTown Car5
3512-C-PTown Car5
3515Limousine7
3520-PTown Car5
3520-C-PTown Car7
3525-PTown Car7
3525-C-PTown Car7
3591-PTown Car7
3591-C-PTown Car7
3885Convertible Sedan-
3891Imperial Sedan7

ENGINE

Engine type Ninety degree V-8, L-head. Eight. Cast Iron block on Copper/Aluminum crankcase
Bore and Stroke 84.1mm3-5/16 x 125.4mm
Displacement 5.581 Liters
Compression ratio 4.8:1 std., 5.3:1 opt.
SAE/Taxable/N.A.C.C. H.P. 35.1
Main bearings Three
Valve lifters Mechanical, with rollers riding on cams
Carburetor Mfg by Cadillac under C. F. Johnson patents.
Compression 90-92 PSI @ 1000 R.P.M., 105-107 PSI @ 1000 RPM with hi-compression heads

CHASSIS

  Series 341-A Series 341-A Comm Chassis
Wheelbase 3556mm 3861mm
Overall Length 5417mm -
Front Tread 1422mm 1422mm
Rear Tread 1473mm 1473mm
Tires 32 x 6.75 (7.00-20) 32 x 6.75 (7.00-20)

DRIVETRAIN

Transmission Selective transmission
Speeds 3 Forward, 1 Reverse
Controls Left hand drive, center control (rhd opt)
Clutch Twin disc clutch
Drive Shaft drive (torque tube)
Axle Full floating rear axle, Spiral bevel drive
Overall ratio 4.75:1 std; 4.39:1, 5.08:1 opt.
Brakes Mechanical brakes on four wheels 16" rear drums, 16" front drums (17" front mid-year)
Wheels Artillery wheels (wire and disc opt)
Wheel size 20 in.

OPTIONS

Folding trunk rack$25.00
Step plate$3.25 ea.
Tire mirrors$30.00
Wind wings$15.00-30.00
Trunks$65.00-100.00
Herald ornament$12.00
Seat covers, Spotlight$35.00
Tire covers$10.00
Tonneau windshield$120.00
Natural wood wheels$10.00 extra
5 disc wheels$20.00
6 disc wheels, fender wells, 2 spares$175.00
5 wire wheels$95.00
6 wire wheels, fender wells, 2 spares$250
Fender wells for wood wheels, 2 spares$140.00

HISTORICAL NOTES

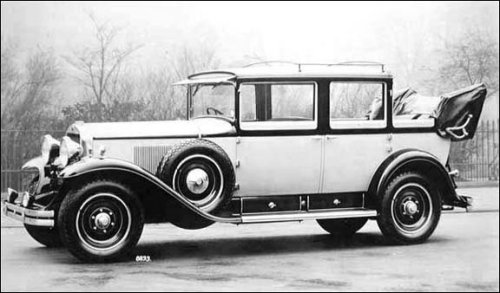

1928 Cadillac Model 341
1928 Cadillac Model 341

1928 Cadillac Notes

  • Introduced: September, 1927.
  • Cadillac introduces synchromesh transmission
  • Cadillac features safety glass all around
  • Model year sales: 20001.
  • Model year production: 20001.
  • Lawrence P. Fisher was president
  • Ernest W. Seaholm was chief engineer
  • H. M. Stephens was general sales manager
