1957 CORVETTE
![flag](../flag1.gif)
The 1957 Corvette looked the same as the 1956 model
Position | Character | Description |
---|---|---|
1 | E | Corvette |
2 & 3 | 57 | 1957 |
4 | S | Assembled in St. Louis, MO |
5 to 10 | 100001 to 106339 | production sequence |
1 to 7 | 0001001 | sequential production number |
---|---|---|
8 | F or T | Flint, MI or Tonawanda, NY |
9 to 10 | EF | four-barrel, synchromesh transmission |
EG | dual four-barrel, high-lift cam, synchromesh transmission | |
EH | dual four-barrel, synchromesh transmission | |
EL | fuel-injection, high-lift cam | |
EM | fuel-injection, synchromesh transmission | |
EN | fuel-injection, high-lift cam | |
FG | Powerglide, dual four-barrel | |
FH | Powerglide | |
FK | Powerglide, fuel-injection |
Series No. | Body/Style No. | Body Type | Factory Price | Shipping Weight | Production Total |
---|---|---|---|---|---|
2934 | 2934 |
![]() 1957 Corvette |
$3176 | 2730 lb | 6339 |
Feature | Standard Engine | Optional Engine | Optional Engine | Optional Engine | Optional Engine |
---|---|---|---|---|---|
Type | V-8, Overhead valve | ||||
Block | Cast iron block | ||||
Displacement | 283 cid (4.626 liters) | ||||
Bore & Stroke | 3.87 x 3.00 (98.3 x 76.2mm) | ||||
Compression ratio | 9.50:1 | 10.5:1 | |||
Brake horsepower | 220 @ 4800 rpm | 245 | 250 | 270 | 283 |
Main bearing | five | ||||
Carburetor | Carter four-barrel Model 3744925 | four-barrel carb | Rochester fuel injection | two four-barrel carbs | Rochester fuel injection |
All engines had hydraulic lifters except solid lifter camshaft used with EL and EG engines
Standard Manual Transmission | Optional Manual Transmission | Automatic Transmission |
---|---|---|
Close-ratio three-speed manual all-synchromesh transmission with floor-mounted gear shifter | Close-ratio four-speed manual all-synchromesh transmission with floor-mounted gear shifter (available after May, 1957) | Two-speed Powerglide transmission (optional) |
Wheelbase | 102 inches (2.591 m) |
---|---|
Overall length | 168 inches (4.267 m) |
Overall height | 51.9 inches (1.318 m) |
Front tread | 57 inches (1.448 m) |
Rear tread | 59 inches (1.499 m) |
Ground Clearance | 6 inches (15 cm) |
Wheels | 15" steel bolt-on wheels |
Tires | 6.70 x 15 |
Front suspension | Independent; unequal-length A-arms; coil springs, tube shocks |
Rear suspension | Live axle on semi-elliptic leaf springs, anti-roll bar, tubular shock absorbers |
Steering | Saginaw worm-and-ball, 16:1 ratio, 37 foot turning circle |
Rear axle type | Hypoid semi-floating |
Brakes | Four-wheel hydraulic, internal-expanding, 11-inch diameter drums, 157 square inches effective lining area (121 square inches with optional sintered metallic linings) |
Standard 3-speed axle ratio | 3.70:1 |
Powerglide 2-speed axle ratio | 3.55:1 |
Optional axle ratios | 3.27:1, 4:11:1, 4.56:1 |
RPO 101 | Heater | $110 |
---|---|---|
RPO 102 | Signal-seeking AM radio | $185 |
RPO 107 | Parking brake alarm | $5 |
RPO 108 | Courtesy lights | $8 |
RPO 109 | Windshield washer | $11 |
RPO 276 | Five 15 x 5.5-inch wheels | $14 |
RPO 290 | 6.70 x 15 White sidewall tires | $30 |
RPO 313 | Powerglide automatic transmission | $175 |
RPO 419 | Auxiliary hardtop | $200 |
RPO 426 | Electric power windows | $55 |
RPO 440 | Optional cove color | $18 |
RPO 469A | V-8 283-cid 245-hp dual four-barrel carburetor V-8 engine with Duntov competition camshaft |
$170 |
RPO 579A | V-8 283-cid 250-hp fuel-injection engine | $450 |
RPO 579B | V-8 283-cid 283-hp fuel-injection engine with Duntov competition camshaft |
$450 |
RPO 579E | V-8 283-cid 283-hp fuel-injection engine with cold-air induction system | $675 |
RPO 473 | Power-operated folding top mechanism | $130 |
RPO 677 | Positraction axle with 3.70:1 ratio | $45 |
RPO 678 | Positraction axle with 4.11:1 ratio | $45 |
RPO 679 | Positraction axle with 4.56:1 ratio | $45 |
RPO 684 | Heavy-duty racing suspension | $725 |
RPO 685 | Four-speed manual transmission | $175 |
1957 Corvette Notes

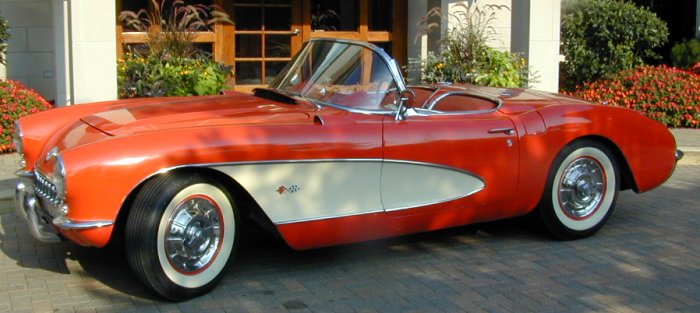

1957 Corvette

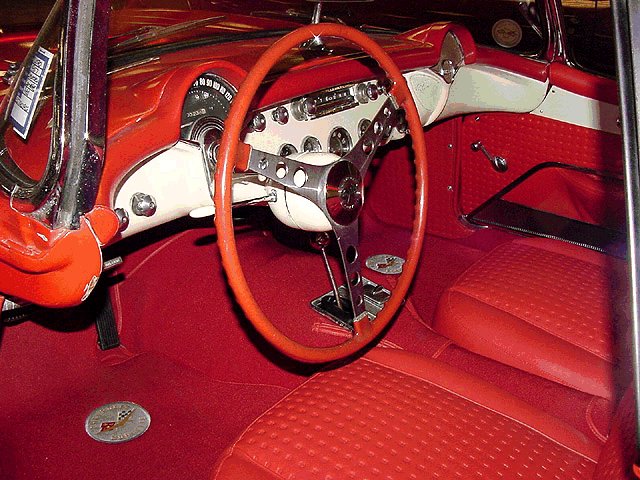

1957 Corvette

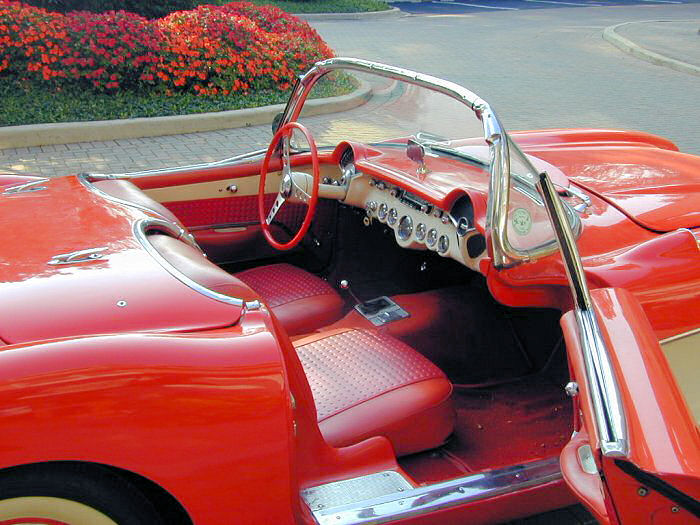

1957 Corvette

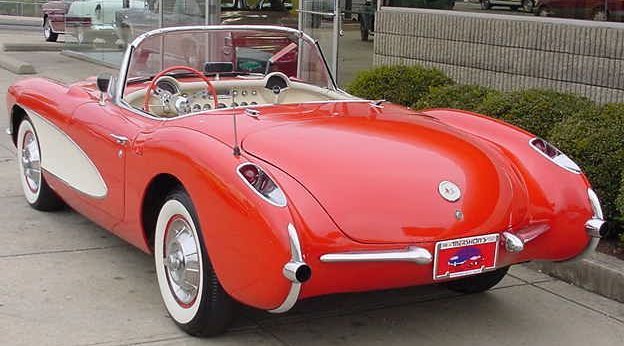

1957 Corvette

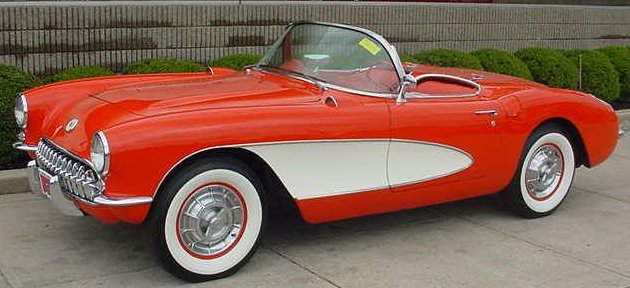

1957 Corvette

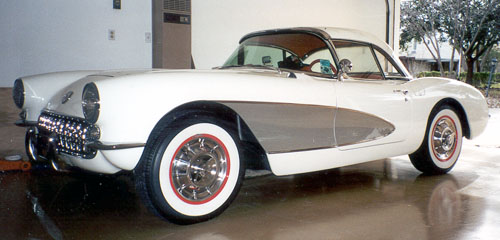

1957 Corvette
1957 Corvette
