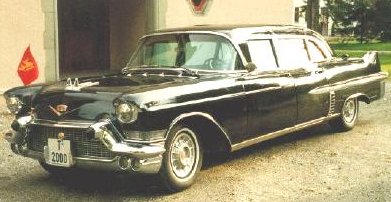

1957 Cadillac Fleetwood

1957 Cadillac Fleetwood

Long-wheelbase Cadillacs came in Fleetwood limousine or nine-passenger sedan configurations, both with auxiliary seats. Side trim was the same as on Series 62 models, except that no Cadillac crest was used on the rear fins.

I. D. NUMBERS

  • Serial numbers and engine numbers were the same again.
  • They appeared
    • on a boss on the front right-hand face of the engine block;
    • on the lubrication plate on the left front door pillar (1953-1957)
    • and on the right frame side member behind the motor support.
  • The first pair of symbols were "57" to designate the model year.
  • The next two symbols indicated series as follows:
    • "62" = Series 62 including Eldorado Specials
    • "60" = Series 60 Fleetwood
    • "70" = Series 70 Eldorado Brougham
    • "75" = Series 75 Fleetwood
  • The immediately following numbers, beginning at 00000 for each series, indicated the production sequence in consecutive order.
  • Ending numbers were the same for all series since the engines were installed in mixed production fashion.

STYLE

Model NumberBody StyleDoorsModelSeatPriceWeightProduction Total
57-757523X4-doorSedan9$73482427 kg1,010
57-757533X4-doorImperial Sedan9$75862450 kg890
57-868680S Commercial chassis - 2,169

NOTE: The commercial chassis featured a 3962mm wheelbase and was provided to professional car makers for construction of funeral cars and ambulances, etc.

SERIES 75 FLEETWOOD ENGINE

TypeV-8, Overhead valves.
BlockCast iron block.
Displacement5.972 Liters
Bore and stroke101.6mm x 92.1mm
Compression ratio10.0:1.
Brake horsepower300 hp @ 4800 rpm
Power224 kW @ 4800 rpm
BearingsFive main bearings.
Valve LiftersHydraulic valve lifters.
CarburetorRochester four-barrel Model 7015701.

CHASSIS

FeatureSeries 75 Fleetwood
Wheelbase3802mm
Overall Length6000mm
Front Tread1549mm
Rear Tread1549mm
Tires8.20 x 15 six-ply blackwall
ExhaustStandard dual exhausts

CONVENIENCE ACCESSORIES

Hydra-Matic drive, power steering and power brakes were standard in all Cadillacs
Many models (designated by non-bracketed "X" suffix in charts above) also had standard power window lifts
Fore-and-Aft power seats were standard on the same models
Six-Way power seats were regularly featured on Eldorados and Sixty Specials
Air-conditioning, radios, heaters, etc. were optional on most other models (standard in Brougham) along with regular GM factory and dealer installed extras
