1957 Coupe DeVille

1957 Coupe DeVille

For 1957, Cadillac adopted a tubular X-frame, without side rails, on all models. This resulted in greater structural rigidity and provided for lower body lines without loss of useable space. New front end styling was marked by rubber bumper guard tips and dual, circular parking lamps set into the lower bumper section. Side trim was revised and a dual taillight theme was used throughout the line. By utilizing different center frame sections the wheelbases and overall lengths of specific body styles was altered. In the 62 lineup, including the Eldorado sub-series, three different overall measurements appeared on cars with matching wheelbases. The Sedan DeVille was bigger than "standard" models and the Eldorado Coupe Seville and Biarritz convertible were larger still. Identifying the "standard" 62 models were

  • vertical bright metal moldings, just forward of the rear wheel openings, highlighted by seven horizontal windsplits.
  • At the upper end this fenderbreak trim joined a horizontal molding that ran along a conical flare extending forward from the taillamps.
  • A crest medallion was seen on the forward angled rear fins.
  • Coupe DeVilles and Sedan DeVilles had special nameplates on the front fenders.
  • Eldorados were further distinguished by the model name above a V-shaped rear deck ornament and on the front fenders.
  • The rear fender and deck contour was sleekly rounded and the wheel housing was trimmed with broad, sculptured stainless steel beauty panels.
  • Also seen were pointed, "shark" style fins pointing towards the back of the cars.
  • A three-section built-in front bumper was another exclusive trait of the two luxury cars, which came with a long list of standard accessories.

I. D. NUMBERS

  • Serial numbers and engine numbers were the same again.
  • They appeared
    • on a boss on the front right-hand face of the engine block;
    • on the lubrication plate on the left front door pillar (1953-1957)
    • and on the right frame side member behind the motor support.
  • The first pair of symbols were "57" to designate the model year.
  • The next two symbols indicated series as follows:
    • "62" = Series 62 including Eldorado Specials
    • "60" = Series 60 Fleetwood
    • "70" = Series 70 Eldorado Brougham
    • "75" = Series 75 Fleetwood
  • The immediately following numbers, beginning at 00000 for each series, indicated the production sequence in consecutive order.
  • Ending numbers were the same for all series since the engines were installed in mixed production fashion.

STYLE

Model NumberBody StyleDoorsModelSeatPriceWeightProduction Total
57-626239(X)4-doorHardtop Sedan6$47132089 kg32,342
57-626239(X)4-doorExport Sedan6$47132089 kg384
57-626239DX4-doorDeVille Hardtop6$51882116 kg23,808
57-626237(X)2-doorHardtop Coupe6$46092075 kg25,120
57-626237DX2-doorCoupe DeVille6$50482100 kg23,813
57-626267X Convertible Coupe6$52252150 kg9,000
57-6262 Chassis only   1

NOTES:

  • The export sedan was shipped in CKD form to foreign countries.
  • The symbol "X" after Body Style Number in brackets indicates power windows optional
  • without brackets indicates this feature standard

SERIES 62 ENGINE

TypeV-8, Overhead valves.
BlockCast iron block.
Displacement5.972 Liters
Bore and stroke101.6mm x 92.1mm
Compression ratio10.0:1.
Brake horsepower300 hp @ 4800 rpm
Power224 kW @ 4800 rpm
BearingsFive main bearings.
Valve LiftersHydraulic valve lifters.
CarburetorRochester four-barrel Model 7015701.

CHASSIS

FeatureSeries 62 SedansSeries 62 Coupes & Convertibles
Wheelbase3289mm3289mm
Overall Length5484mm5611mm
Front Tread1549mm1549mm
Rear Tread1549mm1549mm
Tires8.00 x 15 blackwall8.00 x 15 blackwall
ExhaustStandard dual exhaustsStandard dual exhausts

CONVENIENCE ACCESSORIES

Hydra-Matic drive, power steering and power brakes were standard in all Cadillacs
Many models (designated by non-bracketed "X" suffix in charts above) also had standard power window lifts
Fore-and-Aft power seats were standard on the same models
Six-Way power seats were regularly featured on Eldorados and Sixty Specials
Air-conditioning, radios, heaters, etc. were optional on most other models (standard in Brougham) along with regular GM factory and dealer installed extras

PHOTOS

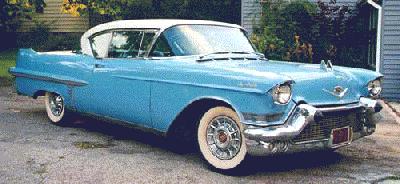

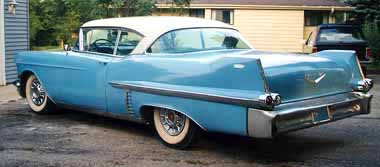

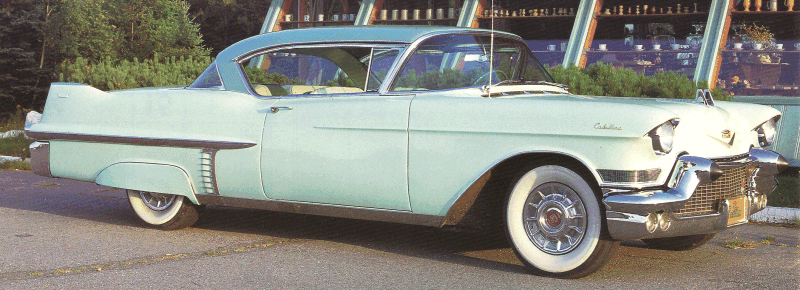

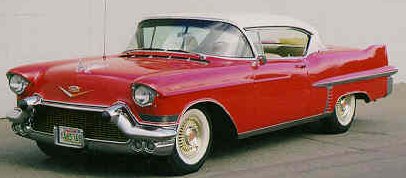

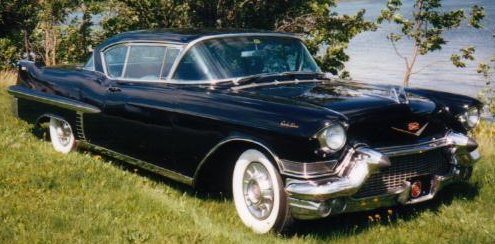

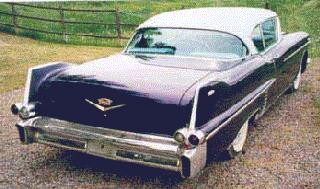

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

1957 Coupe DeVille

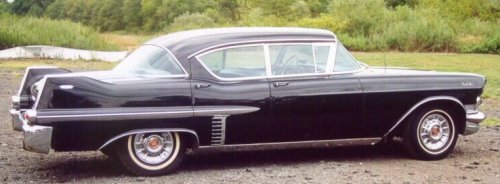

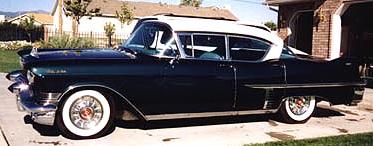

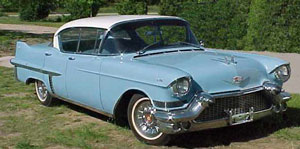

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

1957 Sedan DeVille

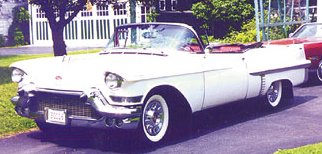

1957 Convertible

1957 Convertible
