1957 Eldorado

1957 Eldorado

Cadillac's completely restyled 1957 offerings borrowed heavily from the lines of the Park Avenue, a hardtop sedan "idea" car shown at the 1954 Motorama. A new X-member chassis contributed to structural rigidity as well as to a profile nearly 75mm lower than before. Of course, the lack of side rails meant that the new frame afforded virtually no lateral impact protection, but Detroit wasn't particularly safety-conscious in those days.

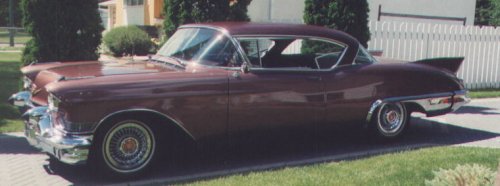

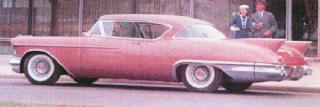

1957 Cadillac Eldorado

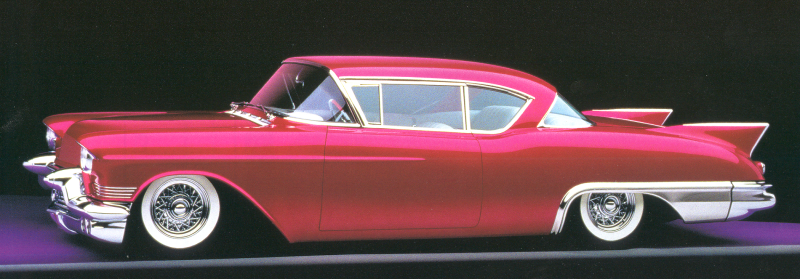

1957 Cadillac Eldorado

Once more the Eldorado Biarritz and Seville had their own rear-end configuration. The work of Ron Hill, a talented 23-year-old design newcomer, it featured a sloped deck flanked by rounded fenders sprouting sharply pointed fins. Rear wheel openings were again skinless, and the lower rear fenders were liberally garnished with chrome. The hood ornament was eliminated, contributing to a smoother frontal appearance. Overall, the '57 was more readily distinguishable from other Cadillacs than any Eldorado since the original. Oddly enough, the dual four-barrel carburetion was dropped this year, and standard horsepower backed off slightly to 300 despite an increase in compression ratio. The all-out performance buff could still get the twin pots and 325 horses, but they now cost extra.

But the Biarritz and the Seville were no more than a warm-up for 1957s main event: the new Eldorado Brougham.

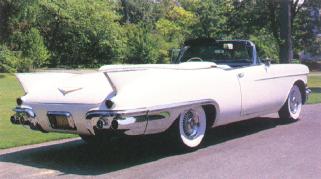

1957 Cadillac Eldorado

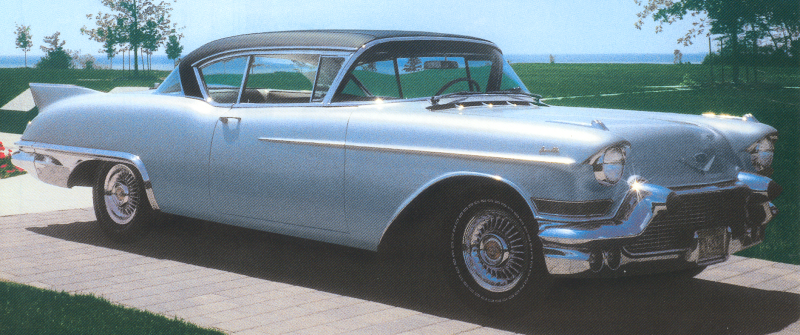

1957 Cadillac Eldorado

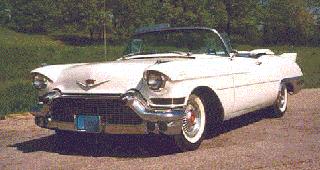

1957 Cadillac Eldorado

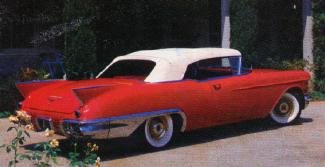

1957 Cadillac Eldorado

I. D. NUMBERS

  • Serial numbers and engine numbers were the same again.
  • They appeared
    • on a boss on the front right-hand face of the engine block;
    • on the lubrication plate on the left front door pillar (1953-1957)
    • and on the right frame side member behind the motor support.
  • The first pair of symbols were "57" to designate the model year.
  • The next two symbols indicated series as follows:
    • "62" = Series 62 including Eldorado Specials
    • "60" = Series 60 Fleetwood
    • "70" = Series 70 Eldorado Brougham
    • "75" = Series 75 Fleetwood
  • The immediately following numbers, beginning at 00000 for each series, indicated the production sequence in consecutive order.
  • Ending numbers were the same for all series since the engines were installed in mixed production fashion.

STYLE

Model NumberBody StyleDoorsModelSeatPriceWeightProduction Total
57-626237SDX2 doorCoupe Seville Hardtop6$72862186 kg2,100
57-626267SX2 doorBiarritz Convertible6$72862241 kg1,800
57-626239SX4-doorSedan Seville6  4

NOTES

  • The Eldorado Sedan Seville was a special order model built in limited quantities.
  • The symbol "X" after Body Style Number in brackets indicates power windows optional
  • without brackets indicates this feature standard.

ENGINE

FeatureStandard EngineOptional Engine
TypeV-8, Overhead valvesV-8, Overhead valves
BlockCast iron blockCast iron block
Displacement5.972 Liters5.972 Liters
Bore and stroke101.6mm x 92.1mm101.6mm x 92.1mm
Compression ratio10.0:110.0:1
Brake horsepower300 hp @ 4800 rpm325 @ 4800 rpm
Power224 kW @ 4800 rpm242 kW @ 4800 rpm
Main bearingsFiveFive
Valve liftersHydraulicHydraulic
CarburetorRochester four-barrel Model 7015701Two (2) Carter four-barrel (Front) Model 2584S; (Rear) Model 2583S

CHASSIS

FeatureSeries 62 Eldorado
Wheelbase3289mm
Overall Length5641mm
Front Tread1549mm
Rear Tread1549mm
Tires8.20 x 15 whitewall
ExhaustStandard dual exhausts

POWERTRAIN OPTIONS

The 325 horsepower Eldorado Brougham dual four-barrel V-8 was optional on the Eldorado Seville and Biarritz only
In normal attachments on these models the front carburetor was changed to a Carter four-barrel Model 258S
When air conditioning was also installed, the front carburetor was the same model use in the Brougham, which came standard with air conditioning

CONVENIENCE ACCESSORIES

Hydra-Matic drive, power steering and power brakes were standard in all Cadillacs
Many models (designated by non-bracketed "X" suffix in charts above) also had standard power window lifts
Fore-and-Aft power seats were standard on the same models
Six-Way power seats were regularly featured on Eldorados and Sixty Specials
Air-conditioning, radios, heaters, etc. were optional on most other models (standard in Brougham) along with regular GM factory and dealer installed extras

PHOTOS

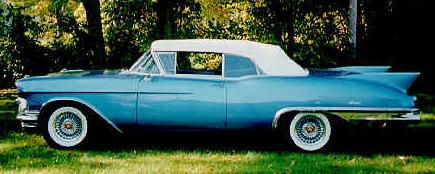

1957 Cadillac Eldorado

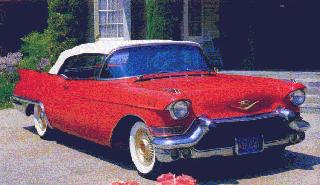

1957 Cadillac Eldorado
