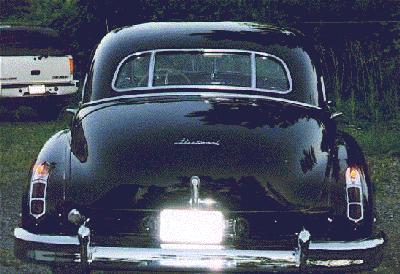

1947 Cadillac 4-door
Series 62 Cadillacs were again based on the GM C-Body and had a slightly sleeker appearance than models in the other lines. Notchback styling we seen on all models, except the fastback coupe. However, it was easy to distinguish this car from a 61 coupe, as the door skins did not flare-out above the rocker panels; the side window openings were lower and the reveal moldings circled each window individually instead of looping around all windows as on the smaller car. The 62 sedan also had door skins which mated flush with the rocker panels and featured ventipanes on both the front and rear windows. The 62 convertible was the only open-bodied Cadillac available.
Motor serial numbers 8420001 to 8459835 appeared on 1947 Series 62 models.
Model Number | Body Style | Doors | Model | Seat | Factory Price | Shipping Weight | Production Total |
---|---|---|---|---|---|---|---|
47-62 | 6207 | 2-door | Club Coupe | 5 | $2446 | 1884 kg | 7,245 |
47-62 | 6267 | 2-door | Convertible Coupe | 5 | $2902 | 2025 kg | 6,755 |
47-62 | 6269 | 4-door | Sedan | 5 | $2523 | 1925 kg | 25,834 |
47-62 | Chassis only | 1 |
Type | V-8 L-head. |
Block | Cast iron block. |
Displacement | 5.678 Liter |
Bore and stroke | 88.9mm x 114.3mm |
Compression ratio | 7.25:1. |
Brake horsepower | 150 hp @ 3400 rpm |
Power | 112 kW @ 3400 rpm |
Bearings | Three main bearings. |
Valve lifters | Hydraulic valve lifters. |
Carburetor | Carter WCD two-barrel (models 595S or 595SA) or Stromberg AAV-26 two-barrel (models 380154 or 380871). |
Model | Wheelbase | Overall Length | Front Tread | Rear Tread | Tires |
---|---|---|---|---|---|
Series 62 | 3277mm | 5588mm | 1499mm | 1600mm | 7.00 x 15 |
