1947 Cadillac

1947 Cadillac

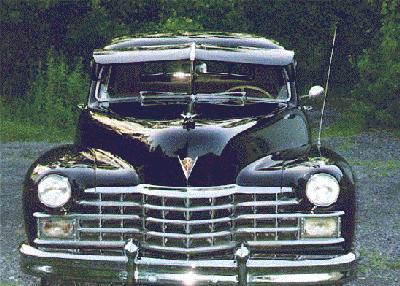

A minor styling facelift characterized 1947 Series 61 Cadillacs

  • The grilles had five massive horizontal blades instead of the six used the previous year.
  • A new identification feature was a striped field for the V-shaped hood crest.
  • Sombrero style wheel covers were an attractive new option seen on many Cadillacs.
  • In the logo department, a script type nameplate replaced the block lettering used on the sides of front fenders in 1946.
  • Upholstery and paint combinations were generally revised
  • Steering wheel horn rings were changed to a semicircular design.
  • The old style rubber stone shields were replaced with a bright metal type
  • A new winged trunk ornament was used on all models except the Series 60 Fleetwood Special sedan.
  • Other features were basically unchanged over last year's cars.
  • The Series 61 models continued to use the GM B-Body with fastback styling.

I. D. NUMBERS

  • Cadillac serial numbers again matched motor numbers and were used for all license, insurance and identification purposes.
  • They were placed in the same locations as before.
  • Motor serial numbers 5420001 to 5428555 appeared on 1947 Series 61 models.

STYLE

Model NumberBody StyleDoorsModelSeatFactory PriceShipping WeightProduction Total
47-6161072-doorClub Coupe5$22001855 kg3,395
47-6161094-doorSedan 5$23241893 kg5,160

ENGINE

TypeV-8 L-head.
BlockCast iron block.
Displacement5.678 Liter
Bore and stroke88.9mm x 114.3mm
Compression ratio7.25:1.
Brake horsepower150 hp @ 3400 rpm
Power112 kW @ 3400 rpm
BearingsThree main bearings.
Valve liftersHydraulic valve lifters.
CarburetorCarter WCD two-barrel (models 595S or 595SA) or Stromberg AAV-26 two-barrel (models 380154 or 380871).

CHASSIS

ModelWheelbaseOverall LengthFront TreadRear TreadTires
Series 613200mm5461mm1499mm1600mm7.00 x 15
