1974 CB360K0
- ENGINE
- Engine: Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder
- Displacement: 357cc
- Bore and Stroke: 67.0 x 50.6 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 2 CV carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 24.8 KW (34 hp) @ 9000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shocks
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Fuel Capacity : 11 Litres (2.9 Gal)
- OTHER
- Colors:
- Hawaiian Blue Metallic
- Candy Orange
- The gas tank stripes were black and white
- The "CB360" side cover emblem was orange and white
- The front brake had a mechanical drum
- The serial number began CB360-1000012.

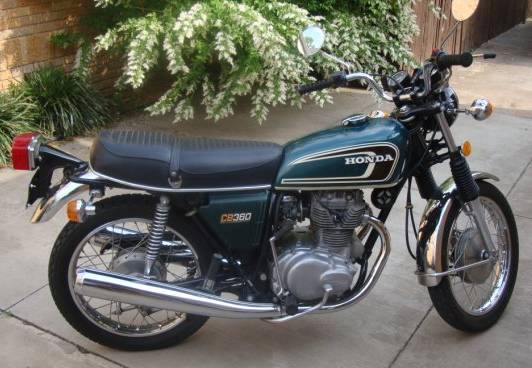

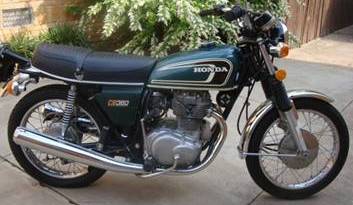

1974 CB360K0 Owned by Drew Marlow
Click image to enlarge

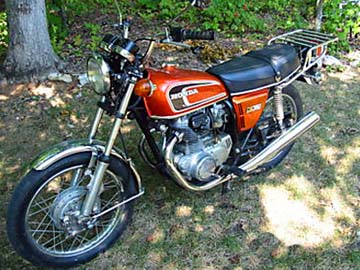

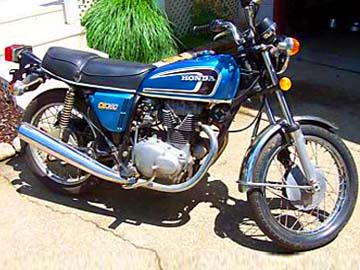

1974 CB360K0
1974 CB360K0
