1976 CJ360T'76
- ENGINE
- Engine: Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder,
- Displacement: 357cc
- Bore and Stroke: 67.0 x 50.6 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 2 CV carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 24.8 KW (34 hp) @ 9000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shocks
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Fuel Capacity : 11 Litres (2.9 Gal)
- OTHER
- Colors:
- The gas tank, front fender, and rear cowl were red
- The side cover was black
- The "360T" side cover decal was white and yellow
- It had a 2-into-1 exhaust system
- The serial number began CJ360T-2000001.

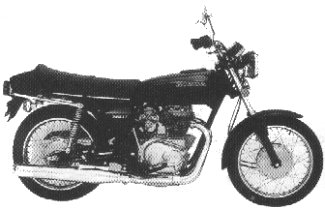

1976 CJ360T
1976 CJ360T Advertisement
Click image to enlarge
1976 CJ360T Advertisement
Click image to enlarge
1977 CJ360T'77
- ENGINE
- Engine: Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder,
- Displacement: 357cc
- Bore and Stroke: 67.0 x 50.6 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 2 CV carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 24.8 KW (34 hp) @ 9000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescoping forks
- Rear Suspension: Adjustable shocks
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Fuel Capacity : 11 Litres (2.9 Gal)
- OTHER
- Colors:
- The gas tank, front fender, and rear cowl were red
- The gas tank and rear cowl stripes were orange
- The side cover was black
- The "360T" side cover decal was blue and red
- It had a 2-into-1 exhaust system
- The engine was a 356cc OHC parallel twin linked to a 5-speed transmission
- The serial number began CJ360T-2100001.

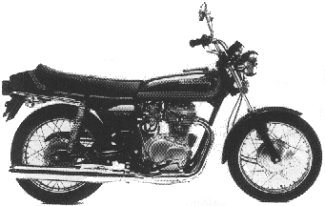

1977 CJ360T
