The 1936 Cadillac V-16 (Series 36-90) was a continuation of the 1935 cars. Built to order only, nearly half of the fifty-two units were seven passenger limousines. As with V-8 and V-12 lines, Fleetwood bodies for the V-16 now used the all steel Turret Top. All body styles had Vee windshields. A minor mechanical change involved the use of the "Peak-load" generator.
Click to supersize

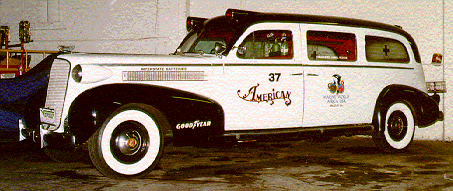

1936 Cadillac Ambulance:
A race car?
No, but Buck Kamphausen's ambulance
was in The Great Race
Fleetwood Series 36-90, 154 in. wheelbase | ||||
---|---|---|---|---|
Some listings show these as 58___ styles. | ||||
Style Number | Style | Seating | Price | Weight |
36-5725LB | Town Cabriolet | 7 | $8850 | 2905 kg |
36-5725C | Town Cabriolet | 7 | ||
36-5730FL | Imperial Cabriolet | 5 | ||
36-5730S | Sedan | 5 | ||
36-5733S | Town Sedan | 5 | $7250 | 2766 kg |
36-5735 | Convertible Coupe | 2 | ||
36-5775 | Imperial Sedan (Limousine) | 7 | $7750 | 2814 kg |
36-5775FL | Imperial Cabriolet | 7 | $7850 | 2823 kg |
36-5775S | Sedan | 7 | $7555 | 2814 kg |
36-5776 | Coupe | 2 | ||
36-5780 | Convertible Sedan with Divider | 5 | $7850 | 2773 kg |
36-5791 | Limousine Brougham | 7 | ||
36-5799 | Aero. Coupe | 5 |
Type | 45 degree, overhead drive. |
Cylinders | Sixteen Cylinder. |
Block | Cast iron block on aluminum crankcase. |
Bore & Stroke | 76.2mm x 101.6mm |
Displacement | 7.416 Liters |
Compression Ratio | 6.0:1 std. 5.65:1 opt. |
Brake Horsepower | 185 hp @ 3800 rpm |
Power | 138 kW @ 3800 rpm |
SAE/Taxable Horsepower | 57.5. |
Main bearings | Five. |
Valve lifters | Mechanical with hydraulic silencer on rocker bushing. |
Carburetor | Dual Detroit lubricator, type R-14, L-14, Model 51. |
Wheelbase | 3912mm |
Overall length | 6045mm |
Front Tread | 1508mm |
Rear Tread | 1575mm |
Tires | 7.50 x 17. |
Transmission | Selective, synchro transmission. |
Speeds | 3 Front, 1 Reverse |
Controls | Left Hand Drive, center control, emergency lever at left under panel (rhd opt). |
Clutch | Twin disc clutch. |
Drive | Shaft drive, Hotchkiss. |
Axle | 3/4 floating rear axle, spiral bevel drive. |
Overall Ratio | 4.64:1 std. 4.31:1 opt. 4.07:1 opt. |
Brakes | Mechanical brakes with vacuum assist on four wheels. |
Wheels | Wire wheels. |
Wheel size | 17 in. drop center. |
