Dream Car Giveaway



1936 Cadillac

Click to supersize

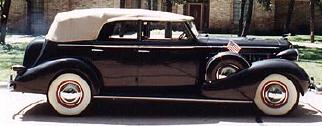

1936 Cadillac 4-door convertible

The 1936 V-12 Cadillac (series 36-80 and 36-85) was essentially a 1936 V-8 body with a twelve cylinder engine.

  • Performance was greatly improved over previous V-12's.
  • Identification with the hood closed was possible only by reading emblems.
  • Even dual exhaust pipes would no longer identify the V-12.
  • A crossover pipe from left to right manifold resulted in a single exhaust system (with two mufflers in series).
  • Commercial Cars and Chassis also shared the V-8 and the V-12 engines.

I. D. DATA

  • Engine numbers were on the upper left surface of the generator drive chain housing.
  • Starting: 4110001.
  • Ending: 4110901.

STYLE

Fleetwood Series 36-80 131 in. wheelbase
Style NumberStyleSeatingPriceWeight
36-7057Coupe2$32952132 kg
36-7067Convertible Coupe2$33952182 kg
36-7019Transformable Sedan5$31452248 kg
36-7029Convertible Sedan5$34452268 kg

STYLE

Fleetwood Series 36-85 138 in. wheelbase
Style NumberStyleSeatingPriceWeight
36-7509Sedan5$33452325 kg
36-7509FFormal Sedan 5$40952325 kg
36-7519Transformable Sedan 5$33452325 kg
36-7529Convertible Sedan 5$40952377 kg
36-7539Town Sedan 5$38452302 kg
36-7503Sedan7$34952361 kg
36-7513Imperial Sedan7$36952377 kg
36-7523Transformable Sedan 7$34952361 kg
36-7533Imperial Transformable Sedan 7$36952377 kg
36-7543Town Car7$51452409 kg

STYLE

Fleetwood Commercial Cars
Style NumberStyleSeatingPriceWeight
36-7503LCommercial Sedan7
36-7513LCommercial Imperial Sedan7
36-7523LCommercial Transformable Sedan 7
36-7533LCommercial Imperial Transformable Sedan7

Note that V-12's used same style numbers as V-8's.

ENGINE

Type45 degree, overhead valve.
CylindersTwelve Cylinders.
BlockCast iron block on aluminum crankcase.
Bore & Stroke79.4mm x 101.6mm
Displacement6.035 Liter
Compression Ratio6.0:1 std. 5.65:1 opt.
Brake Horsepower150 hp @ 3600 rpm
Power112 kW @ 3600 rpm
Main bearingsFour.
Valve liftersMechanical with hydraulic silencer on rocker bushing.
CarburetorDual Detroit lubricator, type R-13, L-13, Model 51.

CHASSIS

FeatureSeries 36-80Series 36-85Series 36-85 Commercial Chassis
Wheelbase3327mm29973962mm
Overall length5239mm5429mm
Height1676mm - 1765
Front Tread1529mm1529mm
Rear Tread60-1./2 in.62-1/2 in.
Tires7.50 x 167.50 x 16

DRIVETRAIN

TransmissionSelective, synchro transmission
Speeds3 Forward, 1 Reverse
ControlsLeft Hand Drive, center control, emergency lever at left under panel (rhd opt).
ClutchSingle disc clutch
DriveShaft drive Hotchkiss
AxleSemifloating rear axle
Drive Typespiral bevel drive
Overall Ratio4.6:1 std. 4.3:1 opt.
BrakesHydraulic brakes on four wheels.
WheelsDisc wheels.
Wheel size16 in.

OPTIONS

Sidemount cover(s)$20.00
Master Radio$89.50
Standard Radio$54.50
Heater$18.50
Seat covers
Flexible steering wheel$16.60
Trim rings$1.60 each
Wheel discs$4.00 each
