Front Brakes: Dual 296mm discs with LBS three-piston calipers
Rear Brake: s: Single 316mm disc with LBS twin-piston caliper
Front Tire: 150/80R-17 radial
Rear Tire: 180/70R-16 radial
DIMENSION
Rake: 32.0 degrees
Trail: 163mm (6.4 inches)
Wheelbase: 67.5 inches
Seat Height: 27.4 inches
Dry Weight: TBD pounds
Fuel Capacity: 5.3 gallons
OTHER
Emissions: Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Colors:
Black
Dark Blue Metallic/Met. Silver
Black/Red
Model ID: VTX1800T1

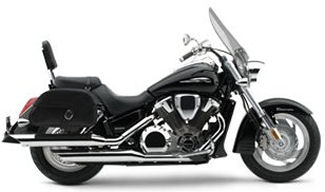

2007 VTX1800T
2008 VTX1800T
Overview:
The VTX1800T is the perfect cruiser built for the perfect road trip, combining a massive 106-hp 1795cc V-twin with all the touring touches you could ever need -- roomy saddlebags, big windscreen, cozy passenger backrest. Hear that? It's the open road calling.
Classic Retro Fender Style
Classic-Style Seating
Fully Equipped for Touring
ENGINE
Engine Type: 1795cc liquid-cooled 52° V-twin
Bore and Stroke: 101mm x 112mm
Compression Ratio: 9.0: 1
Valve Train: SOHC; three valves per cylinder
Fuel Delivery: PGM-FI with automatic choke
Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm inverted fork; 5.1 inches travel
Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.9 inches travel
Front Brakes: Dual 296mm disc with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS twin-piston caliper
Front Tire: s: 150/80R-17 radial
Rear Tire: s: 180/70R-16 radial
DIMENSION
Rake: (Caster Angle): 32.0°
Trail: 163mm (6.4 inches)
Wheelbase: 67.5 inches
Seat Height: 27.4 inches
Curb Weight: 800 pounds
Fuel Capacity: 5.3 gallons
OTHER
Colors:
Black
Black/Candy Black Cherry
Black/Metallic Blue
Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

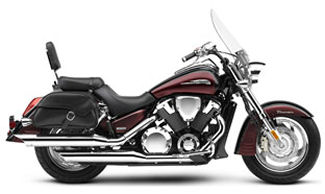

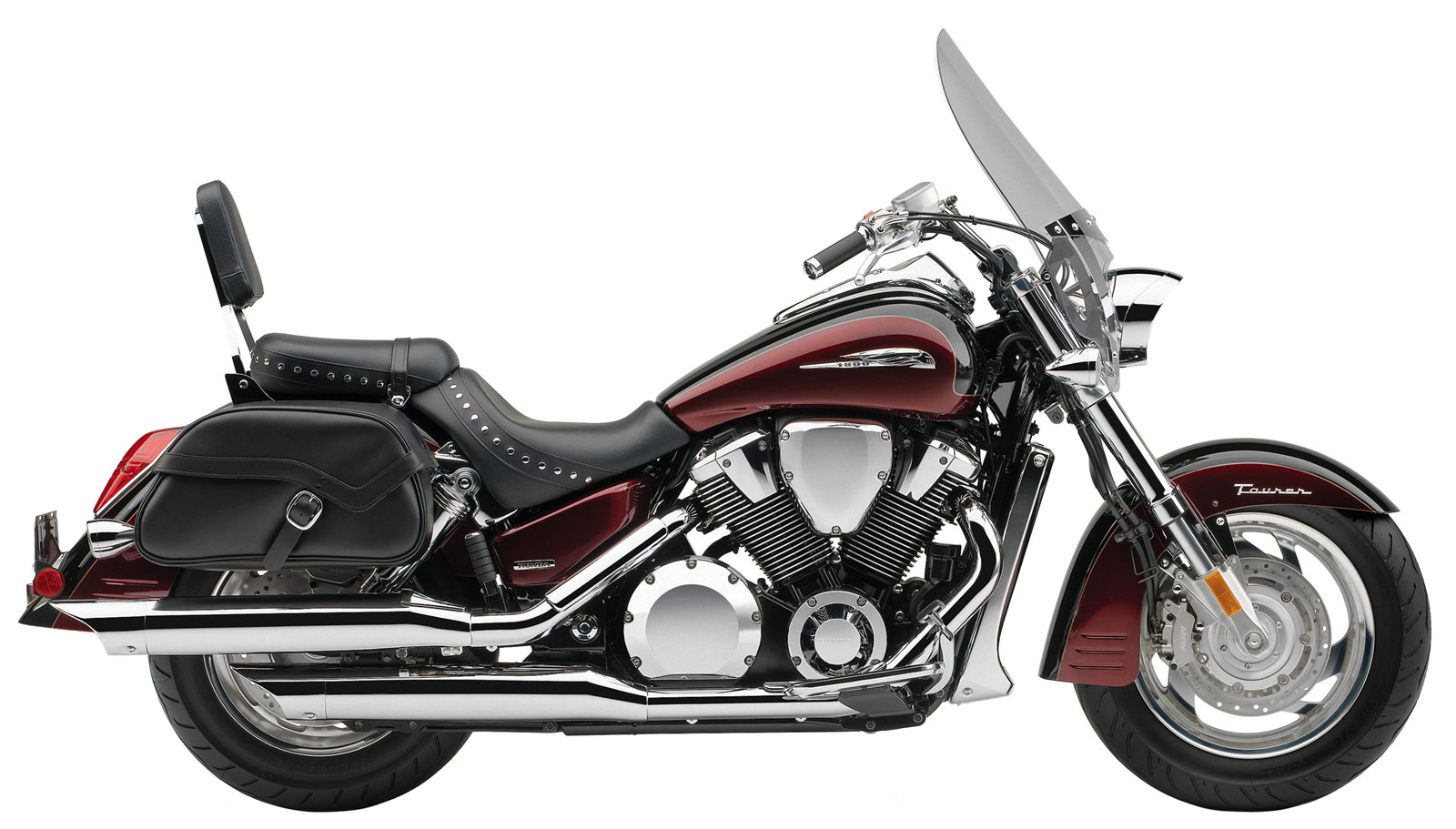

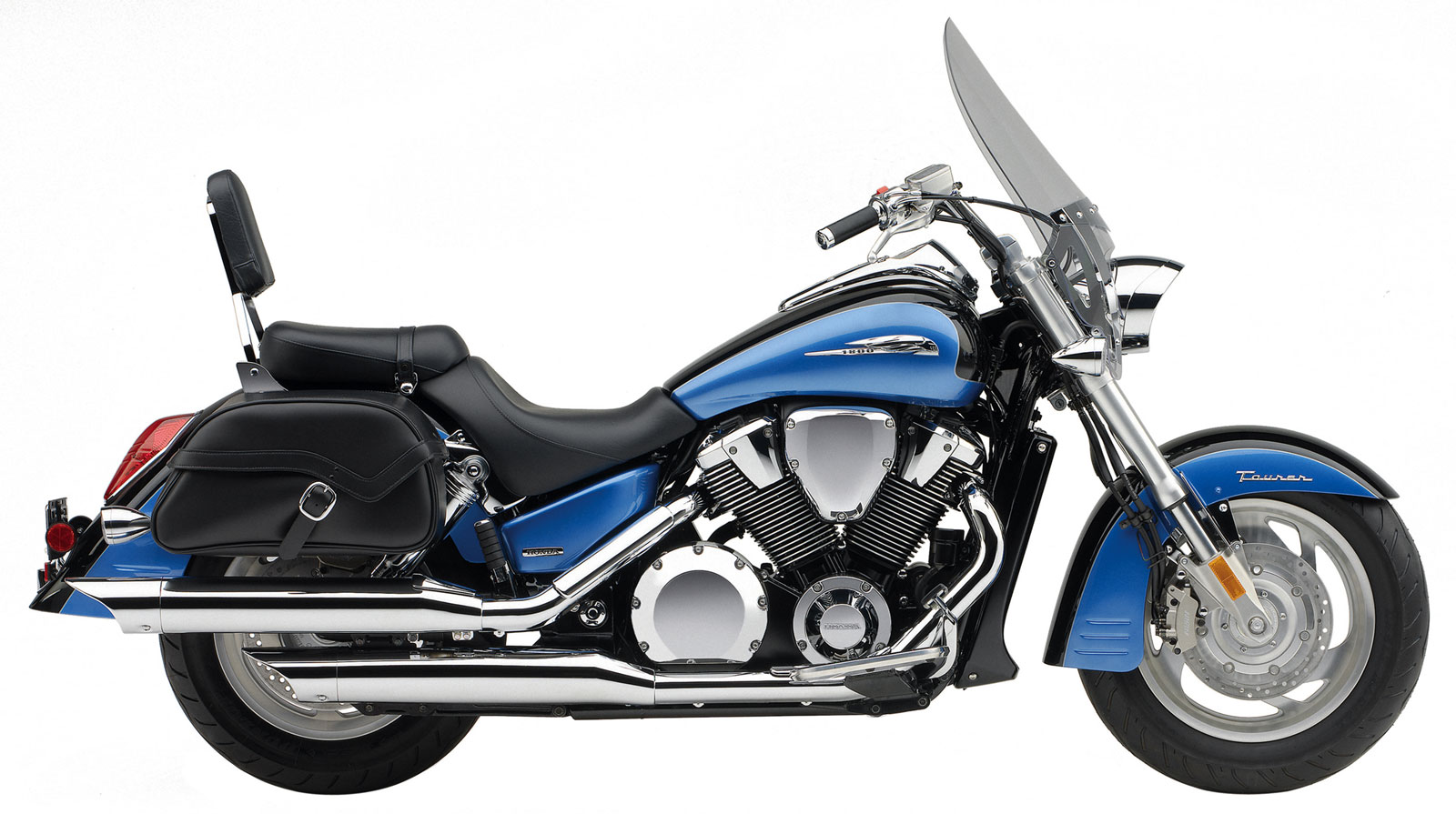

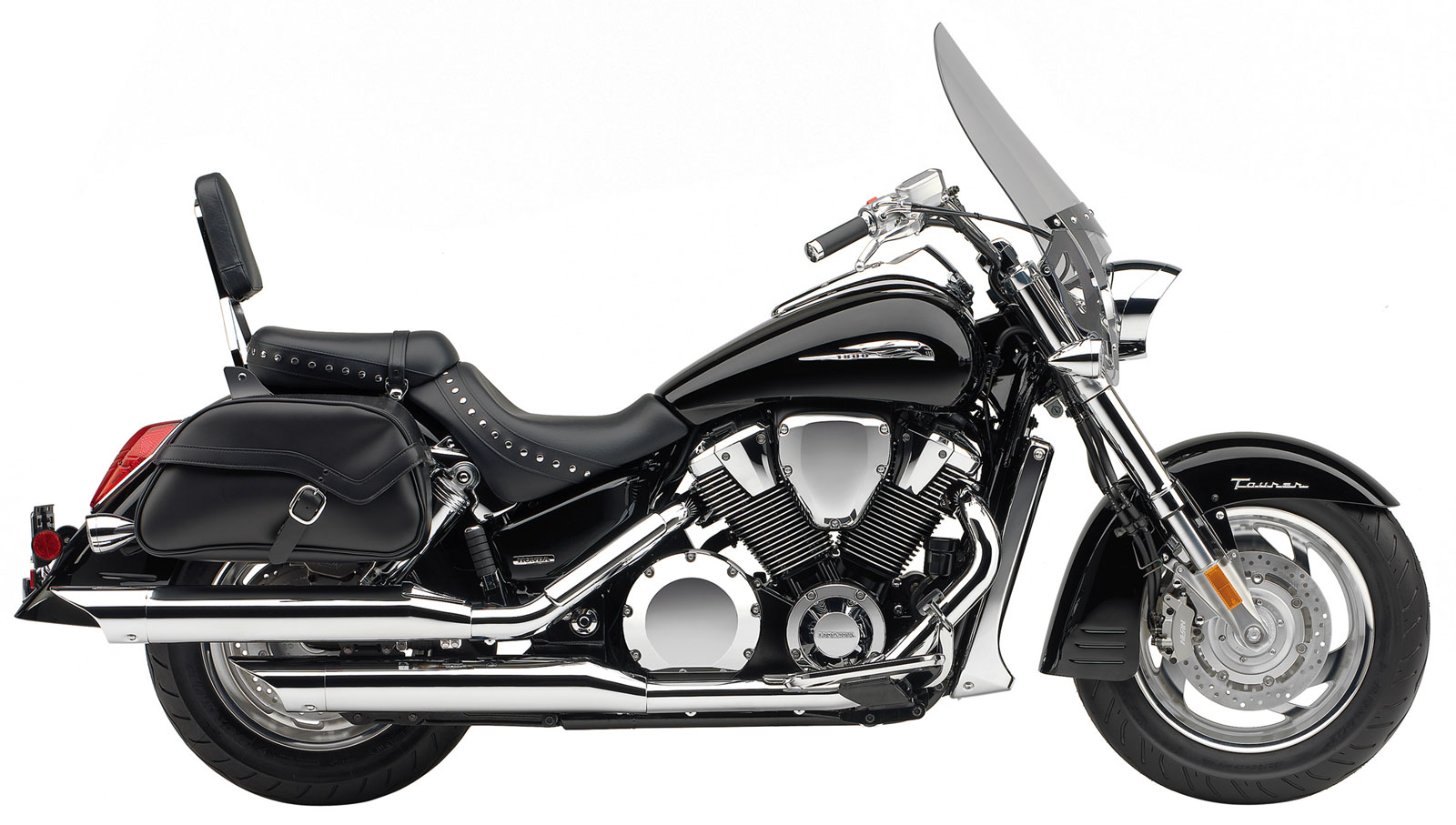

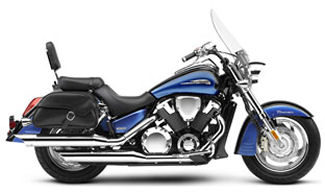

2008 VTX1800T Click image to expand2008 VTX1800T Click image to expand2008 VTX1800T Click image to expand
