2002 VTX1800S
- ENGINE
- Engine: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: PGM-FI with automatic enricher circuit
- DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 130mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 100 millimetres travel
- Front Brakes: Dual 296mm disc with three-piston calipers
- Rear Brake: Single 316mm disc with twin-piston caliper
- Front Tire: 150/80-17
- Rear Tire: 170/80-15
- DIMENSION
- Wheelbase: 1715mm (67.5 inches)
- Seat Height: 698mm (27.5 inches)
- Dry Weight: 336 kg. (741 lb.)
- Fuel Capacity: 20 litres (4.4 gallons)
- OTHER
2002 VTX1800S
2003 VTX1800S
- ENGINE
- Engine: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: PGM-FI with automatic enricher circuit
- DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 130mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 100 millimetres travel
- Front Brakes: Dual 296mm discs with three-piston calipers
- Rear Brake: Single 316mm disc with twin-piston caliper
- Front Tire: 150/80R-17 bias-ply
- Rear Tire: 170/80R-15 bias-ply
- DIMENSION
- Wheelbase: 1715mm (67.5 in.)
- Seat Height: 695 mm (27.3 in.)
- Dry Weight: 336 kg. (739 lb.)
- Fuel Capacity: 20 litres (5.3 GalUS)
- OTHER

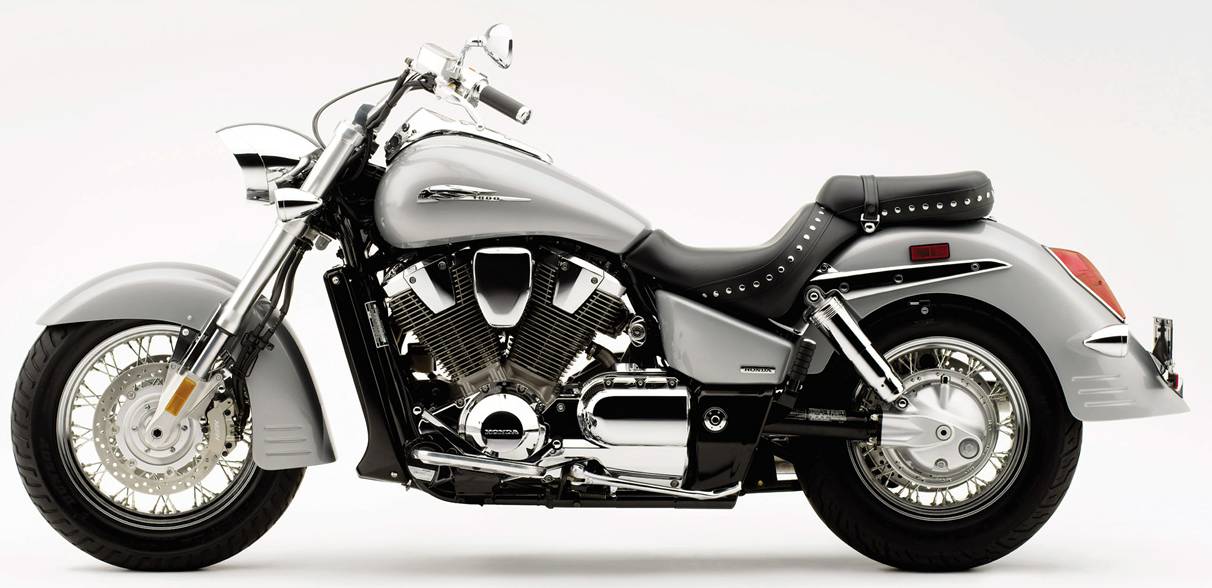

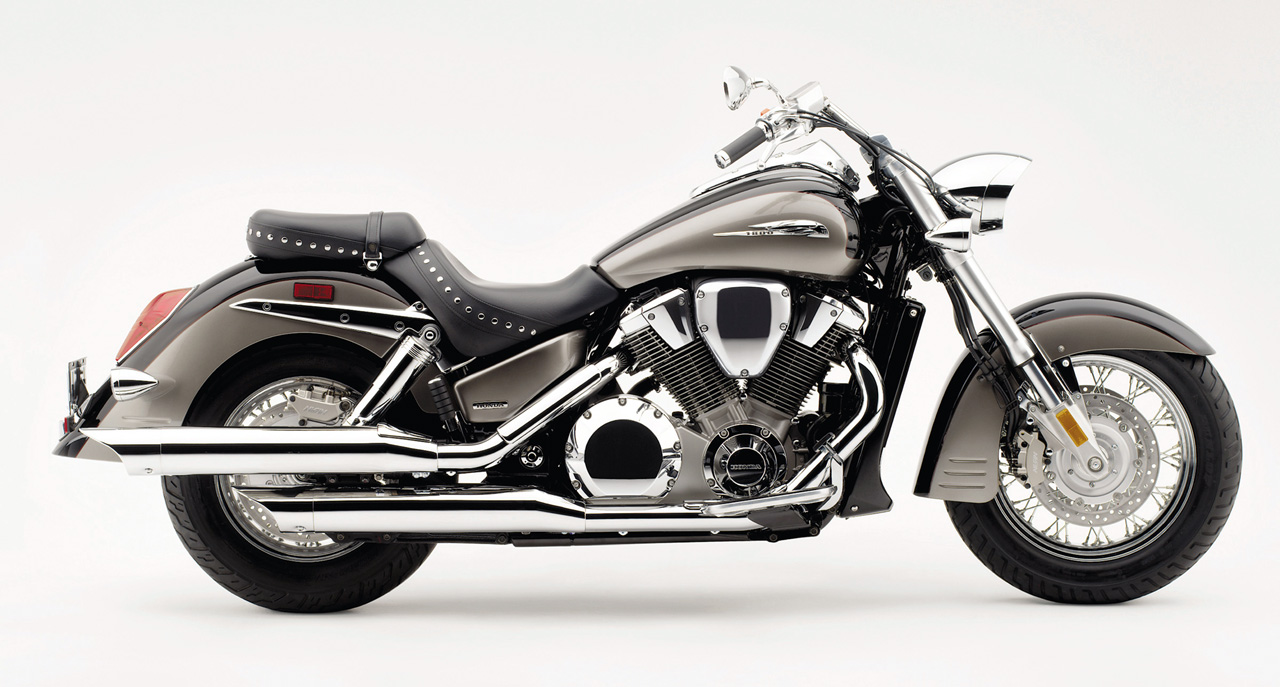

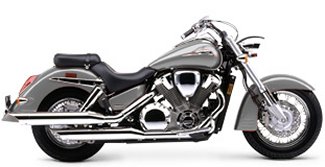

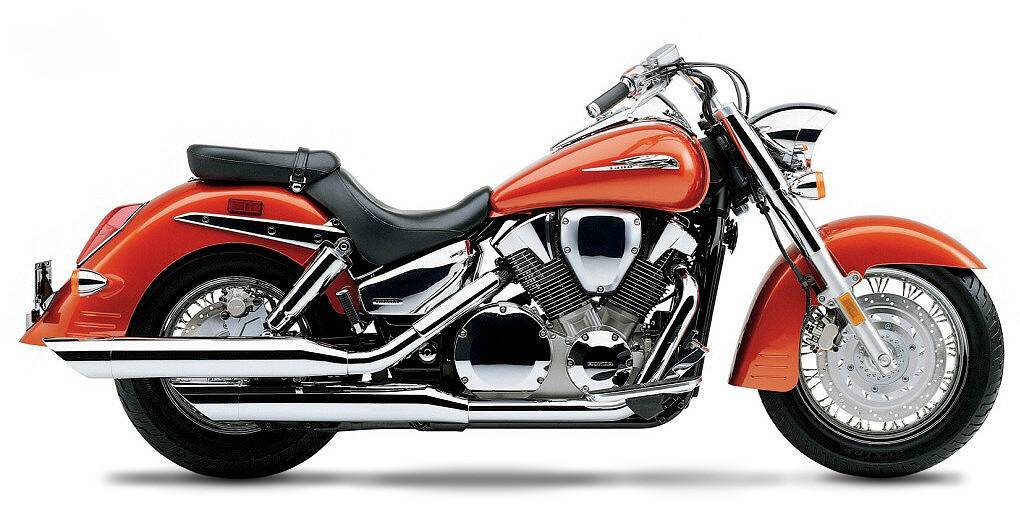

2003 VTX1800S
Click image to enlarge

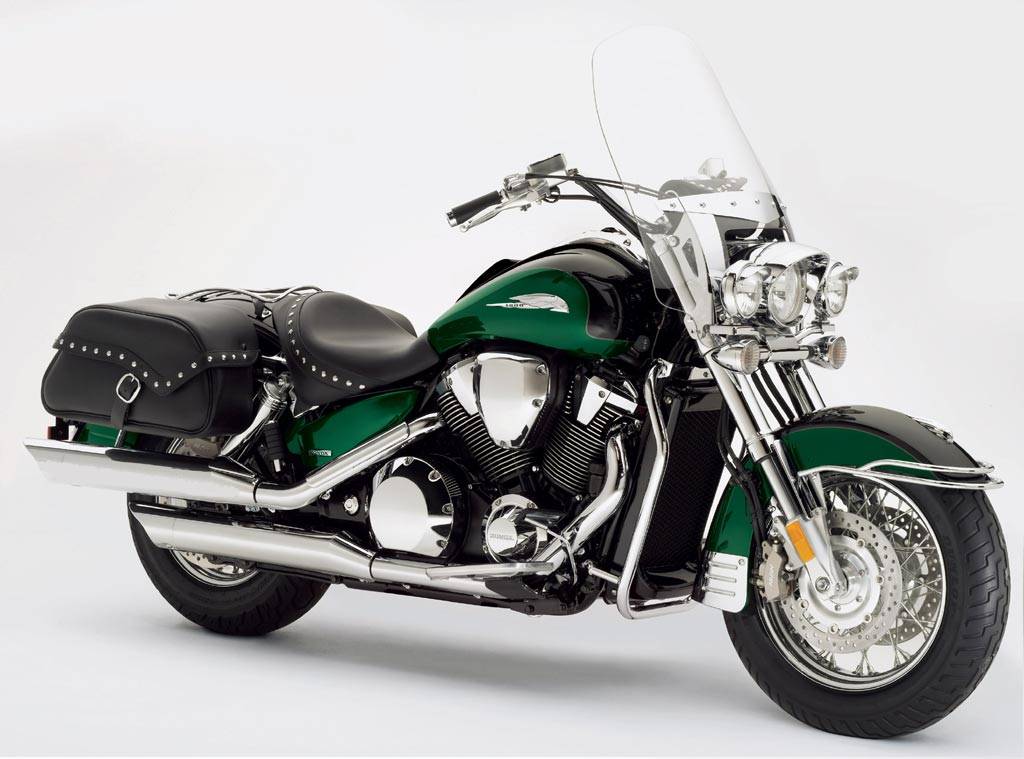

2003 VTX1800S
Click image to enlarge

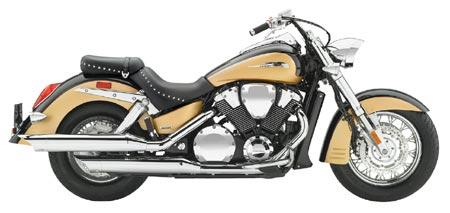

2003 VTX1800S
Click image to enlarge
2006 VTX1800S
- ENGINE
- Engine Type: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
- Ignition: Digital, two spark plugs per cylinder
- DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45.0mm inverted fork; 5.1-inch travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
- Front Brakes: Dual 296.0mm discs with LBS three-piston calipers
- Rear Brake: Single 316.0mm disc with LBS twin-piston caliper
- Front Tire: 150/80R-17 radial
- Rear Tire: 180/70R-15 radial
- DIMENSION
- Rake: 32.0 degrees
- Trail: 163.0mm (6.4 inches)
- Wheelbase: 67.5 inches
- Seat Height: 27.4 inches
- Dry Weight: 750 pounds
- Fuel Capacity: 5.3 gallons
- OTHER
- Emissions: Meets current CARB and EPA standards.
- Colors:
- Metallic Silver
- Candy Orange/Black
- Gold/Black
- Model ID: VTX1800S1

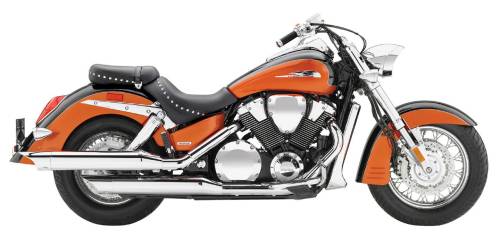

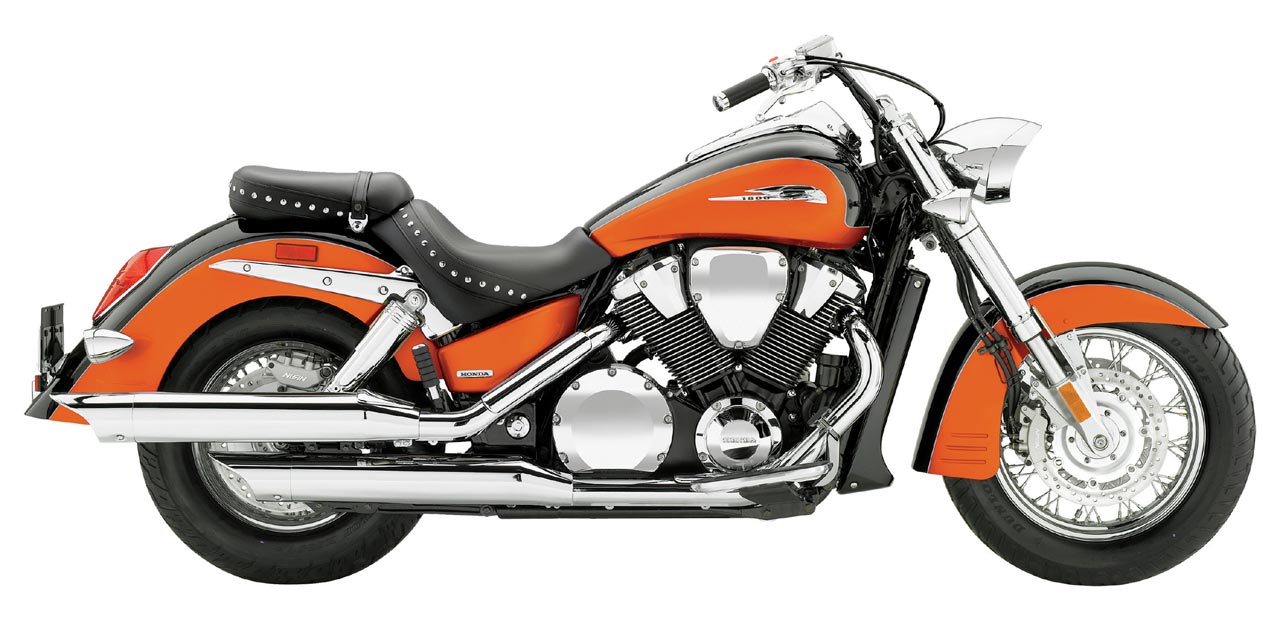

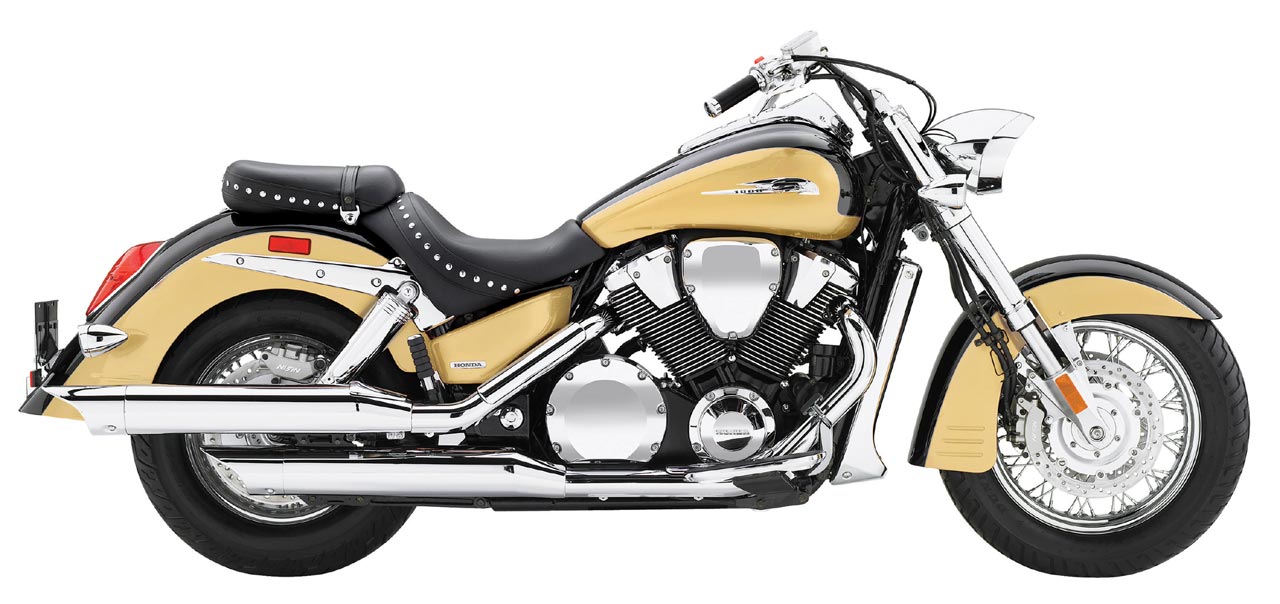

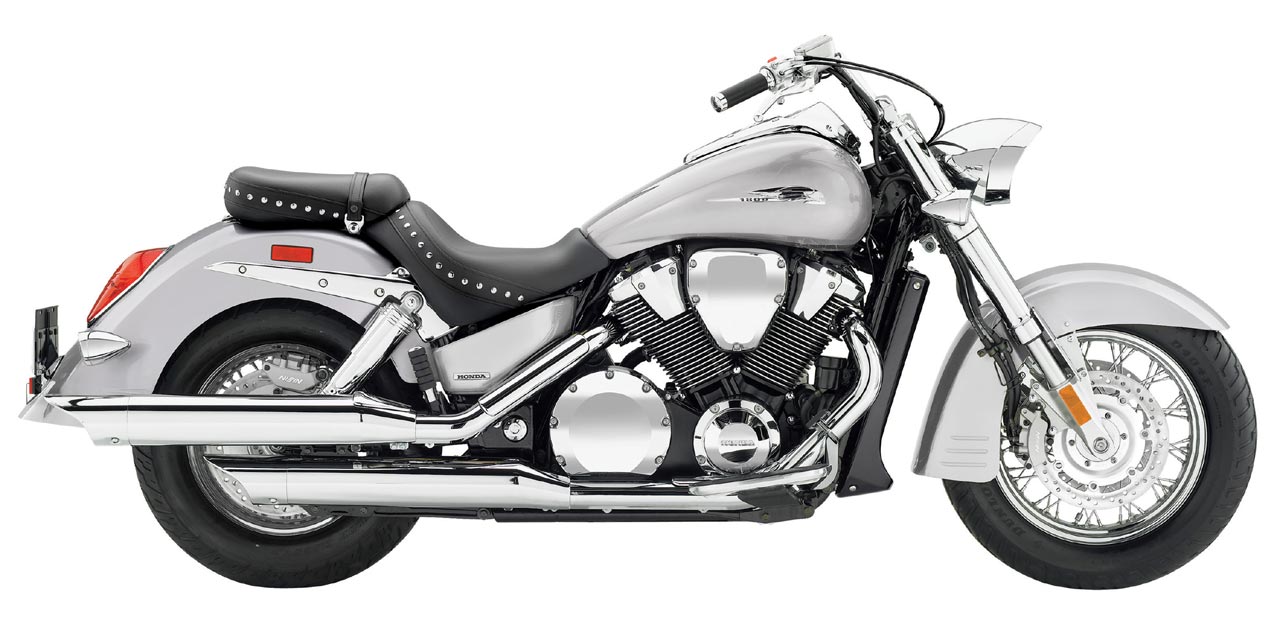

2006 VTX1800S
Click image to enlarge

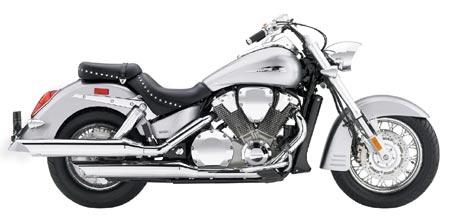

2006 VTX1800S
Click image to enlarge

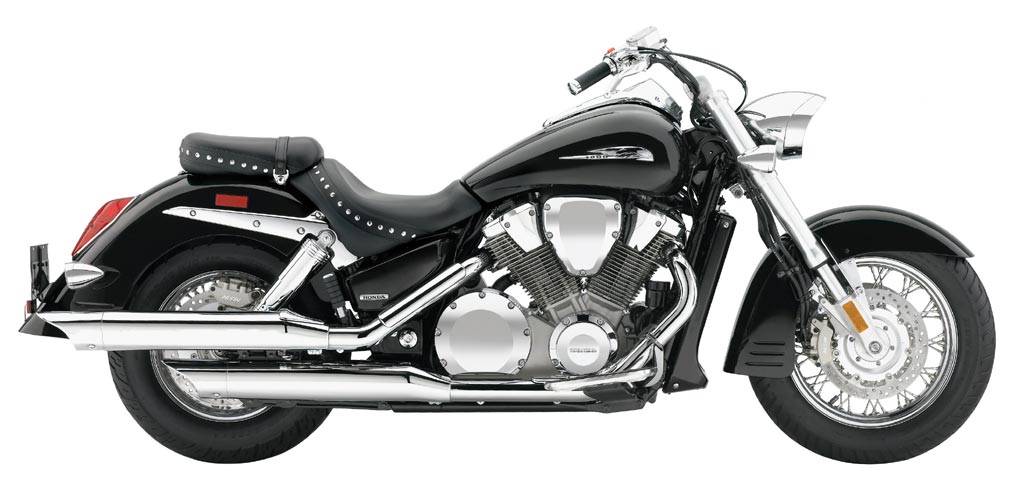

2006 VTX1800S
Click image to enlarge
