Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm inverted fork; 5.1-inch travel
Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brakes: Dual 296mm discs with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS twin-piston caliper
Front Tire: 150/80R-17 radial
Rear Tire: 180/70R-16 radial
DIMENSION
Rake: 32.0 degrees
Trail: 163.0mm (6.4 inches)
Wheelbase: 67.5 inches
Seat Height: 27.4 inches
Dry Weight: 756 pounds
Fuel Capacity: 5.3 gallons
OTHER
Emissions: Meets Current EPA standards. California version differs slightly due to emissions equipment.
Colors:
Metallic Black
Metallic Black/Red Custom Art

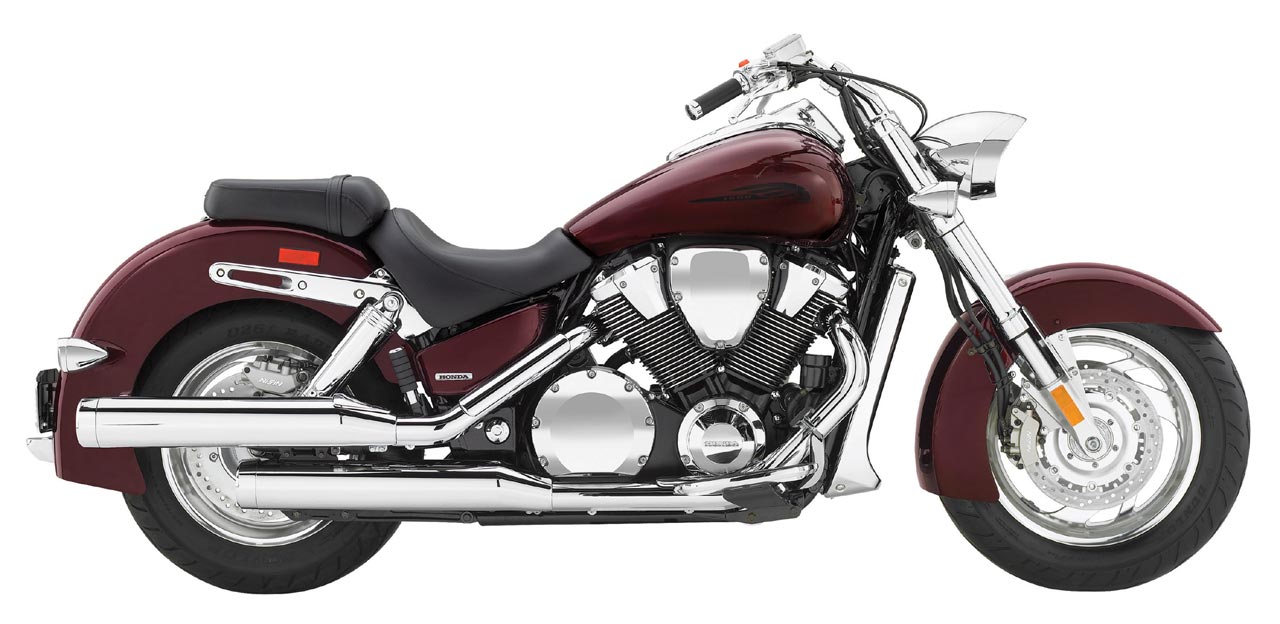

Dark Red/Red Custom Art
Model ID: VTX1800N1

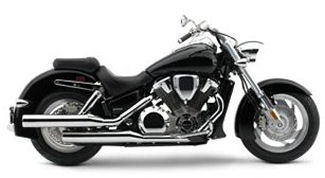

2007 VTX1800N
2008 VTX1800N
Overview:
Overview: Neo Retro might seem a contradiction in terms, but the VTX1800N is all that: stylish, head-turning, from its swooping fenders and straight-cut mufflers to the LED taillights and gorgeous cast aluminum wheels. Call it throwback beauty with a modern-day touch.
Flush-Mounted LED Brake & Taillights
Bullet-Style Turn Signals
Hot-Rod Retro Fender Style
ENGINE
Engine Type: 1795cc liquid-cooled 52° V-twin
Bore and Stroke: 101mm x 112mm
Compression Ratio: 9.0: 1
Valve Train: SOHC; three valves per cylinder
Fuel Delivery: PGM-FI with automatic choke
Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm inverted fork; 5.1 inches travel
Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.9 inches travel
Front Brakes: Dual 296mm disc with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS twin-piston caliper
Front Tire: s: 150/80R-17 radial
Rear Tire: s: 180/70R-16 radial
DIMENSION
Rake: (Caster Angle): 32.0°
Trail: 163mm (6.4 inches)
Wheelbase: 67.5 inches
Seat Height: 27.4 inches
Curb Weight: 804 pounds
Fuel Capacity: 5.3 gallons
OTHER
Spec 1 Colors:
Black

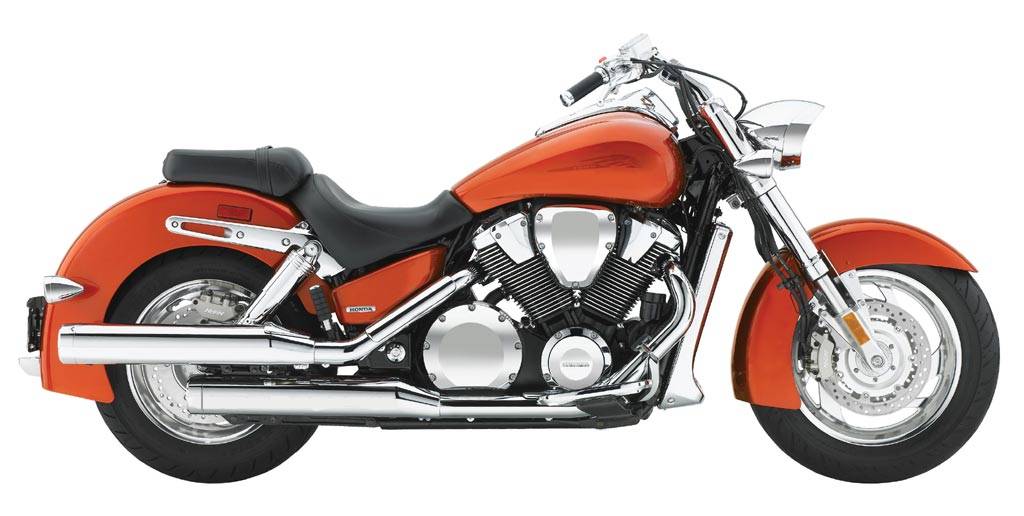

Dark Orange Metallic
Spec 2 Colors:
Black/Black Custom Art

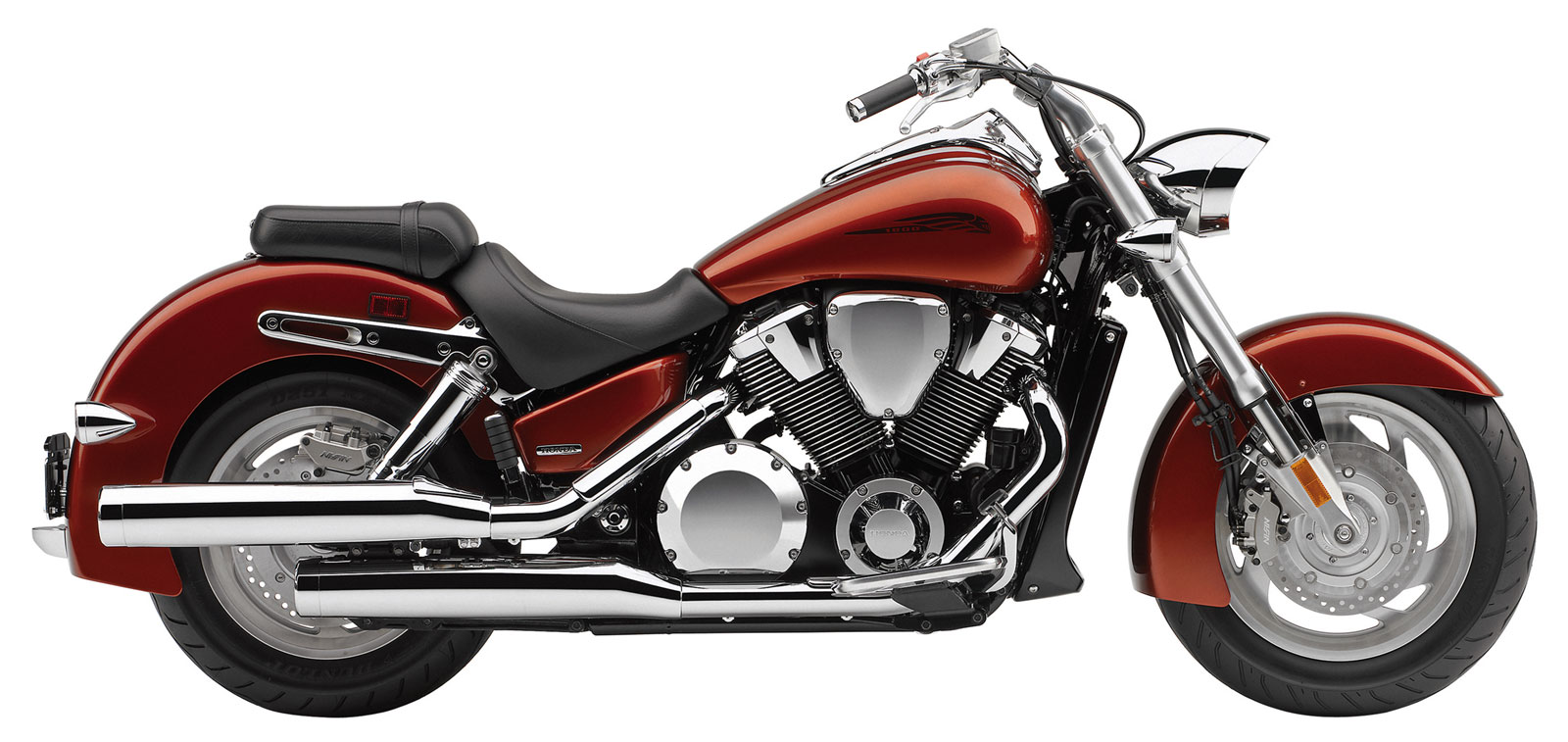

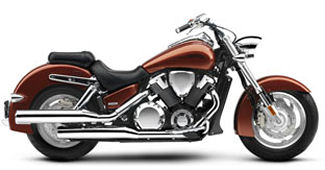

Dark Orange Metallic
Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

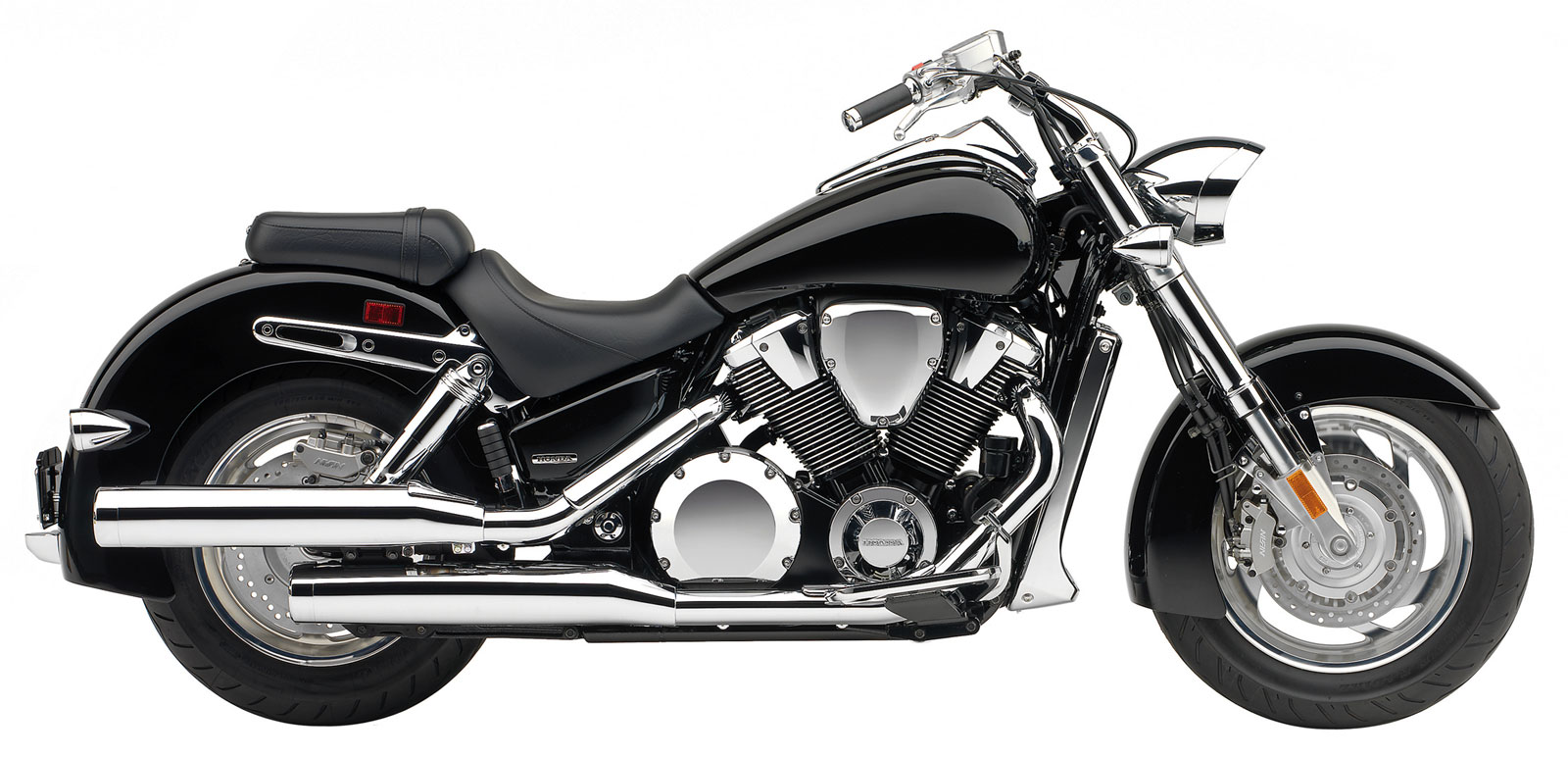

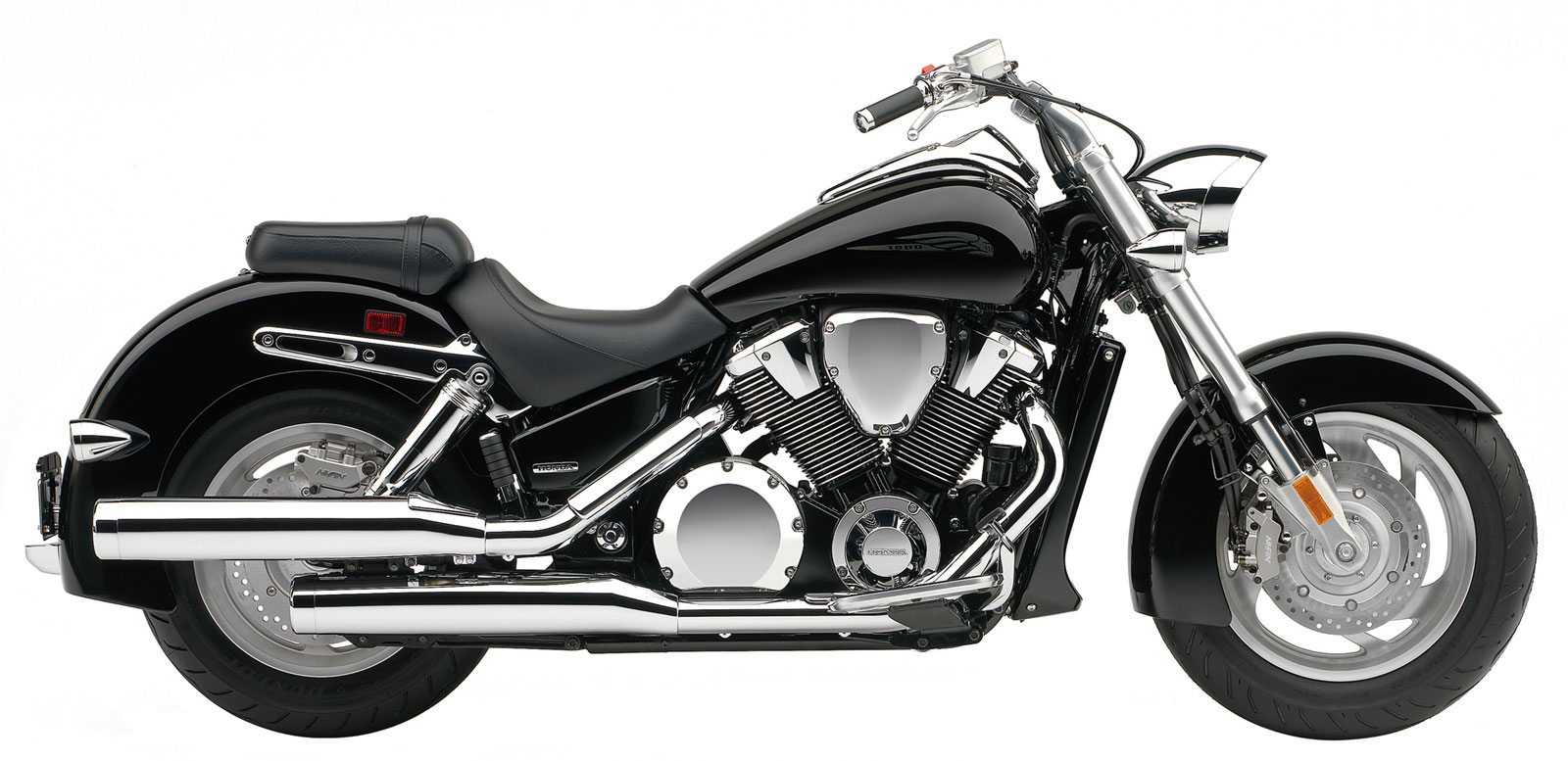

2008 VTX1800N Click image to expand2008 VTX1800N Click image to expand2008 VTX1800N Click image to expand
