Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm inverted fork; 5.1-inch travel
Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brakes: Dual 296.0mm discs with LBS three-piston calipers
Rear Brake: Single 316.0mm disc with LBS twin-piston caliper
Front Tire: 130/70R-18 radial
Rear Tire: 180/55R-18 radial
DIMENSION
Rake: 31.45 degrees
Trail: 144.0mm (5.7 inches)
Wheelbase: 67.5 inches
Seat Height: 27.6 inches
Dry Weight: 743 pounds
Fuel Capacity: 4.8 gallons
OTHER
Emissions: Meets current CARB and EPA standards.
Colors:
Dark Red
Black
Silver Tribal
Bright Blue Metallic Tribal
Model ID: VTX1800F1

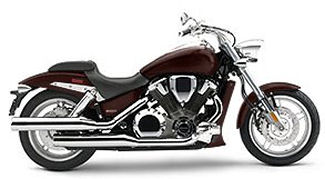

2006 VTX1800

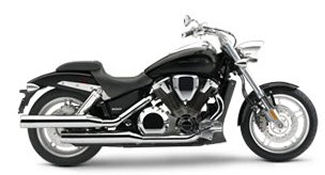

2007 VTX1800F
Overview:
Part dragbike, part boulevard bad boy, the VTX1800F's styling is all about performance, with a low profile, straight bars, chopped fenders with billet-style rails on the rear, cast wheels and gunfighter-style seat.
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm inverted fork; 4.3-inch travel
Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brakes: Dual 296mm discs with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS twin-piston caliper
Front Tire: 130/70R-18 radial
Rear Tire: 180/55R-18 radial
DIMENSION
Rake: 31.45 degrees
Trail: 144.0mm (5.7 inches)
Wheelbase: 67.5 inches
Seat Height: 27.6 inches
Dry Weight: 743 pounds
Fuel Capacity: 4.8 gallons
OTHER
Emissions: Meets Current EPA standards. California version differs slightly due to emissions equipment.
Colors:
Pearl Yellow
Red/Black Tribal
Metallic Black
Model ID: VTX1800F1
2007 VTX1800F
2008 VTX1800F
Overview:
Every family has to have its rebellious, defiant bad boy. That's the VTX1800F to a tee. Built long and lean, this machine is equal parts dragbike and marauder, sporting a low, gunfighter-style seat, chromed 2-into-1 pipes, chopped fenders and 10-spoke wheels.
Straight-Cut, 5-Bolt Muffler Tips
Bullet-Style Headlight
ENGINE
Engine Type: 1795cc liquid-cooled 52° V-twin
Bore and Stroke: 101mm x 112mm
Compression Ratio: 9.0:1
Valve Train: SOHC; three valves per cylinder
Fuel Delivery: PGM-FI with automatic choke
Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm inverted fork; 4.3 inches travel
Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.9 inches travel
Front Brakes: Dual 296mm disc with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS twin-piston caliper
Front Tire: 130/70R-18 radial
Rear Tire: 180/55R-18 radial
DIMENSION
Rake: (Caster Angle): 31° 45'
Trail: 144mm (5.7 inches)
Wheelbase: 65.7 inches
Seat Height: 27.6 inches
Curb Weight: 774 pounds
Fuel Capacity: 4.8 US gallons
OTHER
Colors:
Black
Candy Red Tribal
Warranty: One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

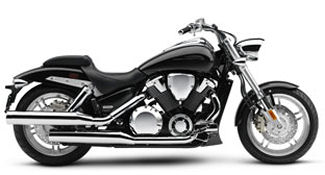

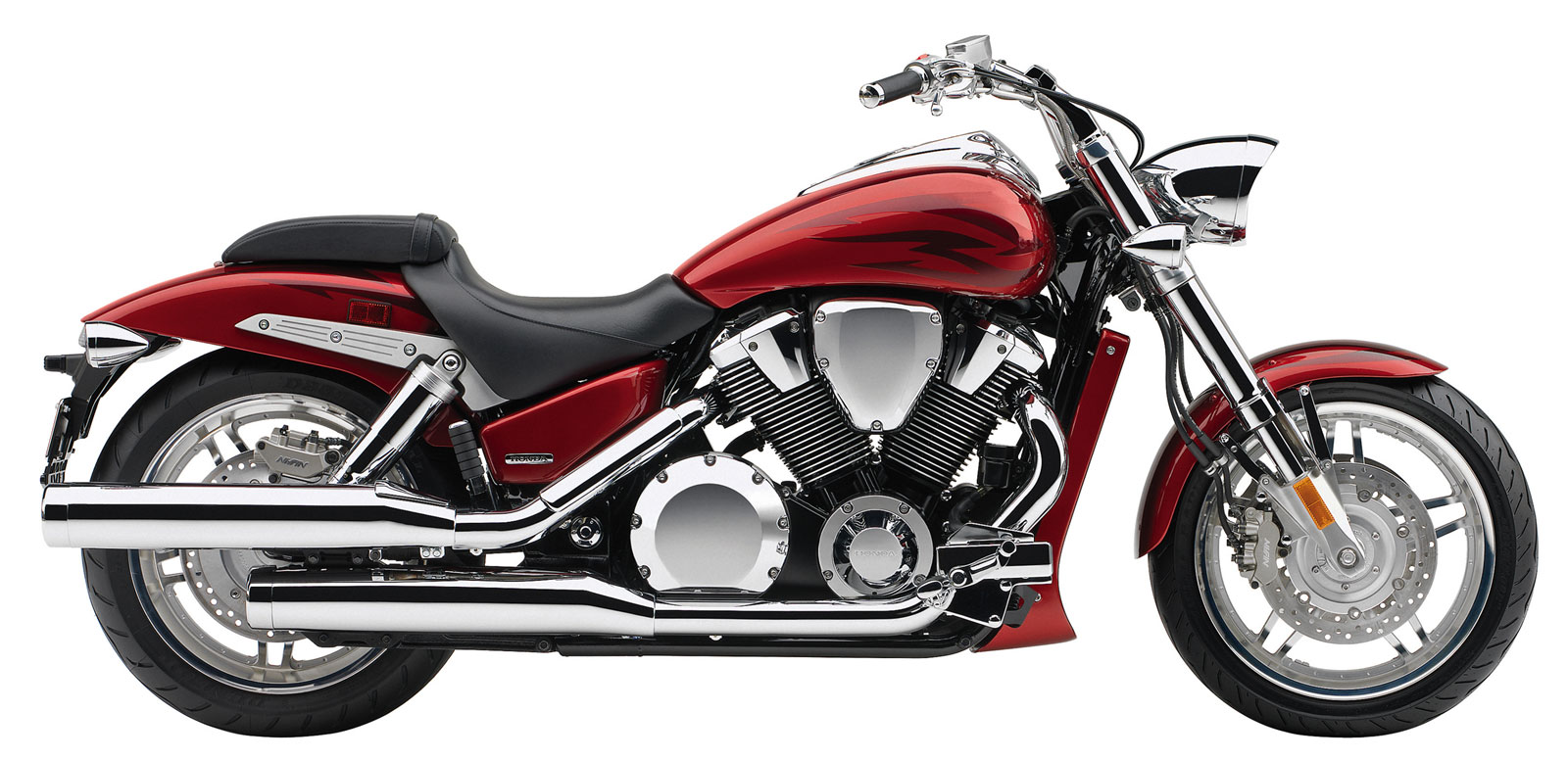

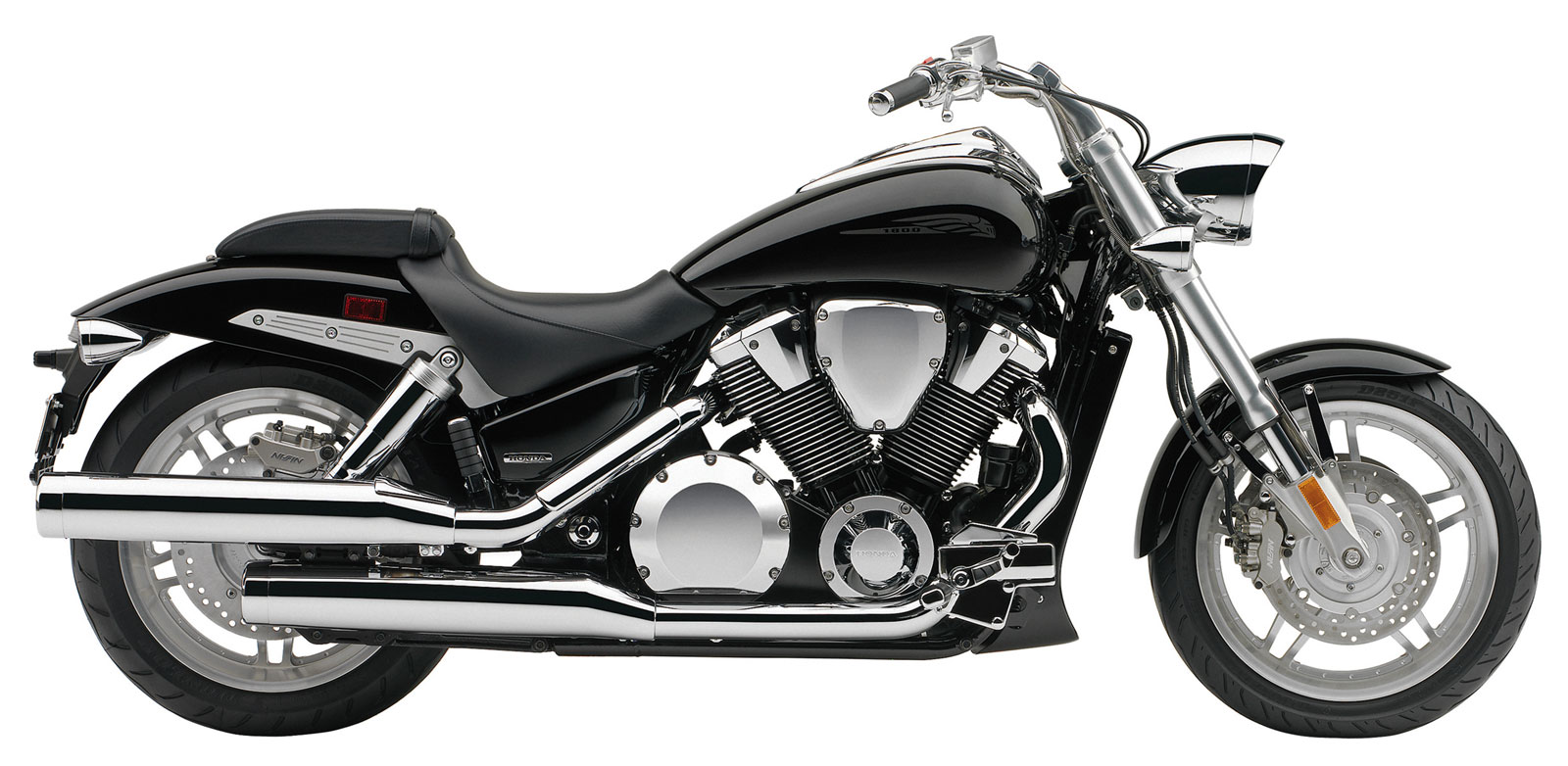

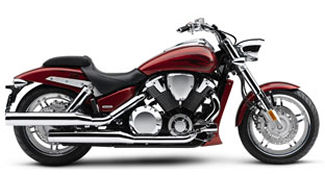

2008 VTX1800F Click image to expand2008 VTX1800F Click image to expand
