2002 VTX1800C

ENGINE
- Type: 1795cc liquid-cooled 52° V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: PGM-FI with automatic choke
- Ignition: Solid-state digital, 2 spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Driveline: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 4.3 inches travel
- Rear Suspension: Dual shocks with 5-position spring preload adjustability; 3.9 inches travel
- Front Brakes: Dual 296mm disc with LBS 3-piston calipers
- Rear Brake: s: Single 316mm disc with LBS 2-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Rake: (Caster Angle): 32.0 degrees
- Trail: 146mm (5.8 inches)
- Seat height: 695mm (27.3 in.)
- Wheelbase: 1715mm (67.5 in.)
- Dry weight: 320 kg (705 lb)
- Fuel capacity: 17 liters (4.5 US gal.)
OTHER
- Colors:
  - Illusion Red
  - Illusion Blue
  - Metallic Silver
  - Black
- Price: $12,499 USDollars

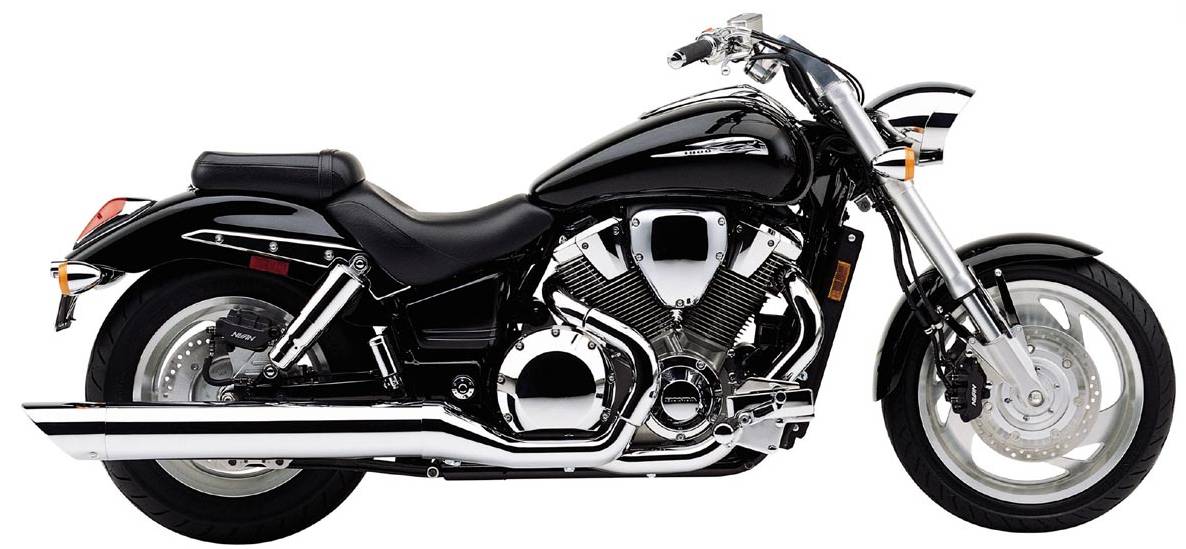

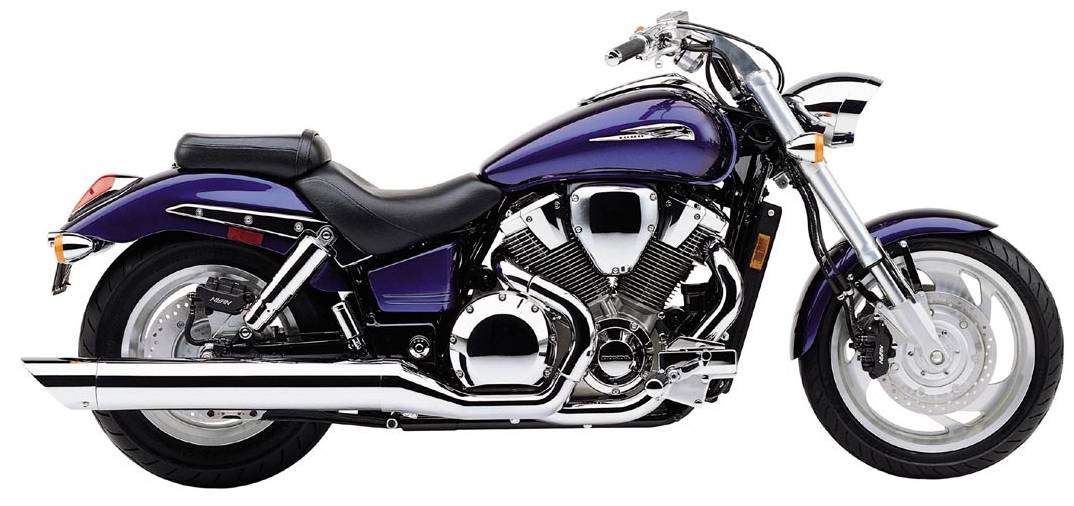

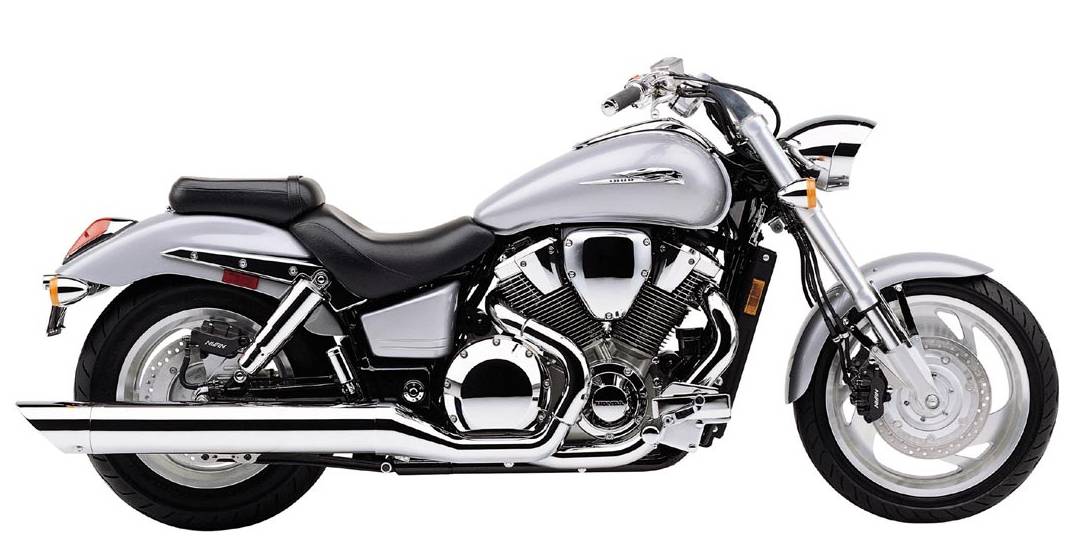

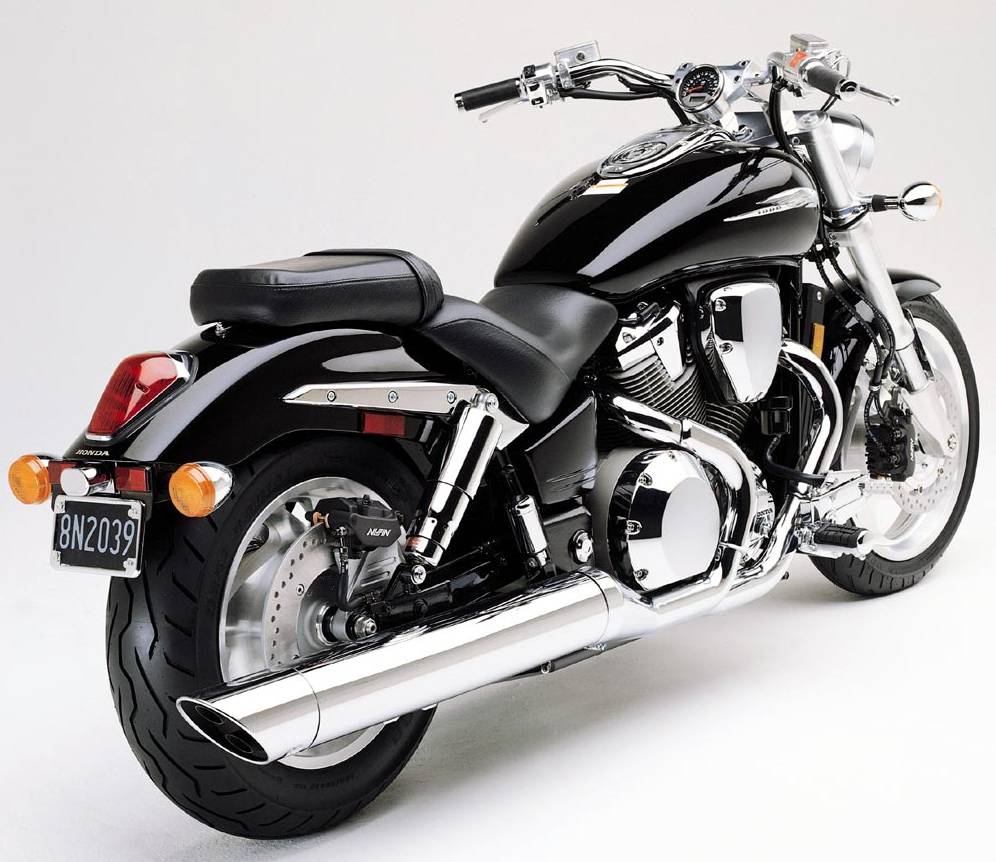

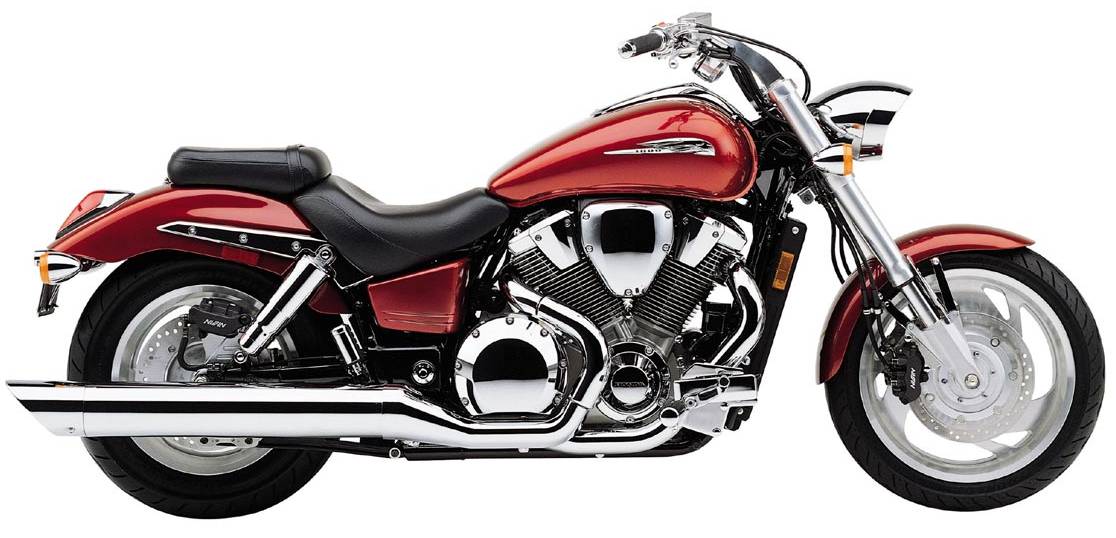

2002 VTX1800C — 2002 VTX1800C
Click image to enlarge

2002 VTX1800C — 2002 VTX1800C
Click image to enlarge

2002 VTX1800C — 2002 VTX1800C
Click image to enlarge

2002 VTX1800C — 2002 VTX1800C
Click image to enlarge

2002 VTX1800C — 2002 VTX1800C
Click image to enlarge

2003 VTX1800C

ENGINE
- Type: 1795cc liquid-cooled 52° V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: PGM-FI with automatic choke
DRIVETRAIN
- Transmission: Five-speed
- Driveline: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 130mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 100mm travel
- Front Brakes: Dual 296mm discs with LBS three-piston calipers
- Rear Brake: Single 316mm disc with LBS two-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Seat height: 695mm (27.3 in.)
- Wheelbase: 1715mm (67.5 in.)
- Dry weight: 320 kg (705 lb)
- Fuel capacity: 17 liters (4.5 GalUS)
OTHER
- Colors:
  - Candy Red
  - Uranium Green
  - Black

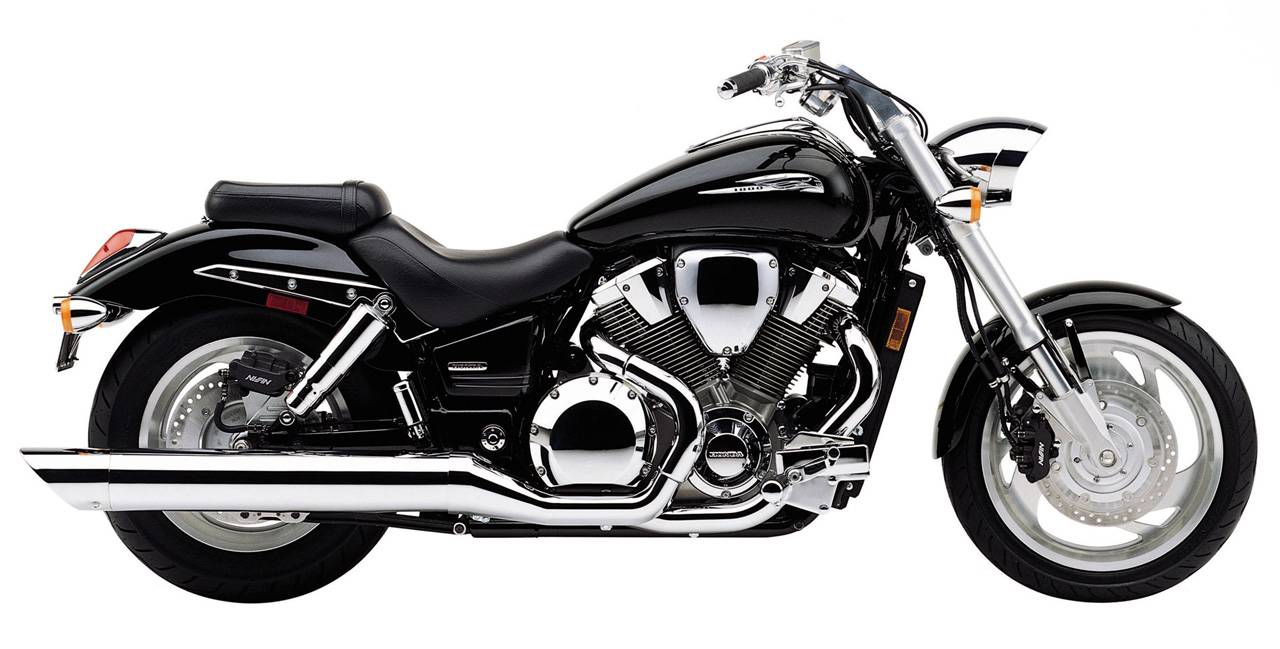

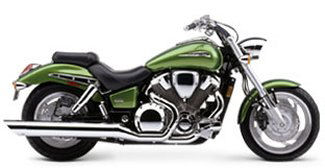

2003 VTX1800C

2003 VTX1800C — 2003 VTX1800C
Click image to enlarge

2004 VTX1800C

ENGINE
- Engine Type: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
- Ignition: Solid-state digital, two spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 5.1-inch axle travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
- Front Brakes: Dual 296mm discs with LBS three-piston calipers
- Rear Brake: Single 316mm disc with LBS twin-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Rake: 32.0 degrees
- Trail: 152.0mm (6.0 inches)
- Wheelbase: 67.5 inches
- Seat Height: 27.3 inches
- Dry Weight: 705.0 pounds
- Fuel Capacity: 4.5 gallons
OTHER
- Colors:
  - Black
  - Candy Orange Flame
  - Titanium Flame
  - Magenta Metallic
- Model ID: VTX1800C
- Warranty: 1 year

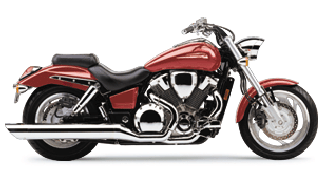

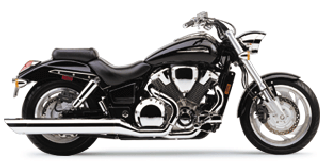

2004 VTX1800C

2004 VTX1800C

2005 VTX1800C

ENGINE
- Engine Type: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
- Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45.0mm inverted fork; 5.1-inch travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
- Front Brakes: Dual 296.0mm discs with LBS three-piston calipers
- Rear Brake: Single 316.0mm disc with LBS twin-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Rake: 32.48 degrees
- Trail: 152.0mm (5.7 inches)
- Wheelbase: 67.6 inches
- Seat Height: 27.9 inches
- Dry Weight: 734 pounds
- Fuel Capacity: 4.8 gallons
OTHER
- Colors:
  - Black
  - Black Flame
  - Candy Red Flame
  - Titanium
  - Titanium
  - Candy Black Cherry
  - Candy Red
  - Silver Tribal
  - Titanium Tribal
  - Bright Blue Metallic
  - Candy Orange
  - Metallic Silver
  - Black/Candy Black Cherry
  - Black/Metallic Green
- Model ID: VTX1800C
- Warranty: 1 year

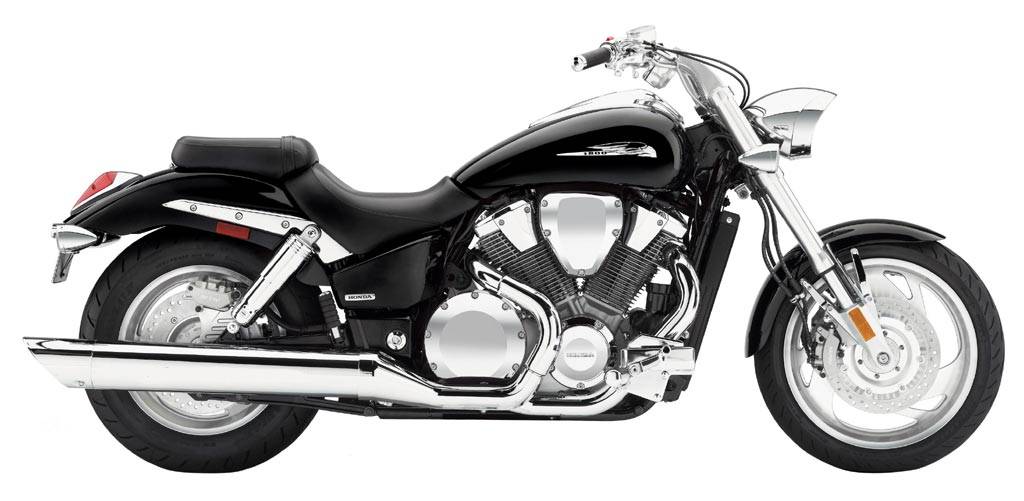

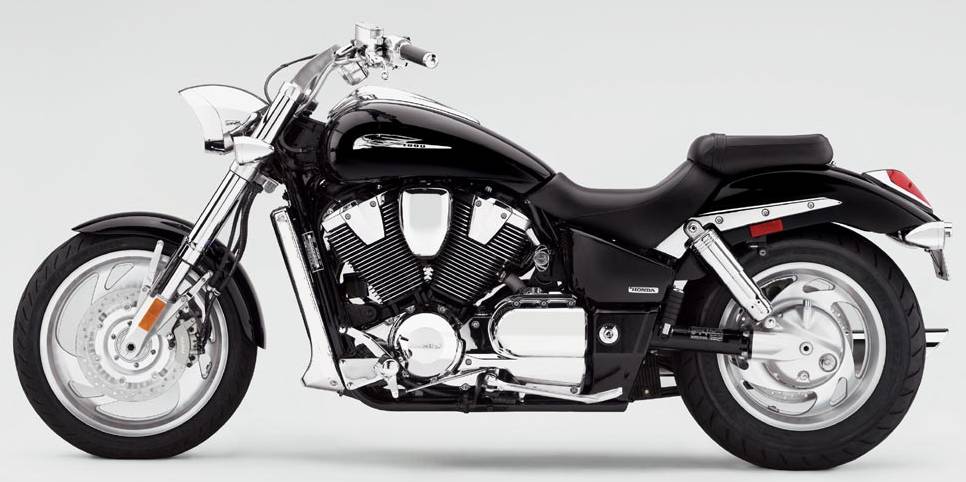

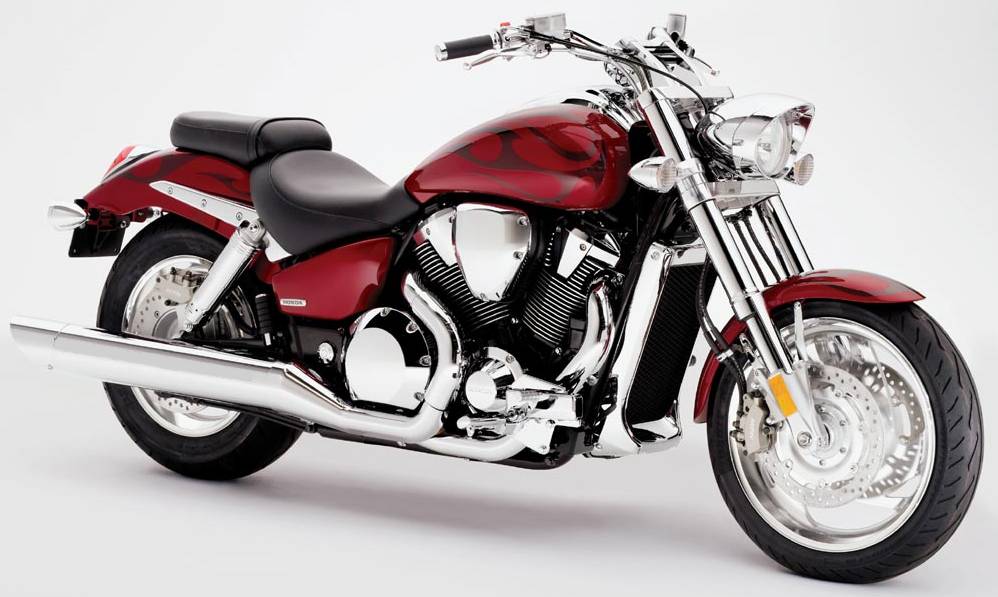

2005 VTX1800C — 2005 VTX1800C
Click image to enlarge

2005 VTX1800C — 2005 VTX1800C
Click image to enlarge

2005 VTX1800C — 2005 VTX1800C
Click image to enlarge

2006 VTX1800C

ENGINE
- Engine Type: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101.0mm x 112.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
- Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45.0mm inverted fork; 5.1-inch travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
- Front Brakes: Dual 296.0mm discs with LBS three-piston calipers
- Rear Brake: Single 316.0mm disc with LBS twin-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Rake: 31.45 degrees
- Trail: 152.0mm (5.7 inches)
- Wheelbase: 67.6 inches
- Seat Height: 27.6 inches
- Dry Weight: 734 pounds
- Fuel Capacity: 4.8 gallons
OTHER
- Emissions: Meets current CARB and EPA standards.
- Colors:
  - Black/Flame
  - Metallic Silver
- Model ID: VTX1800C1

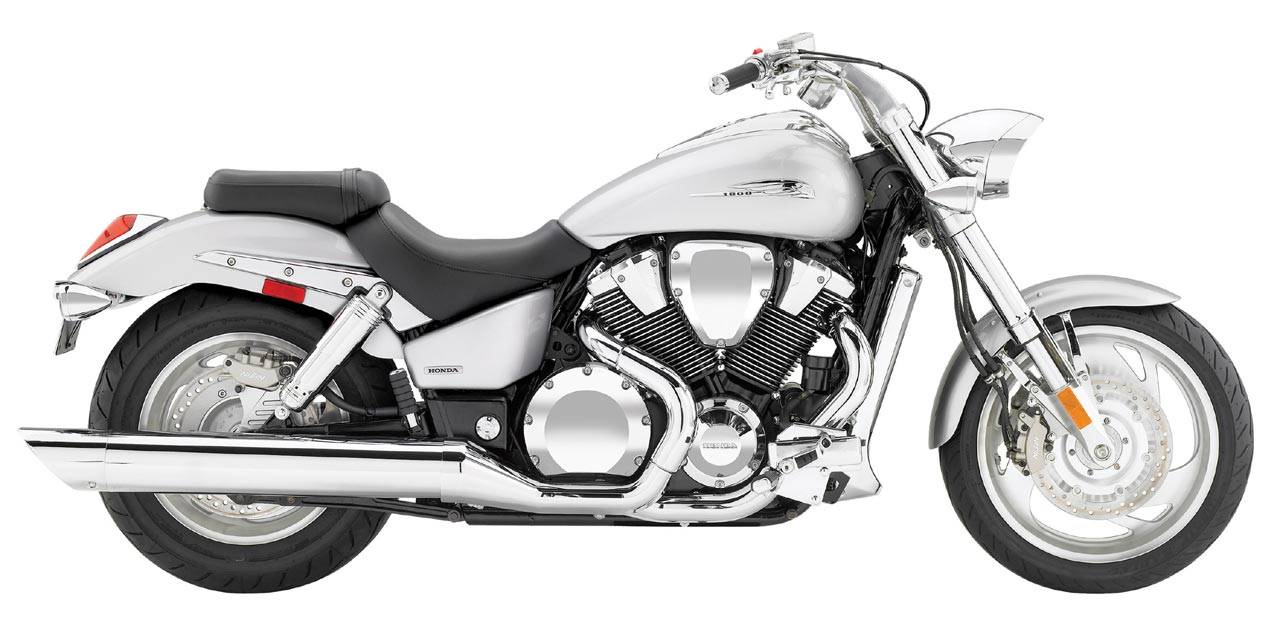

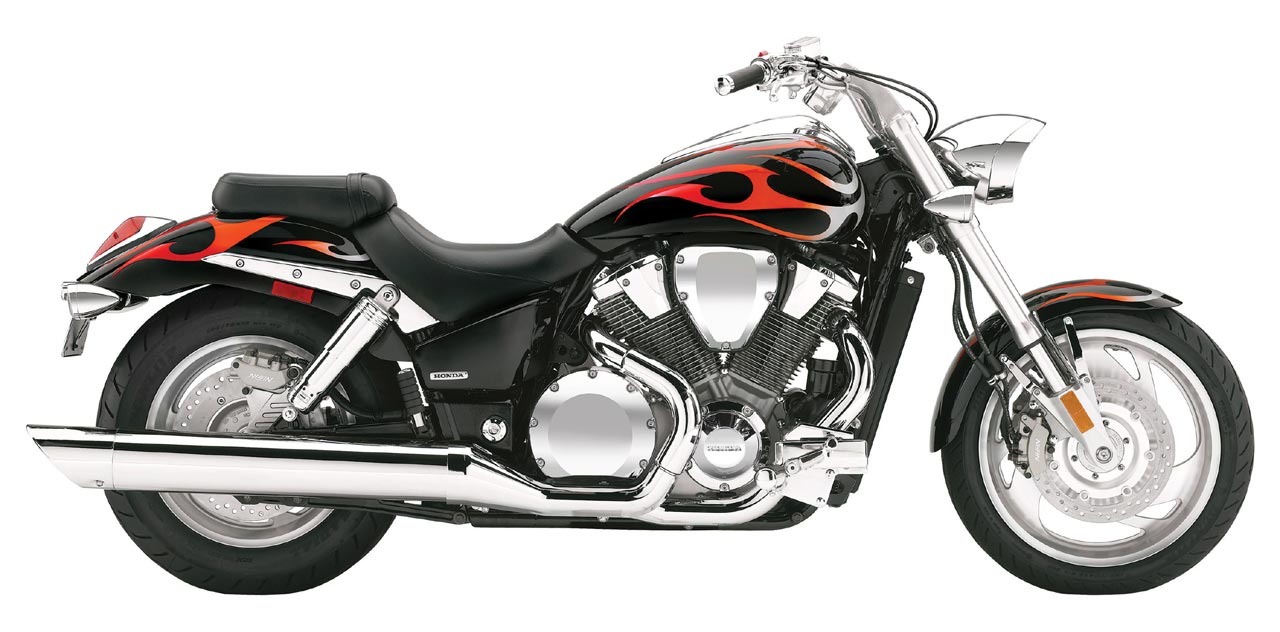

2006 VTX1800C — 2006 VTX1800C
Click image to enlarge

2006 VTX1800C — 2006 VTX1800C
Click image to enlarge

2007 VTX1800C

ENGINE
- Engine Type: 1795cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 101mm x 112mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: PGM-FI with automatic choke
- Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 45mm inverted fork; 4.3 inches travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
- Front Brakes: Dual 296mm discs with LBS three-piston calipers
- Rear Brake: Single 316mm disc with LBS twin-piston caliper
- Front Tire: 130/70R-18 radial
- Rear Tire: 180/70R-16 radial
DIMENSION
- Rake: 31.45 degrees
- Trail: 152.0mm (5.7 inches)
- Wheelbase: 67.6 inches
- Seat Height: 27.6 inches
- Dry Weight: 734 pounds
- Fuel Capacity: 4.8 gallons
OTHER
- Emissions: Meets Current EPA standards. California version differs slightly due to emissions equipment.
- Colors:
  - Red/Black Flame
  - Black
- Model ID: VTX1800C1

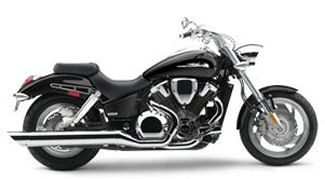

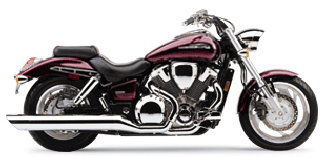

2007 VTX1800C

2007 VTX1800

2008 Honda VTX 1800

ENGINE
- Engine Size: 1795cc
- Engine Detail: liquid-cooled 52 degree V-twin
- Bore Stroke: 101mm x 112mm
- Compression Ratio: 9.0:1
- Fuel System: Programmed Fuel Injection (PGM-FI) with automatic choke
- Ignition: Digital, two spark plugs per cylinder
DRIVETRAIN
- Transmission: Five-speed
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 45mm inverted fork; 5.1 inches travel
- Suspension Rear: Dual shocks with five-position spring preload adjustability; 3.9 inches travel
- Brakes Front: Dual 296mm disc with LBS three-piston calipers
- Brakes Rear: Single 316mm disc with LBS twin-piston caliper
- Tire Front: 150/80R-17 radial
- Tire Rear: 180/70R-16 radial
DIMENSION
- Wheelbase: 67.5 in.
- Seat Height: 27.4 in.
- Curb Weight: 804 lbs.
- Fuel Capacity: N/A gal.
OTHER
- Colors: Black, Dark Orange Metallic
- Warranty: 1 year
- Price: $13699
