Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm cartridge fork with anti-dive system; 140mm travel
Rear Suspension: Pro Arm single-sided swingarm with Pro-Link single shock with electronically controlled spring preload adjustment with two memory presets; 105mm travel
Front Brakes: Dual full-floating 296mm discs with three-piston calipers, linked with the rear brake. Anti-lock brakes.
Rear Brake: Single ventilated 316mm disc with three-piston caliper, linked with the front brake. Anti-lock brakes.
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
Cruise control: standard equipment
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm fork with anti-dive system; 5.5 inches of travel
Rear Suspension: Pro Arm single-sided swingarm with Pro-Link; electronically controlled spring-preload adjustment with two memory presets; 4.1 inches of travel
Front Brakes: Dual full-floating 296mm discs with three-piston calipers, linked with the rear brake. Anti-lock brakes.
Rear Brake: Single ventilated 316mm disc with three-piston caliper, linked with the rear brake. Anti-lock brakes.
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
DIMENSION
Wheelbase: 1692mm (66.6 in.)
Seat Height: 740mm (29.1 in.)
Dry Weight: 363 kg. (799 lb.)
Fuel Capacity: 25 litres (6.6 GalUS)
OTHER
Colors:
Candy Red
Illusion Blue
Candy Orange
Pearl Yellow
Metallic Silver
Black
Sound system: Panasonic® audio system with two enclosed 25-watt peak power speakers, 12 FM and 6 AM station presets, weatherband radio, station auto-select, ambient audio enhancement, auto volume control, audio mute, headset-ready intercom, and ergonomically designed controls mounted on left handlebar.
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes: Dual full-floating 296mm discs with LBS three-piston calipers
(with Anti-Lock Braking System(R) ABS(R))
Rear Brake: Single ventilated 316mm disc with LBS three-piston caliper
(with Anti-Lock Braking System(R) ABS(R))
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
DIMENSION
Rake: 29.25 degrees
Trail: 109mm (4.3 inches)
Wheelbase: 66.6 inches
Seat Height: 29.1 inches
Dry Weight: 792.0 pounds (799.0 pounds for ABS model)
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
(Anti-Lock Braking System(R) (ABS(R)))
Rear Brake: Single ventilated 316.0mm disc with LBS three-piston caliper
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
(Anti-Lock Braking System(R) (ABS(R)))
Rear Brake: Single ventilated 316.0mm disc with LBS three-piston caliper
(Anti-Lock Braking System(R) (ABS(R)))
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
DIMENSION
Rake: 29.15 degrees
Trail: 109.0mm (4.3 inches)
Wheelbase: 66.5 inches
Seat Height: 29.1 inches
Dry Weight: 822 pounds (799.0 lb for ABS model)
Fuel Capacity: 6.6 gallons
OTHER
Colors:
Black
White
Dark Red
Titanium
Gold
Model ID: GL1800 (GL1800A = ABS model)
Warranty: 3 years

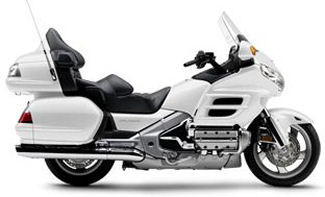

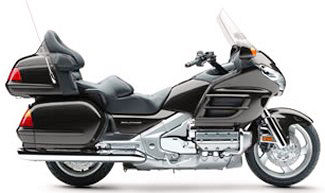

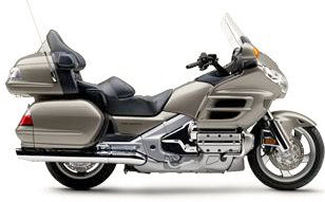

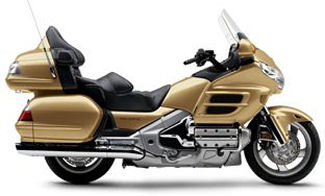

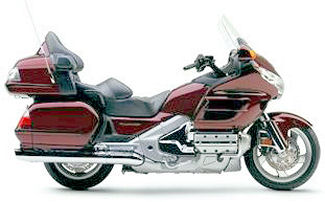

2006 GL18002006 GL18002006 GL18002006 GL1800
2007 GL1800 Gold Wing
OVERVIEW
Airbag option (GL18B): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines the touring class. New for 2007, the airbag-equipped model is the greatest revolution in motorcycle technology since the introduction of the Gold Wing itself. It's in a class of its own.
Premium Audio model (GL18P): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines what a touring motorcycle can be. The Gold Wing Premium Audio model features six speaker elements and an 80-watts-per-channel external amplifier. You can even add an optional six-disc CD player. It's in a class of its own.
Premium Audio, Comfort Package & Navi model (GL18HPN): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines what a touring motorcycle can be. The Gold Wing Premium Audio, Comfort Package & Navi features a fully integrated, flash-card based Honda Satellite-Linked Navigation™ System. Available only on the Gold Wing. It's in a class of its own.
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
(Anti-Lock Braking System(R) (ABS(R)))
Rear Brake: Single ventilated 316.0mm disc with LBS three-piston caliper
(Anti-Lock Braking System(R) (ABS(R)))
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
DIMENSION
Rake: 29.15 degrees
Trail: 109.0mm (4.3 inches)
Wheelbase: 66.5 inches
Seat Height: 29.1 inches
Dry Weight: 792 pounds (799.0 lb for ABS model; 860 lb for GL18B)
Fuel Capacity: 6.6 gallons
OTHER
Emissions: Exceeds 2008 CARB standards
Colors:
Metallic Black
Metallic Silver
Dark Orange Metallic
Dark Red Metallic
Dark Blue Metallic
Model ID: GL1800 (GL1800A = ABS model)
Warranty: 3 years

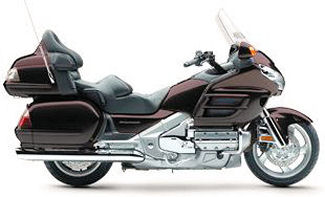

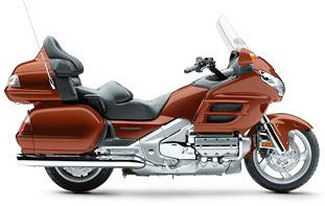

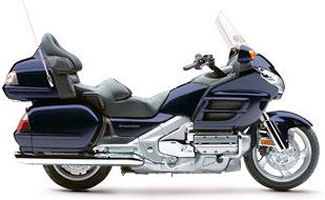

2007 GL18002007 GL18002007 GL1800
2008 GL1800 Gold Wing
OVERVIEW
Airbag option (GL18B): It's only natural that a revolutionary machine such as the Gold Wing should never rest on its laurels, striving instead to redefine its class at every opportunity. The Gold Wing set yet another industry benchmark by introducing production motorcycling's first-ever Airbag System. Proof once again that when it comes to touring, the Gold Wing stands alone at the top.
Premium Audio Model (GL18P): Power, luxury, sporting performance... with its unparalleled combination of class-leading features, the 1832cc Gold Wing continues to redefine what a touring motorcycle can be. Now add the Gold Wing's six speaker elements and an 80-watts-per-channel external amplifier, and you'll not only be rolling down the highway in unbeatable style -- you'll be rocking, too.
Premium Audio, Comfort Package & Navi model (GL18HPN): Premium sound, cold-weather comfort features and Hondas patented, Flash-card-based Satellite-Linked Navigation™ System ... is there any place the Gold Wing Premium Audio, Comfort Package & Navi model cant take you, surrounded by luxury and performance? The answer to that, and to whether theres a better motorcycle in the touring class, would be "no." A resounding "no."
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake: Single ventilated 316.0mm disc with LBS three-piston caliper (optional ABS)
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
DIMENSION
Rake: 29.15 degrees
Trail: 109.0mm (4.3 inches)
Wheelbase: 66.5 inches
Seat Height: 29.1 inches
Curb Weight: N/A
Fuel Capacity: 6.6 gallons
OTHER
Colors:
Black
Titanium
Pearl White
Metallic Red
Dark Red Metallic
Model ID: GL1800
3 years Warranty: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

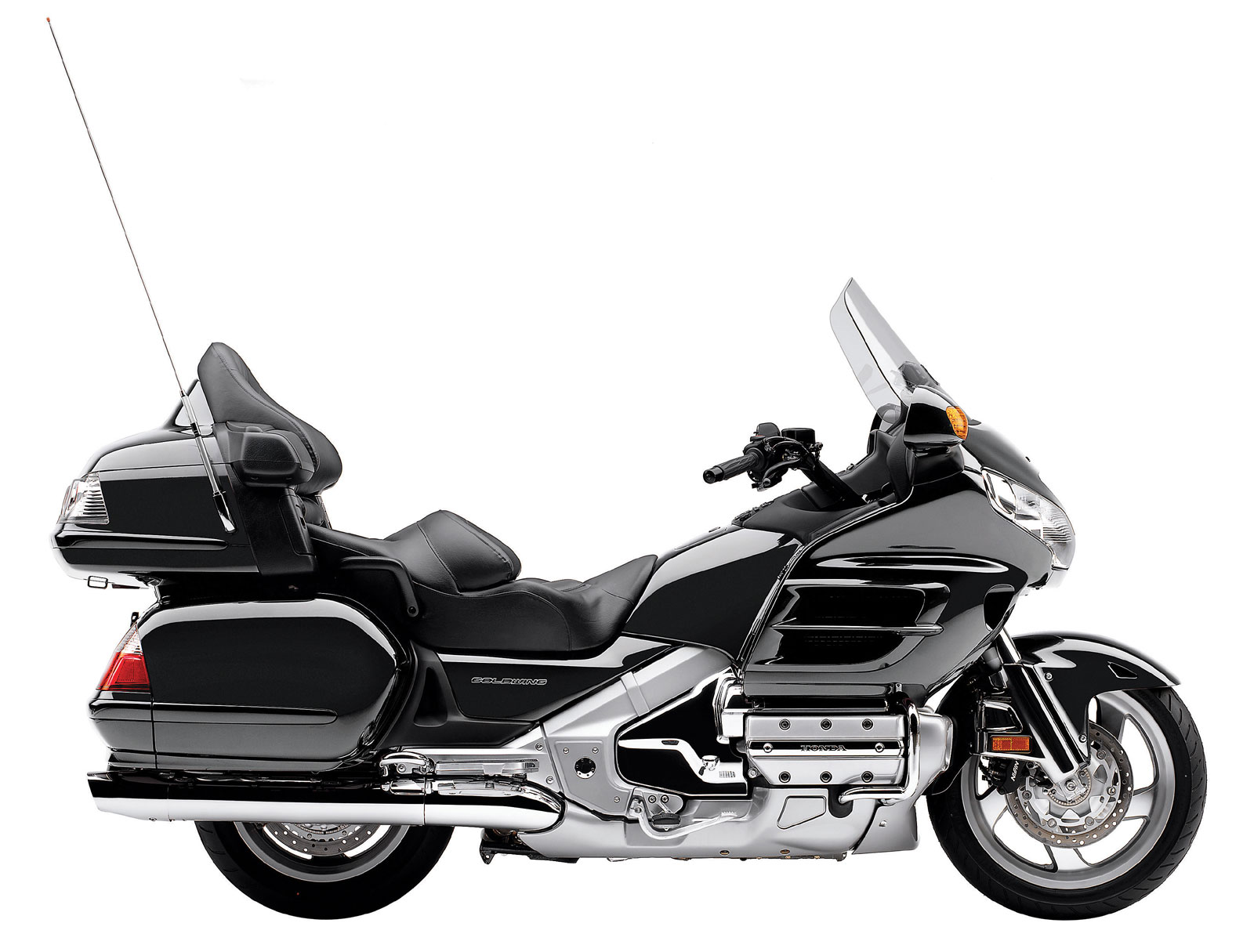

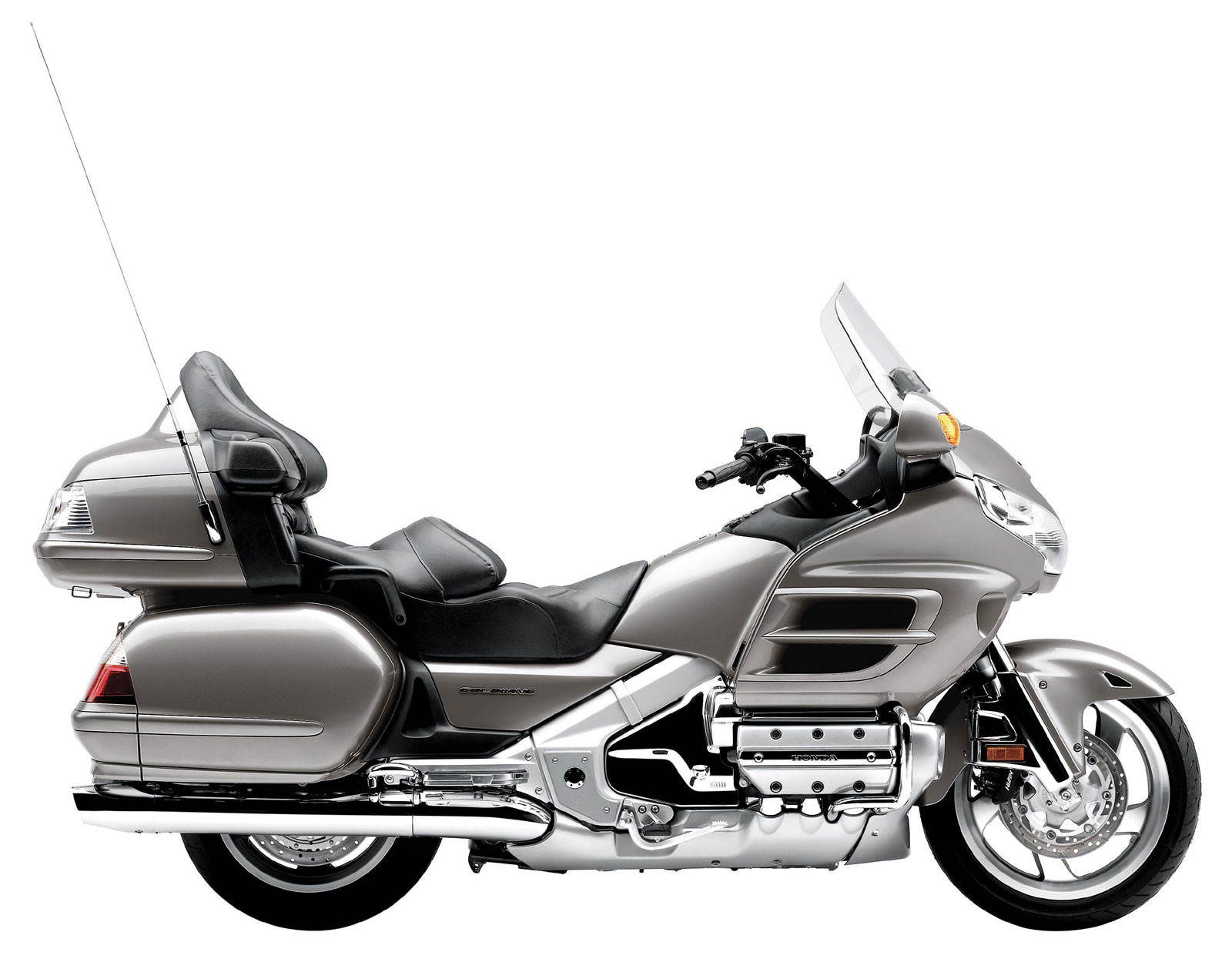

2008 GL1800 Click image to enlarge2008 GL1800 Click image to enlarge2008 GL1800 Click image to enlarge2008 GL1800 Click image to enlarge
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including Overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 45mm cartridge fork with anti-dive system, 5.5-inch travel
Suspension Rear: Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Brakes Front: Dual full-floating 296 mm discs with LBS three-piston calipers
Brakes Rear: Single ventilated 316 mm disc with LBS three-piston caliper
Tire Front: 130/70R-18
Tire Rear: 180/60R-16
DIMENSION
Wheelbase: 66.5 in.
Seat Height: 29.1 in.
Curb Weight: 895 - 928 lbs.
Fuel Capacity: 6.6 gal.
OTHER
Colors: Candy Black Cherry, Pearl Yellow, Metallic Silver, Deep Blue Metallic, Metallic Titanium
Price: $25559
Warranty: 3 years

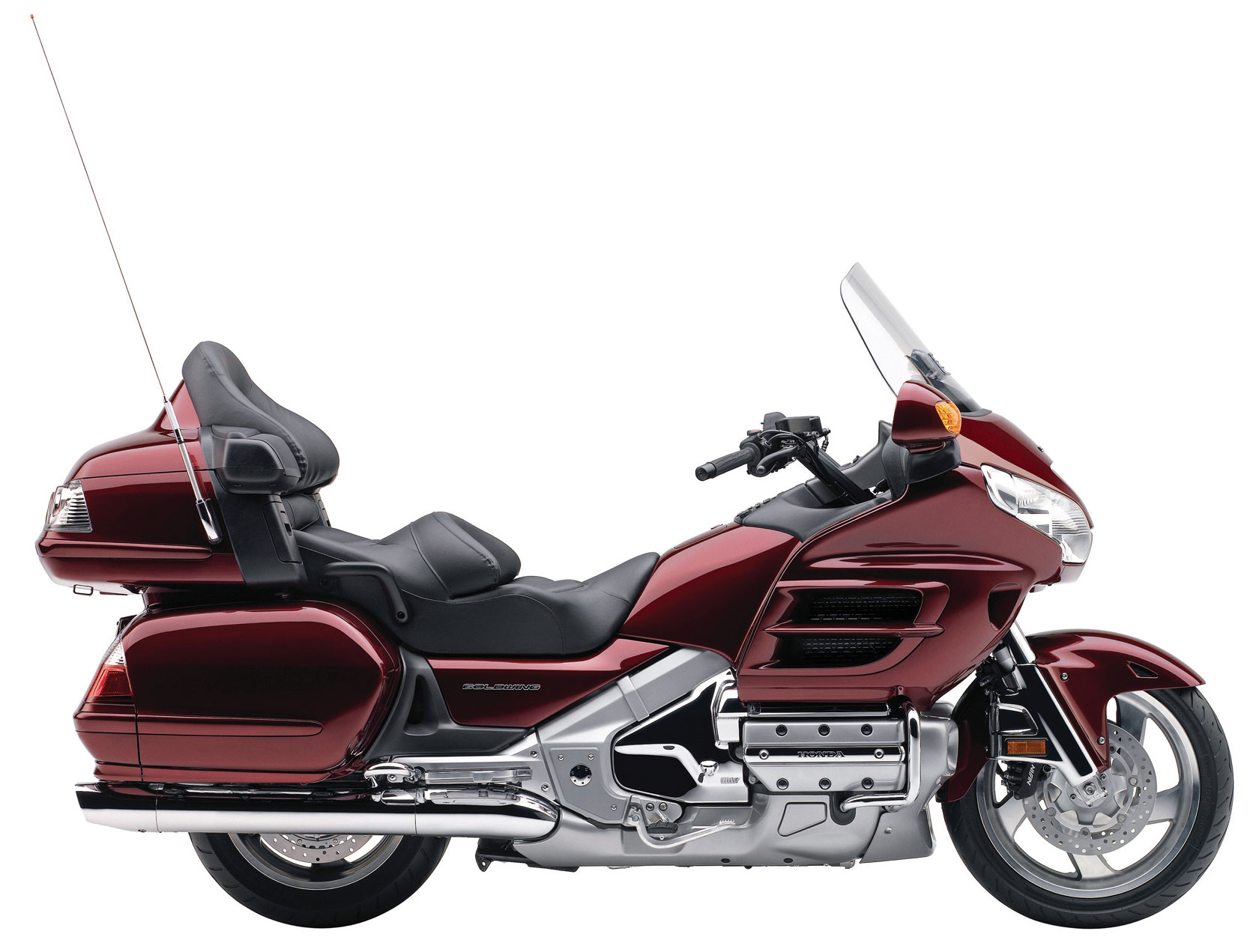

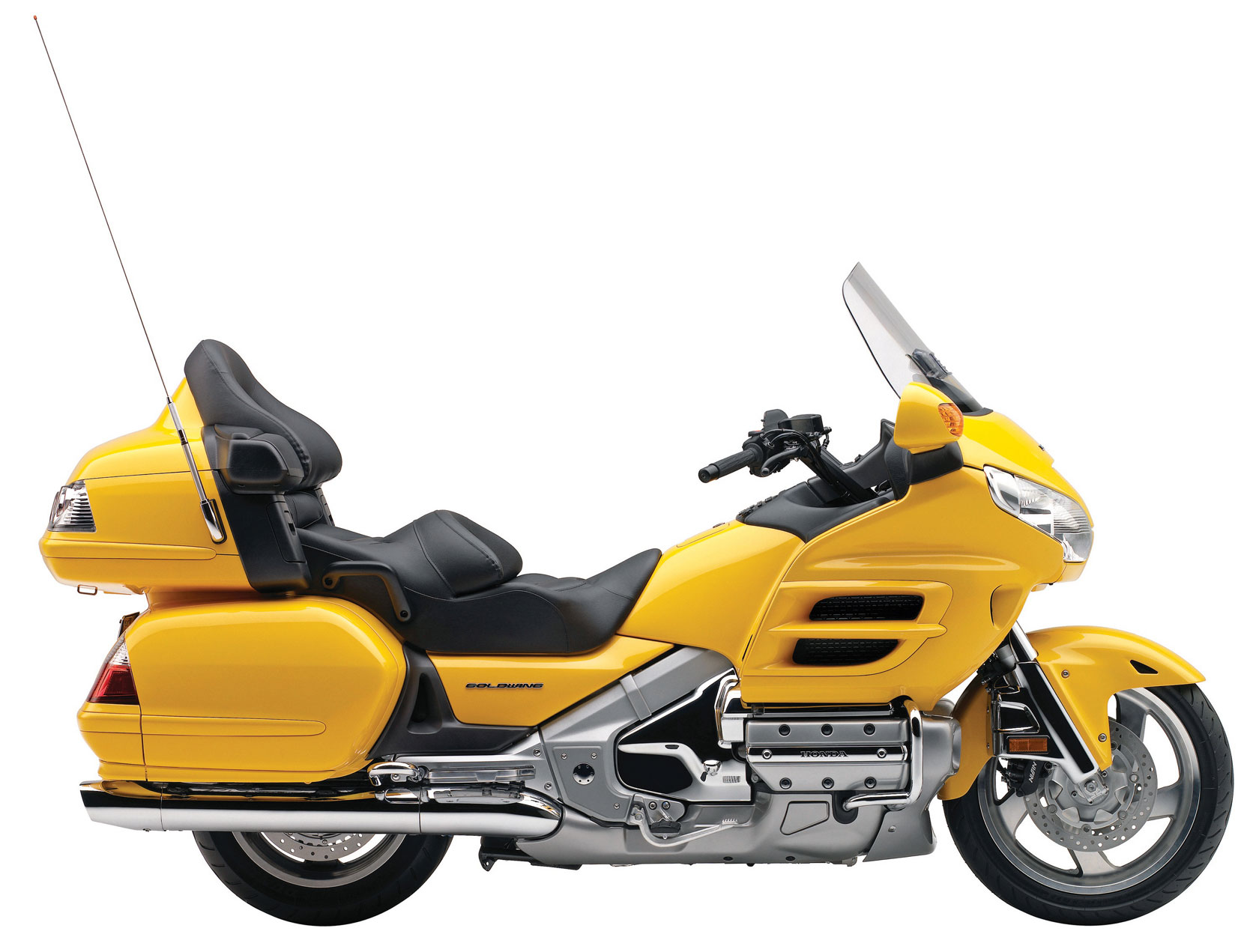

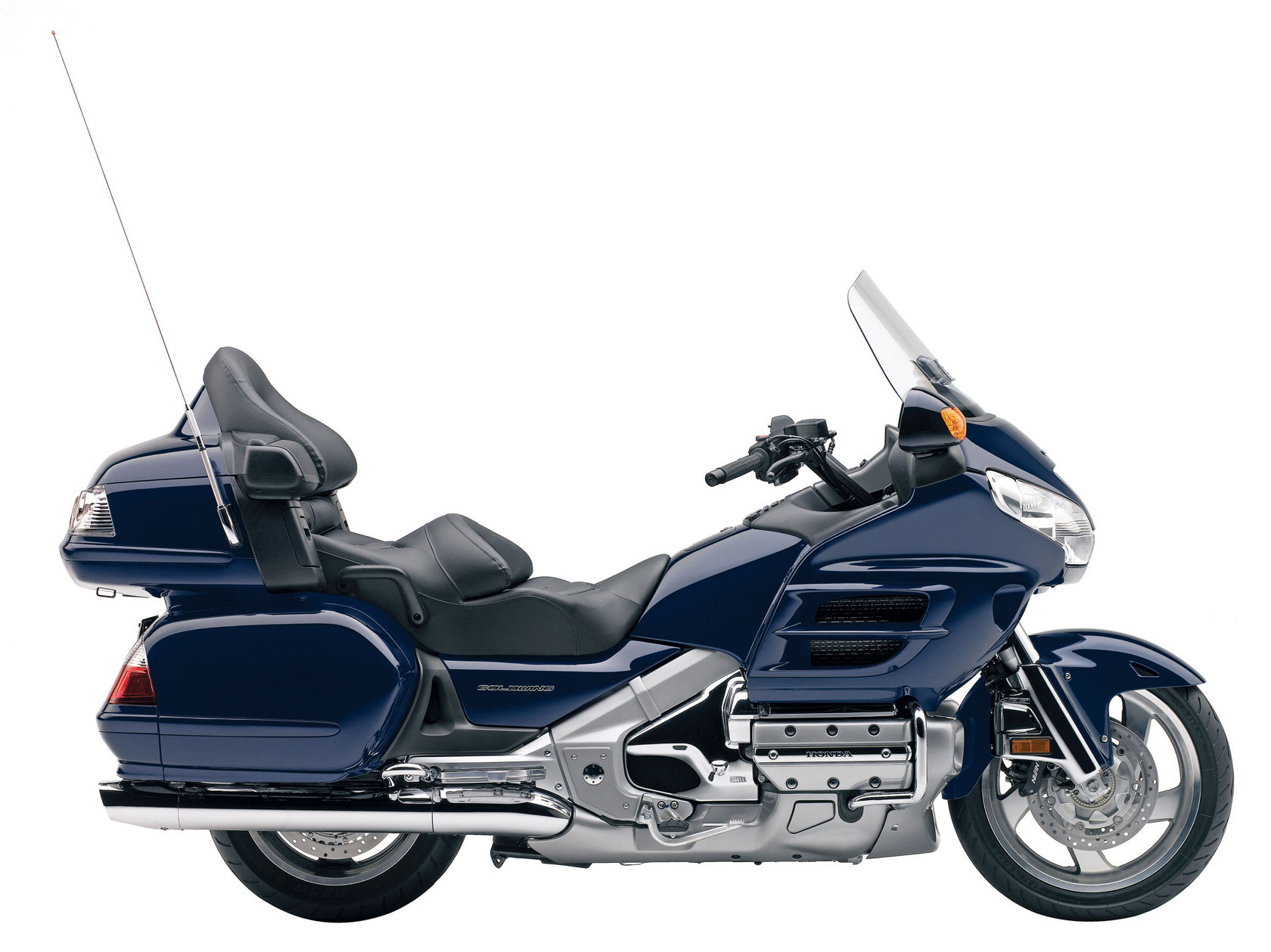

2009 GL1800 Click image to enlarge
2009 GL1800 Click image to enlarge2009 GL1800 Click image to enlarge
2009 GL1800 Click image to enlarge2009 GL1800 Click image to enlarge
Ignition: Computer-controlled digital with three-dimensional mapping
DRIVETRAIN
Transmission: Five-speed including Overdrive, plus electric reverse
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm cartridge fork with anti-dive system, 122 mm (4.8 in.) of travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets; 105 mm (4.1 in.) of travel
Front Brake: Dual full-floating 296mm discs with CBS three-piston calipers
Rear Brake: Single ventilated 316mm disc with CBS three-piston caliper
Front Tires: 130/70R-18
Rear Tires: 180/60R-16
DIMENSION
Rake: 29.15 degrees
Trail: 109.0mm (4.3 inches)
Wheelbase: 1690 mm (66.5 inches)
Seat Height: 740 mm (29.1 inches)
Curb Weight: 407-422 kg (895-928 lb), depending on option packages selected (Includes all standard equipment, required fluids and full tank of fuel - ready to ride.)
Fuel Capacity: 25 litres (6.6 GalUS)
OTHER
Fuel Consumption: 6.5 L/100km (36 mpgUS)
Emissions: Meets current CARB and EPA standards.
Colors:
Metallic Red
Metallic Black
Pearl Yellow
Metallic Titanium
Nebulous Black Metallic
Caliente Red Metallic
Warranty: Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

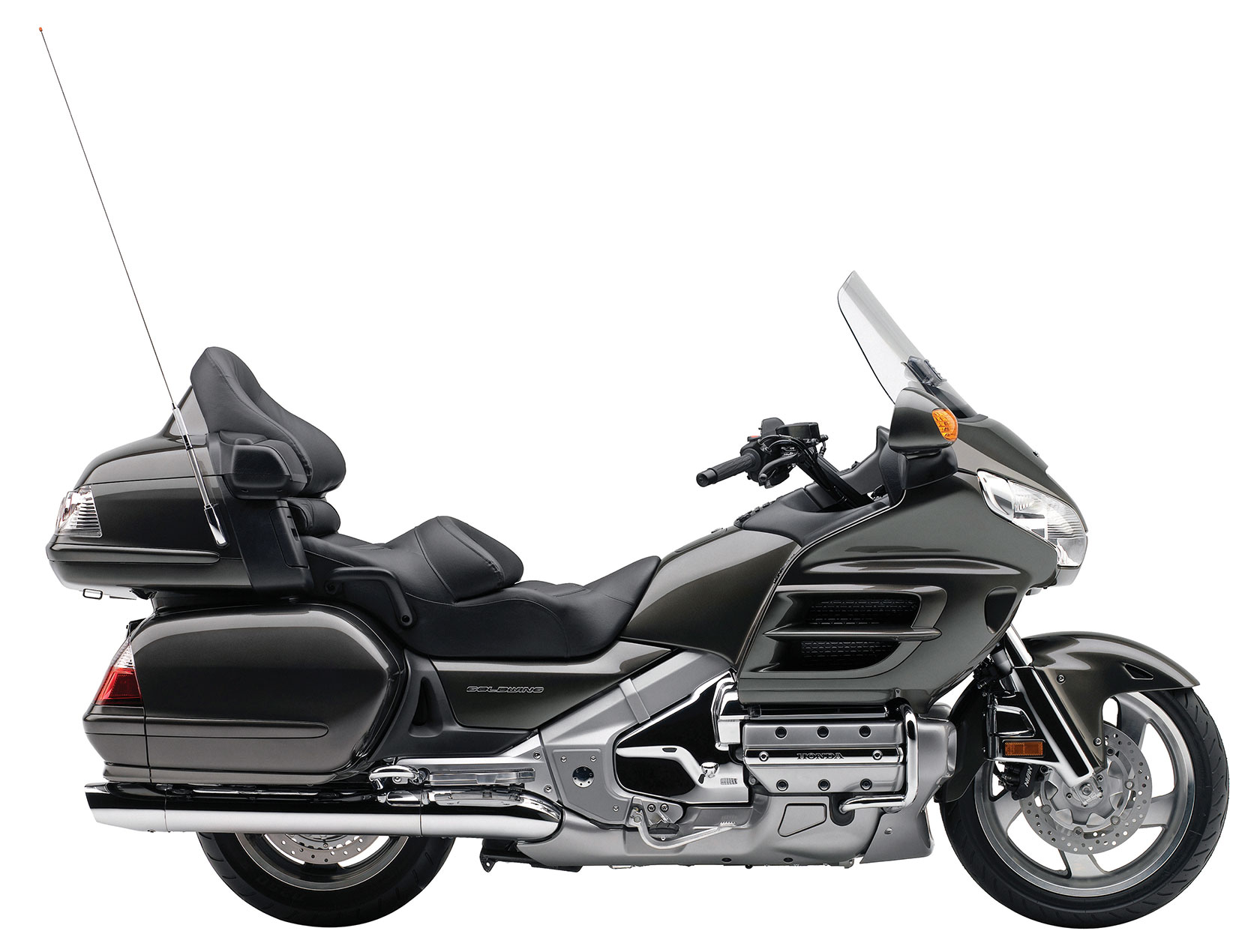

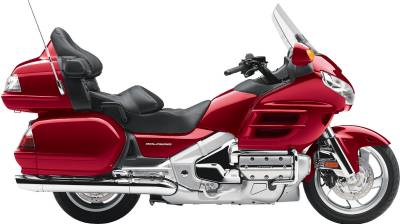

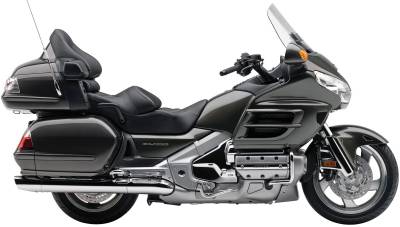

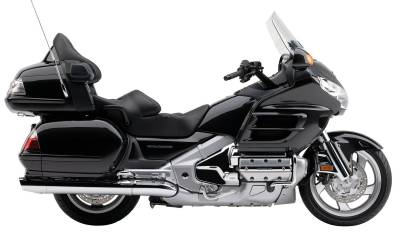

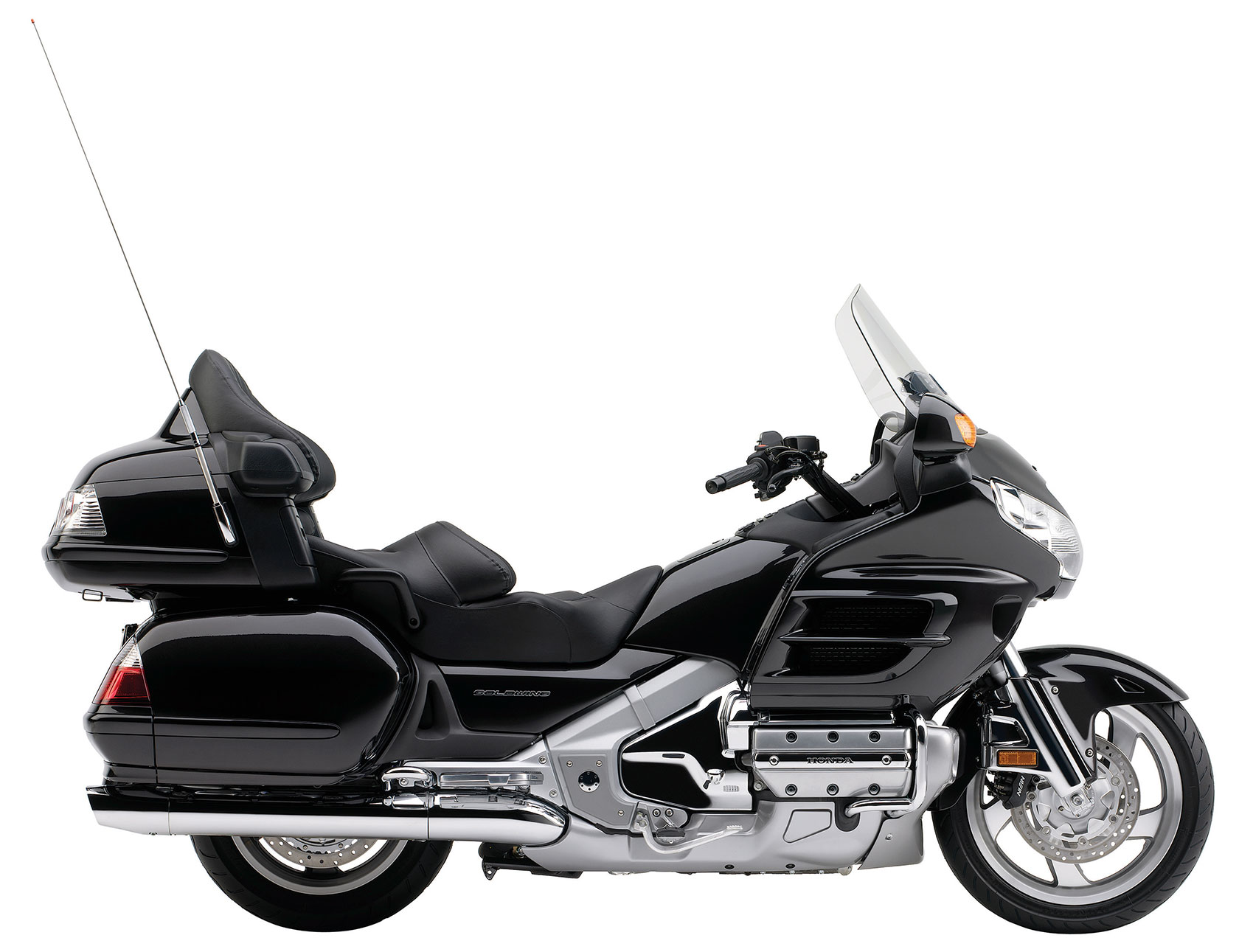

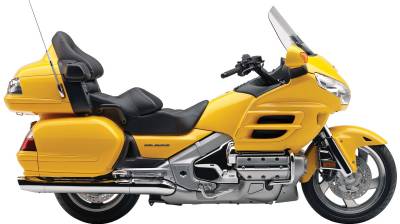

2010 GL1800 Click image to enlarge2010 GL1800 Click image to enlarge2010 GL1800 Click image to enlarge2010 GL1800 Click image to enlarge
