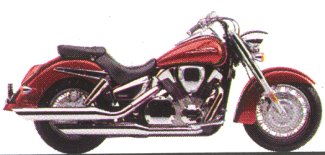

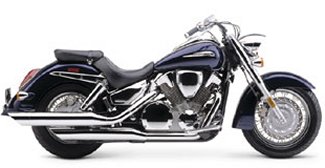

2003 VTX1300S

  • ENGINE
    • Engine: 1312cc liquid-cooled 52° V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 130mm travel
    • Rear Suspension: Dual shocks with five-position spring preload adjustability; 94mm travel
    • Front Brakes: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 140/80R-17
    • Rear Tire: 170/80R-15
  • DIMENSION
    • Seat height: 686mm (27.0 in.)
    • Wheelbase: 1669mm (65.7 in.)
    • Dry weight: 301 kg (661 lb)
    • Fuel capacity: 18 liters (4.75 GalUS)
  • OTHER
    • Colors:
      • Illusion Blue
      • Candy Red
      • Pearl Orange
      • Black
2003 VTX1300S
2003 VTX1300S
2003 VTX1300S
2003 VTX1300S

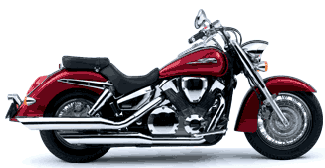

2004 VTX1300 Retro

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin 4-stroke
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: 38mm CV
    • Max. Power Output: 74 bhp at 5000 rpm
    • Max. Torque: 123Nm at 3000 rpm
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
    • Starter: Electric
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm telescopic fork; 5.1-inch (130mm) travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.7-inch (94mm) travel
    • Front Brake: Single 336mm x 6mm hydraulic disc with twin-piston caliper and sintered metal pads
    • Rear Brake: Single 296mm x 6mm hydraulic disc with single-piston caliper and sintered metal pads
    • Front Wheel: Steel rim/wire spoke
    • Rear Wheel: Steel rim/wire spoke
    • Front Tire: 140/80-17
    • Rear Tire: 170/80-15
  • DIMENSION
    • Length x Width x Height: 2575 x 960 x 1125mm
    • Rake: 32.0 degrees
    • Trail: 144mm (5.7 inches)
    • Wheelbase: 65.7 inches (1669mm)
    • Seat Height: 27.0 inches (686mm)
    • Ground Clearance: 130mm
    • Dry Weight: 661.0 pounds (300kg)
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve (18 litres, including 3.7-litre reserve)
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Metallic Silver
      • Pearl Dark Blue
      • Candy Red
    • Model ID: VTX1300S
    • Warranty: 1 year

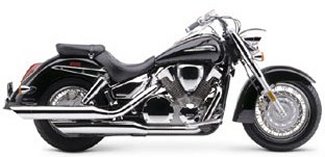

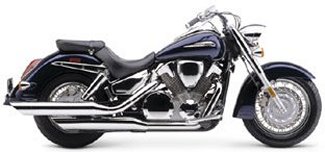

2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S
2004 VTX1300S

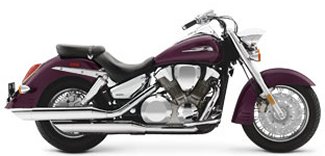

2005 VTX1300S

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.7-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 140/80-17
    • Rear Tire: 170/80-15
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 144mm (5.7 inches)
    • Wheelbase: 65.7 inches
    • Seat Height: 27.35 inches
    • Dry Weight: 669.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Metallic Silver
      • Candy Red
      • Magenta Metallic
    • Model ID: VT1300S
    • Warranty: 1 year

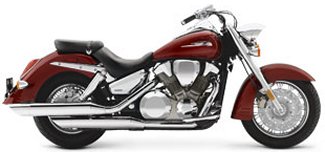

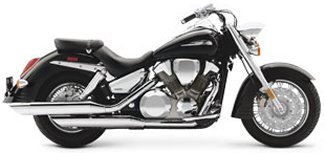

2005 VTX1300S
2005 VTX1300S
2005 VTX1300S
2005 VTX1300S
2005 VTX1300S
2005 VTX1300S
2005 VTX1300S
2005 VTX1300S

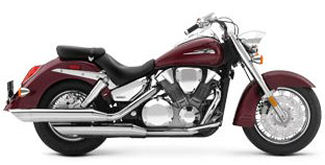

2006 VTX1300S

  • Overview:
    • With style from a decade when cool meant cool, the VTX1300S boasts spoked wheels, deeply valanced front and rear fenders, a chrome-hooded headlight and a semi-sweptback handlebar. And with a big, wide seat, this cruiser is as comfortable as it is cool.
  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.7-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 140/80-17
    • Rear Tire: 170/80-15
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 144mm (5.7 inches)
    • Wheelbase: 65.7 inches
    • Seat Height: 27.35 inches
    • Dry Weight: 662.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Bright Blue Metallic
      • Candy Black Cherry
      • Metallic Silver
    • Model ID: VT1300S

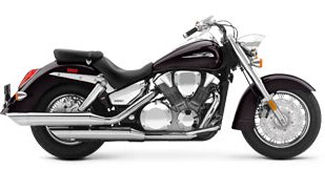

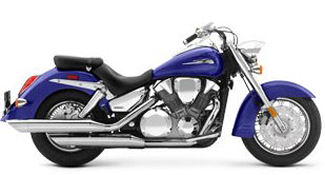

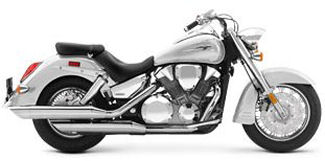

2006 VTX1300S
2006 VTX1300S
2006 VTX1300S
2006 VTX1300S
2006 VTX1300S
2006 VTX1300S
2006 VTX1300S
2006 VTX1300S

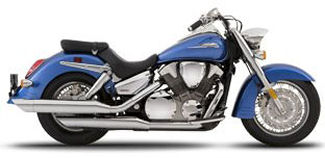

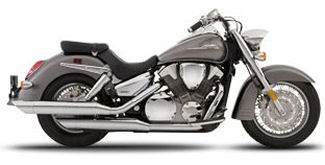

2007 VTX1300S

  • Overview:
    • With its beautiful spoked wheels, deeply valanced fenders, chrome-hooded headlight and semi-sweptback handlebar, the VTX1300S ups the ante when it comes to classic retro cool. Add a quartet of eye-catching colors, and you'll quickly realize this brilliant 1312cc V-twin is as mesmerizing to stare at as it is exhilarating to ride.
  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.7-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 140/80-17
    • Rear Tire: 170/80-15
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 144mm (5.7 inches)
    • Wheelbase: 65.7 inches
    • Seat Height: 27.35 inches
    • Dry Weight: 662.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Titanium
      • Dark Red Metallic
      • Metallic Blue
    • Model ID: VTX1300S

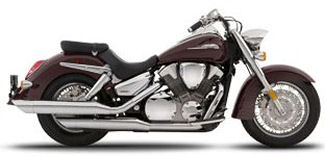

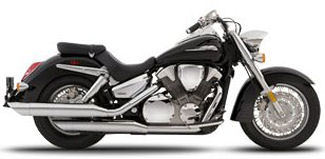

2007 VTX1300S
2007 VTX1300S
2007 VTX1300S
2007 VTX1300S
2007 VTX1300S
2007 VTX1300S
2007 VTX1300S
2007 VTX1300S

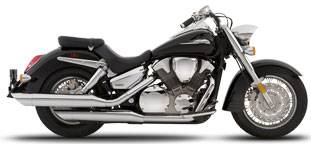

2008 VTX1300S

  • ENGINE
    • Engine Size: 1312cc
    • Engine Detail: liquid-cooled 52 degree V-twin
    • Bore Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Fuel System: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-Speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension Front: 41mm fork; 5.1-inch travel
    • Suspension Rear: Dual shocks with five-position spring-preload adjustability; 3.7-inch travel
    • Brakes Front: Single 336mm disc with twin-piston caliper
    • Brakes Rear: Single 296mm disc with single-piston caliper
    • Tire Front: 140/80-17
    • Tire Rear: 170/80-15
  • DIMENSION
    • Wheelbase: 65.7 in.
    • Seat Height: 27.35 in.
    • Curb Weight: N/A lbs.
    • Fuel Capacity: 4.8 gal.
  • OTHER
    • Colors:
      • Black
      • Titanium
      • Dark Red Metallic
      • Metallic Blue
    • Warranty: 1 Year
    • Price: $9599
2008 VTX1300S
2008 VTX1300S
