Overview: Classic, old-school cool. That sums up the VTX1300R, whose "R" stands for retro, by the way. You'll understand once you get an eyeful of this beauty, with its deeply valanced fenders, chrome-hooded headlight and timeless tank-mounted instruments. Then, of course, there's the mighty 1312cc V-twin snarling its throaty growl through staggered dual exhaust. Yeah...it doesn't get much more classic than this.
ENGINE
Engine Type: 1312cc liquid-cooled 52° V-twin
Bore and Stroke: 89.5mm x 104.3mm
Compression Ratio: 9.2:1
Valve Train SOHC; three valves per cylinder
Fuel Delivery: Single 38mm CV
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm fork; 5.1 inches travel
Rear Suspension: Rear: Dual shocks with five-position spring preload adjustability; 3.7 inches travel
Front Brake: Single 336mm disc with twin-piston caliper
Rear Brake: Single 296mm disc with single-piston caliper
Front Tire: 140/80-17
Rear Tire: 170/80-15
DIMENSION
Rake: (Caster Angle): 32.0°
Trail: 144mm (5.7 inches)
Wheelbase: 65.7 inches
Seat Height: 27.35 inches
Curb Weight: 710 lbs (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
OTHER
Emissions: Meets current CARB and EPA emissions standards.
Colors:
Black
Pearl White
Dark Blue Metallic
Model ID: VTX1300R
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

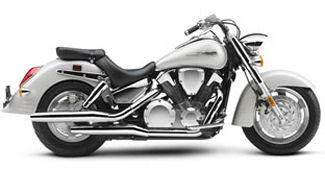

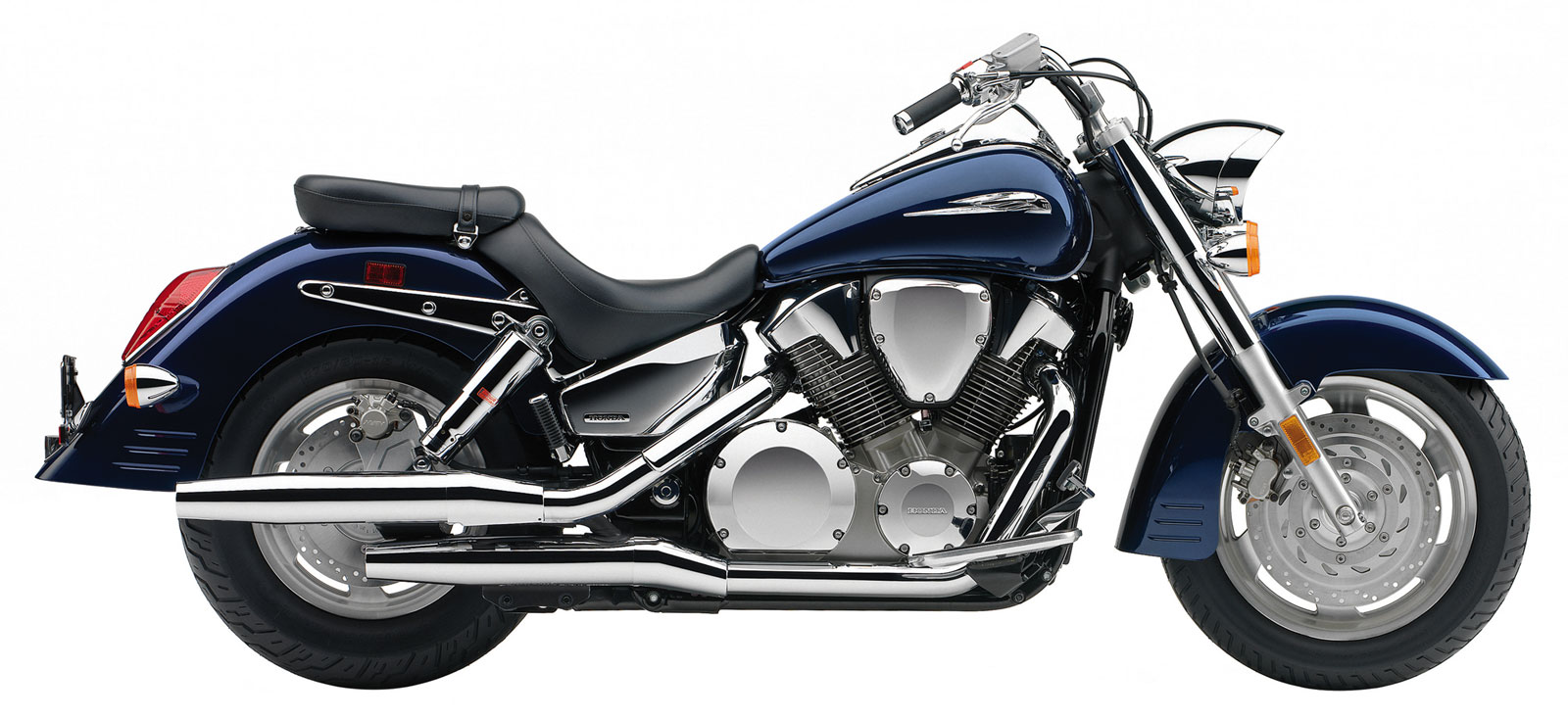

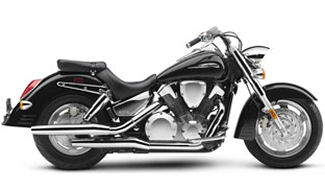

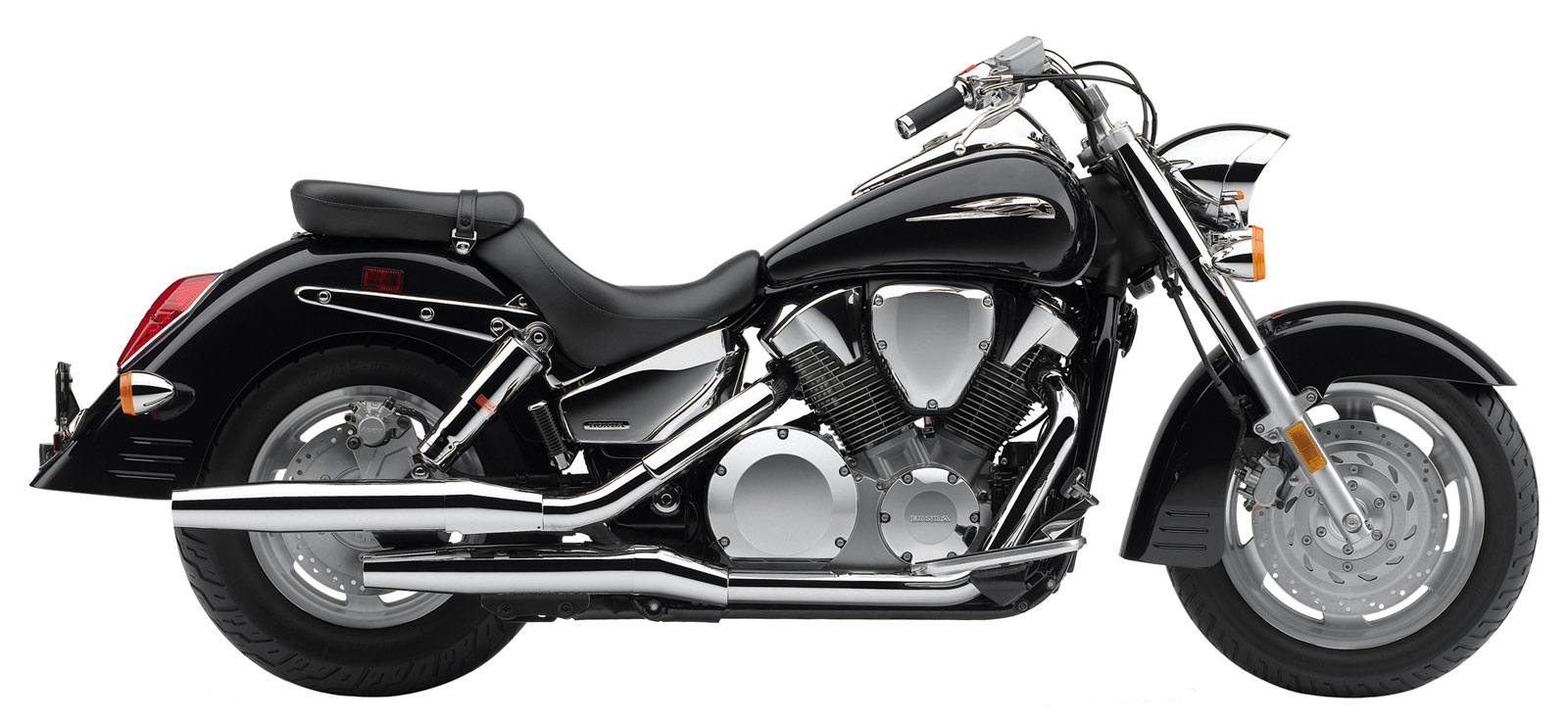

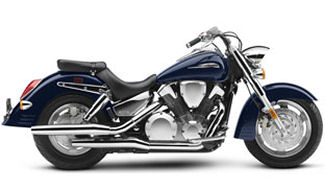

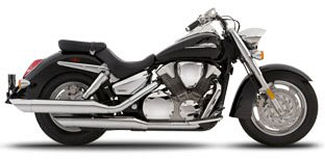

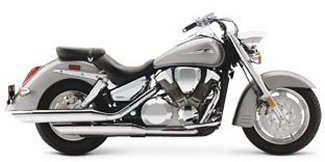

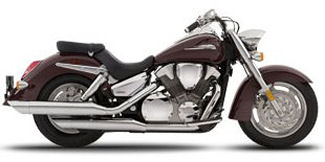

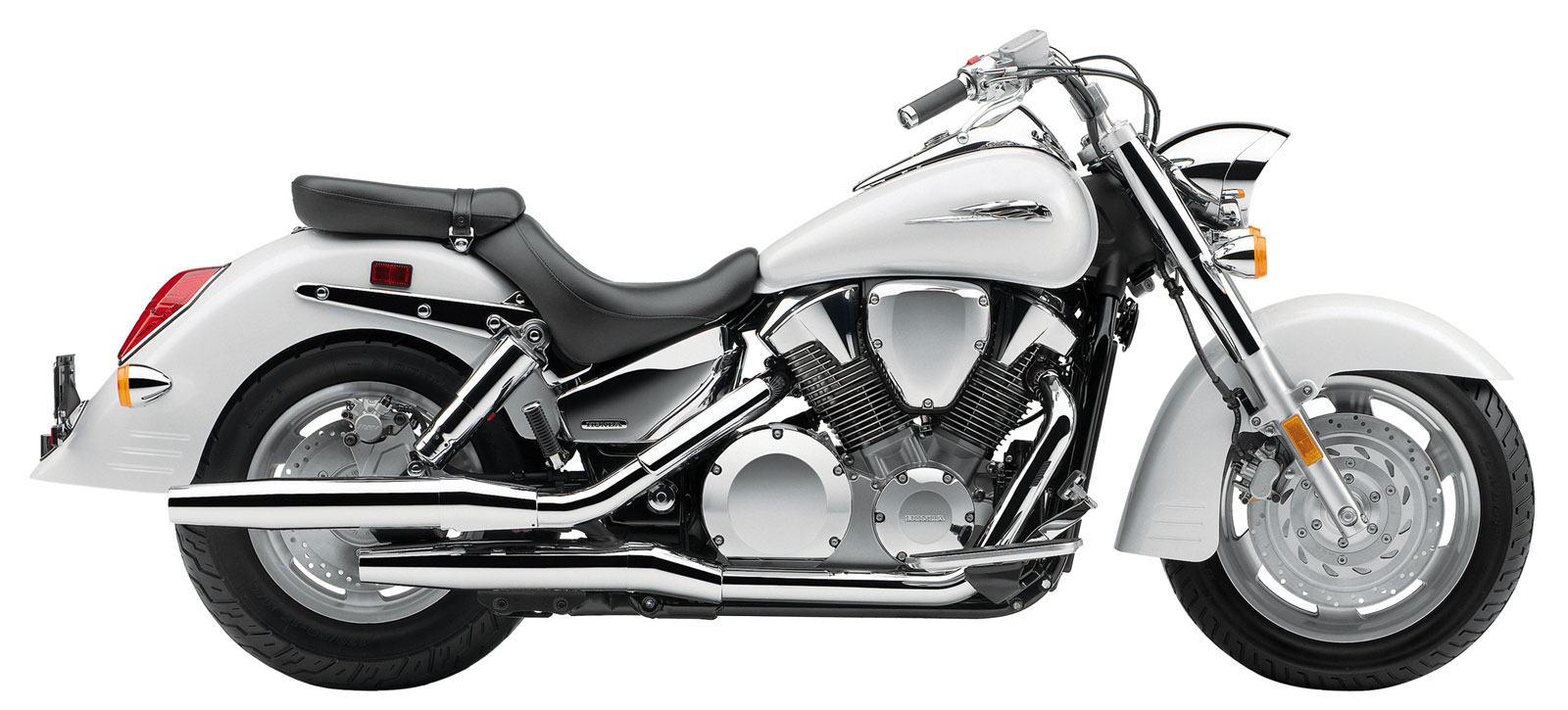

2008 VTX1300R Click image to enlarge2008 VTX1300R Click image to enlarge2008 VTX1300R Click image to enlarge

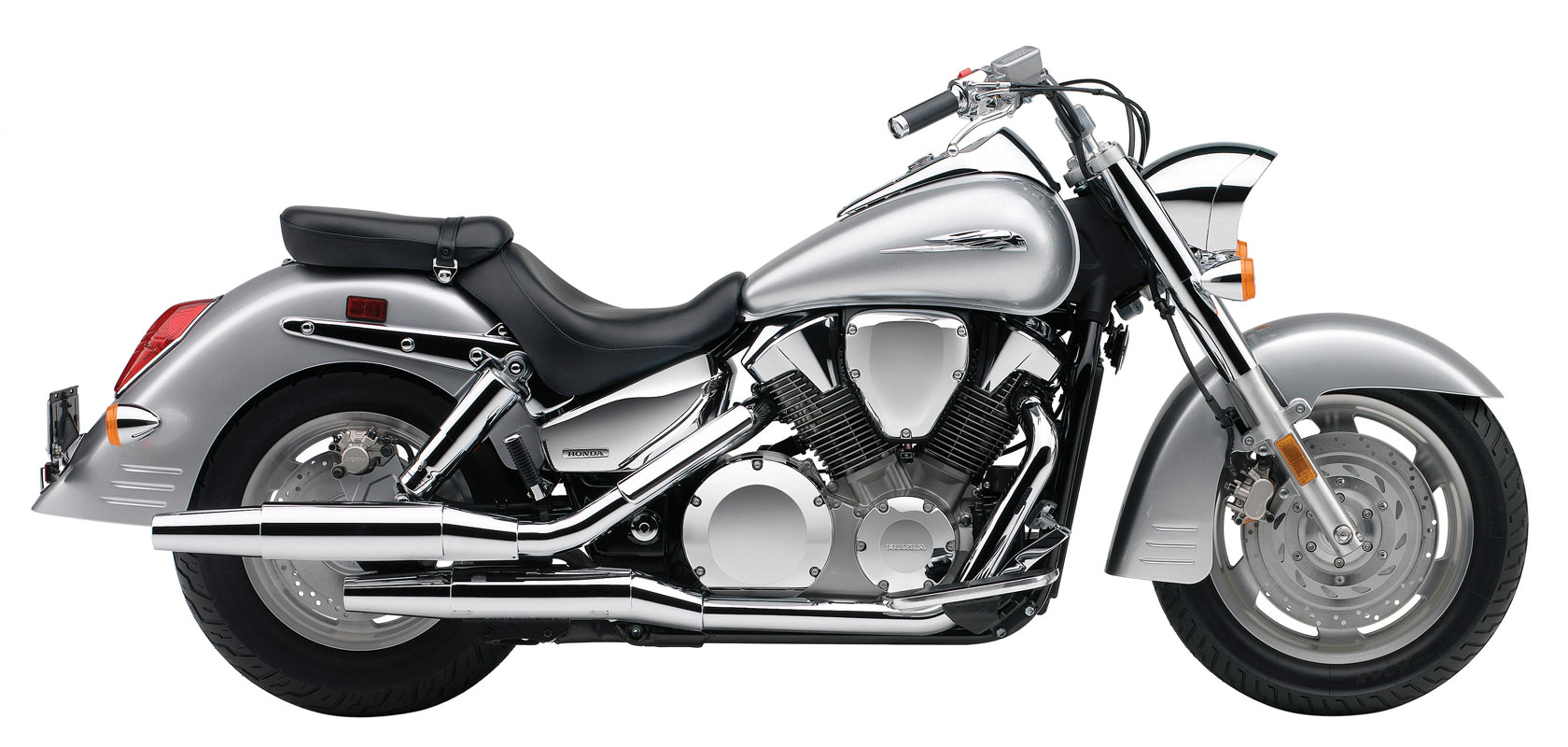

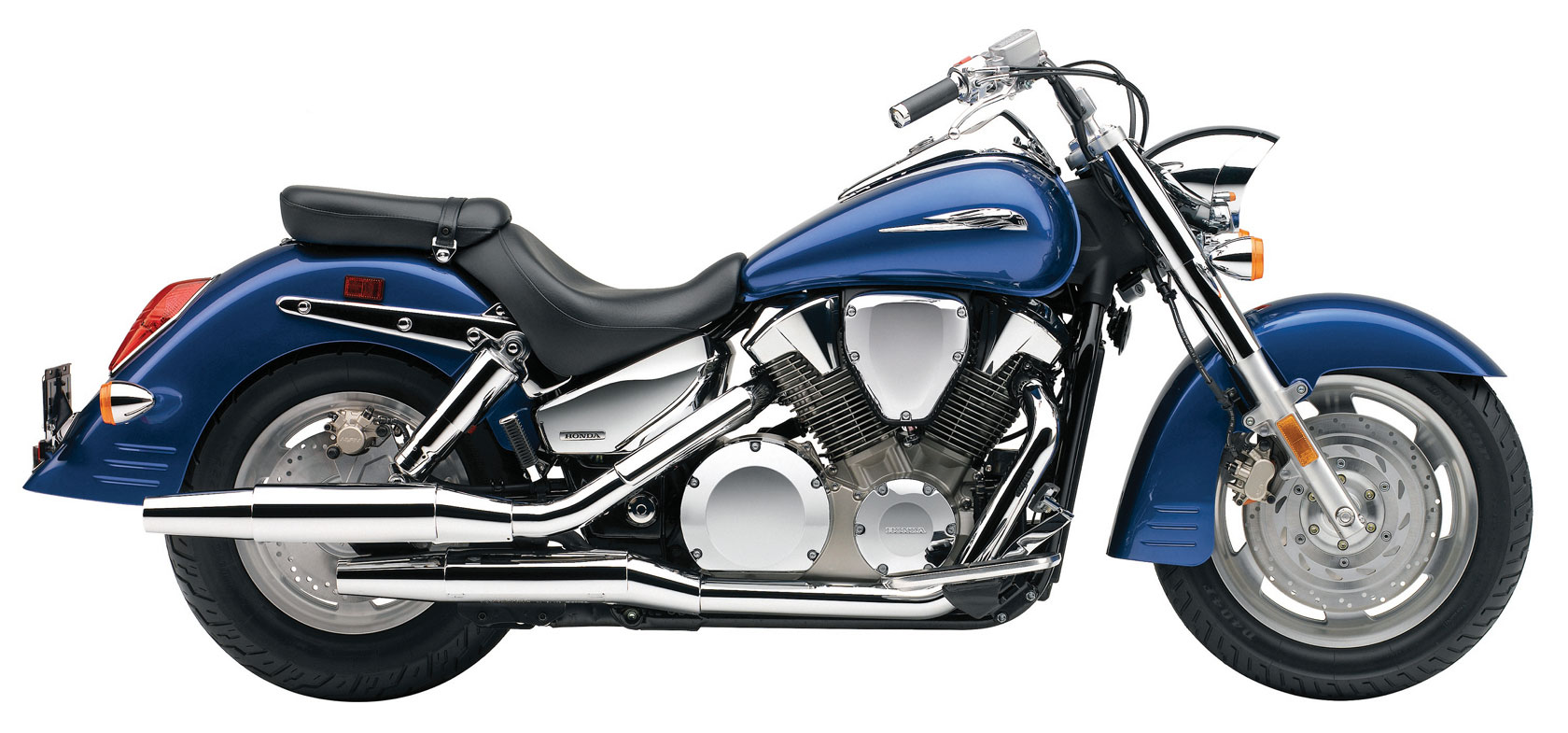

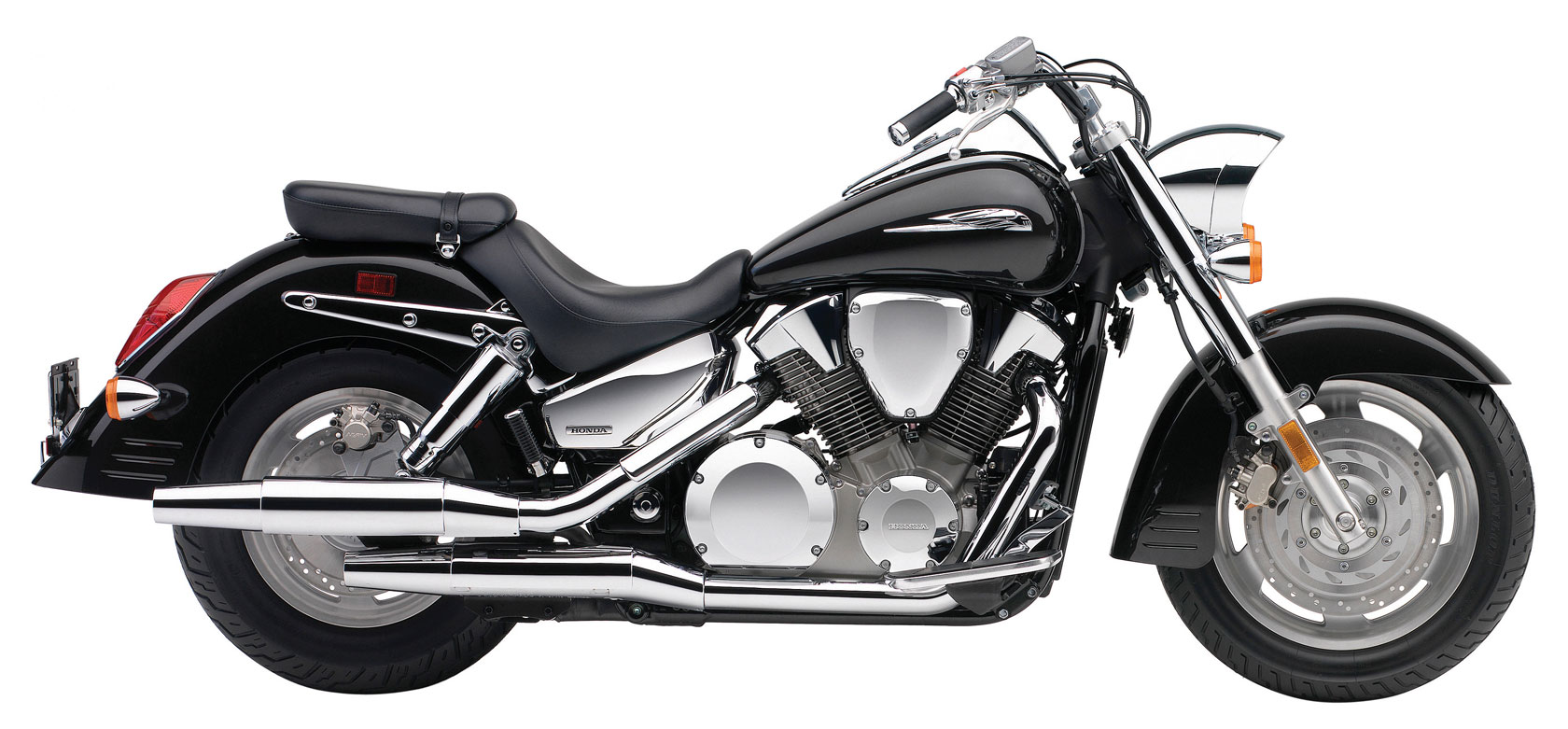

2009 VTX1300R
ENGINE
Engine Size: 1312cc
Engine Detail: liquid-cooled 52° V-twin
Bore Stroke: 89.5mm x 104.3mm
Compression Ratio: 9.2:1
Fuel System: Single 38mm constant-velocity carburetor
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
