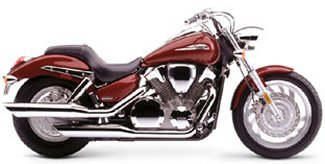

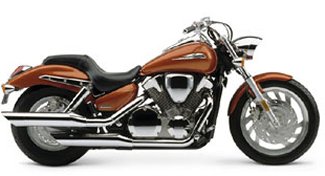

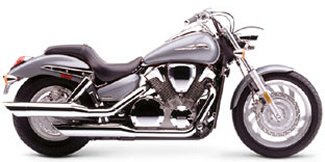

2004 VTX1300C

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Solid-state digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.6-inch travel
    • Front Brakes: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 110/90-19 M/C
    • Rear Tire: 170/80-15 M/C
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 149.0mm (5.9 inches)
    • Wheelbase: 65.45 inches
    • Seat Height: 27.0 inches
    • Dry Weight: 641.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Metallic Silver
      • Pearl Orange
      • Candy Red
    • Model ID: VTX1300C
    • Warranty: 1 year
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C
2004 VTX1300C

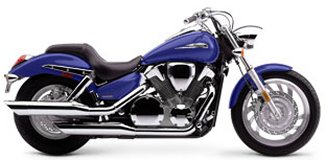

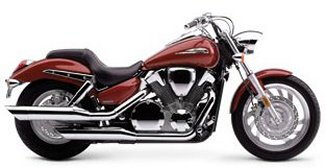

2005 VTX1300C

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.6-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 110/90-19
    • Rear Tire: 170/80-15
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 149mm (5.9 inches)
    • Wheelbase: 64.45 inches
    • Seat Height: 27.0 inches
    • Dry Weight: 641.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Bright Blue Metallic
      • Titanium
      • Candy Red
    • Model ID: VTX1300C
    • Warranty: 1 year

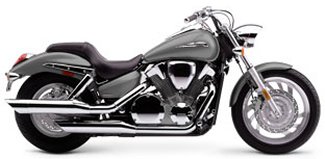

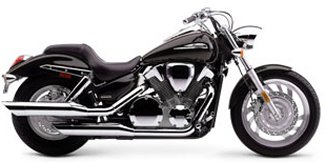

2005 VTX1300C
2005 VTX1300C
2005 VTX1300C
2005 VTX1300C
2005 VTX1300C
2005 VTX1300C
2005 VTX1300C
2005 VTX1300C

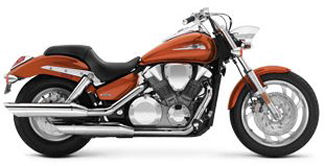

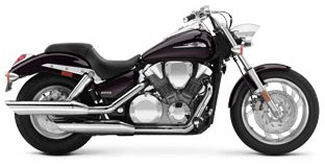

2006 VTX1300C

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.6-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 110/90-19 M/C
    • Rear Tire: 170/80-15 M/C
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 149mm (5.9 inches)
    • Wheelbase: 64.45 inches
    • Seat Height: 27.46 inches
    • Dry Weight: 641.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Candy Black Cherry
      • Candy Orange
      • Dark Gray Metallic
    • Model ID: VTX1300C

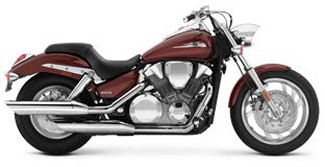

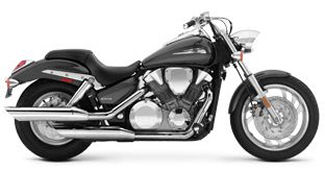

2006 VTX1300C
2006 VTX1300C
2006 VTX1300C
2006 VTX1300C
2006 VTX1300C
2006 VTX1300C
2006 VTX1300C
2006 VTX1300C

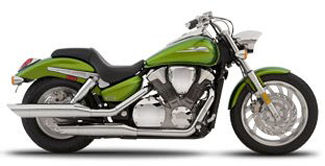

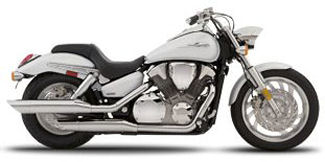

2007 VTX1300C

  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train: SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm CV
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1-inch travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.6-inch travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 110/90-19 M/C
    • Rear Tire: 170/80-15 M/C
  • DIMENSION
    • Rake: 32.0 degrees
    • Trail: 149mm (5.9 inches)
    • Wheelbase: 65.45 inches
    • Seat Height: 27.46 inches
    • Dry Weight: 641.0 pounds
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: California version meets CARB 2004 emissions standards.
    • Colors:
      • Black
      • Dark Red
      • Pearl White
      • Pearl Dark Blue
      • Pearl Bright Green
    • Model ID: VTX1300C

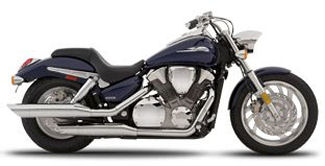

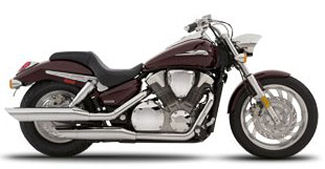

2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C
2007 VTX1300C

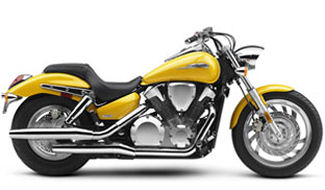

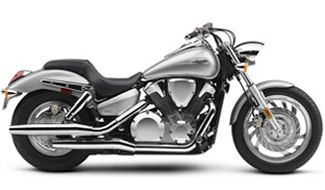

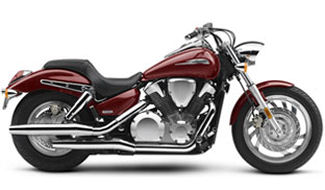

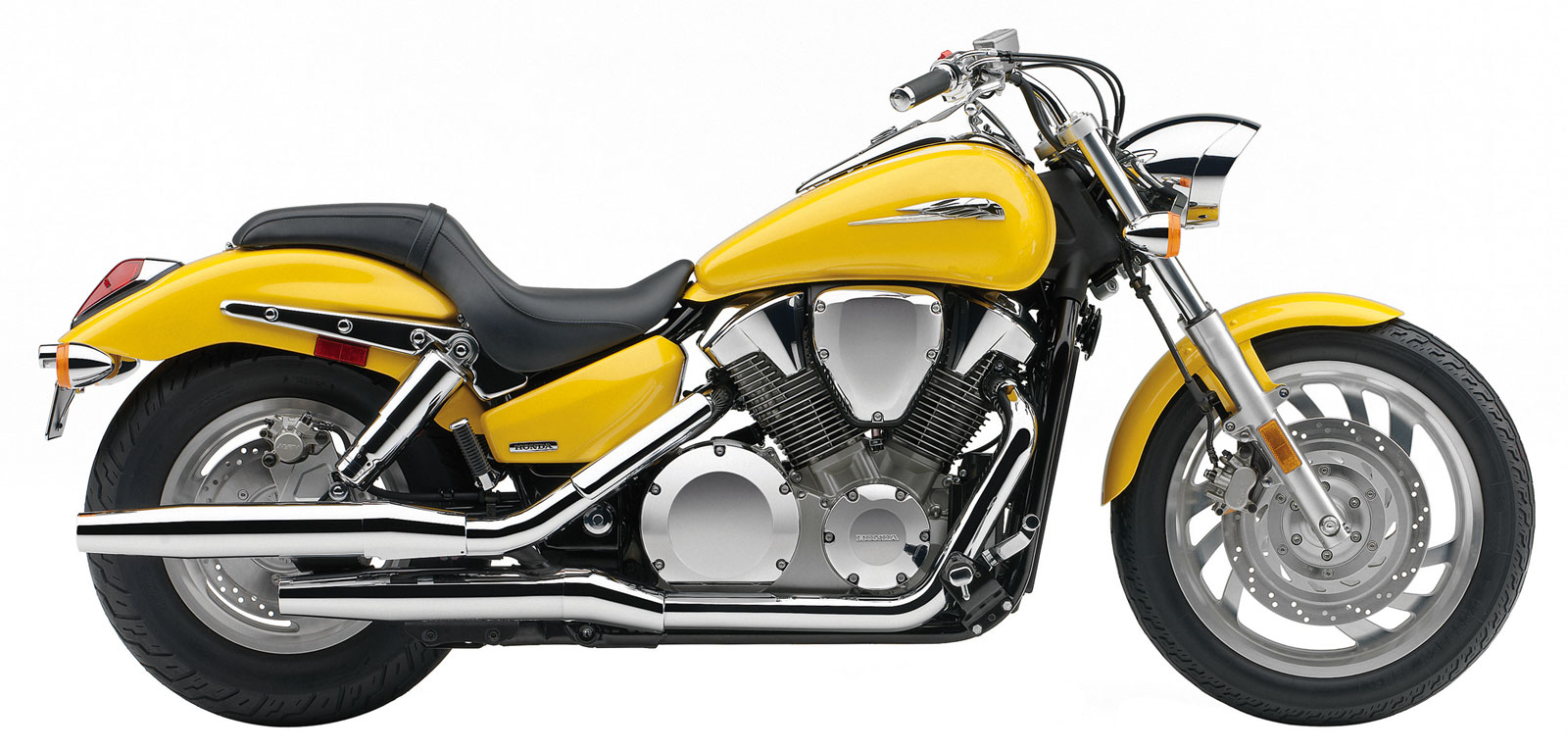

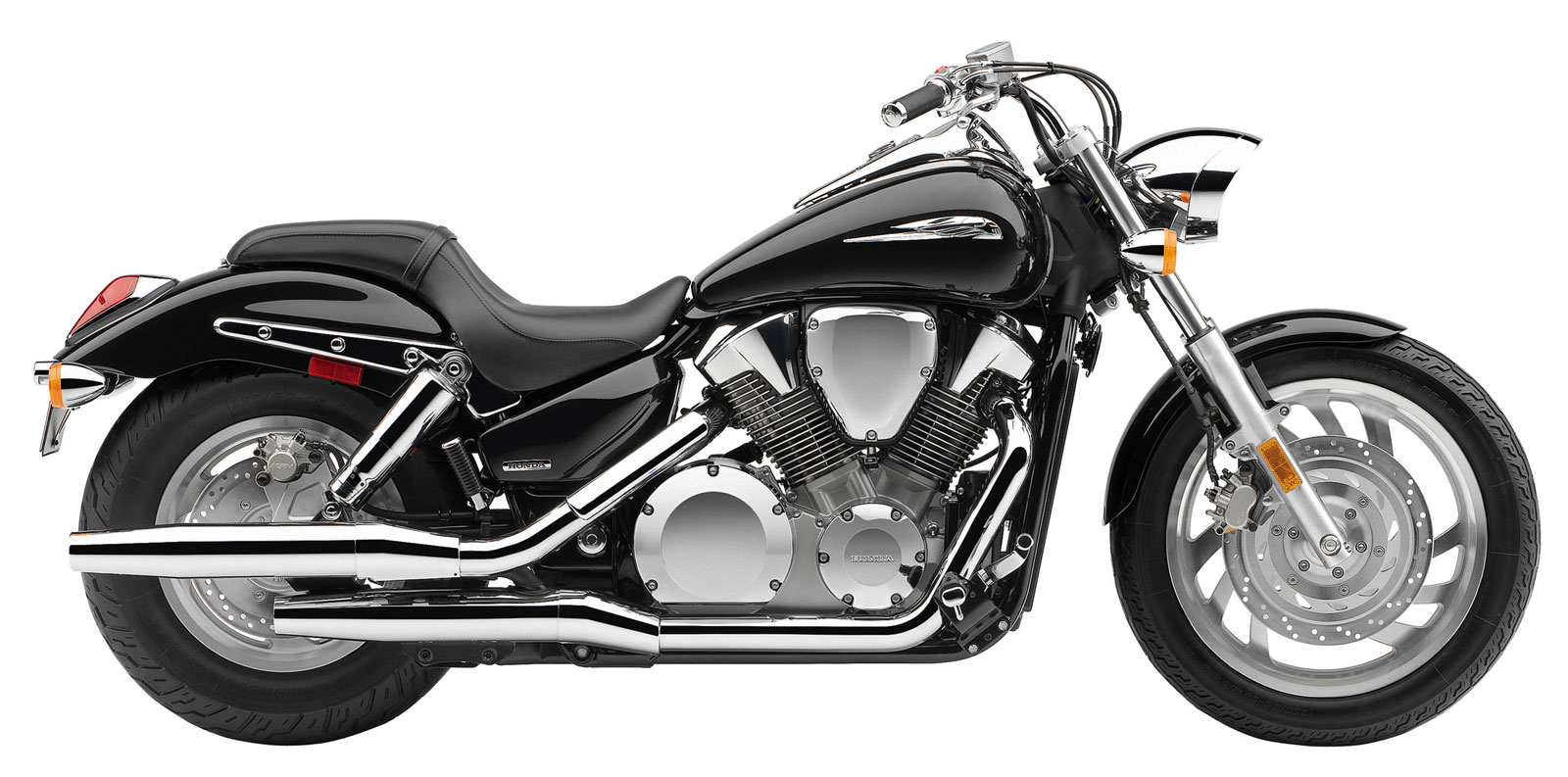

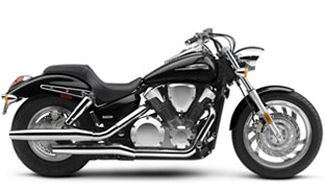

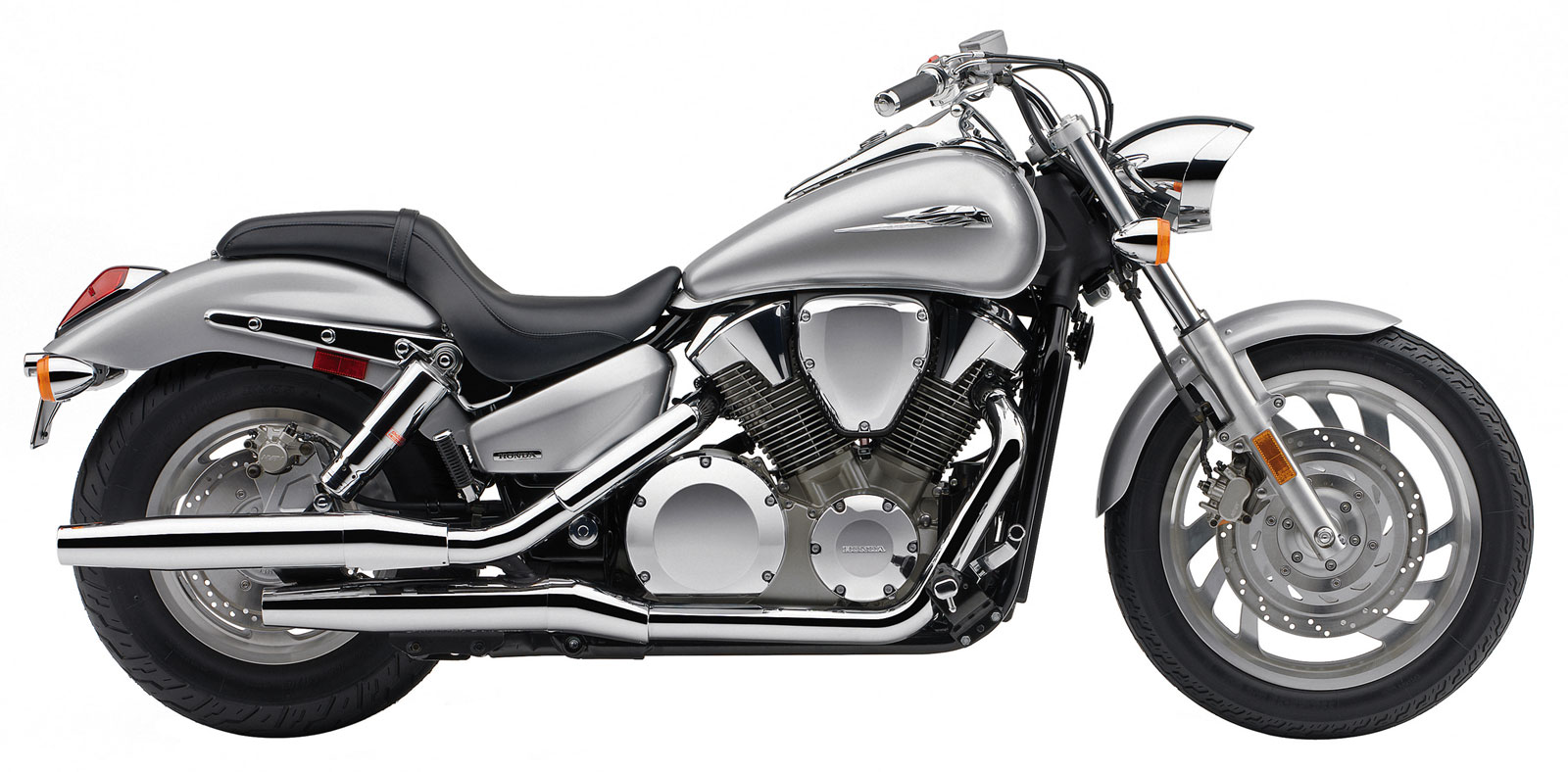

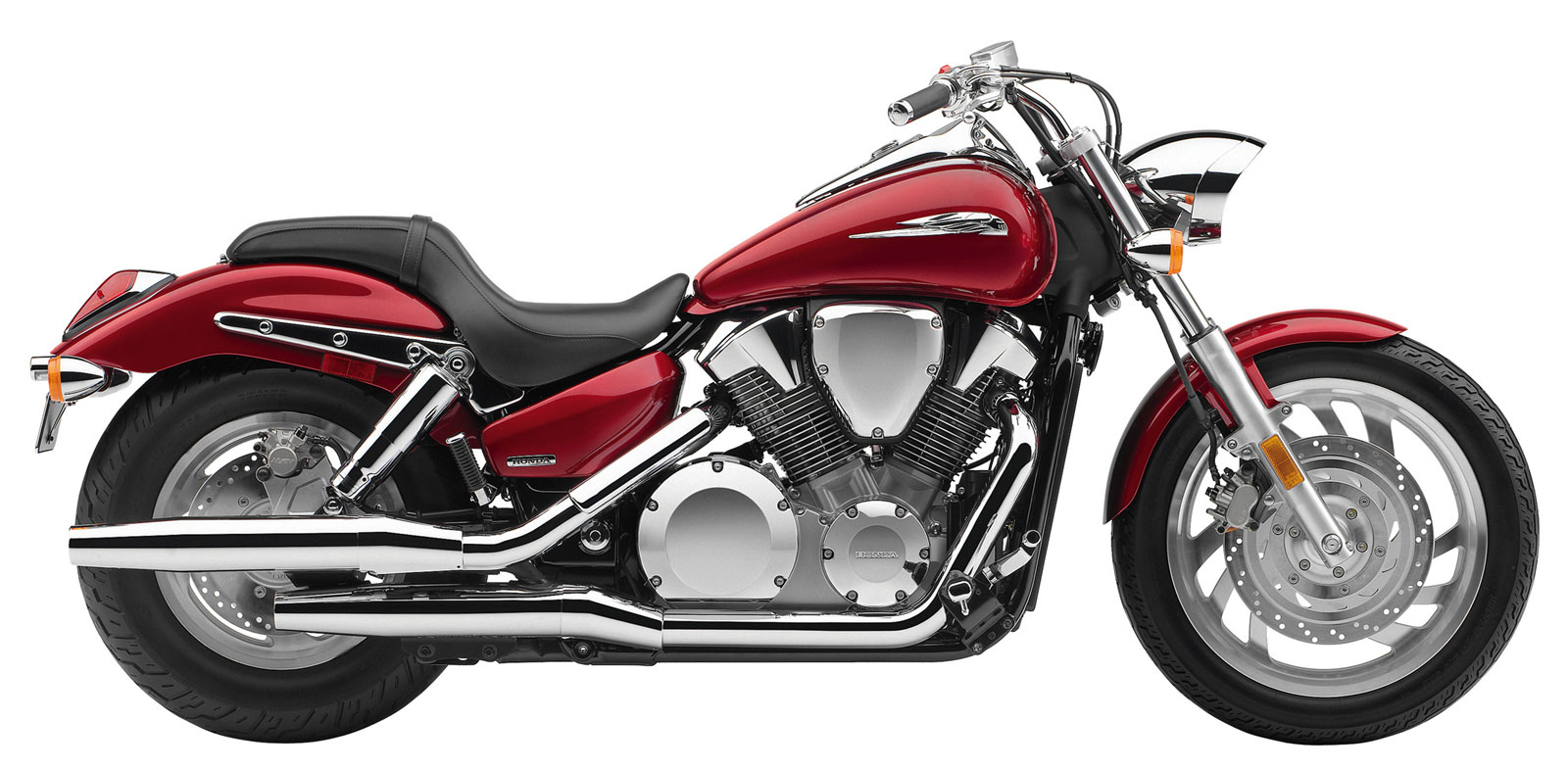

2008 VTX1300C

  • Overview:
    • Think of the VTX1300C as the patriarch of the VTX1300 family. With its classic styling and clean lines, this bike is serious about its VTX heritage. Check out its new-for-2008 slash-cut dual pipes. Then let your gaze take in its beefy 1312cc V-twin and sleek shaft final drive. Custom cast wheels and meaty tires wrapped in bobbed fenders complete the picture of a machine that was meant to rule.
  • ENGINE
    • Engine Type: 1312cc liquid-cooled 52° V-twin
    • Bore and Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Valve Train SOHC; three valves per cylinder
    • Fuel Delivery: Single 38mm constant-velocity carburetor
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41mm fork; 5.1 inches travel
    • Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.6 inches travel
    • Front Brake: Single 336mm disc with twin-piston caliper
    • Rear Brake: Single 296mm disc with single-piston caliper
    • Front Tire: 110/90-19 M/C
    • Rear Tire: 170/80-15 M/C
  • DIMENSION
    • Rake: (Caster Angle): 32.0°
    • Trail: 149mm (5.9 inches)
    • Wheelbase: 65.45 inches
    • Seat Height: 27.46 inches
    • Curb Weight: 678 lbs (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
    • Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve
  • OTHER
    • Emissions: Meets current CARB and EPA emissions standards.
    • Colors:
      • Metallic Black
      • Metallic Silver
      • Candy Red
      • Pearl Yellow
    • Model ID: VTX1300C
    • One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
2008 VTX1300C
2008 VTX1300C
Click image to enlarge
2008 VTX1300C
2008 VTX1300C
Click image to enlarge
2008 VTX1300C
2008 VTX1300C
Click image to enlarge
2008 VTX1300C
2008 VTX1300C
Click image to enlarge

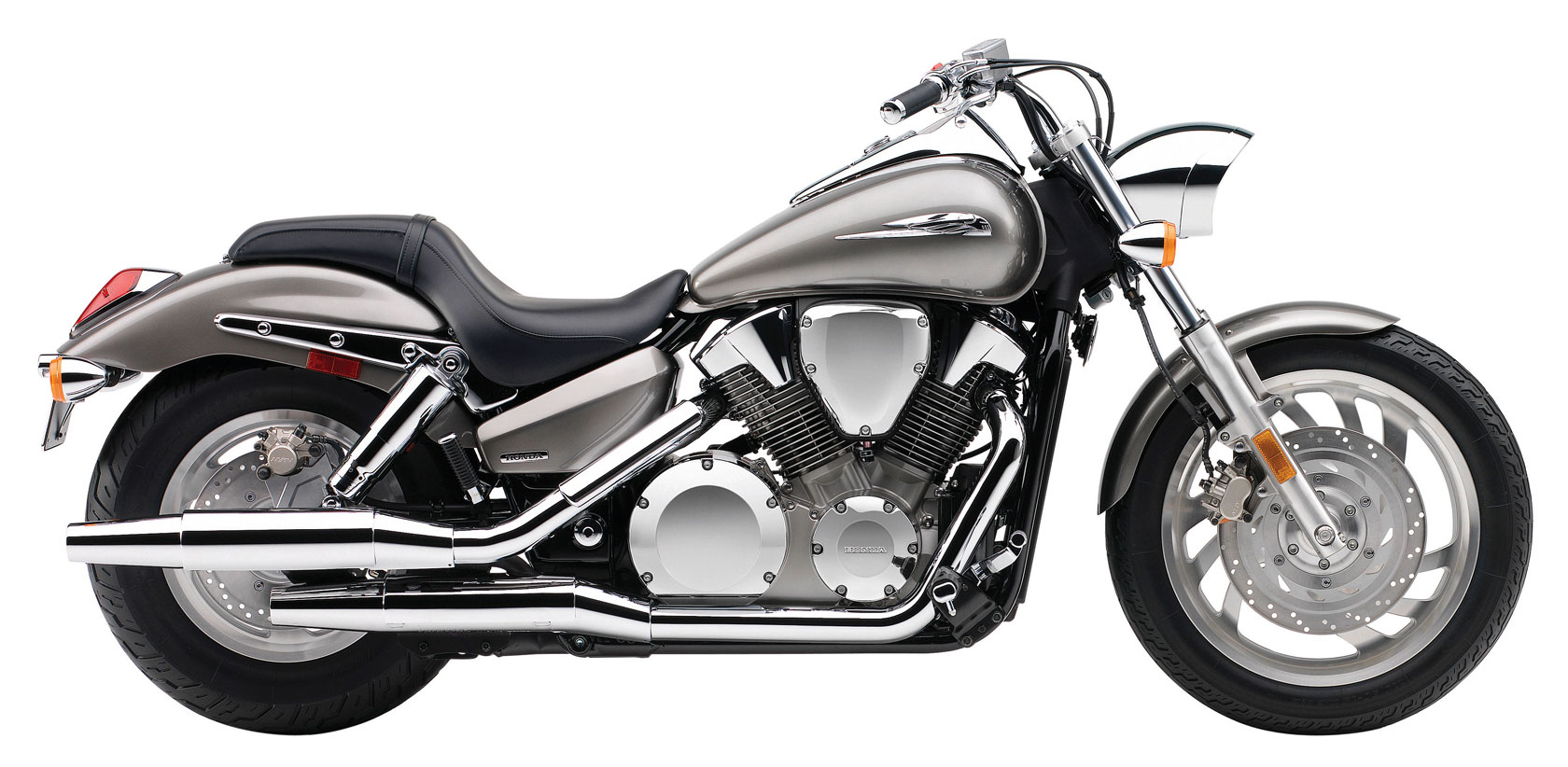

2009 VTX1300C

  • ENGINE
    • Engine Size: 1312cc
    • Engine Detail: liquid-cooled 52° V-twin
    • Bore Stroke: 89.5mm x 104.3mm
    • Compression Ratio: 9.2:1
    • Fuel System: Single 38mm constant-velocity carburetor
    • Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension Front: 41mm fork; 5.1 inches travel
    • Suspension Rear: Rear: Dual shocks with five-position spring-preload adjustability; 3.6 inches travel
    • Brakes Front: Single 336 mm disc with twin-piston caliper
    • Brakes Rear: Single 296 mm disc with single-piston caliper
    • Tire Front: 110/90-19 M/C
    • Tire Rear: 170/80-15 M/C
  • DIMENSION
    • Wheelbase: 65.45 in.
    • Seat Height: 27.46 in.
    • Curb Weight: 678 lbs.
    • Fuel Capacity: 4.8 gal.
  • OTHER
    • Colors:
      • Dark Blue Metallic
      • Metallic Red
      • Black
      • Titanium
    • Warranty: 1 Year

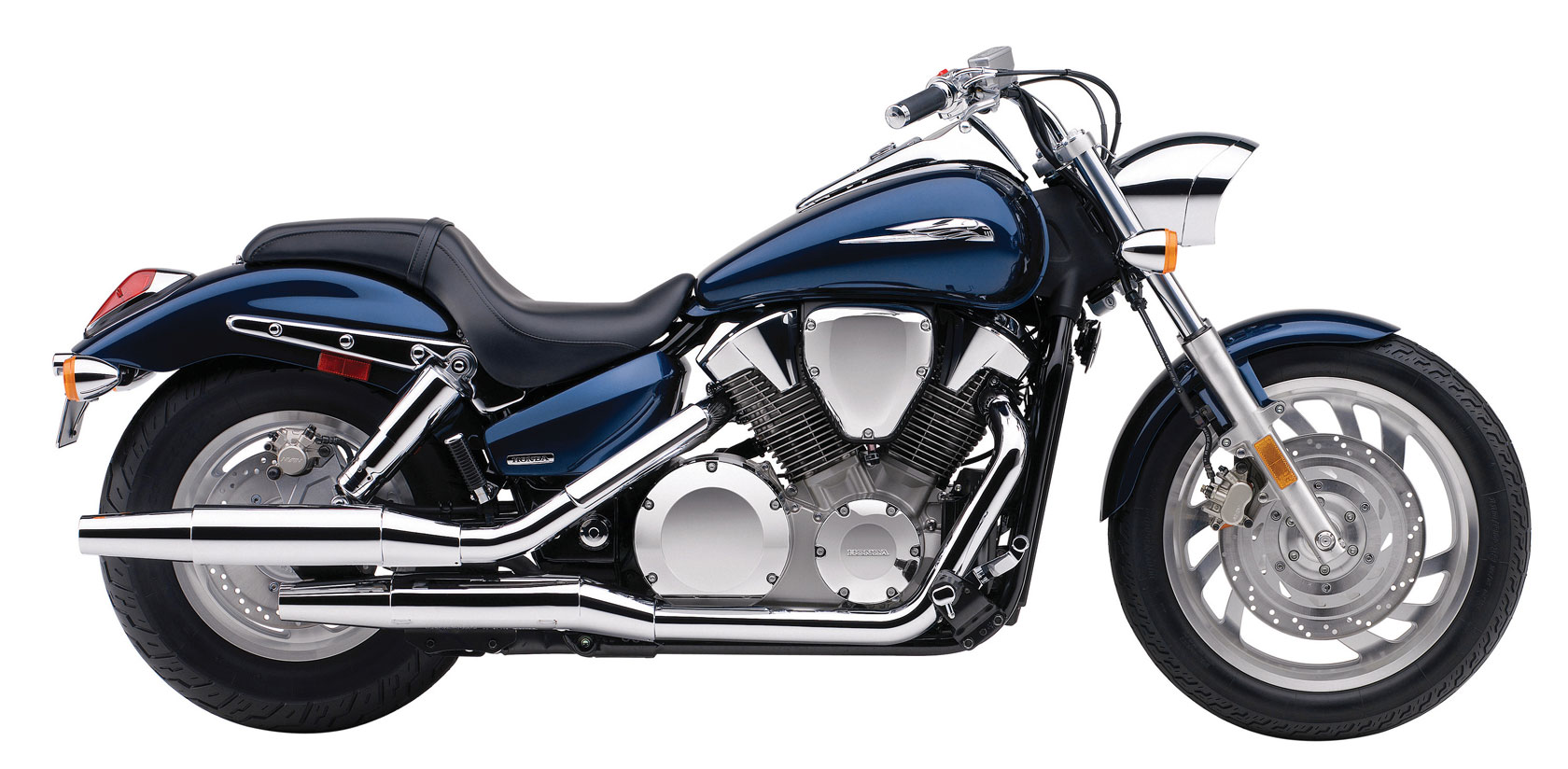

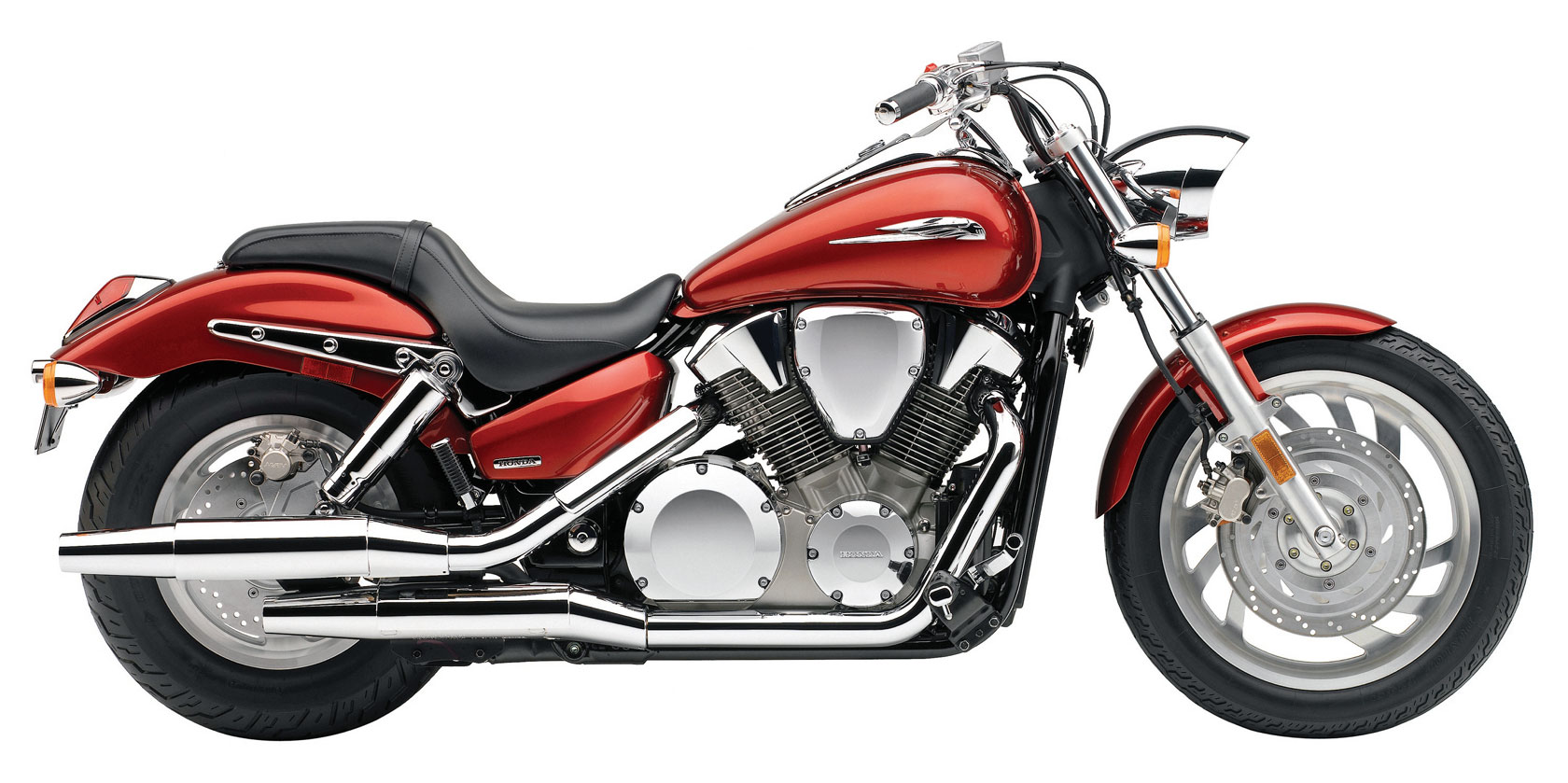

2009 VTX1300C
2009 VTX1300C
Click image to enlarge
2009 VTX1300C
2009 VTX1300C
Click image to enlarge
2009 VTX1300C
2009 VTX1300C
Click image to enlarge
