Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 102 mm (4 in.) travel
Rear Suspension: Single shock; 99 mm (3.9 in.) travel
Brakes: Front: Single 336mm disc with twin-piston caliper
Brakes: Rear: 296mm disc with single-piston caliper; Optional ABS and CBS
Tire Front: 90/90-21
Tire Rear: 170/80-15
DIMENSION
Ground Clearance: N/A
Seat Height: 683 mm (26.9 in.)
Wheelbase: 1778 mm (70 in.)
Curb Weight:
ASB: 307 kg (676 lb)
Non-ASB: 300 kg (659 lb)
Fuel Capacity: 16.6 litres (4.4 GalUS)
OTHER
Color:
Graphite Black
Candy Red
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP (ASB): $13,399

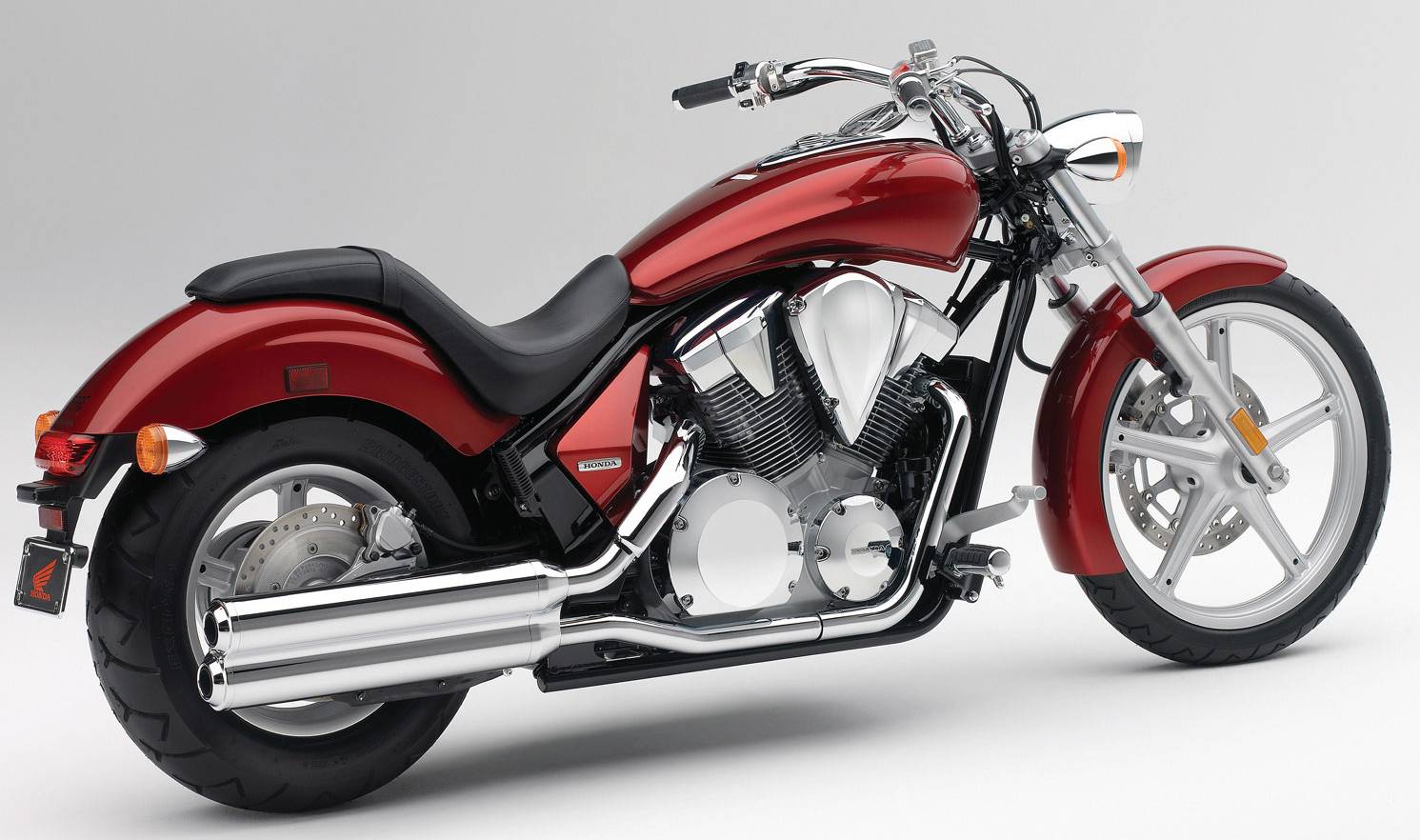

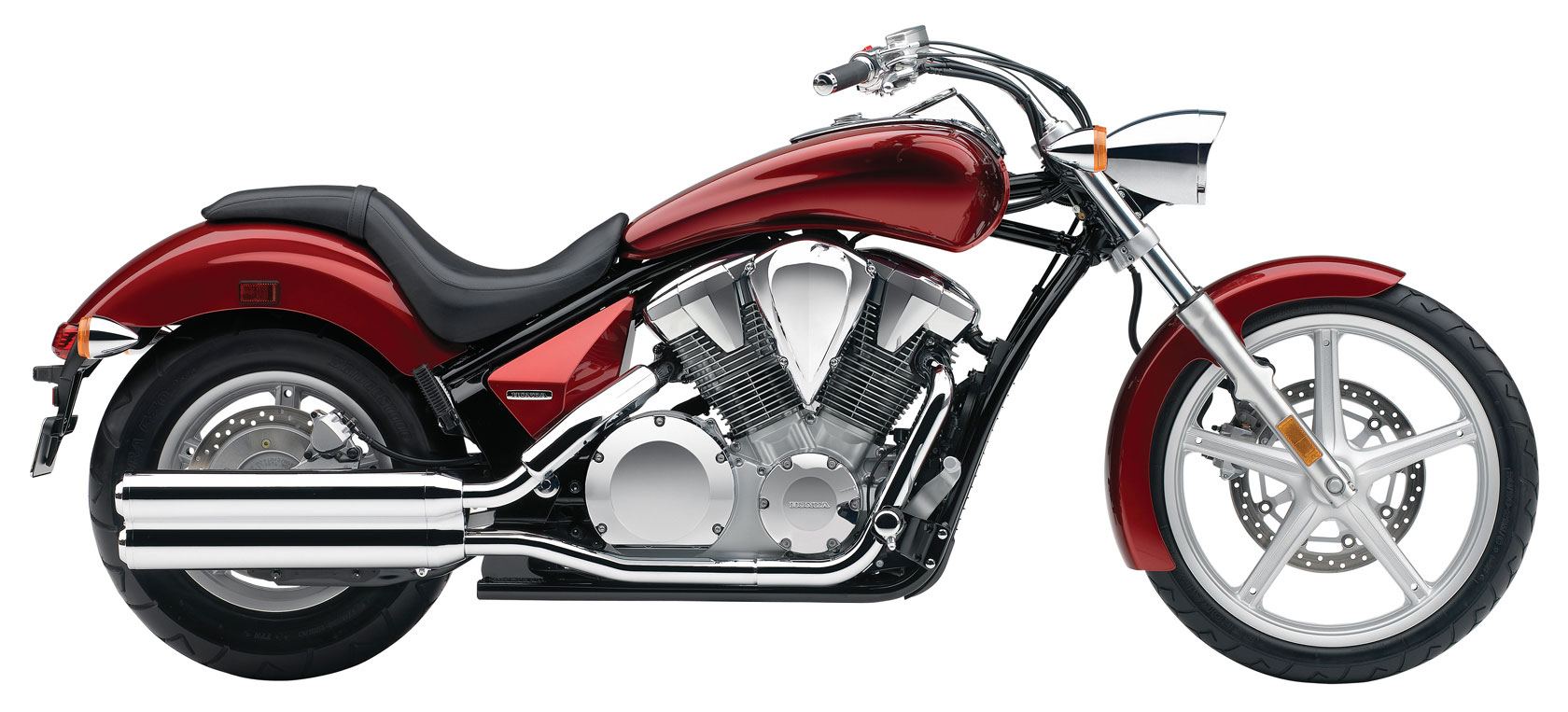

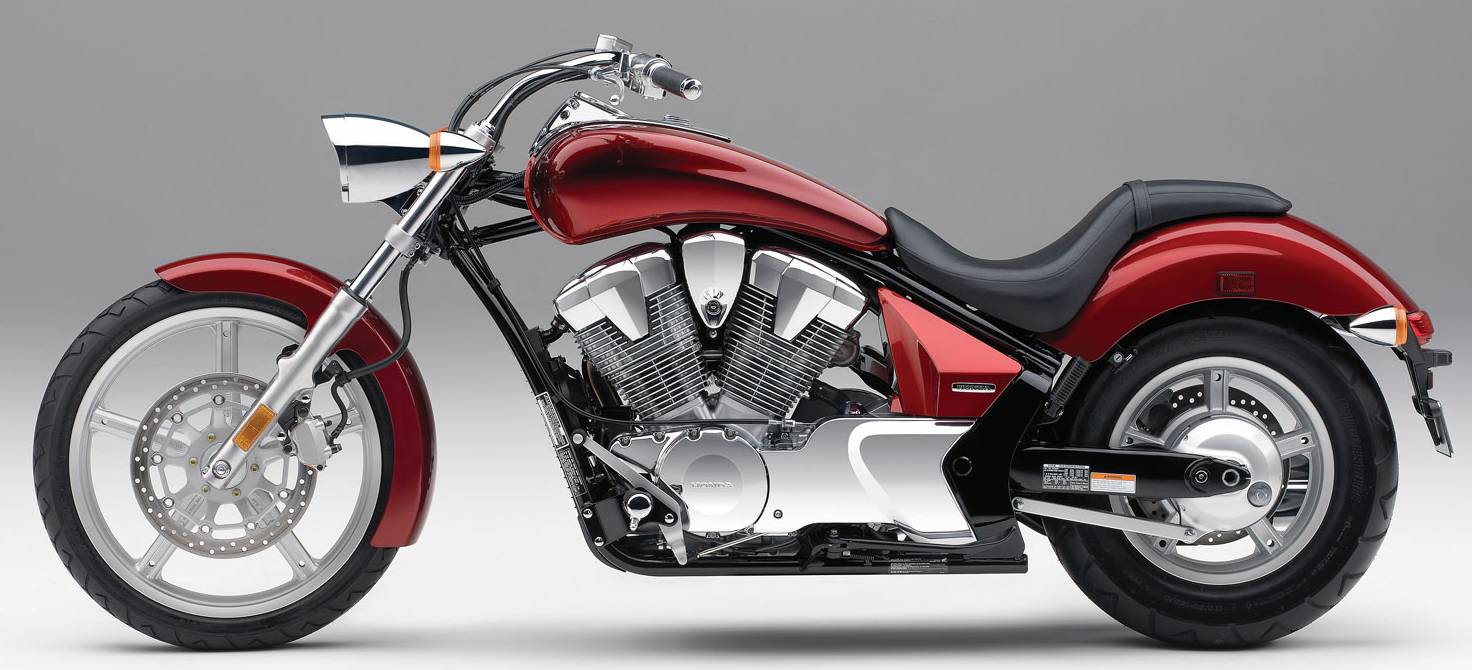

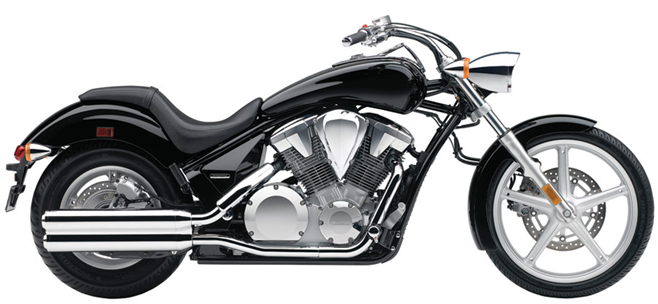

2010 VT1300CS Sabre ASB Click image to enlarge2010 VT1300CS Sabre Click image to enlarge
2010 VT1300CS Sabre Click image to enlarge
2010 VT1300CS Sabre Click image to enlarge

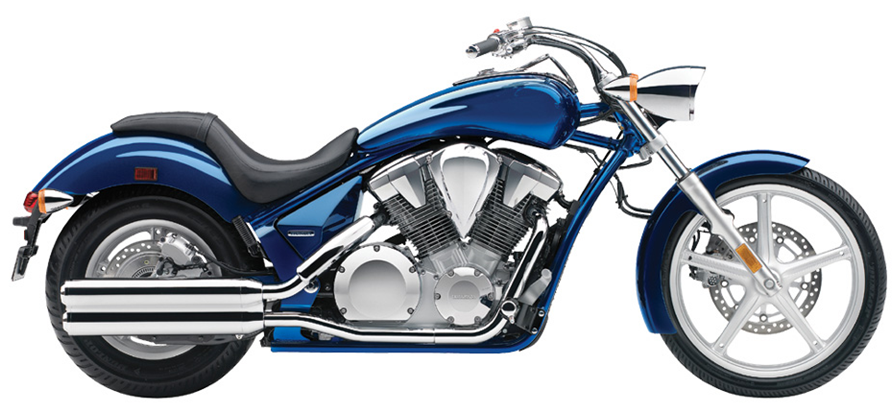

2011 Honda VT1300CS Sabre
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 1312 cc
Bore and Stroke: 89.5 mm x 104.3 mm
Compression Ratio: 9.2:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 102 mm (4 in.) travel
Rear Suspension: Single shock; 100 mm (3.9 in.) travel
Front Brake (non-ABS): Single 336mm disc with twin-piston caliper
Front Brakes (ABS): Single 336 mm disc with triple-piston caliper
Rear Brake (non-ABS): 296mm disc with single-piston caliper
Rear Brakes (ABS): 296 mm disc with dual-piston caliper.
ABS Brakes: Combined Braking System with ABS
Front Tire: 90/90-21
Rear Tire: 170/80-15
DIMENSION
Rake: 33 degrees (Caster Angle)
Trail: 115.0mm (4.5 inches)
Wheelbase: 1785 mm (70.3 in.)
Ground Clearance: N/A
Seat Height: 684 mm (26.9 in.)
Curb Weight: (ABS): 307 kg (677 lb)
Curb Weight: (non-ABS): 300 kg (659 lb)
Fuel Capacity: 16.5 litres (4.4 GalUS)
OTHER
Colour:
Glint Wave Blue Metallic
Ultra Blue Metallic
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
Compression Ratio: 9.2:1
Valve Train: SOHC; three valves per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm fork; 4.0 inches travel
Rear Suspension: Single shock; 3.9 inches travel
Front Brake: Single 336mm disc with twin-piston caliper
Rear Brake: 296mm disc with single-piston caliper
Front Tire: 90/90-21
Rear Tire: 170/80-15
DIMENSION
Rake: 33 degrees (Caster Angle)
Trail: 115.0mm (4.5 inches)
Wheelbase: 1786mm (70.3 inches)
Seat Height: 683mm (26.9 inches)
Curb Weight: 302 kg (664 lb) (includes all standard equipment, required fluids and full tank of fuel-ready to ride.)
Fuel Capacity: 16.5 Litres (4.4 GalUS)
OTHER
Fuel consumption: 5.1 L/100km (46 mpgUS)
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Colors: Ultra Blue Metallic
FACTORY WARRANTY: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
