Valve Train: Chain-driven SOHC 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork, 102 mm (4 in.) travel
Rear Suspension: Single shock, 99 mm (3.9 in.) travel
Brakes Front: Single 336mm disc with twin-piston caliper
Brakes Rear: 296mm disc with single-piston caliper; Optional ABS and CBS
Tire Front: 140/80-17
Tire Rear: 170/80-15
DIMENSION
Ground Clearance: N/A
Seat Height: 678 mm (26.7 in.)
Wheelbase: 1780 mm (70.1 in.)
Curb Weight: 312 kg (687 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 16.6 litres (4.4 GalUS)
OTHER
Color:
Candy Red
Metallic Red
Metallic Black
Pearl Yellow
Metallic Titanium
Warranty: 1 year, unlimited mileage, freely transferable warranty extended coverage available with Honda Plus
MSRP: $13,299

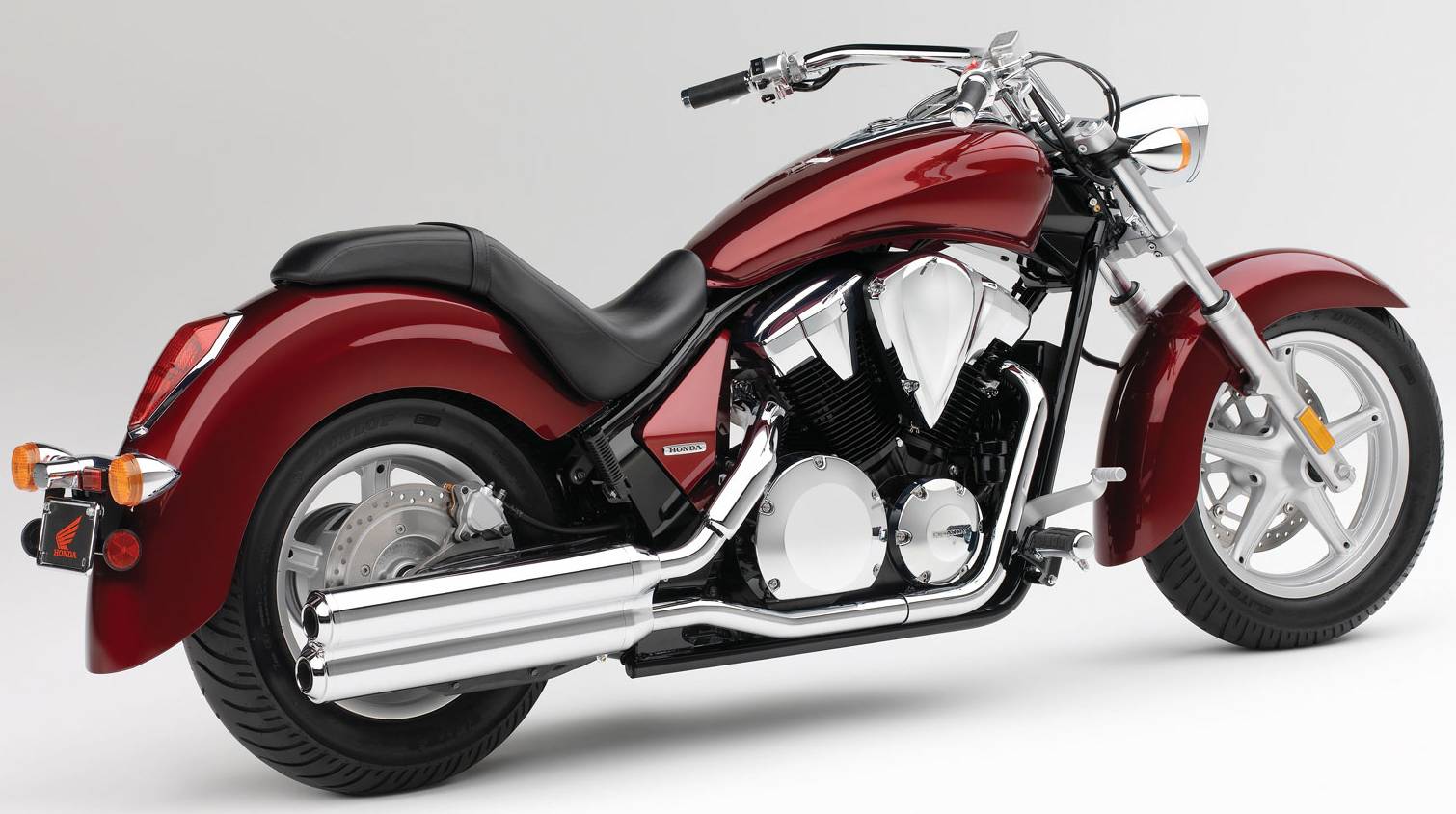

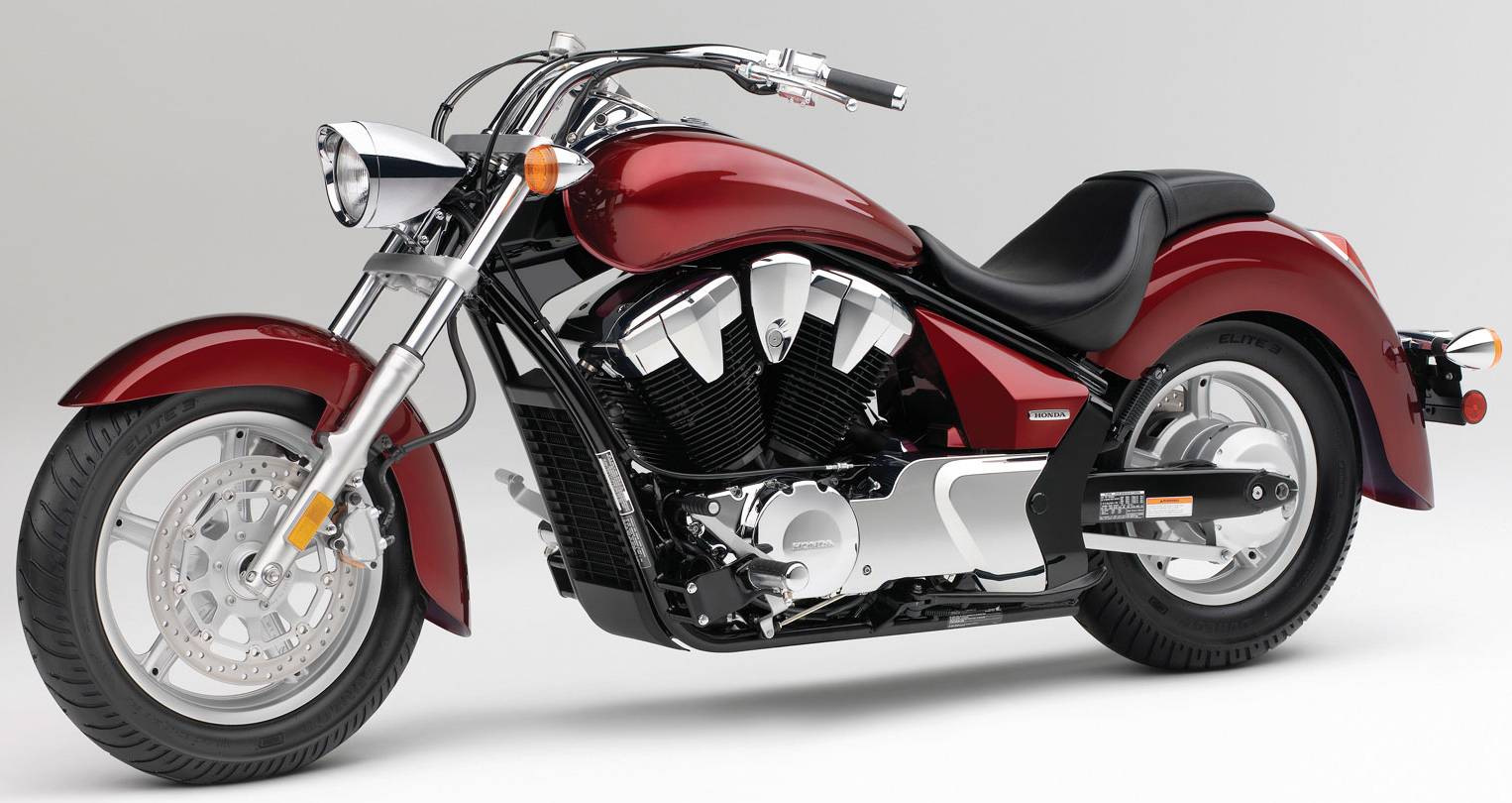

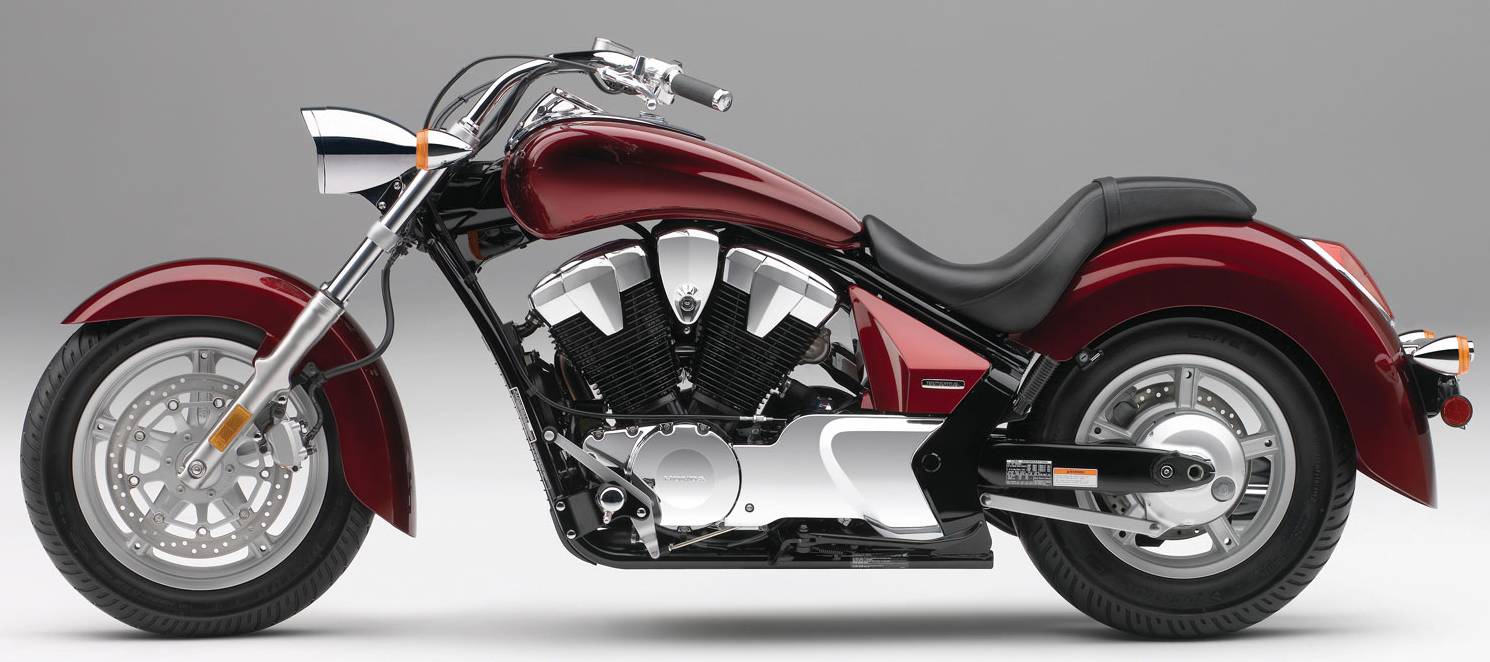

2010 VT1300CR Stateline Click image to enlarge2010 VT1300CR Stateline Click image to enlarge
2010 VT1300CR Stateline Click image to enlarge
2010 VT1300CR Stateline Click image to enlarge
2011 Honda VT1300CRA Stateline
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 1312 cc
Bore and Stroke: 89.5 mm x 104.3 mm
Compression Ratio: 9.2:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 102 mm (4 in.) travel
Rear Suspension: Single shock; 100 mm (3.9 in.) travel
Front Brakes (ABS): Single 336 mm disc with triple-piston caliper
Front Brake (non-ABS): Single 336mm disc with twin-piston caliper
Rear Brakes (ABS): 296 mm disc with dual-piston caliper.
Rear Brake (non-ABS): 296mm disc with single-piston caliper
ABS Brakes: Combined Braking System with ABS
Front Tire: 140/80-17
Rear Tire: 170/80-15
DIMENSION
Rake: 33 degrees (Caster Angle)
Trail: 118mm (4.6 inches)
Wheelbase: 1,785 mm (70.3 in.)
Ground Clearance: N/A
Seat Height: 680 mm (26.8 in.)
Curb Weight (ABS): 311 kg (686 lb)
Curb Weight (non-ABS): 305 kg (670 lb)
Fuel Capacity: 16.5 litres (4.4 GalUS)
OTHER
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Colour:
Candy Red
Metallic Silver
Model Id: VT1300CR
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $13,799
2011 VT1300CR

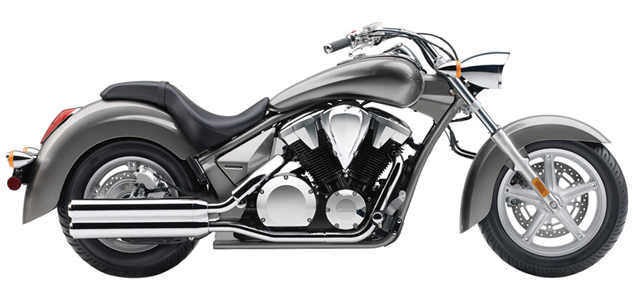

2012 Honda VT1300CRA Stateline
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 1,312 cc
Bore and Stroke: 89.5 mm x 104.3 mm
Compression Ratio: 9.2:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 38mm throttle body
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 102 mm (4 in.) travel
Rear Suspension: Single shock; 100 mm (3.9 in.) travel
Front Brakes: Single 336 mm disc with twin-piston caliper (ASB: triple-piston caliper)
Rear Brakes: Single 296 mm disc with single-piston caliper (ASB: dual-piston caliper)
Brakes: Combined Braking System with ABS (Anti-lock Braking System)
Front Tires: 140/80 - 17
Rear Tires: 170/80 - 15
DIMENSION
Rake: 33° (Caster Angle)
Trail: 118mm (4.6 inches)
Wheelbase: 1,785 mm (70.3 in.)
Ground Clearance: n/a
Seat Height: 680 mm (26.8 in.)
Curb Weight: 311 kg (686 lb)
Fuel Capacity: 16.5 litres (4.4 GalUS)
OTHER
Emissions: Meets current EPA standards. Models sold in California meet current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Mpg: 46 MPG
Color:
Moonstone Silver
Metallic Silver
Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
