2005 ST1300 Pan European
ENGINE
Engine Type: 1261cc liquid-cooled longitudinally mounted 90-degree V-4
Bore and Stroke: 78.0mm x 66.0mm
Compression Ratio: 10.8:1
Valve Train: : DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm HMAS cartridge fork; 4.6-inch travel
Rear Suspension: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel
Front Brakes: Dual full-floating 310.0mm discs with LBS three-piston calipers
Rear Brake: Single 316.0mm disc with LBS three-piston caliper
Front Tire: 120/70ZR-18
Rear Tire: 170/60ZR-17
DIMENSION
Rake: 26.0 degrees
Trail: 98.0mm (3.9 inches)
Wheelbase: 58.7 inches
Seat Height: 31.1 inches (+/- 0.6 inches)
Dry Weight: 631 pounds
Fuel Capacity: 7.7 gallons
OTHER
Emissions: This model meets CARB 2008 emissions standards.
Colors:
Candy Dark Red
Candy Dark Red
Model ID: ST1300
Warranty: 3 years

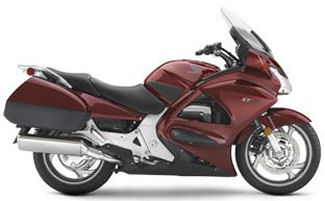

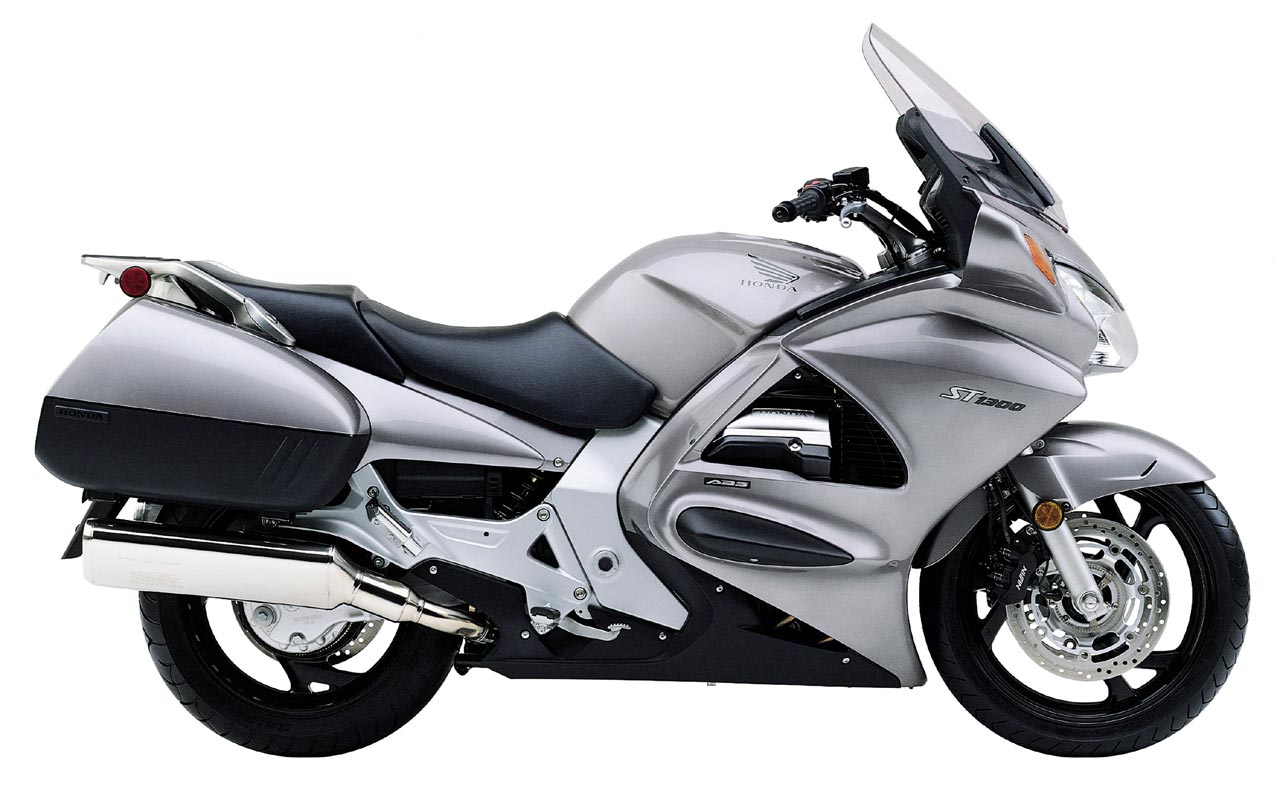

2005 ST1300 Click image to enlarge

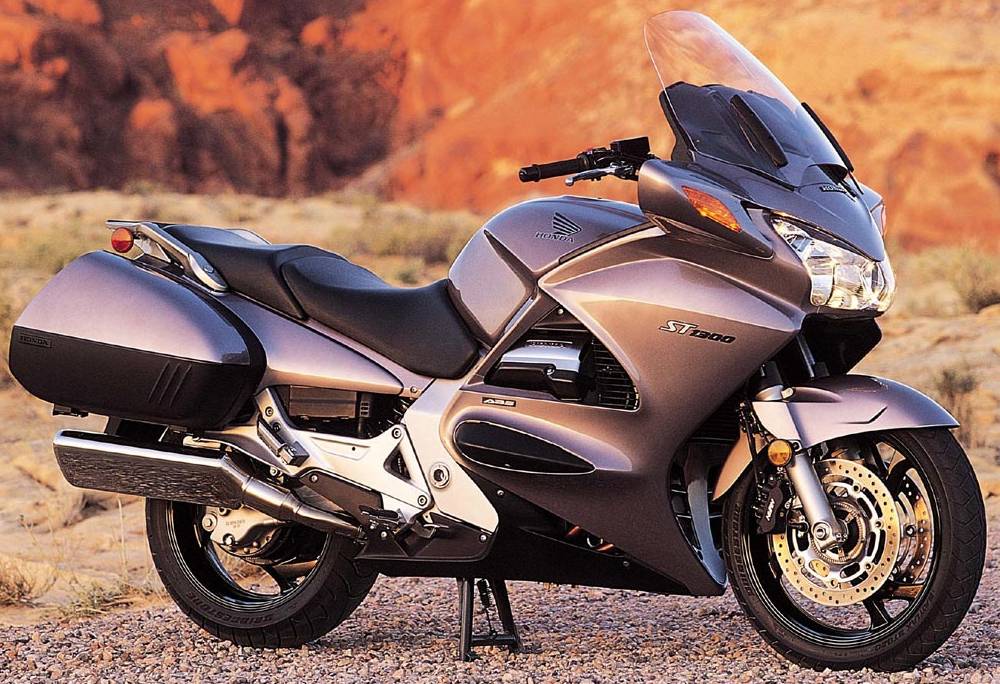

2005 ST1300 Click image to enlarge
2005 ST1300 ABS Pan European
ENGINE
Engine Type: 1261cc liquid-cooled longitudinally mounted 90-degree V-4
Bore and Stroke: 78.0mm x 66.0mm
Compression Ratio: 10.8:1
Valve Train: : DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45.0mm HMAS cartridge fork; 4.6-inch travel
Rear Suspension: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel
Front Brakes: Dual full-floating 310.0mm discs with LBS three-piston calipers with Anti-lock Braking System (ABS)
Rear Brake: Single 316.0mm disc with LBS three-piston caliper with Anti-lock Braking System
Front Tire: 120/70ZR-18
Rear Tire: 170/60ZR-17
DIMENSION
Rake: 26.0 degrees
Trail: 98.0mm (3.9 inches)
Wheelbase: 58.7 inches
Seat Height: 31.1 inches (+/- 0.6 inches)
Dry Weight: 637 pounds
Fuel Capacity: 7.7 gallons
OTHER
Emissions: This model meets CARB 2008 emissions standards.
Colors:
Candy Dark Red
Candy Dark Red
Model ID: ST1300A
Warranty: 3 years

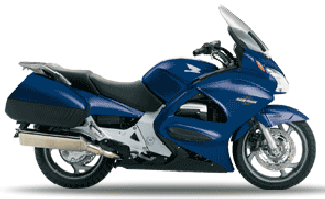

2005 ST1300 Click image to enlarge

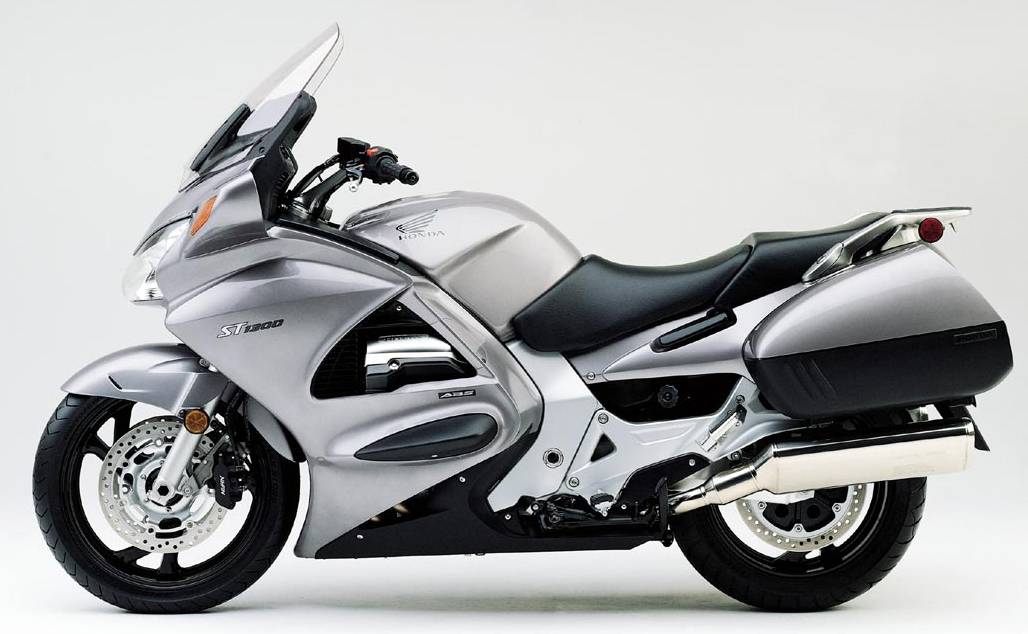

2005 ST1300 Click image to enlarge
2006 ST1300
ENGINE
Engine: Type: 1261cc liquid-cooled longitudinally mounted 90° V-4
Bore and Stroke: 78mm x 66mm
Compression Ratio: 10.8: 1
Valve Train: DOHC; four valves per cylinder
Fuel Delivery: PGM-FI with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm HMAS cartridge fork; 4.6 inches travel
Rear Suspension: HMAS gas-charged single shock with five-position spring preload adjustability; 4.8 inches travel
Front Brakes: Dual full-floating 310mm discs with LBS three-piston calipers
Rear Brakes: Single 316mm disc with LBS three-piston caliper
ST1300 ABS: Optional ABS
Front Tires: 120/70ZR-18
Rear Tires: 170/60ZR-17
DIMENSION
Wheelbase: 58.7 inches
Rake (Caster Angle): 26.0°
Trail: 98mm (3.9 inches)
Seat Height: 31.1 inches (+/- 0.6 inches)
Dry Weight:
ST1300: 650 pounds
ST1300 ABS: 659 pounds
Fuel Capacity: 7.7 gallons
OTHER
Color: Black
Meets 2008 CARB emissions standards.

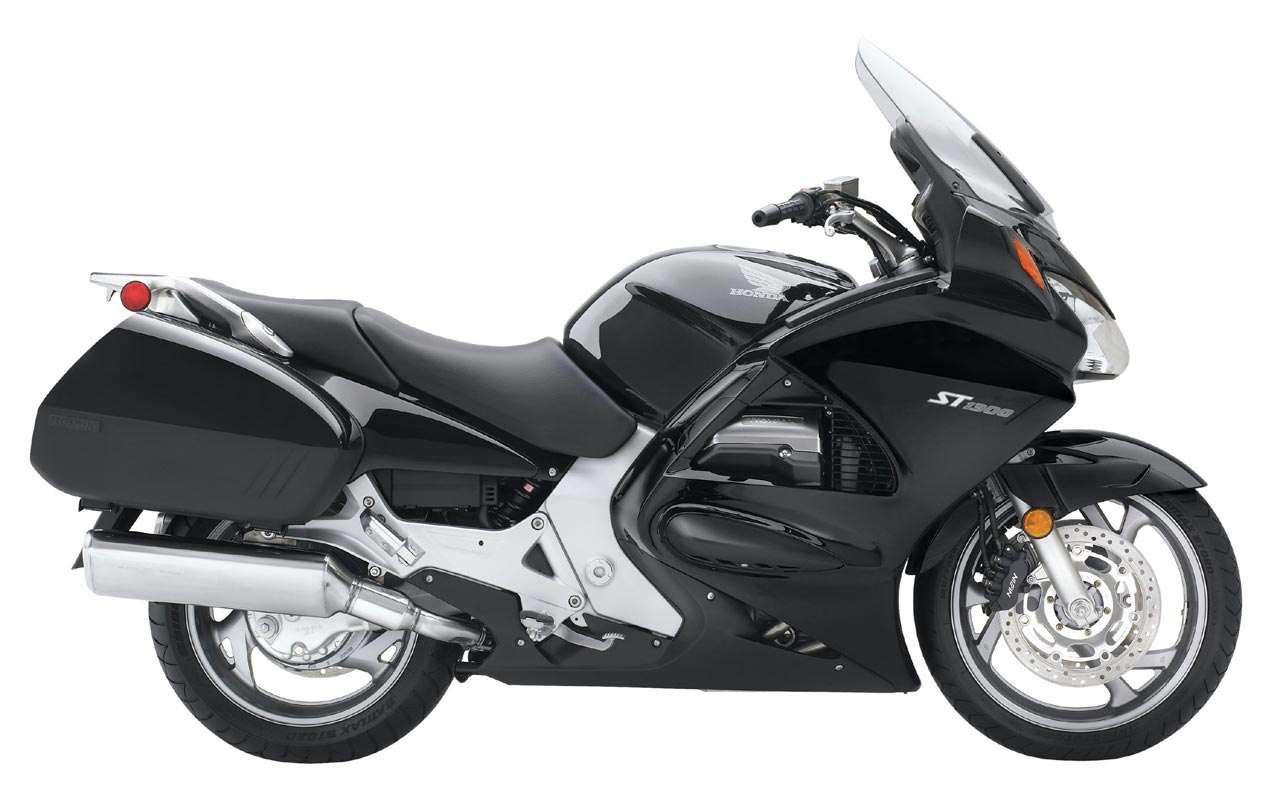

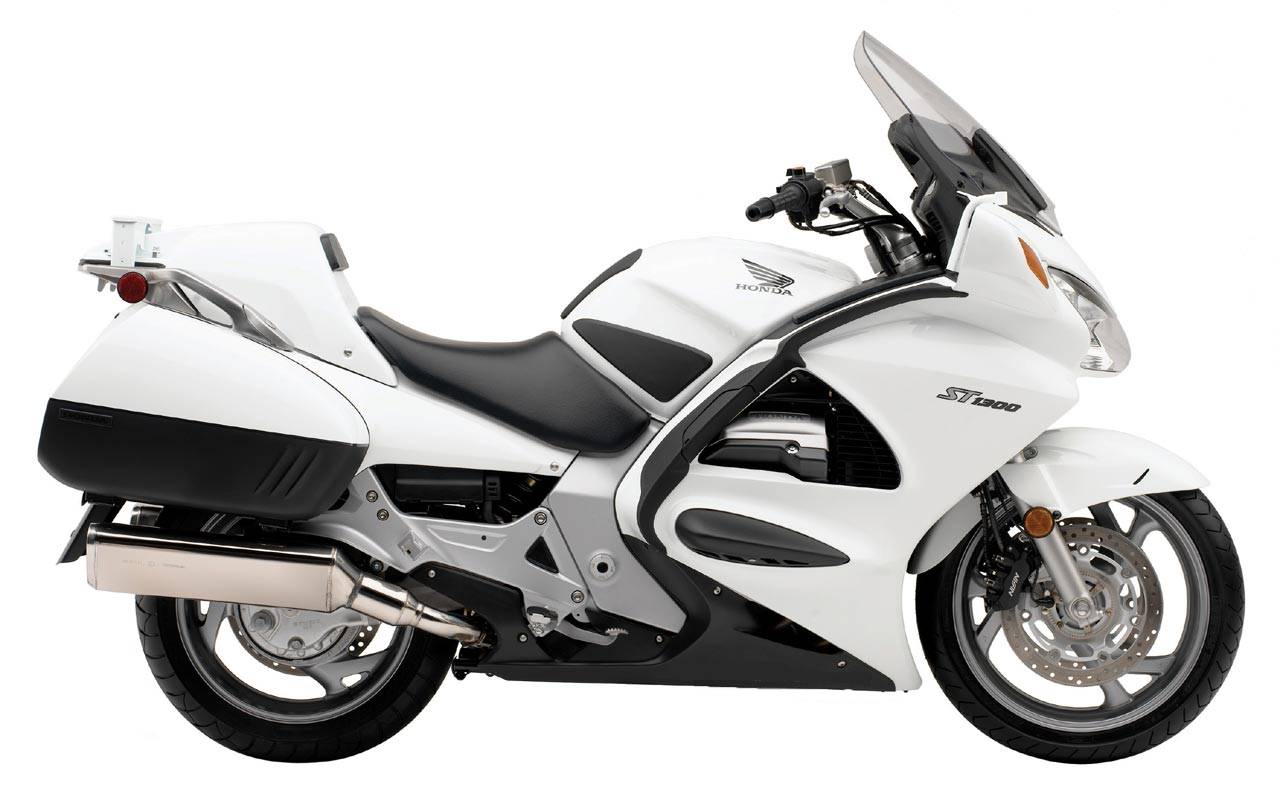

2006 ST1300 Click image to enlarge
2007 ST1300
OVERVIEW
Honda's Gold Wing and CBR sportbikes represent the gold standards of their classes, so it only follows that we'd build a sport-tourer blending the best of both worlds. Enter the ST1300, with its smooth V-4, sporty yet comfortable suspension, sleek bodywork and removable luggage. Translation? A sport-touring experience like no other.
ENGINE
Engine Type: 1261cc liquid-cooled longitudinally mounted 90-degree V-4
Bore and Stroke: 78mm x 66mm
Compression Ratio: 10.8:1
Valve Train: DOHC; four valves per cylinder
CarburetionProgrammed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm HMAS cartridge fork; 4.6-inch travel
Rear Suspension: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel
Front Brakes: Dual full-floating 310mm discs with LBS three-piston calipers
Rear Brake: Single 316mm disc with LBS three-piston caliper
Front Tire: 120/70ZR-18
Rear Tire: 170/60ZR-17
DIMENSION
Rake: 26.0 degrees
Trail: 98mm (3.9 inches)
Wheelbase: 58.7 inches
Seat Height: 31.1 inches (+/- 0.6 inches)
Dry Weight650 pounds
Fuel Capacity: 7.7 gallons
OTHER
EmissionsThis model meets CARB 2008 emissions standards.
Colors:Light Silver Metallic
Model ID: ST1300
3 yearsTransferable, unlimited mileage limited warranty.

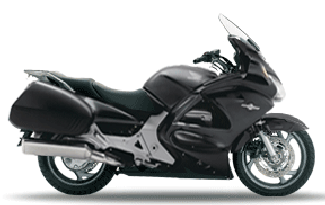

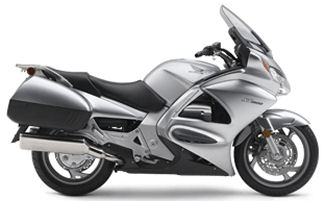

2007 ST1300

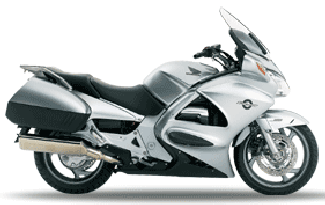

2007 ST1300

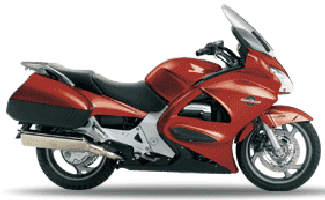

2007 ST1300
2008 ST1300
OVERVIEW
Call it the bike that perfectly fills the gap between Honda's flagship Gold Wing tourer and our stable of championship winning sportbikes. The ST1300 is designed for the long haul. With sleek, full-coverage bodywork, an adjustable windscreen and removable luggage, this smooth, agile, V-4-powered machine is also built to make getting to your destination fun.
ENGINE
Engine Type: 1261cc liquid-cooled longitudinally mounted 90° V-4
Bore and Stroke: 78mm x 66mm
Fuel Delivery: PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8-holes per injector
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
Compression Ratio: 10.8:1
Valve Train: : DOHC; four valves per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm HMAS cartridge fork; 4.6-inch travel
Rear Suspension: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8-inch travel
Front Brakes: Dual full-floating 310mm discs with LBS three-piston calipers; optional ABS
Rear Brake: Single ventilated 316mm disc with LBS three-piston caliper; optional ABS
Front Tire: s120/70ZR-18
Rear Tire: s170/60ZR-17
DIMENSION
Rake: 26.0 °
Trail: 98mm (3.9 inches)
Wheelbase: 58.7 inches
Seat Height: 31.1 inches (+/- 0.6 inches)
Curb Weight: 719 lbs (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride) (ABS add 11 lbs)
Fuel Capacity: 7.7 gallons
OTHER
Colors:Candy Dark Red
Model ID: ST1300
Warranty: 3 years Unlimited mileage

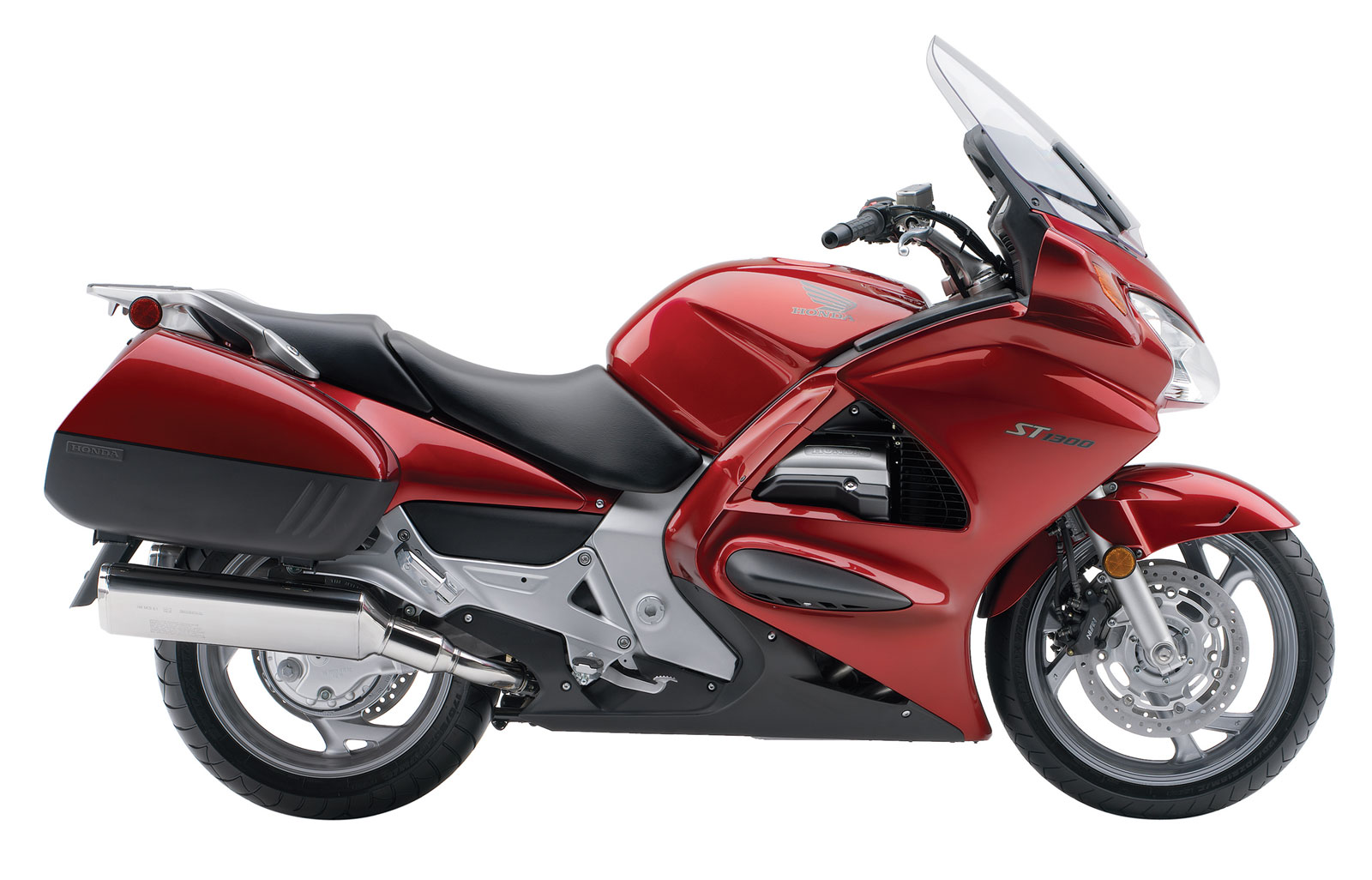

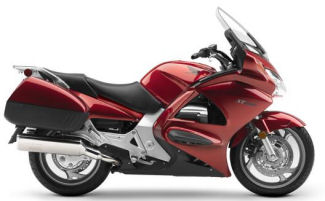

2008 ST1300 Click image to enlarge
2009 ST1300
ENGINE
Engine Size: 1261cc
Engine Detail: liquid-cooled longitudinally mounted 90° V-4
Bore Stroke: 78mm x 66mm
Compression Ratio: 10.8:1
Fuel System: PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 45mm HMAS cartridge fork; 4.6 inches travel
Suspension Rear: HMAS gas-charged single shock with five-position spring-preload adjustability; 4.8 inches travel
Brakes Front: Dual full-floating 310 mm discs with LBS three-piston calipers (ABS optional)
Brakes Rear: Single 316mm disc with LBS three-piston caliper
Tire Front: 120/70ZR-18
Tire Rear: 170/60ZR-17
DIMENSION
Wheelbase: 58.7 in.
Seat Height: 31.1 in.
Curb Weight: 719 lbs.
Fuel Capacity: 7.7 gal.
OTHER
Price: $14599
Colors: Red
Warranty: 3 Years

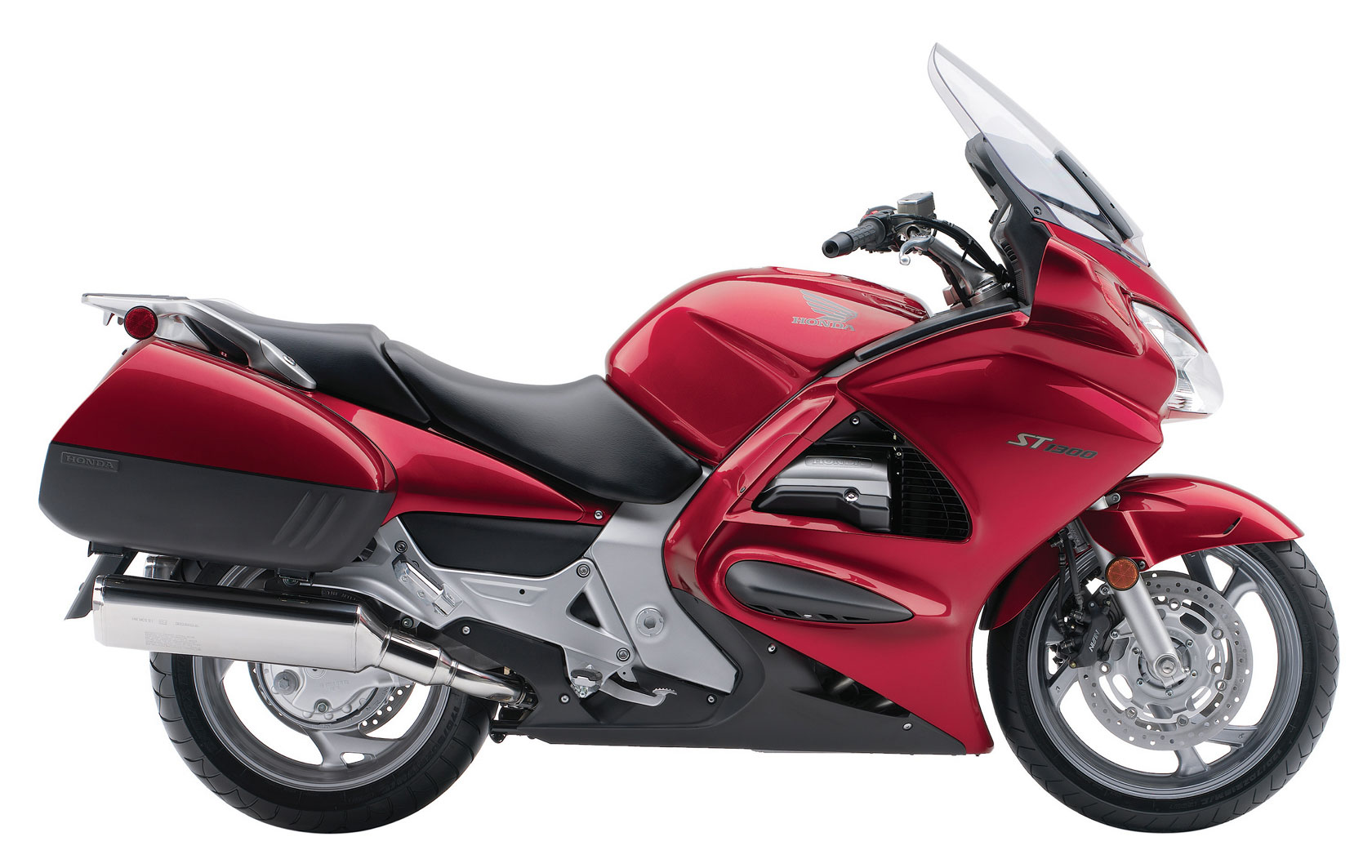

2009 ST1300 Click image to enlarge
2010 ST1300
ENGINE
Engine Type: Liquid-cooled longitudinally mounted 90 degrees V-4
Displacement: 1261 cc
Bore And Stroke: 78mm x 66mm
Compression Ratio: 10.8:1
Valve Train: Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery: PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45 mm HMAS cartridge fork; 108 mm (4.2 in.) travel
Rear Suspension: HMAS gas-charged single shock with five-position spring preload adjustability; 123 mm (4.8 in.) travel
Front Brake: Dual full-floating 310 mm discs with CBS three-piston calipers
Rear Brake: Single 316mm disc with CBS three-piston caliper
Front Tires: 120/70ZR-18
Rear Tires: 170/60ZR-17
DIMENSION
Rake: 26.0 degrees Caster Angle
Trail: 98mm (3.9 inches)
Wheelbase: 1491 mm (58.7 in.)
Seat Height: 790 mm (31.1 in.) adjustable +/- 15 mm (0.6 in.)
Curb Weight: 331 kg (760 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 29 litres (7.7 GalUS)
OTHER
Fuel consumption: 6.7 L/100km (35 mpgUS)
Color: Graphite Black
Model Id: ST1300
MSRP: $19,999
Warranty: Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

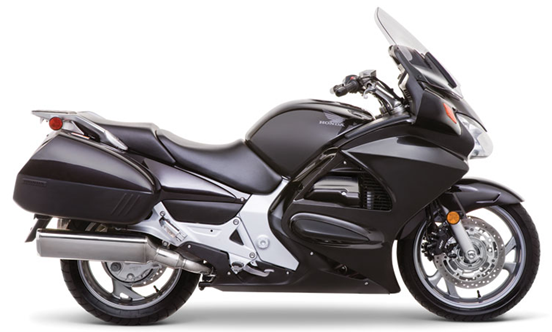

2010 ST1300
2012 ST1300
ENGINE
Engine Type: Liquid-cooled longitudinally mounted 90 degree V-4, 4-stroke
Engine Displacement: 1261cc
Bore and Stroke: 78 x 66mm
Compression Ratio: 10.8:1
Valve Train: DOHC; four valves per cylinder (16 total)
Fuel Delivery: PGM-FI with automatic enricher circuit, four-36mm throttle bodies, 8 holes per injector
Ignition: Computer-controlled digital transistorised with electronic advance and 3-D mapping
Max. Power Output: 117 bhp at 8,000 rpm
Max. Torque: 117Nm at 6,500 rpm
Starter: Electric
DRIVETRAIN
Transmission: 5-speed
Final Drive: Enclosed shaft with integrated dampers
Front Wheels: Hollow-section triple-spoke cast aluminium
Rear Wheels: Hollow-section triple-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm telescopic HMAS cartridge fork, 117mm (4.6 in.) axle travel
Rear Suspension: Single-side conventional shock/damper HMAS gas-charged with five-position adjustable spring-preload and rebound damping, 120mm (4.8 in.) axle travel
Front Brakes: Dual full-floating 310mm hydraulic discs with CBS Combined three-piston calipers, (ABS) and sintered metal pads
Rear Brakes: Single 316mm hydraulic disc with CBS Combined three-piston caliper, (ABS) and sintered metal pads
Front Tires: 120/70 ZR18M/C
Rear Tires: 170/60 ZR17M/C
DIMENSION
Rake: 26.0 degree (Caster Angle)
Trail: 98mm (3.9 inches)
Wheelbase: 1500mm (58.7 inches)
Overall Length: 2282mm (89.8 inches) (with panniers)
Overall Width: 935mm (36.8 inches) (with panniers)
Overall Height: 1332mm (52.4 inches) (with panniers)
Seat Height: 790mm (31.1 inches) (±15mm (0.6 inch) adjustable)
Ground Clearance: 145mm (5.7 inches)
Weight: 283 kg (623 lb)
Curb Weight: 332 kg (730 lb) (Includes all standard equipment, required fluids and full tank of fuel ready to ride.
Fuel Capacity: 29 Litres (7.7 GalUS) (with 4 Litre (1 Gal) LCD-indicated reserve)
OTHER
Fuel consumption: 6.7 L/100km (35 mpgUS)
Colors:
Model Id: ST1300A
FACTORY WARRANTY: Three Years; Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

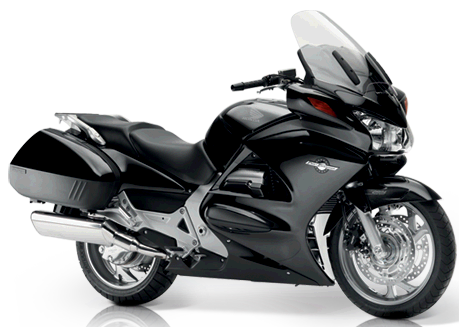

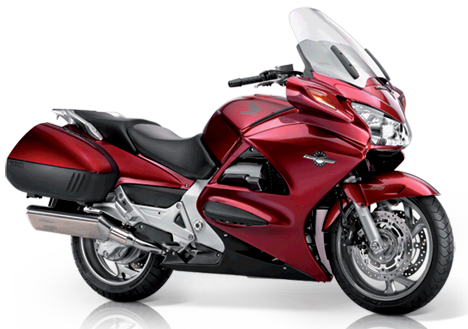

2012 ST1300

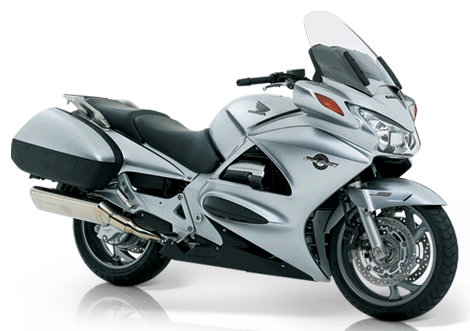

2012 ST1300
2012 ST1300
