Fuel System: PGM-FI with automatic enricher circuit, one 38mm throttle body
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 45mm fork; 4.0 inches travel
Suspension Rear: Single shock with adjustable rebound-damping and five-position spring-preload adjustability; 3.7 inches travel
Brakes Front: Single 336 mm disc with twin-piston caliper (ABS optional)
Brakes Rear: Single 296 mm disc with single-piston caliper (ABS optional)
Tire Front: 90/90-21
Tire Rear: 200/50-18
DIMENSION
Wheelbase: 71.24 in.
Seat Height: 26.7 in.
Curb Weight: 663 lb. (681 lb. ABS)
Fuel Capacity: 3.4 gal.
OTHER
Colors:
Ultra Blue Metallic
Black
Metallic Silver
Dark Red Metallic
Matte Silver Metallic
Price: $12999
Warranty: 1 Year

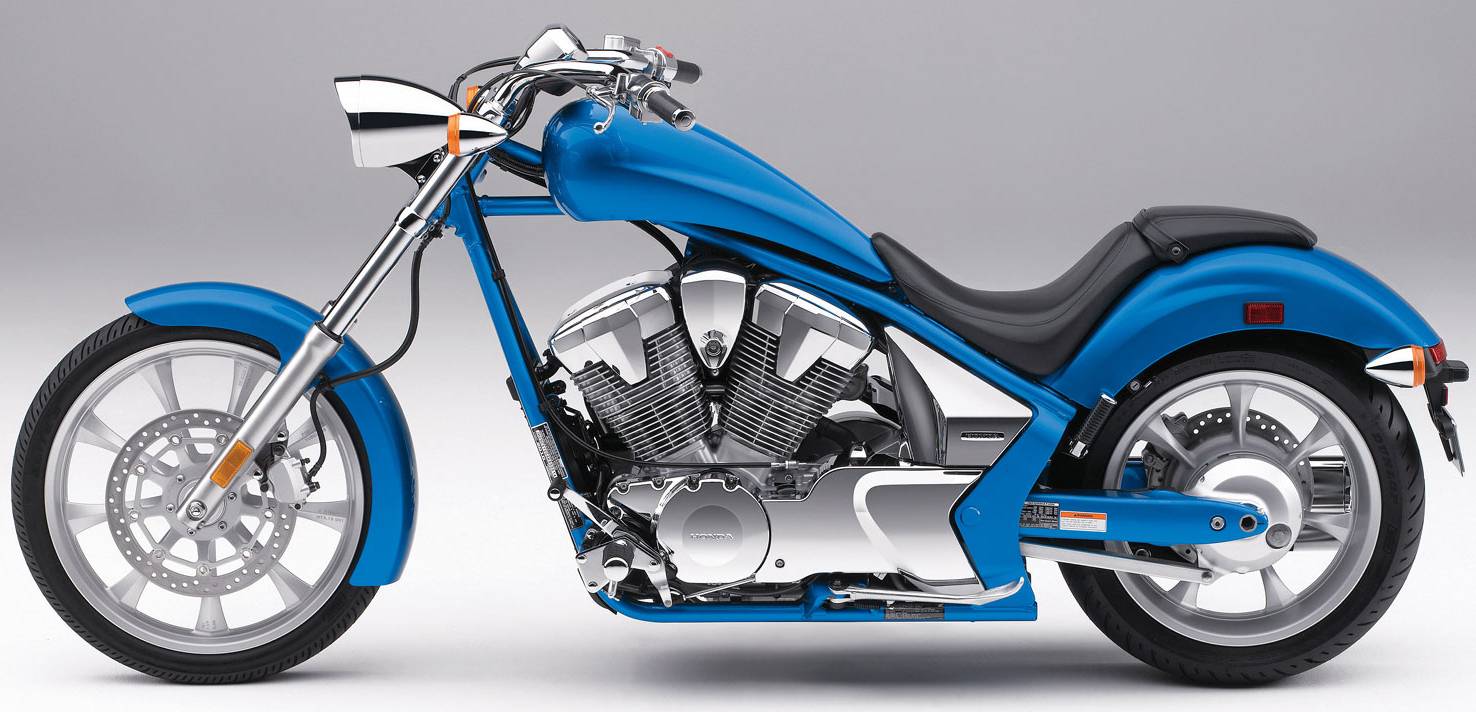

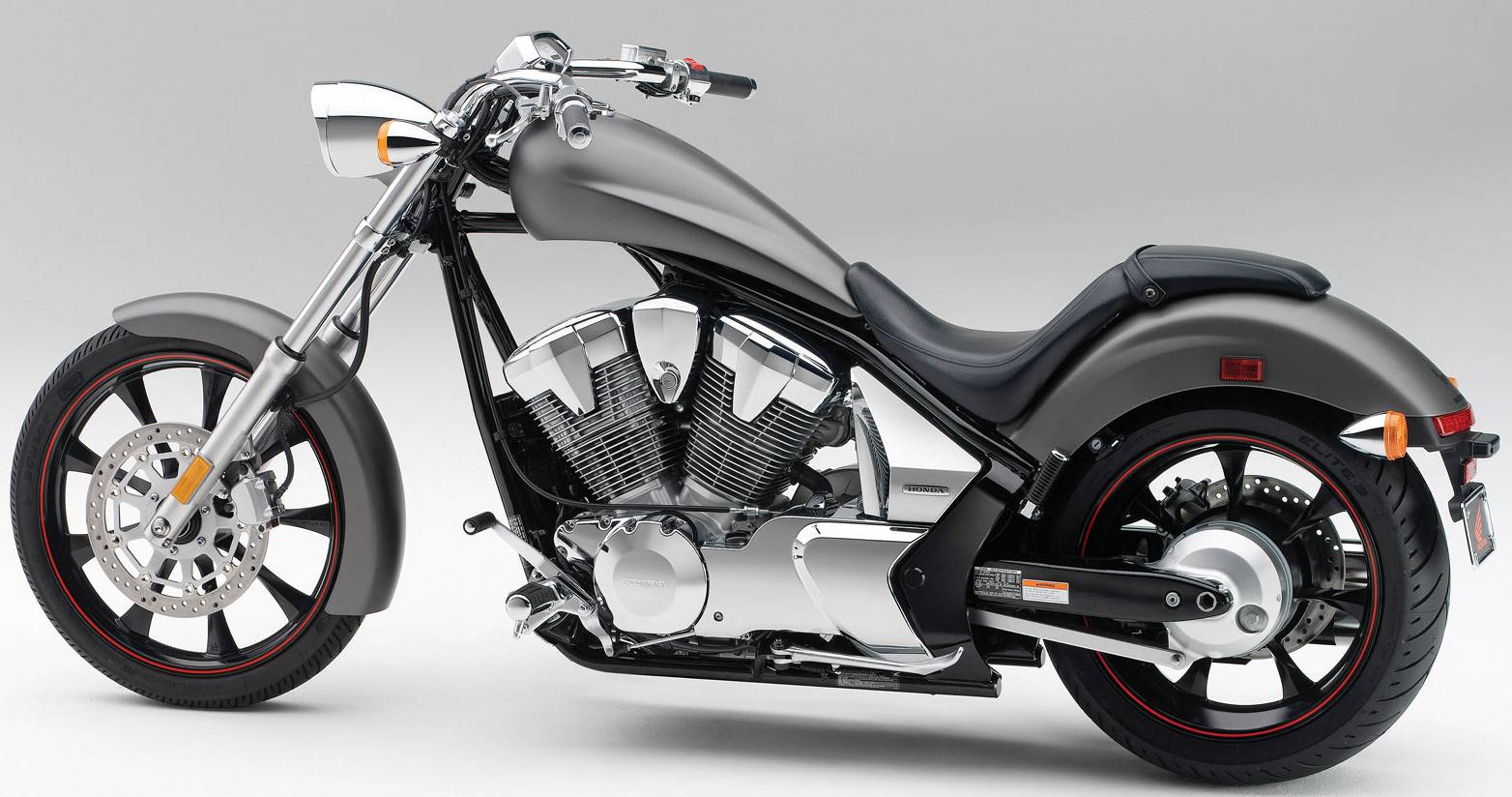

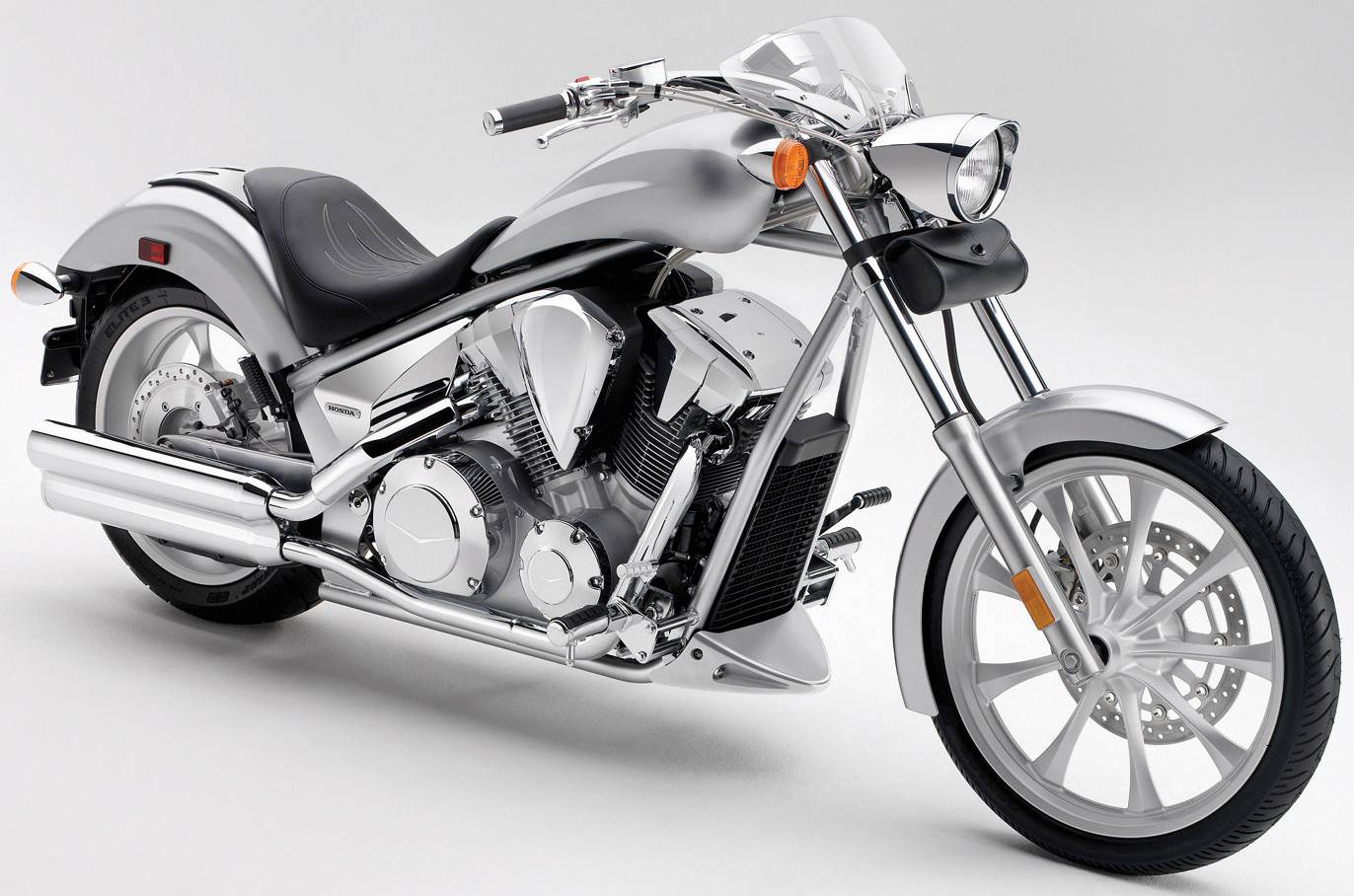

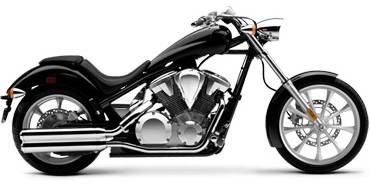

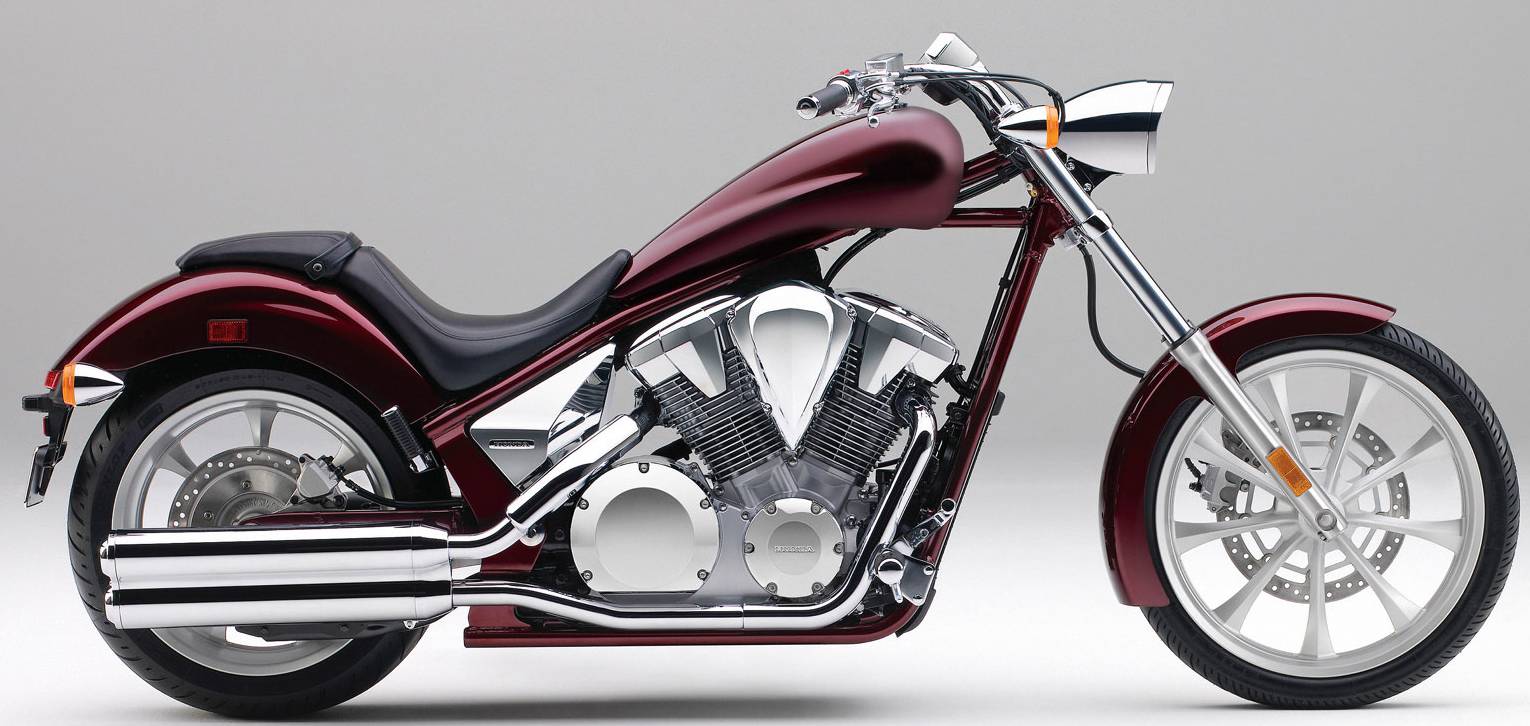

2010 Fury2010 Fury Click image to enlarge2010 Fury Click image to enlarge2010 Fury Click image to enlarge2010 Fury Click image to enlarge

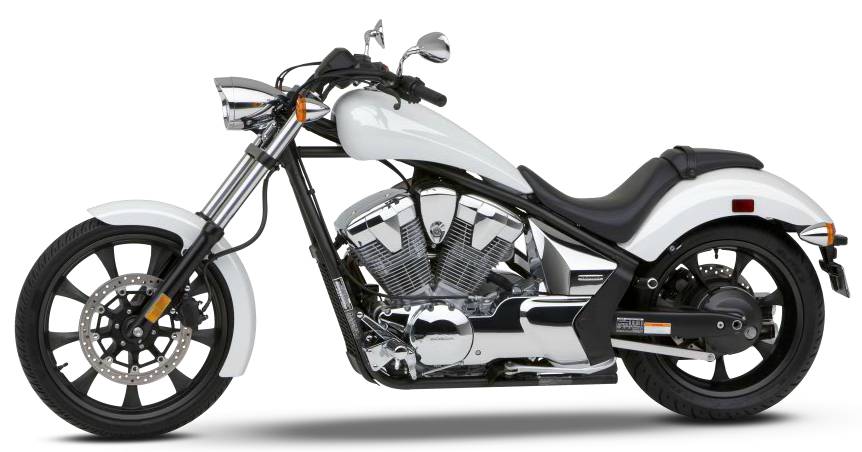

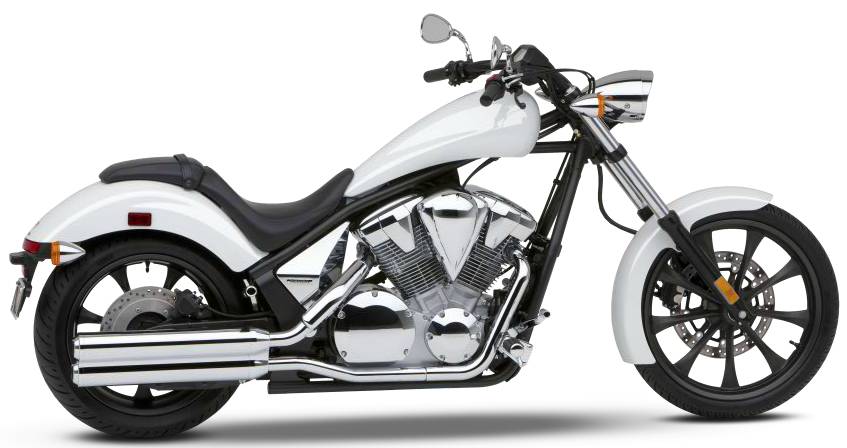

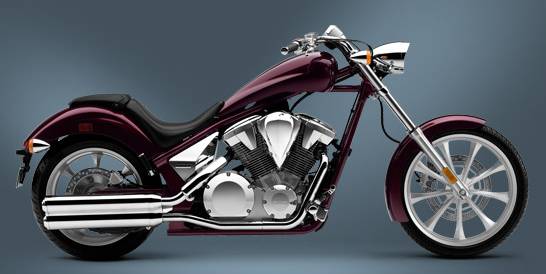

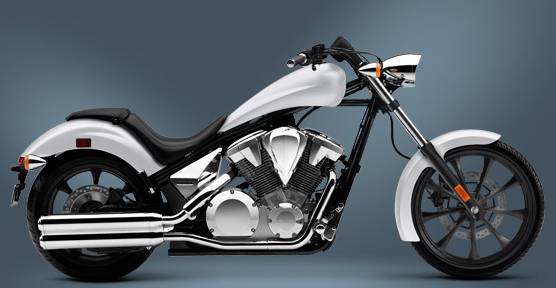

2011 VT1300CX Fury
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 1,312 cc
Bore and Stroke: 89.5 mm x 104.3 mm
Compression Ratio: 9.2:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enricher circuit, one 38mm throttle body
Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder
DRIVETRAIN
Transmission: Five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45 mm fork; 102 mm (4 in.) travel
Rear Suspension: Single shock with adjustable rebound damping and six-position spring preload adjustment; 95 mm (3.7 in.) travel
Front Brakes (ABS): Single 336 mm disc with triple-piston caliper. Combined Braking System with ABS
Front Brake (non-ABS): Single 336 mm disc with twin-piston caliper
Rear Brakes (ABS): 296 mm disc with dual-piston caliper. Combined Braking System with ABS
Rear Brake (non-ABS): Single 296 mm disc with single-piston caliper
Front Tire: 90/90-21
Rear Tire: 200/50R-18
DIMENSION
Rake: 32.0 degrees (Caster Angle)
Trail: 92mm (3.6 inches)
Ground Clearance: N/A
Seat Height: 685 mm (27 in.)
Wheelbase: 1,805 mm (71.1 in.)
Curb Weight (ABS): 308 kg (679 lb)
Curb Weight (non-ABS): 301 kg (663 lb)
Fuel Capacity: 12.8 litres (3.4 GalUS)
OTHER
Fuel consumption: 5.1 L/100km (46 mpgUS)
Colour:
Bordeaux Red Metallic
Dark Red Metallic

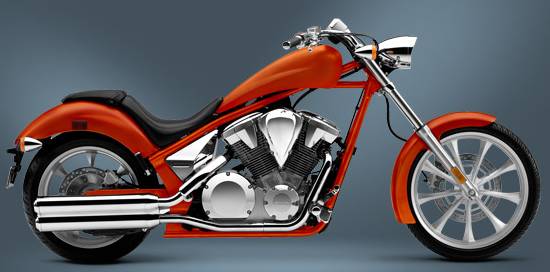

Mat Axis Orange
Matte Orange Metallic
Pearl White
MSRP: $15,999
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment
Warranty: One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI electronic fuel injection with automatic enricher circuit, one 38mm throttle body
Ignition: Digital with 3-dimensional mapping, 2 sparks per cylinder
Max. Power Output: 42.5kW/4,250min-1 (95/1/EC)
Max. Torque: 107Nm/2,250min-1 (95/1/EC)
Starter: Electric
DRIVETRAIN
Transmission: 5-speed
Final Drive: Shaft
Front Wheels: 9-spoke cast aluminium 21M/C x MT2.15
Rear Wheels: 7-spoke cast aluminium 18M/C x MT6.25
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 45mm telescopic fork with 130mm stroke and 102.4mm (4 in.) axle travel
Rear Suspension: Monoshock with adjustable rebound damping and six-position spring preload adjustability, 95mm (3.7 in.) axle travel
Front Brakes: 336mm single disc with twin-piston caliper (triple-piston caliper in ABS model)
Rear Brakes: 296mm disc with single-piston caliper (dual-piston caliper in ABS model)
Front Tires: 90/90-R21M/C
Rear Tires: 200/50-R18M/C
DIMENSION
Rake: 32.0 degrees (Caster Angle)
Trail: 92mm (3.6 inches)
Wheelbase: 1,805mm (71 inches)
Overall Length: 2575mm (101.4 inches)
Overall Width: 900mm (35.4 inches)
Overall Height: 1150mm (42.3 inches)
Seat Height: 678mm (26.7 inches) (British model)
Seat Height: 685mm (27 inches) (Canadian model)
Ground Clearance: 126mm (5 inches)
Curb Weight: 303 kg (666.6 lb) [ABS: 309 kg (681 lb)]
Front: 128 kg (281.6 lb)
Rear: 175 kg (385 lb)
Fuel Capacity: 15.5 Litres (4 Gal US) (non-ABS model)
Fuel Capacity: 12.8 Litres (3.4 Gal US) (ABS model)
OTHER
Fuel Consumption: 5 L/100km (45 mpgUS)
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment
Color:

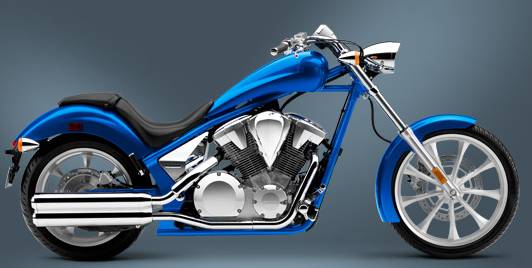

Ultra Blue Metallic
Matte Black/Magna Red
Black
Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
