Honda CB1300S Motorcycles

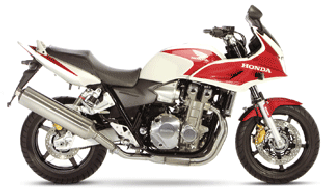

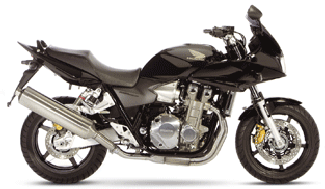

2007 CB1300S

ENGINE
- Engine Type: Liquid cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1284 cc
- Bore & Stroke: 78 x 67.2mm
- Compression Ratio: 9.6 :1
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 114 bhp at 7,500 rpm
- Max. Torque: 117 Nm at 5,500 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #530 O-ring sealed chain
- Wheels Front: U-section 5-spoke cast aluminium
- Wheels Rear: U-section 5-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 43mm cartridge-type telescopic fork with adjustable compression and rebound damping, 109mm axle travel
- Suspension Rear: Dual conventional dampers with 5-step adjustable spring pre-load and rebound damping, 116mm axle travel
- Brakes Front: 310 x 4.5mm dual disk with 4-piston calipers ABS and sintered metal pads
- Brakes Rear: 256 x 6mm dual-piston caliper disc with ABS and sintered metal pads
- Tires Front: 120/70 ZR17M/C (58W)
- Tires Rear: 18/55 ZR17M/C (73W)
DIMENSION
- Wheelbase: 1515mm (59.6 inches)
- Overall Length: 2220mm (87.4 inches)
- Overall Width: 790mm (31.1 inches)
- Overall Height: 1120mm (44.1 inches)
- Seat Height: 790mm (31.1 inches)
- Ground Clearance: 135mm (5.3 inches)
- Fuel Capacity: 21 litres 5.5 (GalUS) [including 4.5-litre (1.2 Gal) warning light reserve]
- Dry Weight: 236 kg (519 lb)
OTHER

ENGINE
- Engine Type: Liquid cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1284 cc
- Bore and Stroke: 78 x 67.2 mm
- Compression Ratio: 9.6:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 114 bhp at 7,500 rpm
- Max. Torque: 117 Nm at 5,500 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance
- Starter: Electric
DRIVETRAIN
- Transmission: 5-speed
- Final Drive: #530 O-ring sealed chain
- Front Wheels: U-section 5-spoke cast aluminium
- Rear Wheels: U-section 5-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge-type telescopic fork with adjustable compression and rebound damping, 109 mm axle travel
- Rear Suspension: Dual conventional dampers with 5-step adjustable spring pre-load and rebound damping, 116 mm axle travel
- Front Brakes: 310 x 4.5 mm dual disk with 4-piston calipers ABS and sintered metal pads
- Rear Brakes: 256 x 6mm dual-piston caliper disc with ABS and sintered metal pads
- Front Tires: 120/70 ZR17M/C (58W)
- Rear Tires: 18/55 ZR17M/C (73W)
DIMENSION
- Wheelbase: 1515 mm (59.6 inches)
- Overall Length: 2220mm (87.4 inches)
- Overall Width: 790mm (31.1 inches)
- Overall Height: 1120mm (44.1 inches)
- Seat Height: 790 mm (31.1 inches)
- Ground Clearance: 135 mm (5.3 inches)
- Weight: 236 kg (519 lb)
- Fuel Capacity: 21 Litres (5.5 GalUS)[including 4.5-Litre (1.2 Gal) warning light reserve]
OTHER
