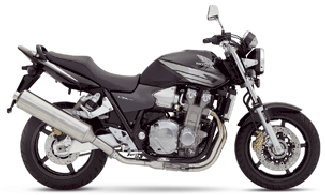

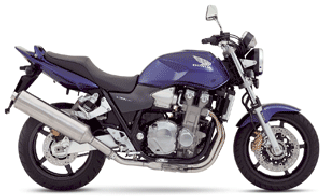

2007 CB1300F
2007 CB1300F
2007 CB1300F
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1284 cc
- Bore & Stroke: 78 x 67.2 mm
- Compression Ratio: 9.6 :1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: 114 bhp at 7,500 rpm
- Max. Torque: 117Nm at 5,500 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance
- Starter: Electric
- Gearbox: 5-Speed
- Final Drive: #530 O-ring sealed chain
- Length x Width x Height: 2,220 x 790 x 1,120 mm
- Wheelbase: 1,515 mm
- Seat Height: 790 mm
- Ground Clearance: 135 mm
- Fuel Capacity: 21 litres (including 4.5-litre warning light reserve)
- Dry Weight: 230 kg
- Wheels Front: U-section 5-spoke cast aluminium
- Wheels Rear: U-section 5-spoke cast aluminium
- Tires Front: 120/70 ZR17M/C (58W)
- Tires Rear: 18/55 ZR17M/C (73W)
- Suspension Front: 43 mm cartridge-type telescopic fork with adjustable compression and rebound damping, 109 mm axle travel
- Suspension Rear: Dual conventional dampers with 5-step adjustable spring preload and rebound damping, 116 mm axle travel
- Brakes Front: 310 x 4.5 mm dual disc with 4-piston calipers ABS and sintered metal pads
- Brakes Rear: 256 x 6 mm dual-piston caliper disc with ABS and sintered metal pads
