1999 CB1300
- ENGINE
- Engine Type: 1284 cc, 4 Stroke - Liquid Cooled - Inline Four
- Bore and Stroke: 78 mm x 67.2 mm
- Compression Ratio: 9.6:1
- Valves: DOHC, 4 valves/cylinder
- Fuel Delivery: VEPC
- Ignition System: Full transistor type battery Ignition System:
- Horsepower: 100 hp (74.6 kW) @ 7500 rpm
- Maximum Torque: 120 Nm (88.5 ft. lbs) @ 5000 rpm
- DRIVETRAIN
- Transmission: type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 130/70-17
- Rear Tire: 190/60-17
- Front Brakes: dual 310 mm discs with 4-piston calipers
- Rear Brakes: single 276 mm disc with 2-piston calipers
- DIMENSION
- Overall Length: 2200 mm (86.6 inches)
- Overall Width: 780 mm (30.7 inches)
- Overall Height: 1165 mm (45.9 inches)
- Seat Height: 790 mm (31.1 inches)
- Wheelbase: 1545 mm (60.8 inches)
- Fuel Capacity: 21 litres (5.5 Gal)
- Dry weight: (without fluids): 246 kg (542.3 pounds)
- OTHER
2004 CB1300
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1284 cc
- Bore & Stroke: 78 x 67.2mm
- Compression Ratio: 9.6 :1
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 114 bhp at 7500 rpm
- Max. Torque: 117Nm at 6000 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: 'O'- Ring sealed chain
- Front Wheel: 17 x MT3.50 U-section 5- spoke cast aluminum
- Rear Wheel: 17 x MT5.50 U-section 5- spoke cast aluminum
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge-type telescopic fork, 120mm axle travel
- Rear Suspension: Dual conventional dampers with 5-step adjustable spring preload, 116mm axle travel
- Front Brakes: 310 x 4.5mm dual disc with 4- piston calipers and sintered metal pads
- Rear Brake: 256 x 6mm single-piston caliper disc with sintered metal pads
- Front Tire: 120/70 ZR17M/C (58W) (Pressure 250kPa)
- Rear Tire: 180/55 ZR17M/C (73W) (Pressure 290kPa)
- DIMENSION
- Length x Width x Height: 2220 x 790 x 1120mm
- Wheelbase: 1515mm
- Seat Height: 790mm
- Ground Clearance: 135mm
- Fuel Capacity: 21 litres (including 4-litre warning light reserve)
- Dry Weight: 224kg
- OTHER

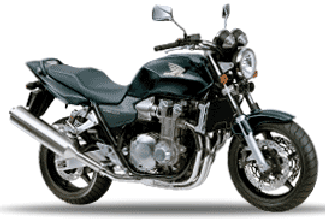

2004 CB1300

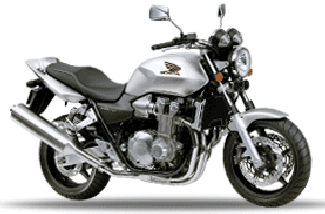

2004 CB1300
2004 CB1300
