Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enrichment circuit, 44mm throttle bodies and 12-hole injectors
Ignition: Digital transistorized with electronic advance
Compression Ratio: 12.0:1
Valve Train: SOHC; four valves per cylinder
DRIVETRAIN
Transmission: Six speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm cartridge fork with spring-preload adjustability; 4.7 inches travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability; 5.1 inches travel
Front Brake: Dual full-floating 320mm discs with CBS six-piston calipers with ABS
Rear Brake: Single 276mm disc with CBS two-piston caliper with ABS
Front Tires: 120/70 ZR-17 radial
Rear Tires: 190/55 ZR-17 radial
DIMENSION
Wheelbase: 60.8 inches
Seat Height: 32.1 inches
Curb Weight: 591 pounds (Includes all standard equipment, required fluids and a full tank of fuel eady to ride)
Rake: 25 degrees 30' (Caster Angle)
Trail: 101.0mm (4.0 inches)
Fuel Capacity: 4.9 gallons
OTHER
Emissions: Meets current California Air Resources Board (CARB) and EPA standards.
Available Colors: Candy Red
Model Id: VFR1200F
FACTORY WARRANTY INFORMATION: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

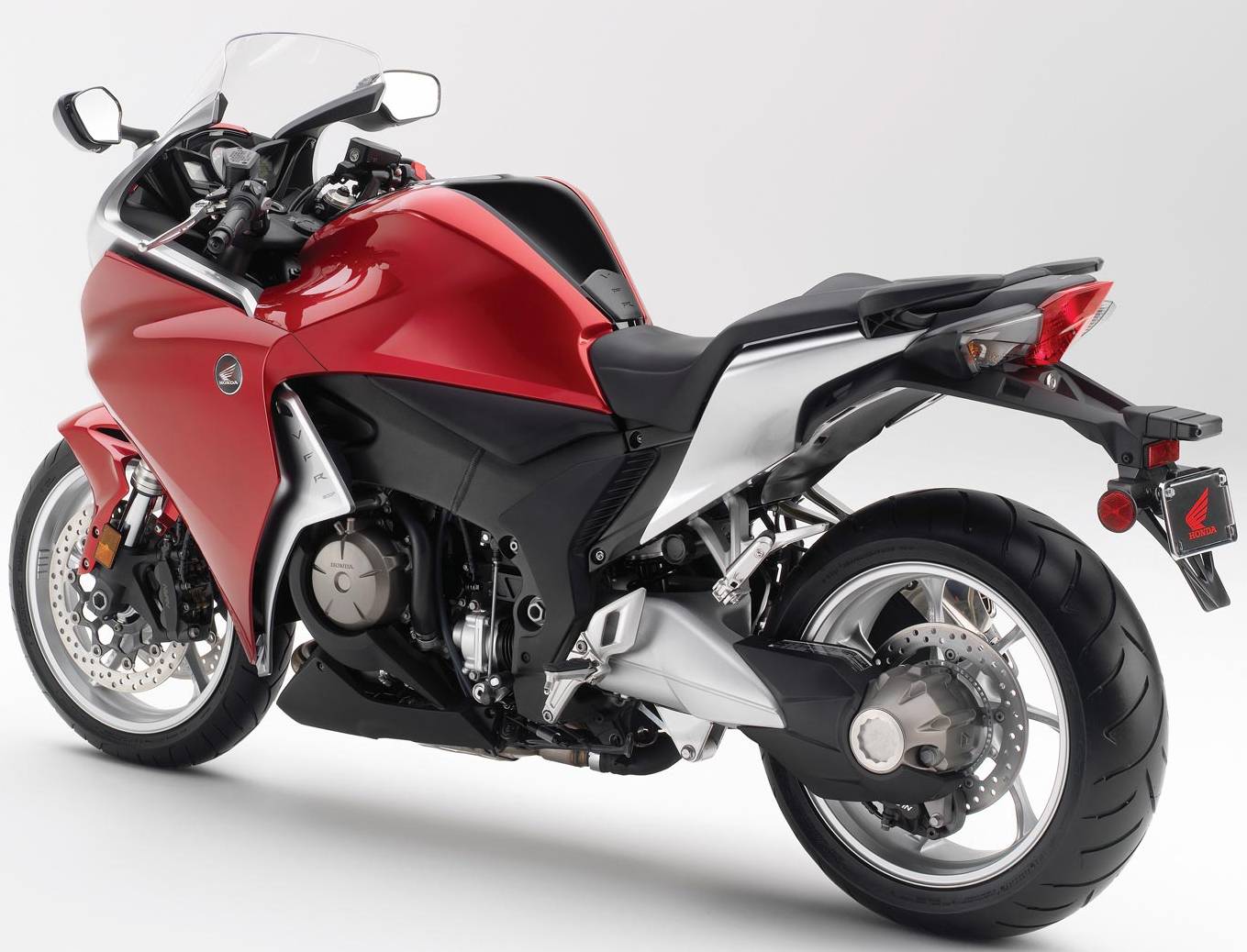

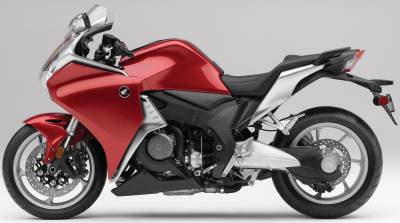

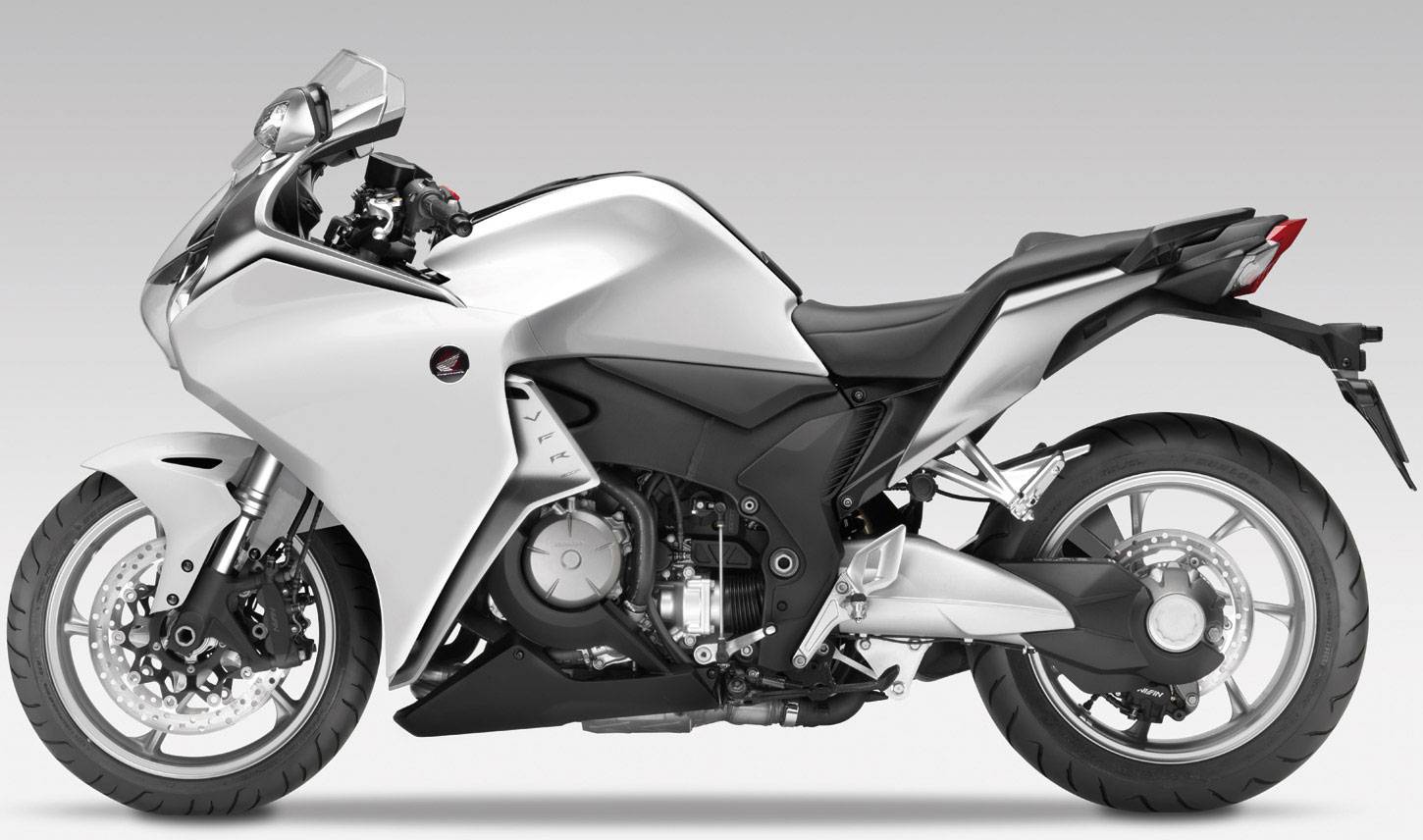

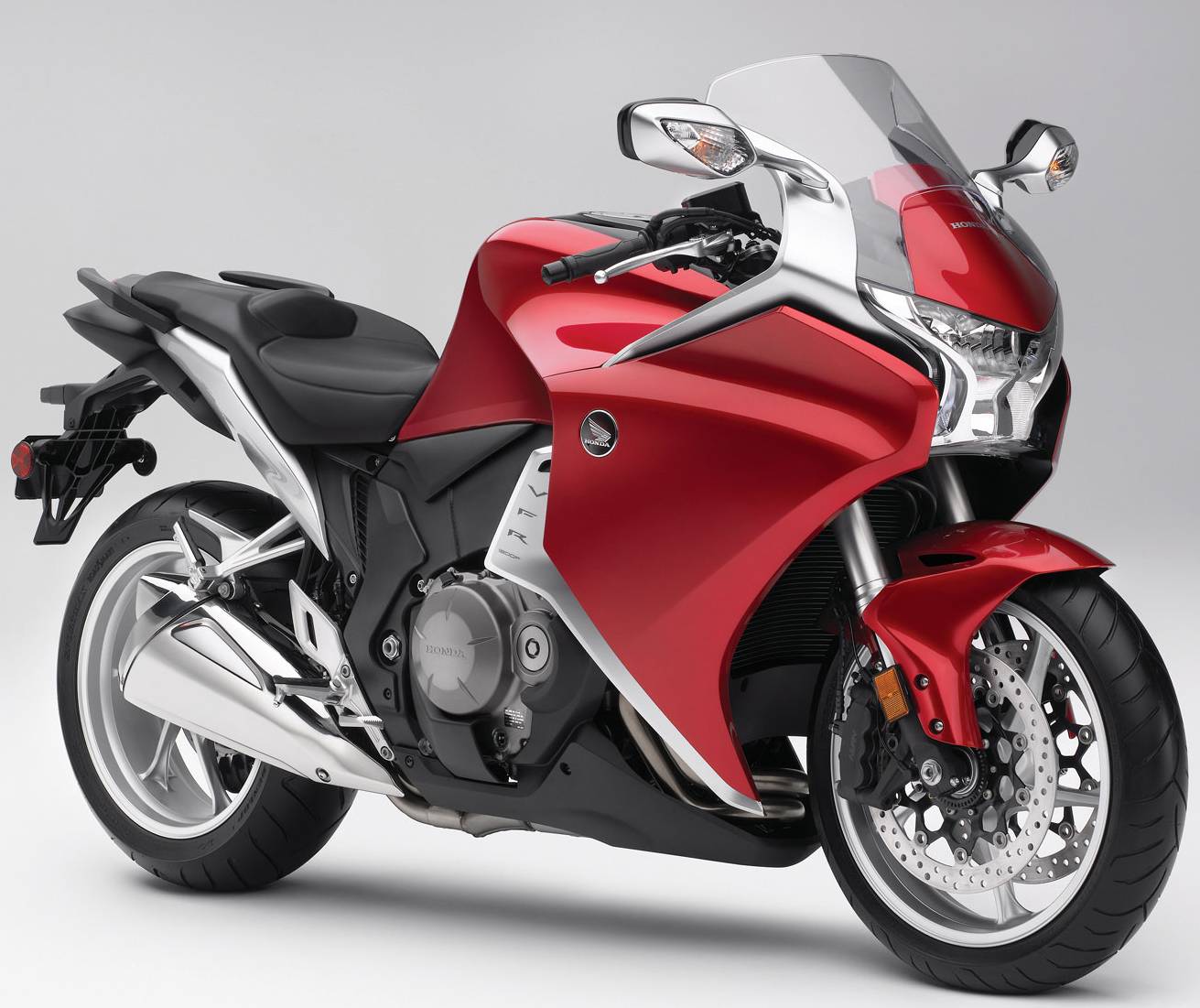

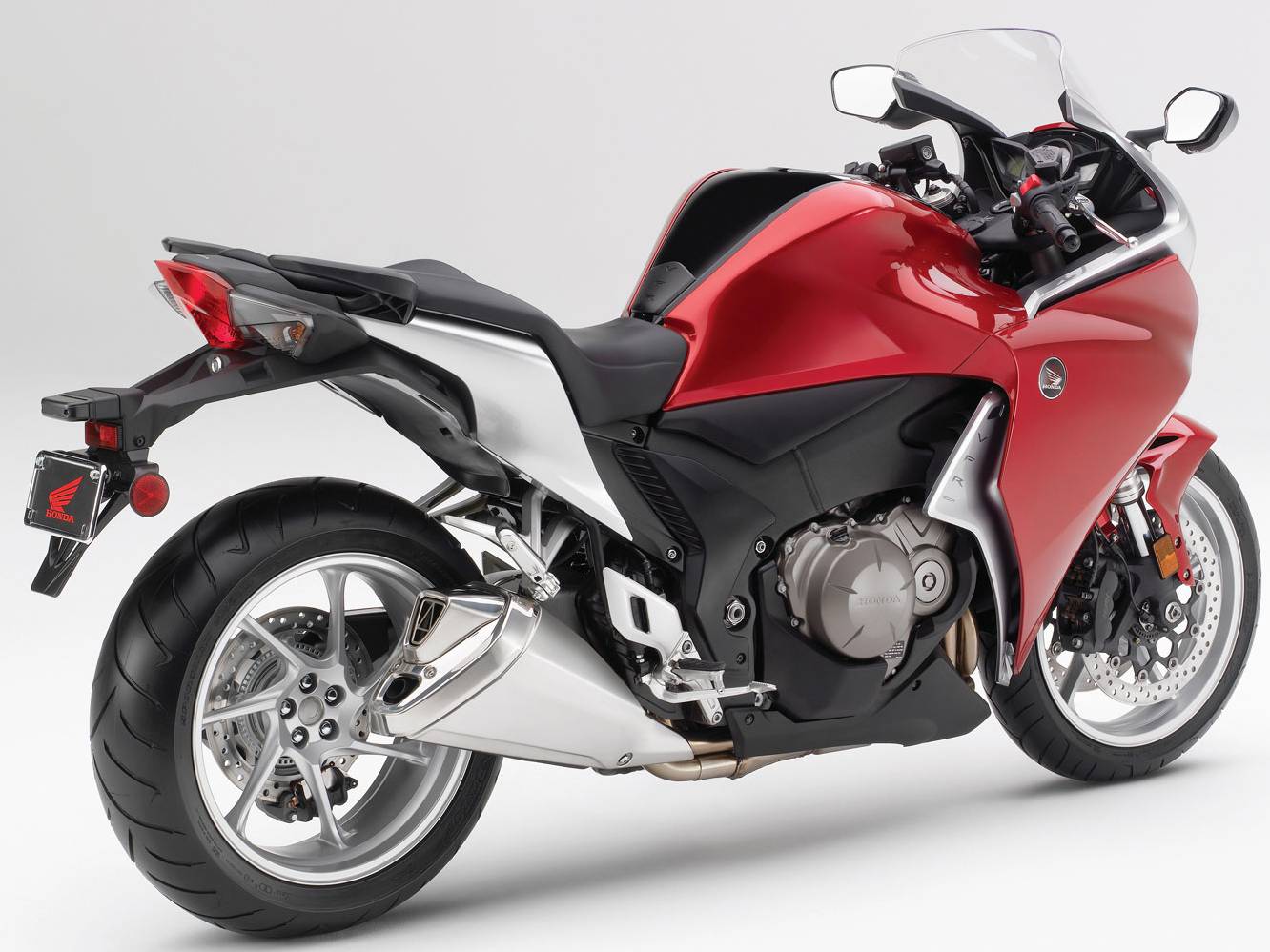

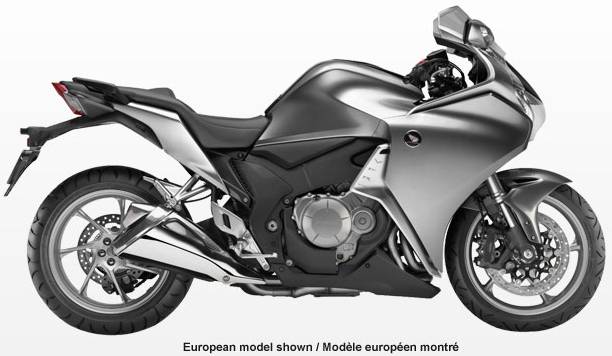

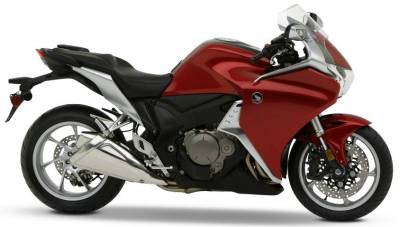

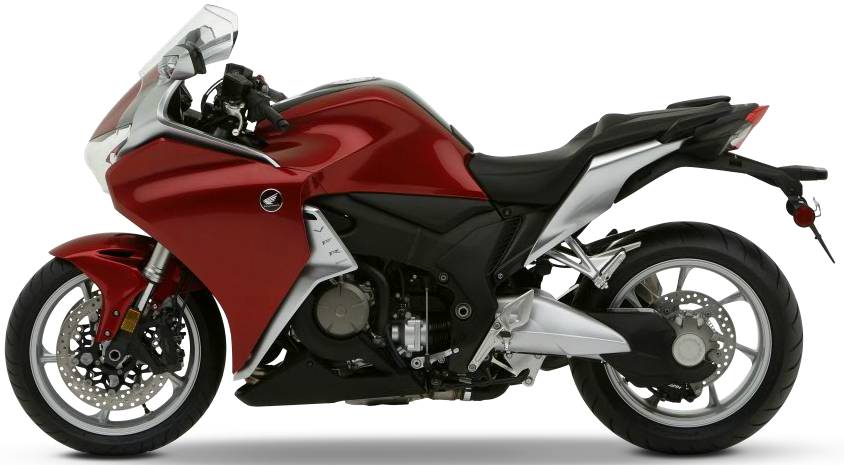

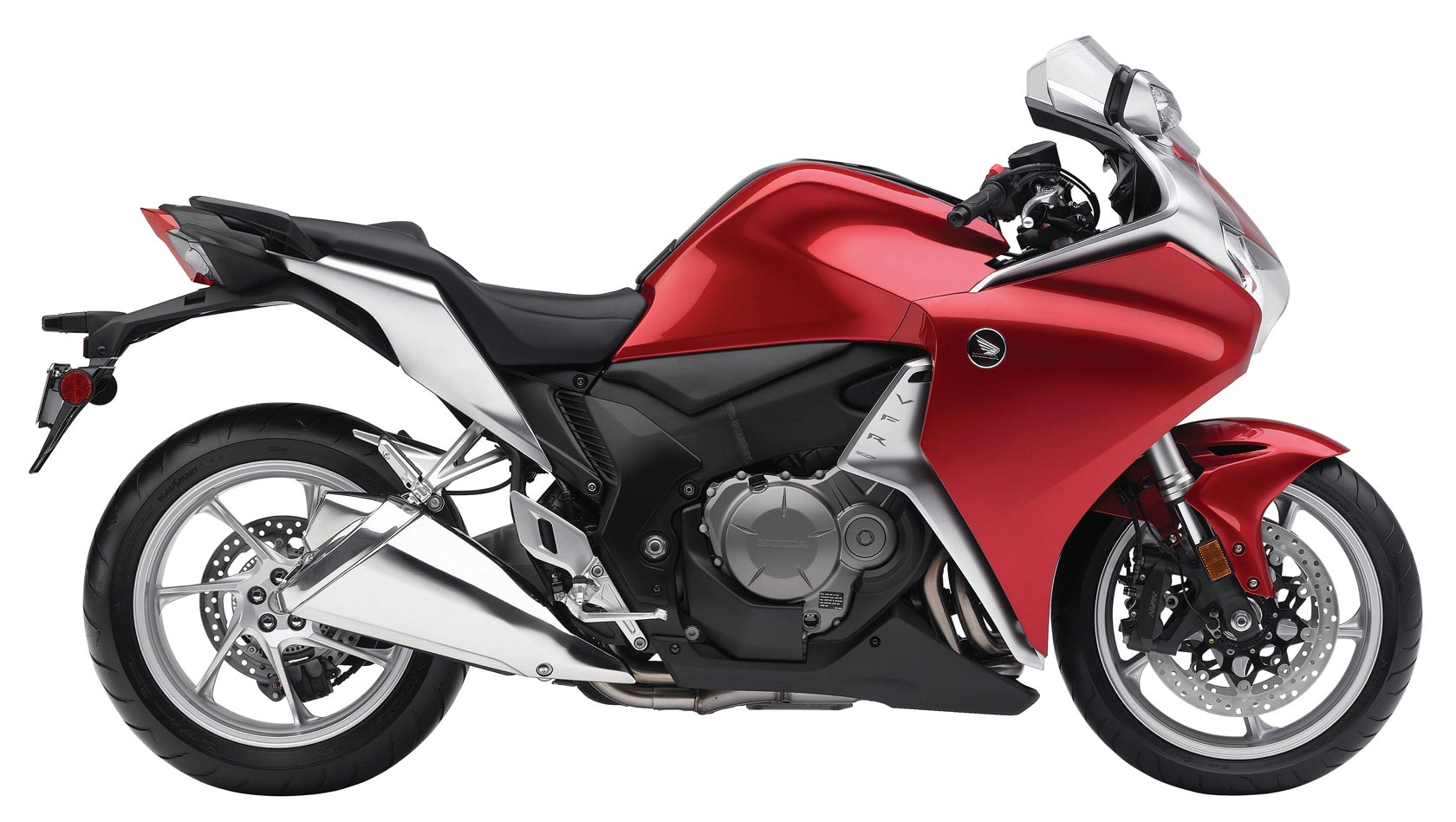

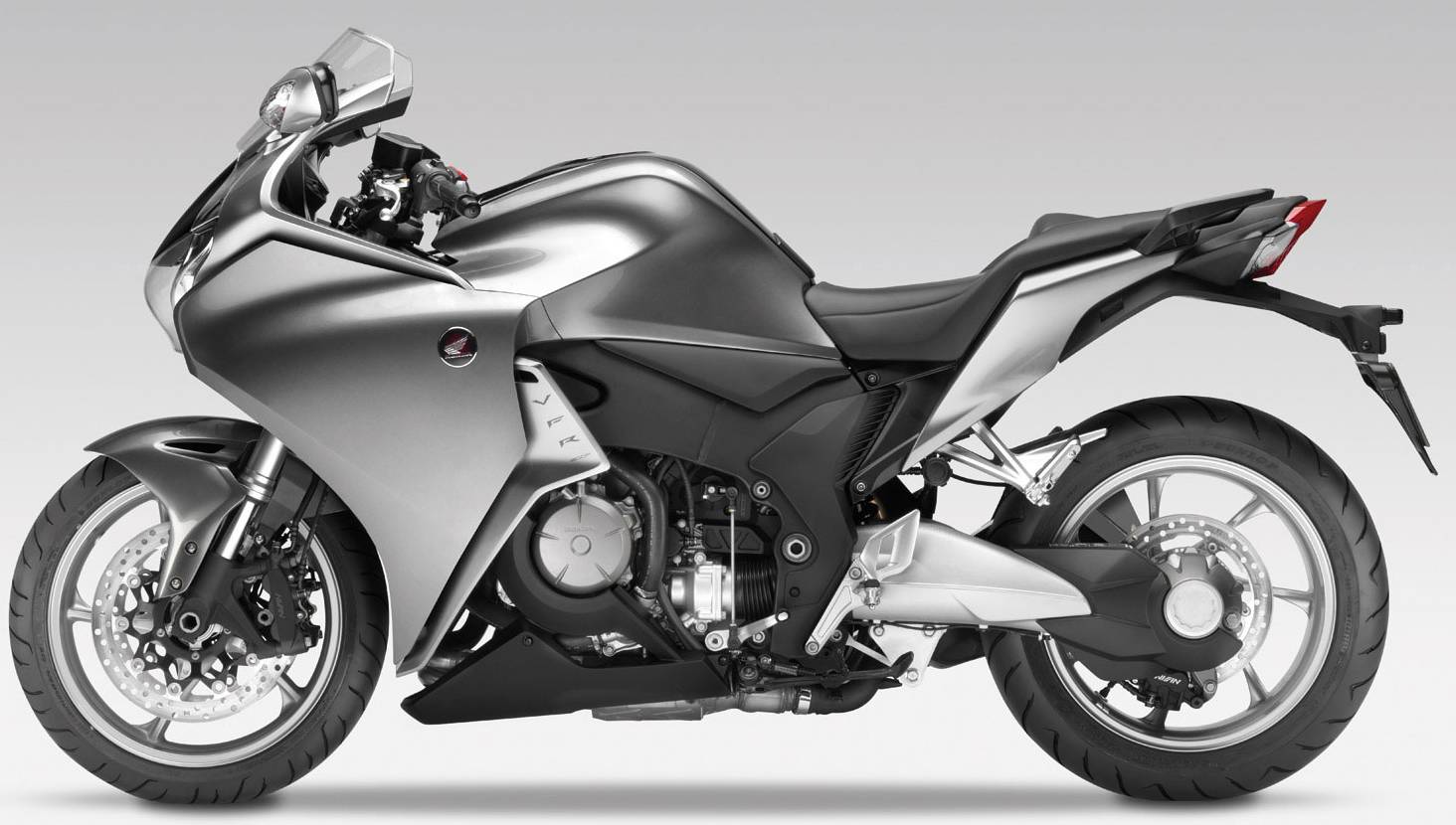

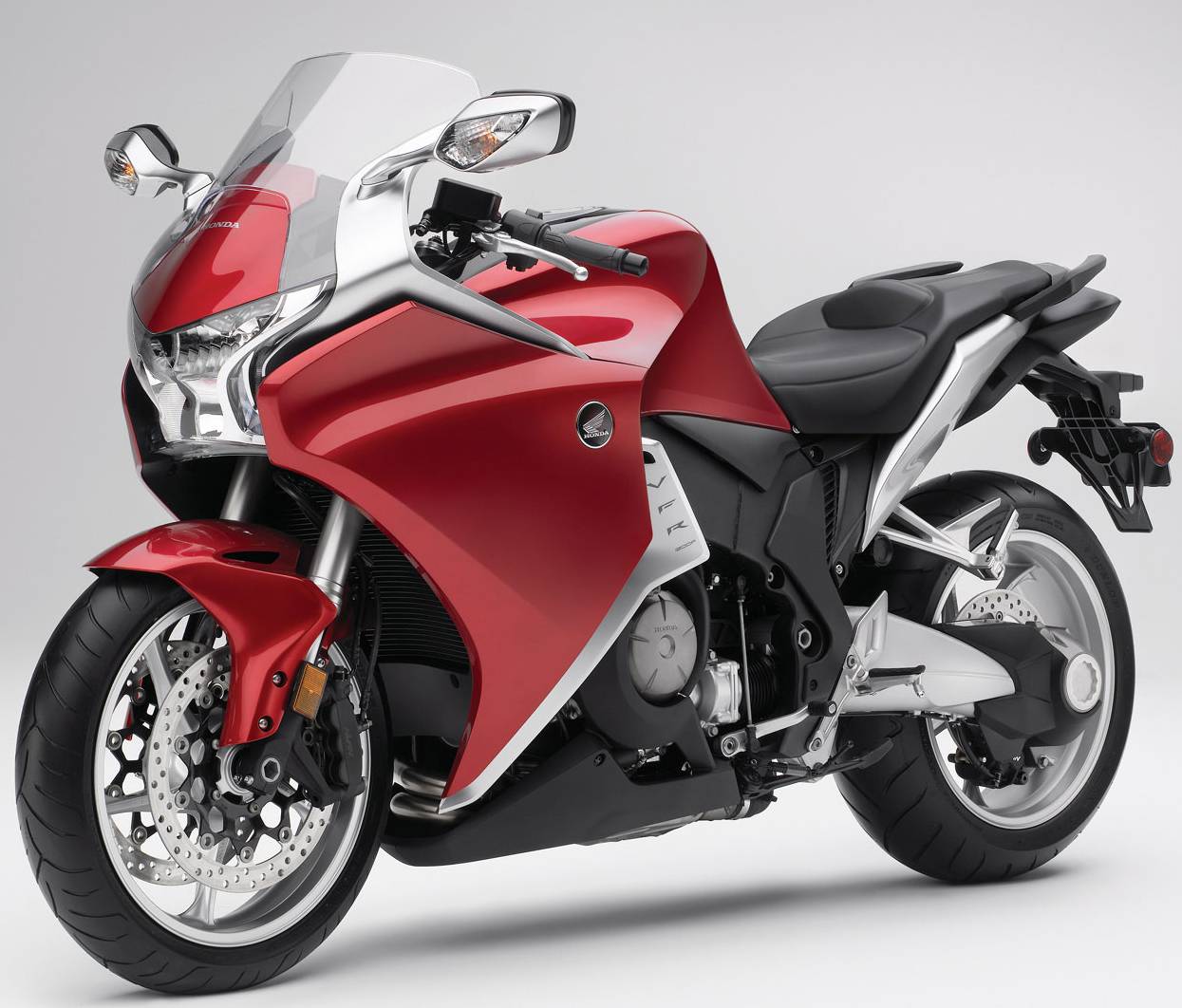

2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge2010 VFR1200F Click image to enlarge
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enrichment circuit, 44mm throttle bodies and 12-hole injectors
Ignition: Digital transistorized with electronic advance
Max. Power Output: 127kW / 10,000min-1 (95/1/EC)
Max. Torque: 129Nm / 8,750min-1 (95/1/EC)
Starter: Electric
DRIVETRAIN
Transmission: Constant mesh 6-speed
Final Drive: Shaft
Front Wheels: 5-spoke hollow gravity die cast aluminium, 17M/C x MT3.50
Rear Wheels: 7-spoke gravity die cast aluminium, 17M/C x MT6.00
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm cartridge-type telescopic fork with stepless preload adjustment, 120mm (4.7 inches) axle travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability; 130mm (5.1 inches) travel
Front Brakes: 320mm dual floating hydraulic disc with two 6-piston calipers, C-ABS and sintered metal pads
Rear Brakes: 276mm hydraulic disc with 2-piston caliper, C-ABS and sintered metal pads
Front Tires: 120/70 ZR17M/C (58W)
Rear Tires: 190/55 ZR17M/C (75W)
DIMENSION
Rake: 25.5° (Caster Angle)
Trail: 101.0mm (4.0 inches)
Wheelbase: 1545mm (60.8 inches)
Overall Length: 2250 (88.6 inches)
Overall Width: 755 (29.7 inches)
Overall Height: 1200 (47.2 inches)
Seat Height: 815mm (32 inches)
Ground Clearance: 125mm (4.9 inches)
Weight: Curb Weight: 267 kg (587 lb)
Fuel Capacity: 18.5 Litres (4.9 GalUS)
OTHER
Emissions: Meets current California Air Resources Board (CARB) and EPA standards.
Colors:
Candy Blue
Red
Silver
Black
Model Id: VFR1200F
FACTORY WARRANTY: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
