Honda Crosstourer Motorcycles

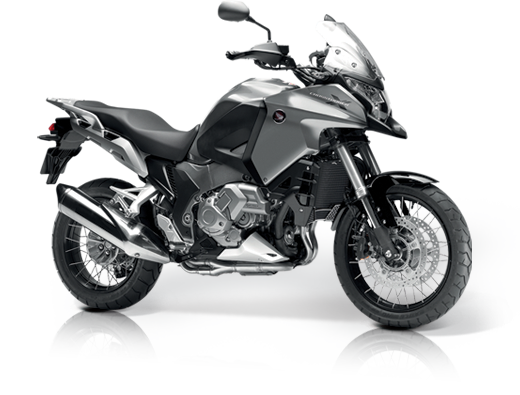

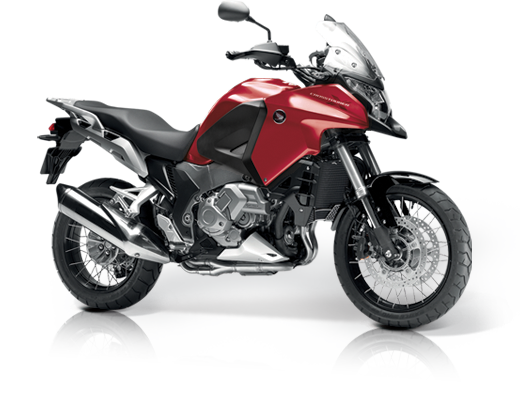

2012 Honda Crosstourer

ENGINE
- Engine Type: Liquid-cooled 4-stroke Unicam 16-valve 76° V4
- Engine Displacement: 1,237cc
- Bore and Stroke: 81 x 60mm
- Compression Ratio: 12:1
- Ignition System: Computer-controlled digital transistorised with electronic advance
- Ignition Timing: 8.4° BTDC (idle speed)
- Fuel Delivery: PGM-FI electronic fuel injection
- Max. Power Output: 95kW/7,750min-1 (95/1/EC)
- Max. Torque: 126Nm/6,500min-1 (95/1/EC)
DRIVETRAIN
- Transmission Type: 6-speed (DCT = D mode/S mode/Manual mode)
- Clutch: Wet multiplate (DCT = Wet multiplate, hydraulic 2-clutch)
- Primary Reduction: 1.738 (73T / 42T)
- Final Reduction: 2.699 (37/39 x 19/17 x 28/11) / DCT = 2.706 (39/41 x 19/17 x 28/11)
- Final Drive: Enclosed shaft
- Front Wheels: Tube less spoked 19 x MT2.5
- Rear Wheels: Tube less spoked 17 x MT4
CHASSIS / SUSPENSION / BRAKES
- Frame type: Diamond; aluminium twin-spar
- Front Suspension: 43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment
- Rear Suspension: Pro-Link with gas-charged damper, preload and stepless rebound damping adjustment
- Front Tire Size: 110/80-R19
- Rear Tire Size: 150/70-R17
- Front Tire Pressure: 250kPa (36 psi)
- Rear Tire Pressure: 290kPa (42 psi)
- Front Brakes: Dual 310mm disks, Combined ABS
- Rear Brakes: Single 276mm disk, Combined ABS
DIMENSION
- Trail: 107mm (4.2 inches)
- Caster Angle: 28°
- Wheelbase: 1595mm (62.9 inches)
- Overall Length: 2285mm (90 inches)
- Overall Width: 915mm (36 inches)
- Overall Height: 1335mm (52.5 inches)
- Seat Height: 850mm (33.5 inches)
- Ground Clearance: 180mm (7.1 inches)
- Curb Weight: 275 kg (604 lb) [Front: 132 kg (290 lb); Rear: 143 kg (315 lb)]
- Fuel Tank Capacity: 21.5 Litres (5.7
OTHER
- Fuel Consumption: 6.2L/100km (37.9 mpg US)
