1990 ST1100
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available colors: Black or Sparkling Silver Metallic.
- The bike had removable saddlebags
- The black bike was released in the spring of 1990; but the silver came out much later in the fall of 1990
- Engine: 1084cc DOHC 16 valve liquid-cooled V-4
- Transmission: 5-speed
- Drive: shaft
- The serial number began JH2SC260*MM100001.
1990 ST1100

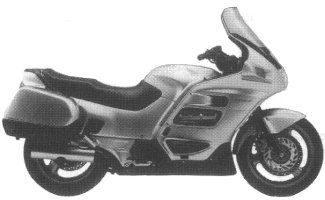

1991 ST1100
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available colors: Black or Sparkling Silver Metallic
- The bike had removable saddlebags
- The black bike was released in the spring of 1990; but the silver came out much later in the fall of 1990
- Engine: 1084cc DOHC 16 valve liquid-cooled V-4
- Transmission: 5-speed
- Drive: shaft
- The serial number began JH2SC260*MM100001.
1991 ST1100

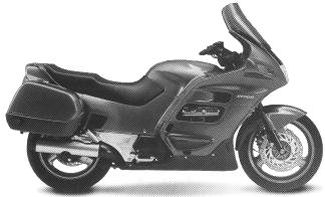

1992 ST1100
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Candy Glory Red
- Brake Option: Antilock braking system and a traction control system
- Brake caliper and wheel color
- The serial number began
- Non-ABS: JH2SC260*NM200001
- ABS: JH2SC264*NM200002
1992 ST1100

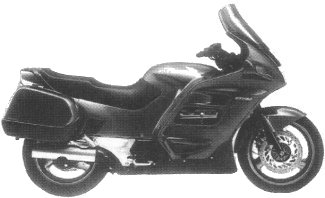

1993 ST1100'93
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Candy Glory Red
- Brake Option: Antilock braking system and a traction control system
- The serial number began
- Non-ABS: JH2SC260*PM300001
- ABS: JH2SC264*PM300001
1993 ST1100

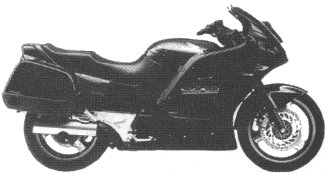

1994 ST1100'94
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Gloss Black
- Optional Brakes: Antilock braking system and a traction control system
- The serial number began
- Non-ABS: JH2SC260*RM400001
- ABS: JH2SC264*RM400001
1994 ST1100

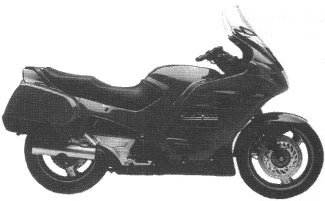

1995 ST1100'95
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Color: Pure Red
- Brake Option: It had an antilock braking system and a traction control system
- The windshield was wider and more rigid this year
- The air intakes were also improved
- The serial number began
- Non-ABS: JH2SC260*SM500001
- ABS: JH2SC264*SM100001
1995 ST1100
1996 ST1100'96
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Pure Red
- Brake Option: Antilock braking system and a traction control system
- Brake Option: Linked braking system
- The air cooled alternator had a higher output from 18 amps to 40 amps.
- The engine was a liquid cooled, 90 degree transverse V-four displacing 1085cc.
- The bore and stroke were 73 mm x 64.8 mm.
- The compression ratio was 10: 1.
- The valve system was a belt-driven DOHC with 4-valve per cylinder and shim under bucket.
- The carburetor system had four 34.5 mm dowdraft, CV carbs.
- The ignition system was transistorized with an electronic advance.
- The starting system was electric start, of course.
- The transmission was a constant mesh 5-speed.
- The final drive was a shaft.
- The front suspension was a 41 mm cartridge fork with TRAC anti-dive and 150 mm travel.
- The rear suspension was a single shock with adjustable preload and rebound damping with a 120 mm travel.
- The front tires were 110/70 V 18
- The rear tires were 160/70 V 17
- The front brakes were twin 316 mm discs with twim piston calipers
- The rear brakes was a single 316 mm disc with twim piston caliper
- The seat height was 800 mm (31.5")
- The wheelbase was 1555 mm (61.2")
- Dry weight was
- Non-ABS: 287 kg (633 lb)
- ABS: 298.4 kg (658 lb)
- The fuel tank capacity was 28 liters (6.2 Imp. gal. 5.2 U.S. gal.)
- The serial number began JH2SC260*TM600001.
1996 ST1100

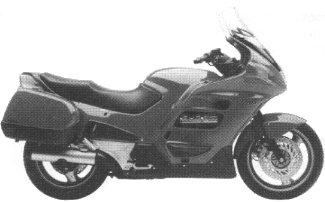

1997 ST1100'97
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Pure Red
- Brake Option: linked braking system (LBS) with antilock brake system (ASBII)
- The serial number began
- Non-ABS: JH2SC260*VM700001
- ABS: JH2SC264*VM300001
1997 ST1100

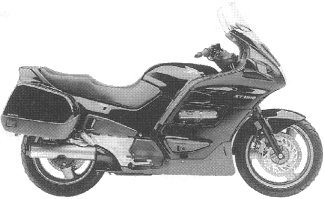

1998 ST1100'98
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Available color: Black-Z
- The serial number began
- Non-ASB: JH2SC260*WM800001
- ASB: JH2SC264*WM800001
1998 ST1100
1999 ST1100
- ENGINE
- Engine Type: 1084 cc, 4 Stroke - Liquid Cooled - V Four
- Bore and Stroke: 73 mm x 64.8 mm
- Valves: 4 valves/cylinder
- Horsepower: 100 hp (74.6 kW) @ 7500 rpm
- Maximum Torque: 111 Nm (81.9 ft. lbs) @ 6000 rpm
- DRIVETRAIN
- Transmission: type: 5 speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 120/70-18
- Rear Tire: 160/70-17
- Front Brakes: dual 316 mm discs with 2-piston calipers
- Rear Brakes: single 316 mm disc with 2-piston calipers
- DIMENSION
- Seat Height: 800 mm (31.5 inches)
- Wheelbase: 1555 mm (61.2 inches)
- Fuel Capacity: 28 litres (7.4 Gal)
- Dry weight: (without fluids): 287kg
- OTHER

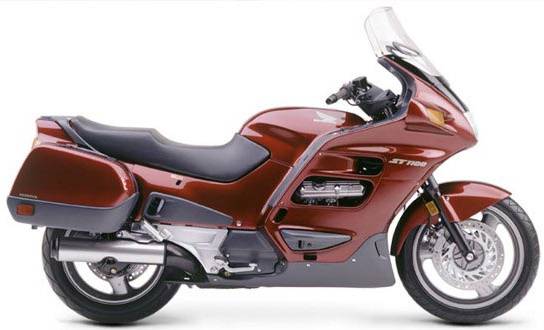

2000 ST1100
- ENGINE
- Engine: 1085cc liquid-cooled, 90-degree, transverse V-four
- Bore and Stroke: 73mm X 64.8mm
- Compression Ratio: 10:01
- Valve Train: Belt driven, DOHC, 4 valve, shim under bucket
- Fuel Delivery: Four 34.55mm downdraft, CV diaphragm-type
- Ignition: Transistorized, with electronic advance
- Starting: Electric
- DRIVETRAIN
- Transmission: Wide-ratio 5-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge fork with TRAC anti-dive, 150mm travel
- Rear Suspension: Single shock with adjustable preload and rebound damping 120mm travel
- Front Brakes:
- ASB: Dual 296mm discs with triple piston calipers, Linked Braking System (LBS) ABS
- Non-ASB: Dual 316mm discs with twin piston calipers
- Rear Brakes:
- ASB: Single 296mm disc with triple piston caliper; Linked Braking System (LBS) ABS
- Non-ASB: Single 316mm disc with twin piston caliper
Front Tires: 120/70 ZR 18
Rear Tires: 160/70 ZR 17
DIMENSION
- Seat Height: 800mm (31.5 in.)
- Wheelbase: 1555mm (61.2 in.)
- Dry Weight:
- Non-ABS: 287 kg (633 lb)
- ABS: 297 kg (655 lb)
- Fuel Capacity: 28 litres (6.6 GalUS)
OTHER
2000 ST1100

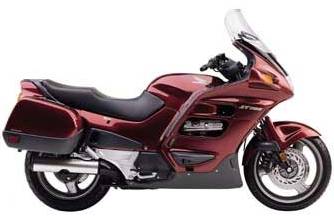

2001 ST1100
- ENGINE
- Engine: 1085cc liquid-cooled, 90-degree, transverse V-four
- Bore and Stroke: 73mm X 64.8mm
- Compression Ratio: 10:01
- Valve Train: Belt driven, DOHC, 4 valve, shim under bucket
- Fuel Delivery: Four 34.55mm downdraft, CV diaphragm-type
- Ignition: Transistorized, with electronic advance
- Starting: Electric
- DRIVETRAIN
- Transmission: Wide-ratio 5-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge fork with TRAC anti-dive, 150mm travel
- Rear Suspension: Single shock with adjustable preload and rebound damping 120mm travel
- Front Brakes:
- ASB: Dual 296mm discs with triple piston calipers, Linked Braking System (LBS) ABS
- Non-ASB: Dual 316mm discs with twin piston calipers
- Rear Brakes:
- ASB: Single 296mm disc with triple piston caliper; Linked Braking System (LBS) ABS
- Non-ASB: Single 316mm disc with twin piston caliper
Front Tires: 120/70 ZR 18
Rear Tires: 160/70 ZR 17
DIMENSION
- Seat Height: 800mm (31.5 in.)
- Wheelbase: 1555mm (61.2 in.)
- Dry Weight:
- Non-ABS: 287 kg (633 lb)
- ABS: 297 kg (655 lb)
- Fuel Capacity: 28 litres (6.6 GalUS)
OTHER
2001 ST1100

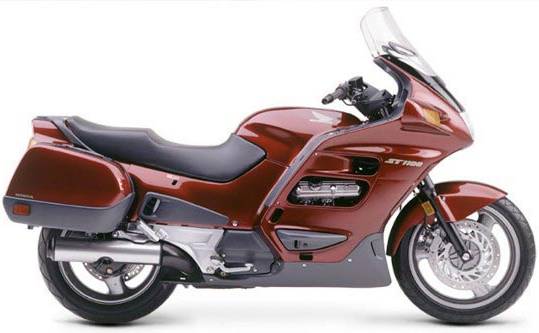

2002 ST1100
- ENGINE
- Engine: 1085cc liquid-cooled, 90-degree, transverse V-four
- Bore and Stroke: 73mm X 64.8mm
- Compression Ratio: 10.1: 1
- Valve Train: Belt driven, DOHC, 4 valve, shim under bucket
- Fuel Delivery: Four 34.5mm downdraft, CV diaphragm-type
- DRIVETRAIN
- Transmission: Wide-ratio 5-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm cartridge fork with TRAC anti-dive, 150mm travel
- Rear Suspension: Single shock with adjustable preload and rebound damping 120mm travel
- Front Brakes:
- ASB: Dual 296mm discs with triple piston calipers, Linked Braking System (LBS) ABS
- Non-ASB: Dual 316mm discs with twin piston calipers
- Rear Brakes:
- ASB: Single 296mm disc with triple piston caliper; Linked Braking System (LBS) ABS
- Non-ASB: Single 316mm disc with twin piston caliper
Front Tire: 110/80 V-18
Rear Tire: 160/70 V-17
DIMENSION
- Wheelbase: 1555mm (61.2 in.)
- Seat Height: 800mm (31.5 in.)
- Dry Weight:
- Non-ABS: 287 kg (633 lb)
- ABS: 297 kg (655 lb)
- Fuel Capacity: 28 litres (6.2 Imp. gal.)
OTHER
2002 ST1100
