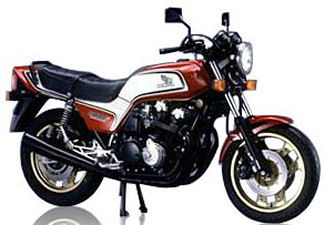

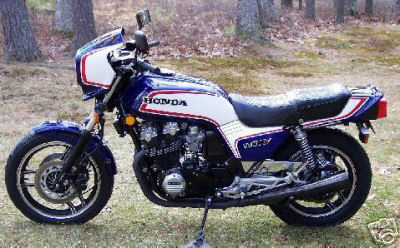

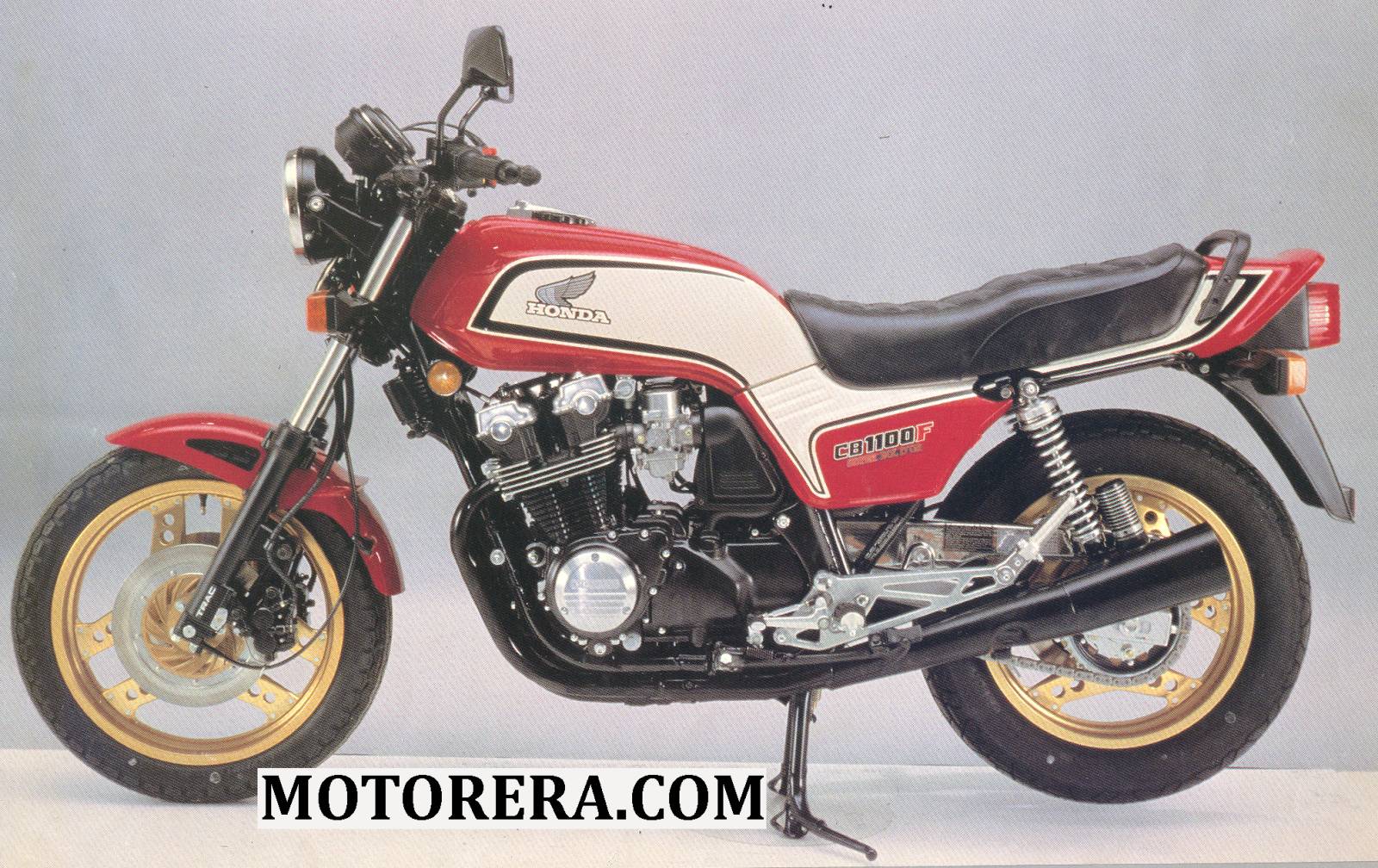

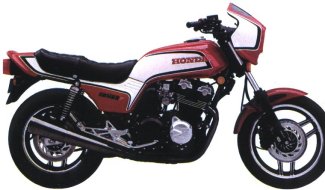

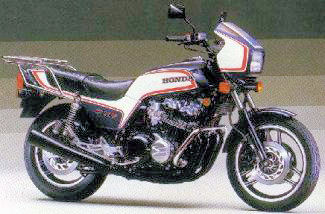

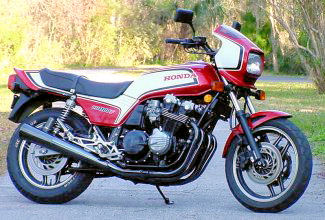

Honda Super Sport 1100 (CB1100) Motorcycles

1983 CB1100F'83 Super Sport

ENGINE
- Engine type: Four cylinder 16-valve DOHC
- Displacement: 1062cc
- Bore and Stroke: 70mm x 69mm
- Compression Ratio: 9.7:1
- Fuel Delivery: Four 33mm CV-type Carburetors
- Exhaust system: Four into Two
- Ignition: Transistorized pointless
- Starting: Electric
- Fuel type: Regular gasoline
- Oil cooler: Large capacity
DRIVETRAIN
- Transmission: Five-speed constant mesh
- Clutch: Wet multi-plate
- Final Drive: chain
- Wheels: Comstar^TM
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted telescopic with TRAC^TM Anti-Dive
- Rear suspension: Box section swing arm with 30-way adjustable shocks
- Front brakes: Double piston caliper dual disc
- Rear brakes: Double piston caliper disc
- Front tire: 100/90V18
- Rear tire: 130/90V17
DIMENSION
- Wheelbase: 1520mm (59.8 in.)
- Dry weight: 243kg (535.6 lb)
- Overall length: 2175mm (85.6 in.)
- Overall width: 805mm (31.7 in.)
- Seat height: 820mm (32.3 in.)
- Fuel capacity: 20 Litres (5.3 GalUS)
- Colors:
  - Candy Pearl Maui Red with Pearl Shell White
  - Candy Pearl Capiolani Blue with Pearl Shell White
OTHER
- On the red bike, the panels were white while the striping was black
- On the blue bike, the panels were white while the striping was red.
- The 4-into-2 exhaust system was black chrome.
- In North America, the headlight was rectangular with a fork mounted sport fairing.
- In UK, the headlight was round with no fairing
- The serial number began JH2SC110*DM000020.
