1983 VF1100C'83 V65 Magna
- ENGINE
- Engine: 65 cu. in., liquid-cooled, 1098cc, 90° V-4, DOHC
- Bore and Stroke: 79.5 mm x 55.3 mm
- Valves: 4 valves/cylinder
- Horsepower: 100 hp (74.6 kW) @ 9500 rpm
- Maximum Torque: 94 Nm (69.3 ft. lbs) @ 7500 rpm
- DRIVETRAIN
- Transmission: Five-speed plus overdrive sixth
- Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Suspension: Custom rear shocks with adjustable damping
- Brakes: TRACTM anti-dive control system
- Front Brakes: dual disc with 2-piston calipers
- Rear Brakes: single disc with 1-piston calipers
- Front Tire: 110/90-19
- Rear Tire: 170/80-15
- DIMENSION
- Wheelbase: 1575mm (62 in.)
- Seat height: 798mm (31.4 in)
- Fuel capacity: 17 liters(4.5 gal.)
- Dry weight: 246 kg (542.3 lb)
- OTHER
- Colors:
- Pearl Siren Blue
- Candy Maroon
- The cast wheels had a star-shaped design
- The headlight shell, instruments, and front fender were chrome
- The speedometer numbers were in increments of 10 ending with "0" (e.g., 30, 40, 50, 60, etc.)
- The bike had a fiber optics integrated lock anti-theft system.
- Tank: Special dual fuel tank design
- The serial number began JH2SC120*DM000029

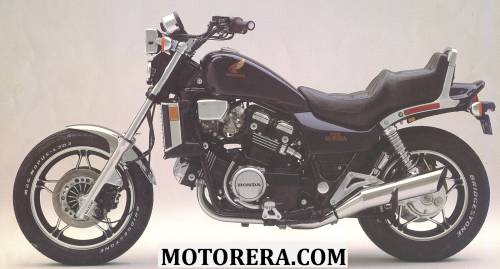

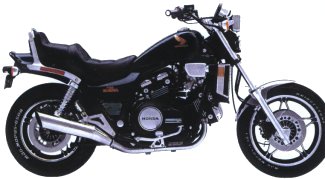

1983 VF1100C
1983 VF1100C
Click image to enlarge
1984 VF1100C'84 V65 Magna
- ENGINE
- Engine: Liquid-cooled 1098cc 90° V-4 DOHC
- Power: 116 hp
- DRIVETRAIN
- Transmission: 5-speed plus overdrive sixth
- Clutch: Hydraulic one-way limited-slip clutch
- Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Wheelbase: 1595mm (62.8 in.)
- Dry weight: 245 kg (540 lb)
- Seat height: 800mm (31.5 in.)
- OTHER
- Colors:
- Black
- Candy Andromeda Red
- The cast wheels had a straight spoke design
- The headlight shell, instruments, and front fender were chrome
- The speedometer numbers were in increments of 10 ending with "0" (e.g., 30, 40, 50, 60, etc.)
- The bike had a fiber optics integrated lock anti-theft system.
- The serial number began JH2SC120*EA100001.

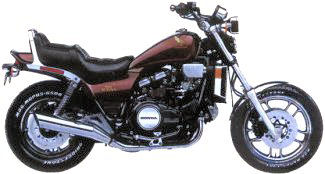

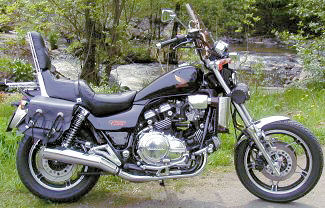

1984 VF1100C
1984 VF1100C
1984 VF1100C
1985 VF1100C'85 V65 Magna
- ENGINE
- The engine was a 1098cc DOHC 4-valve liquid-cooled V-4
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: shaft
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- The headlight shell, instruments, and front fender were chrome
- The speedometer numbers were in increments of 10 ending with "5" (e.g., 35, 45, 55, 65, etc.)
- The control levers had screw-type adjusters
- The turnsignal switch was a push-to-cancel type
- The bike had a fiber optics integrated lock anti-theft system
- The serial number began JH2SC120*DM000001.

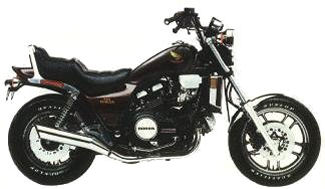

1985 VF1100C
1986 VF1100C'86 V65 Magna
- ENGINE
- The engine was a 1098cc DOHC 4-valve liquid-cooled V-4
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: shaft
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- Colors:
- The headlight shell, instruments, and front fender were chrome
- The control levers had screw-type adjusters
- The turnsignal switch was a push-to-cancel type
- The speedometer numbers were in increments of 10 ending with "5" (e.g., 35, 45, 55, 65, etc.)
- The fiber optics integrated lock anti-theft system was deleted
- The engine side cases were polished
- The side stand was chrome plated
- The front and rear brake discs had inner cut-outs
- The serial number began JH2SC120*DM000001.

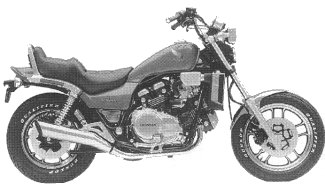

1986 VF1100C
