1997 CBR1100XX'97
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It was available in one color: Mute Black Metallic
- The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece
- The braking system was linked
- The serial number began JH2SC350*VM000001.
1997 CBR1100XX
1998 CBR1100XX'98
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It was available in one color: Mute Black Metallic
- The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece
- The braking system was linked
- The serial number began JH2SC350*WM100001.

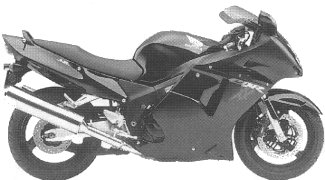

1998 CBR1100XX
1999 CBR1100XX
- ENGINE
- Engine Type: 1137 cc, 4 Stroke - Liquid Cooled - Inline Four
- Bore and Stroke: 79 mm x 58 mm
- Valves: 4 valves/cylinder
- Horsepower: 164 hp (122.3 kW) @ 9500 rpm
- Maximum Torque: 124 Nm (91.5 ft. lbs) @ 7250 rpm
- DRIVETRAIN
- Transmission: type: 6 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 120/70-17
- Rear Tire: 180/55-17
- Front Brakes: dual 310 mm discs with 6-piston calipers
- Rear Brakes: single 256 mm disc with 6-piston calipers
- Seat Height: 810 mm (31.9 inches)
- DIMENSION
- Wheelbase: 1490 mm (58.7 inches)
- Fuel Capacity: 24 litres (6.3 Gal)
- Dry weight: (without fluids): 223 kg (491.6 pounds)
- OTHER
2000 CBR1100XX Blackbird
- ENGINE
- Engine: 1137cc liquid-cooled inline four
- Bore and Stroke: 79mm X 58 mm
- Compression Ratio: 11 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM fuel injection with automatic choke
- Ignition: Computer-controlled, with 3-dimensional mapping
- Starting: Electric
- DRIVETRAIN
- Transmission: Close-ratio, 6-speed
- Final Drive: O-ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge fork, 120mm travel
- Rear Suspension: Pro-Link, single shock with adjustable preload and rebound damping, 120mm travel
- Front Brakes: Dual 310mm floating discs with three piston calipers, LBS.
- Rear Brakes: Single 256mm disc with LBS triple piston caliper.
- Front Tires: 120/70 ZR - 17
- Rear Tires: 180/55 ZR - 17
- DIMENSION
- Seat Height: 810mm (31.9 in.)
- Wheelbase: 1490mm (58.7 in.)
- Dry Weight: 223 kg (492 lbs.)
- Fuel Capacity: 24 litres (5.2 Imp. gal.)
- OTHER

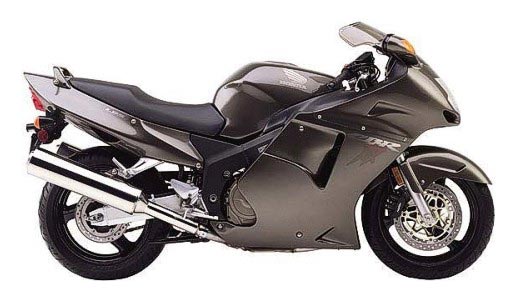

2000 CBR1100XX
2001 CBR1100XX
- ENGINE
- Engine: 1137cc liquid-cooled inline four
- Bore and Stroke: 79mm X 58 mm
- Compression Ratio: 11 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM fuel injection with automatic choke
- Ignition: Computer-controlled, with 3-dimensional mapping
- Starting: Electric
- DRIVETRAIN
- Transmission: Close-ratio, 6-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge fork, 120mm travel
- Rear Suspension: Pro-Link, single shock with adjustable preload and rebound damping, 120mm travel
- Front Brakes: Dual 310mm floating discs with three piston calipers, LBS.
- Rear Brakes: Single 256mm disc with LBS triple piston caliper.
- Front Tires: 120/70 ZR - 17
- Rear Tires: 180/55 ZR - 17
- DIMENSION
- Seat Height: 810mm (31.9 in.)
- Wheelbase: 1490mm (58.7 in.)
- Dry Weight: 223 kg (492 lbs.)
- Fuel Capacity: 24 litres (5.2 Imp. gal.)
- OTHER

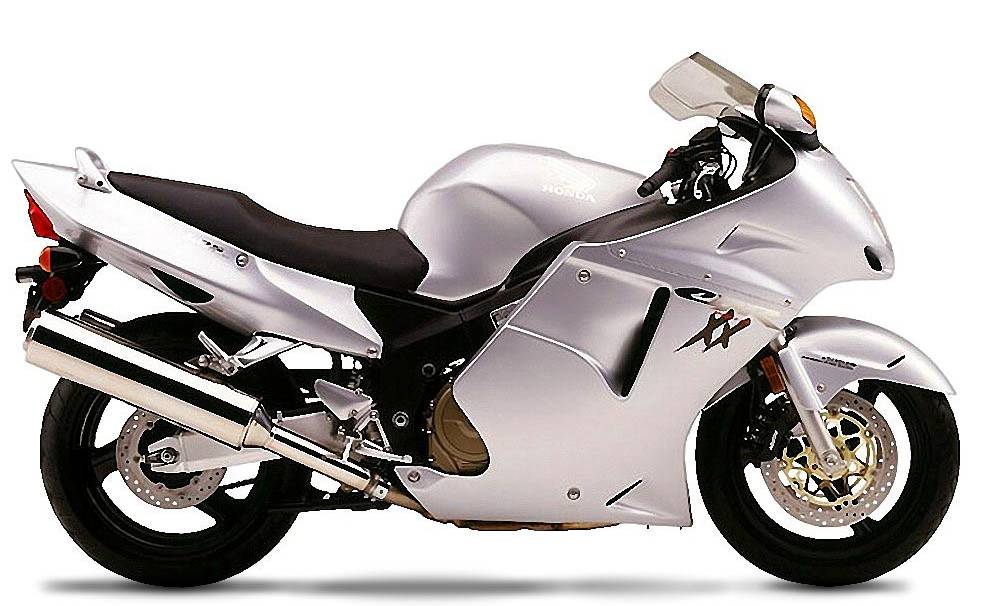

2001 CBR1100XX
Click image to enlarge
2002 CBR1100XX
- ENGINE
- Engine: 1137cc liquid-cooled, inline four
- Bore and Stroke: 79mm x 58mm
- Compression Ratio: 11 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM fuel injection
- DRIVETRAIN
- Transmission: Close-ratio, six speed
- Final Drive: O-ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm cartridge fork, 120mm travel
- Rear Suspension: Pro-Link single shock with spring preload and damping adjustability, 120mm travel
- Front Brakes: Dual 310mm floating discs with 3-piston calipers, LBS
- Rear Brake: Single 256mm disc with 3-piston caliper, LBS
- Front Tire: 120/70 ZR-17 radial
- Rear Tire: 180/55 ZR-17 radial
- DIMENSION
- Wheelbase: 1485mm (58.5 in.)
- Seat Height: 810mm (31.9 in.)
- Dry Weight: 223 kg (492 lb)
- Fuel Capacity: 24 litres (5.2 imp.gal.)
- OTHER

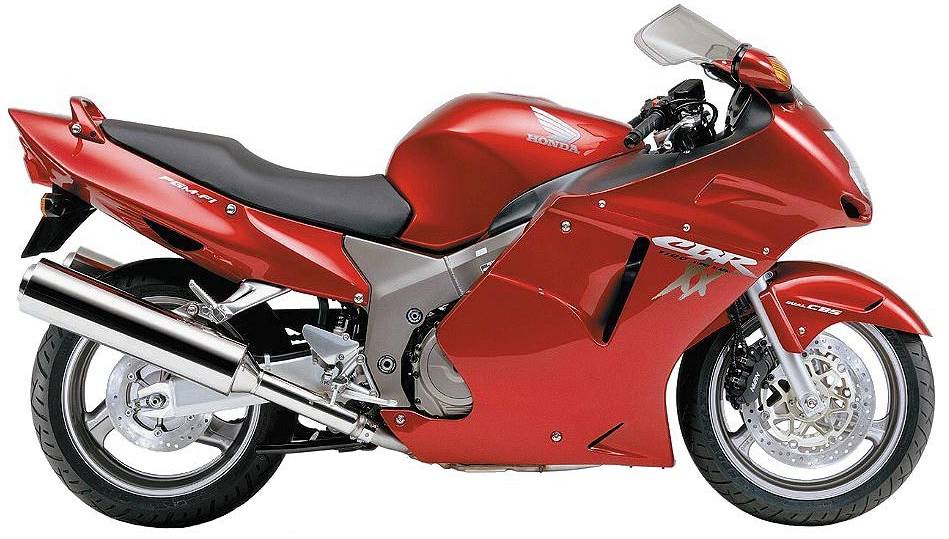

2002 CBR1100XX
Click image to enlarge
2003 CBR1100XX
- ENGINE
- Engine: 1137cc liquid-cooled, inline four
- Bore and Stroke: 79mm x 58mm
- Compression Ratio: 11 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM fuel injection
- DRIVETRAIN
- Transmission: Close-ratio, six speed
- Final Drive: O-ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability
- Rear Suspension: Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability, 120mm travel
- Front Brakes: Dual 310mm floating discs with 3-piston calipers, LBS (Linked Braking System)
- Rear Brake: Single 256mm disc with 3-piston caliper, LBS (Linked Braking System)
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- DIMENSION
- Wheelbase: 1486mm (58.5 in.)
- Seat Height: 810mm (31.9 in.)
- Dry Weight: 223 kg (492 lb)
- Fuel Capacity: 24 litres (6.3 GalUS)
- OTHER

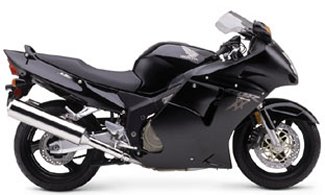

2003 CBR1100XX
2004 Blackbird CBR1100XX
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1137cc
- Bore & Stroke: 79 x 58mm
- Compression Ratio: 11.0 :1
- Fuel Delivery: Electronic fuel injection
- Max. Power Output: 150 bhp at 9500 rpm
- Max. Torque: 119Nm at 7250 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance, integral immobiliser
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: 'O'-Ring sealed chain
- Front Wheel: 17 x MT3.50 hollow-section triple-spoke cast aluminum
- Rear Wheel: 17 x MT5.50 hollow-section triple-spoke cast aluminum
- Front Tire: 120/70 ZR17 (58W)
- Rear Tire: 180/55 ZR17 (69W)
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm HMAS cartridge-type telescopic fork, 109mm axle travel
- Rear Suspension: Pro-link with gas-charged HMAS damper, stepless adjustable rebound damping, 109mm axle travel
- Front Brakes: 310 x 5mm dual hydraluic disc with Combined 3-piston calipers and sintered metal pads
- Rear Brakes: 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
- DIMENSION
- Length x Width x Height: 2160 x 720 x 1200mm
- Wheelbase: 1490mm
- Seat Height: 810mm
- Ground Clearance: 130mm
- Fuel Capacity: 23 litres (including 4 litre warning light reserve)
- Dry Weight: 224kg
- OTHER

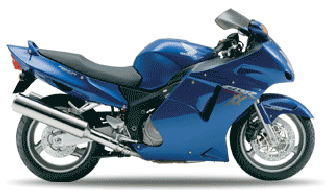

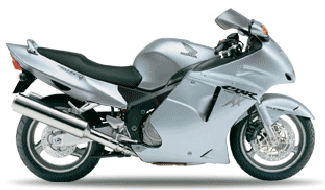

2004 CBR1100XX

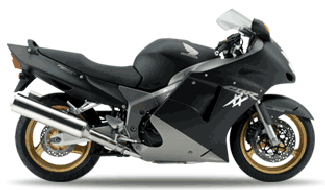

2004 CBR1100XX
2004 CBR1100XX
2007 Blackbird CBR1100XX
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1,137cm3
- Bore & Stroke: 79 x 58mm
- Compression Ratio: 11.0 :1
- Carburation: Electronic fuel injection
- Max. Power Output: 150 bhp at 9,500 rpm
- Max. Torque: 119Nm at 7,250 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance, integral immobiliser
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: 'O'-Ring sealed chain
- Wheels Front: 17 x MT3.50 hollow-section triple-spoke cast aluminium
- Wheels Rear: 17 x MT5.50 hollow-section triple-spoke cast aluminium
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 43mm HMAS cartridge-type telescopic fork, 109mm axle travel
- Suspension Rear: Pro-link with gas-charged HMAS damper, stepless adjustable rebound damping, 109mm axle travel
- Brakes Front: 310 x 5mm dual hydraluic disc with Combined 3-piston calipers and sintered metal pads
- Brakes Rear: 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
- Tires Front: 120/70 ZR17 (58W)
- Tires Rear: 180/55 ZR17 (69W)
- DIMENSION
- Length x Width x Height: 2,160 x 720 x 1,200mm
- Wheelbase: 1,490mm
- Seat Height: 810mm
- Ground Clearance: 130mm
- Fuel Capacity: 23 litres (including 4 litre warning light reserve)
- Dry Weight: 224kg
- OTHER

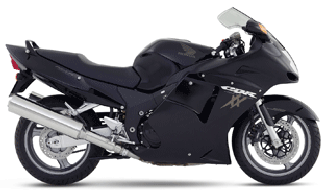

2007 CBR1100XX

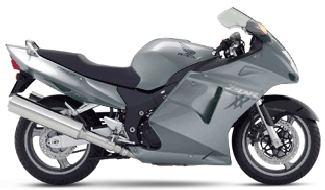

2007 CBR1100XX
