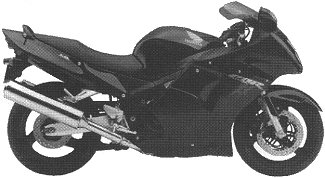

1997 CBR1100XX'97
1997 CBR1100XX
- It was available in one color: Mute Black Metallic
- The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece
- The braking system was linked
- The serial number began JH2SC350*VM000001.

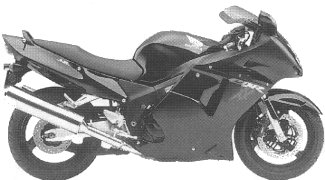

1998 CBR1100XX'98
1998 CBR1100XX
- It was available in one color: Mute Black Metallic
- The engine was a light weight 1137cc inline four cylinder where the upper crankcase and cylinder block were one piece
- The braking system was linked
- The serial number began JH2SC350*WM100001.

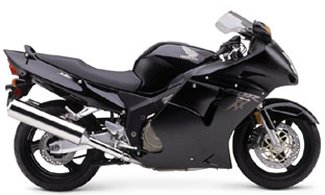

2003 CBR1100XX
2003 CBR1100XX
- Available color: Metallic Black.
- Engine: 1137cc DOHC liquid-cooled inline four-cylinder
- Bore and Stroke: 79.0 x 58.0 mm
- Compression Ratio: 11.0:1
- Transmission: Close-ratio six-speed
- Final Drive: O-ring chain
- Front Suspension: 43mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability
- Rear Suspension: Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability
- Front brake: Linked Braking System; dual floating discs with three-piston calipers
- Rear Brake: Linked Braking System; single-disc with three-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- Wheelbase: 1486mm (58.5 in.)
- Seat height: 810mm (31.9 in.)
- Dry weight: 223 kg (492 lb)
- Fuel capacity: 24 liters

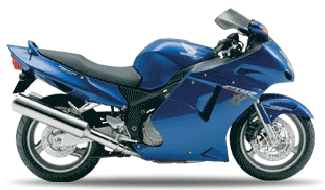

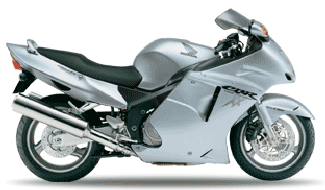

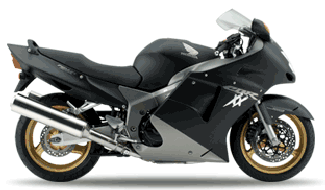

2004 Blackbird CBR1100XX
2004 CBR1100XX
2004 CBR1100XX
2004 CBR1100XX
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1137cc
- Bore & Stroke: 79 x 58mm
- Compression Ratio: 11.0 :1
- Fuel Delivery: Electronic fuel injection
- Max. Power Output: 150 bhp at 9500 rpm
- Max. Torque: 119Nm at 7250 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance, integral immobiliser
- Starter: Electric
- Transmission: 6-speed
- Final Drive: 'O'-Ring sealed chain
- Length x Width x Height: 2160 x 720 x 1200mm
- Wheelbase: 1490mm
- Seat Height: 810mm
- Ground Clearance: 130mm
- Fuel Capacity: 23 litres (including 4 litre warning light reserve)
- Dry Weight: 224kg
- Front Wheel: 17 x MT3.50 hollow-section triple-spoke cast aluminum
- Rear Wheel: 17 x MT5.50 hollow-section triple-spoke cast aluminum
- Front Tire: 120/70 ZR17 (58W)
- Rear Tire: 180/55 ZR17 (69W)
- Front Suspension: 43mm HMAS cartridge-type telescopic fork, 109mm axle travel
- Rear Suspension: Pro-link with gas-charged HMAS damper, stepless adjustable rebound damping, 109mm axle travel
- Front Brakes: 310 x 5mm dual hydraluic disc with Combined 3-piston calipers and sintered metal pads
- Rear Brake: s: 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads

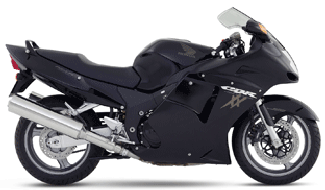

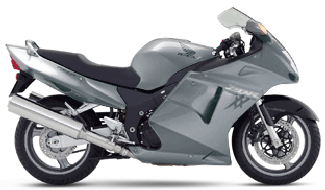

2007 Blackbird CBR1100XX
2007 CBR1100XX
2007 CBR1100XX
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 1,137cm3
- Bore & Stroke: 79 x 58mm
- Compression Ratio: 11.0 :1
- Carburation: Electronic fuel injection
- Max. Power Output: 150 bhp at 9,500 rpm
- Max. Torque: 119Nm at 7,250 rpm
- Ignition: Computer-controlled digital transistorised with electronic advance, integral immobiliser
- Starter: Electric
- Gearbox: 6-speed
- Final Drive: 'O'-Ring sealed chain
- Length x Width x Height: 2,160 x 720 x 1,200mm
- Wheelbase: 1,490mm
- Seat Height: 810mm
- Ground Clearance: 130mm
- Fuel Capacity: 23 litres (including 4 litre warning light reserve)
- Dry Weight: 224kg
- Wheels Front: 17 x MT3.50 hollow-section triple-spoke cast aluminium
- Wheels Rear: 17 x MT5.50 hollow-section triple-spoke cast aluminium
- Tires Front: 120/70 ZR17 (58W)
- Tires Rear: 180/55 ZR17 (69W)
- Suspension Front: 43mm HMAS cartridge-type telescopic fork, 109mm axle travel
- Suspension Rear: Pro-link with gas-charged HMAS damper, stepless adjustable rebound damping, 109mm axle travel
- Brakes Front: 310 x 5mm dual hydraluic disc with Combined 3-piston calipers and sintered metal pads
- Brakes Rear: 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
