1981 CB1100RB
- ENGINE
- Engine Type: 1062 cc, 4 Stroke - Air Cooled - Inline Four
- Bore and Stroke: 70 mm x 69 mm
- Valves: 4 valves/cylinder
- Claimed Horsepower: 115 hp (85.8 kW) @ 9000 rpm
- Maximum Torque: 93 Nm (68.6 ft. lbs) @ 7500 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 100/90-18
- Rear Tire: 130/80-18
- Front Brakes: dual 296 mm discs with 2-piston calipers
- Rear Brakes: single 296 mm disc with 2-piston calipers
- DIMENSION
- Seat Height: 795 mm (31.3 inches)
- Wheelbase: 1490 mm (58.7 inches)
- Fuel Capacity: 26 litres (6.9 Gal)
- Dry weight: (without fluids): 233 kg (513.7 pounds)
- OTHER

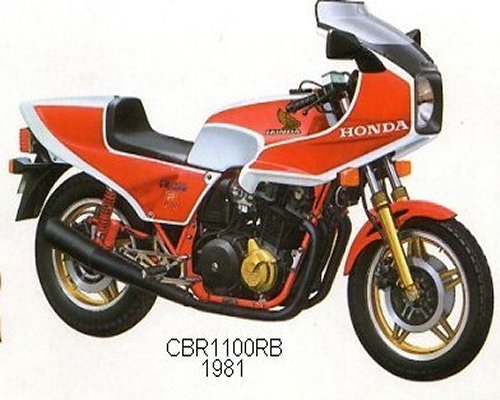

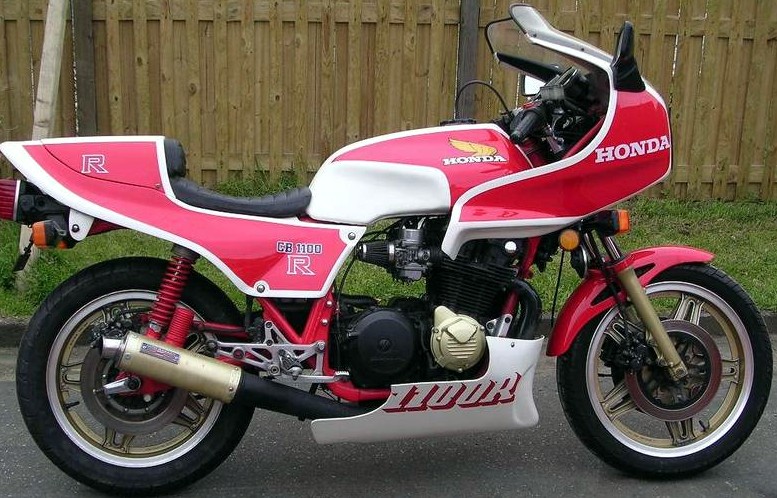

1981 CB1100RB
Click image to enlarge
1981 CB1100RB
Click image to enlarge
1982 CB1100RC
- ENGINE
- Engine Type: 1062 cc, 4 Stroke - Air Cooled - Inline Four
- Bore and Stroke: 70 mm x 69 mm
- Valves: 4 valves/cylinder
- Claimed Horsepower: 120 hp (89.5 kW) @ 9000 rpm
- Maximum Torque: 98 Nm (72.3 ft. lbs) @ 7500 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 100/90-18
- Rear Tire: 130/80-18
- Front Brakes: dual 296 mm discs with 2-piston calipers
- Rear Brakes: single 296 mm disc with 2-piston calipers
- DIMENSION
- Seat Height: 795 mm (31.3 inches)
- Wheelbase: 1490 mm (58.7 inches)
- Fuel Capacity: 26 litres (6.9 Gal)
- Dry weight: (without fluids): 233 kg (513.7 pounds)
- OTHER

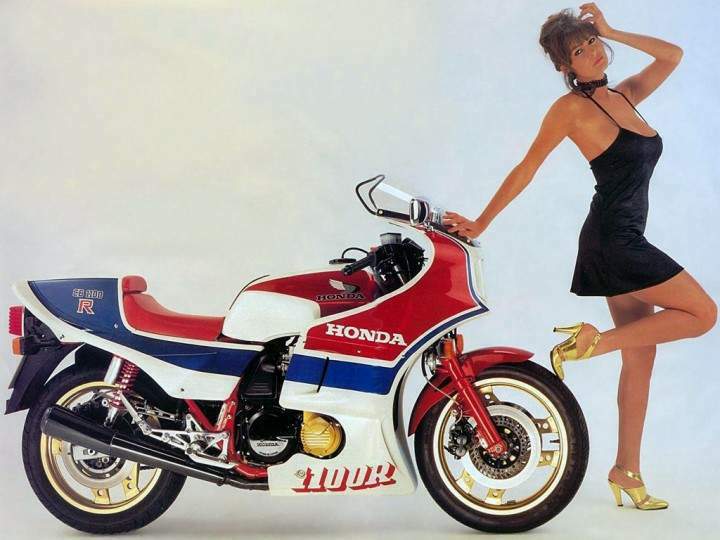

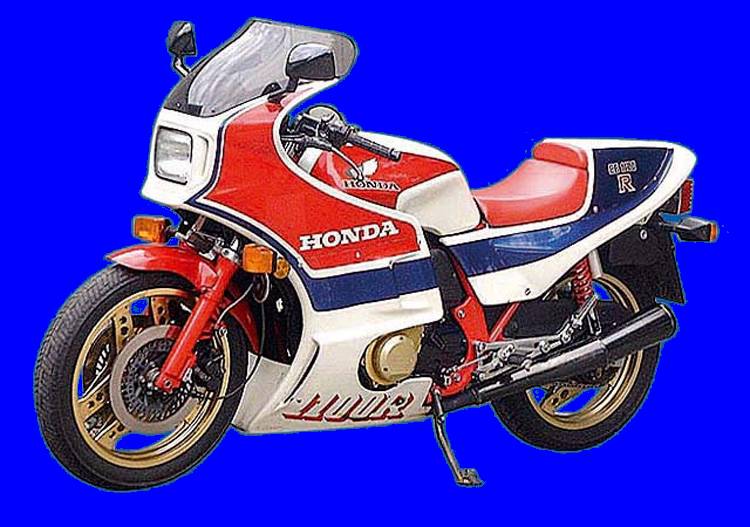

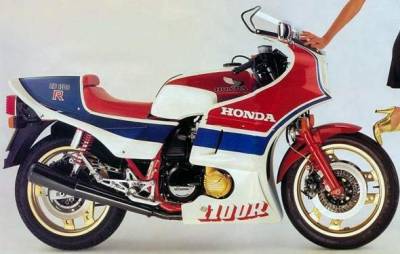

1982 CB1100RC
Click image to enlarge
1982 CB1100RC
Click image to enlarge
1983 CB1100RD
- ENGINE
- Engine Type: 1062 cc, 4 Stroke - Air Cooled - Inline Four
- Bore and Stroke: 70 mm x 69 mm
- Valves: 4 valves/cylinder
- Claimed Horsepower: 120 hp (89.5 kW) @ 9000 rpm
- Maximum Torque: 98 Nm (72.3 ft. lbs) @ 7500 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 100/90-18
- Rear Tire: 130/80-18
- Front Brakes: dual 296 mm discs with 2-piston calipers
- Rear Brakes: single 296 mm disc with 2-piston calipers
- DIMENSION
- Seat Height: 795 mm (31.3 inches)
- Wheelbase: 1490 mm (58.7 inches)
- Fuel Capacity: 26 litres (6.9 Gal)
- Dry weight: (without fluids): 233 kg (513.7 pounds)
- OTHER

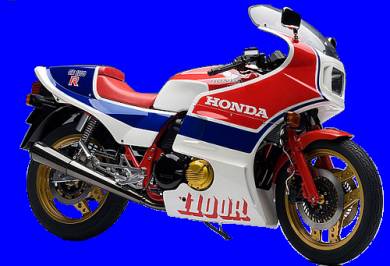

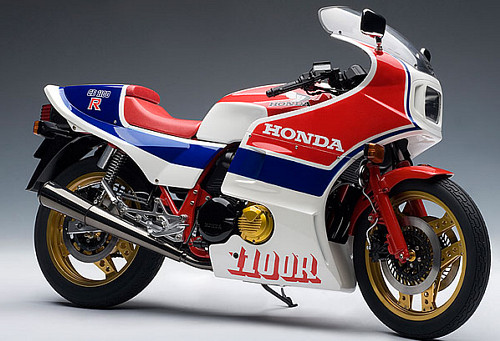

1983 CB1100RD
Click image to enlarge
