Engine type: Liquid-cooled four cylinder horizontally opposed OHC
Displacement: 1085 cc
Bore & stroke: 75 x 61.4 mm
Compression ratio: 9.2:1
Valves: 2 valves/cylinder
Fuel Delivery: four 30 mm, CV type
Horsepower: 81 hp (60.4 kW) @ 7000 rpm
Maximum Torque: 88 Nm (64.9 ft. lbs) @ 5500 rpm
Exhaust system: Four-into-two with balance tube
Ignition system: Transistorized pointless
Starting system: electric
Fuel type: regular gasoline
DRIVETRAIN
Clutch: wet multi-plate
Transmission: Five-speed, constant-mesh
Wheels: Honda cast wheels
CHASSIS / SUSPENSION / BRAKES
Brakes type: interconnected braking system internally ventilated double piston.
Front Brakes: dual 232 mm discs with 2-piston calipers
Rear Brakes: single 250 mm disc with 1-piston calipers
Front Suspension: air-assisted telescopic with TRAC™ anti-dive
Rear Suspension: air-assisted shocks
Front tire: 120/90H18
Rear tire: 140/90H16
DIMENSION
Wheelbase: 1605 mm (63.2")
Dry weight: (without fluids): 266 kg (586.4 pounds)
Dry weight: 272 kg (598 lb.)
Add about 50 kg (100 lb.) for fairing and bags
Overall length: 2340 mm
Overall width 920 mm (36.2")
Seat height 795 mm (31.3")
Fuel capacity 20 litres (4.4 imp gal.) (5.3 US gal)
OTHER
Colors:
Sterling Silver Metallic with Tempest Gray Metallic
Sorrel Brown Metallic with Harvest Gold Metallic
The silver unit was 2-tone silver and black while the brown unit was 2-tone brown and dark brown
It also featured a Type II audio system with a handlebar-mounted control and an on-board air compressor system
The wheels were black reverse comstar
The speedometer showed a 85 mph (135 kph) limit
The turn signal featured a self-cancelling system
The saddle was dual and more pronounced like in the previous year, but the passenger backrest was larger than the Interstate and had storage pouches
The front wheel had dual slotted discs with dual piston calipers
The frame serial number began with 1HFSC022*CA200001 and the engine serial number began SC02E-2300012.

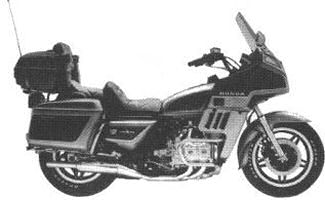

1982 GL1100A

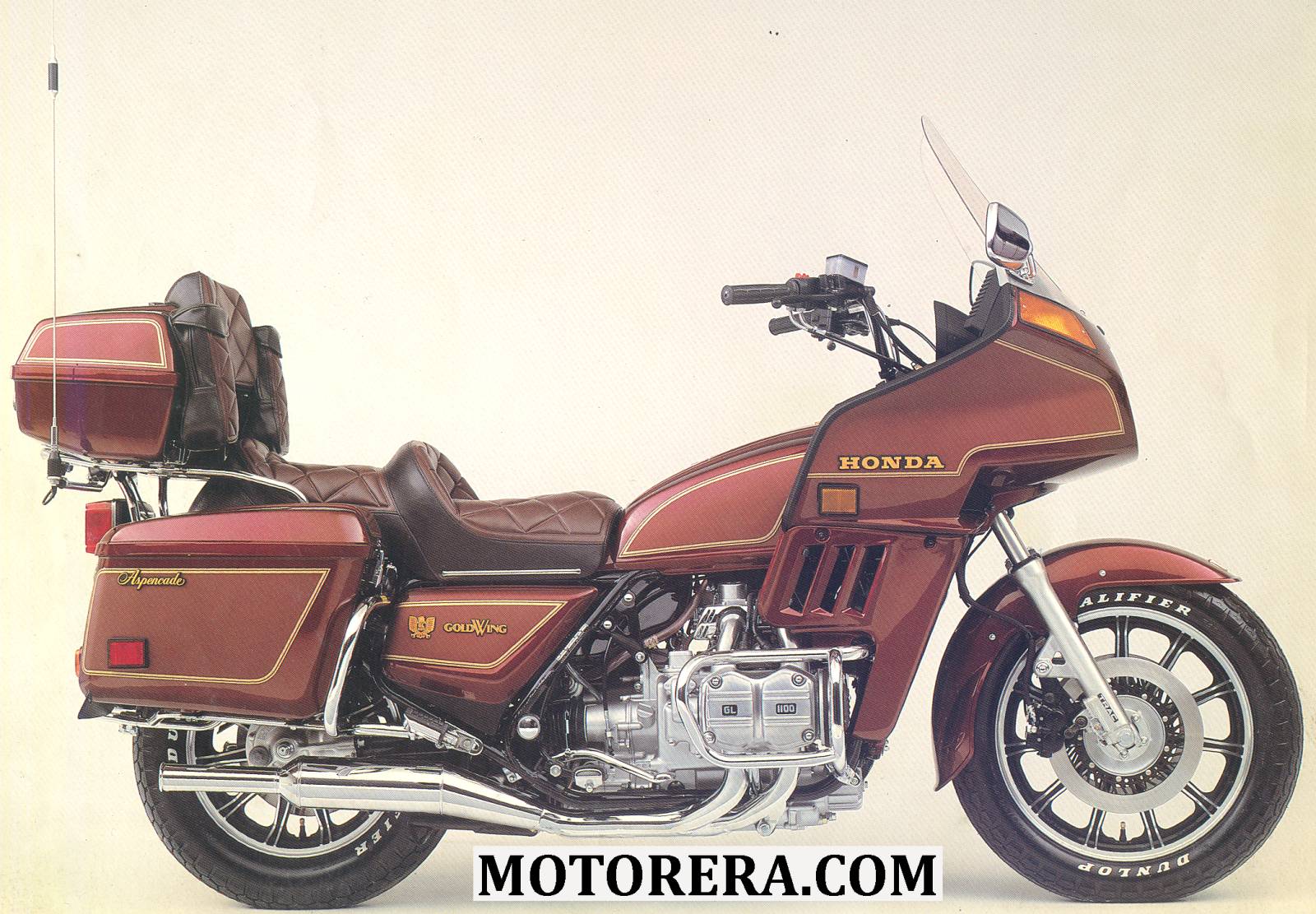

1983 GL1100A'83
OVERVIEW
In 1983 Honda continued with the upscale Aspencade
"The Aspencade is the ultimate in touring motorcycles
At its heart is a proven flat-four engine
Special features include an on-board suspension adjustment system, standard Type II Honda stereo radio, and brand new LCD digital instrumentation
Quite simply, there is no other choice for the long-distance rider"
"Combination LCD-digital instrument panel and keyboard
Instrument panel contains LCD read-outs for speed (with mph/kph converter), engine-rpm, trip, gear position, fuel and engine temperature
Also, there are warning lights for high beam, neutral, oil, and air suspension status
The keyboard is the control center for the Aspencade's on-board air suspension leveling system, as well as a trip-monitor system
TRACTM torque-sensing anti-dive control units with four-position stiffness adjusters fitted to both fork legs."
"Interconnected braking system
The rider's right foot controls one front disc and the rear disc, while the right handlebar lever controls the other front disc
Less of the rider's attention is required for most normal braking manoeuvers
The fork brace stabilizes front fork action
Redesigned engine guard gives more foot clearance and allows easier fitting of highway pegs
Three-position adjustable passenger foot pegs move through a range of 60 mm
Larger, flat-section foot pegs increase comfort."
"Internal gear ratio changes lower engine speed at highway speeds, especially in overdrive."
"Travel trunk moved rearward 30 mm for more passenger comfort, and taller backrest fitted
New shape two-tone seat has improved comfort with dual density foam
Cover material upgraded with new, soft-feeling cover."
ENGINE
Engine: 1085cc, SOHC 2-valve, liquid-cooled, horizontally opposed four cylinder
Bore & stroke: 75 x 61.4 mm
Compression Ratio: 9.2:1
Fuel Delivery: four 30 mm, CV type
Ignition: system: Transistorized pointless
Exhaust system: Four-into-two with balance tube
Starting system: electric
DRIVETRAIN
Clutch: wet multi-plate
Transmission: 5-speed, constant mesh
Drive: Shaft
Wheels: Honda cast with 11 spokes
CHASSIS / SUSPENSION / BRAKES
Front Suspension: Front forks are air-assisted telescopic with TRACTM anti-dive control
Rear Suspension: air-assisted shocks
Brakes: Interconnected brakes, dual slotted (ventilated) discs with dual piston calipers in front and single disc in rear
Front Tire: 120/90H-18
Rear Tire: 140/90H16
DIMENSION
Gas type: regular
Wheelbase: 1605 mm
Dry weight: 321 kg
Overall length: 2460 mm
Overall width: 920 mm
Seat height: 790 mm
Fuel capacity: 20 litres
OTHER
Colors:
Nimbus Gray Metallic with Achilles Black Metallic
Candy Wineberry Red with Bramble Red Metallic
Speedometer: Showed a 150 mph (240 kph) limit
Instrument panel: Digital
Turn signal: Self-cancelling system
Saddle: Dual and more pronounced as in the previous year, but the passenger backrest was larger with storage pouches
The frame serial number began with 1HFSC022*DA300101 and the engine serial number began SC02E-2300012.
