HONDA Motorcycle
Shadow 1100 (VT1100T)
American Classic Edition Tourer

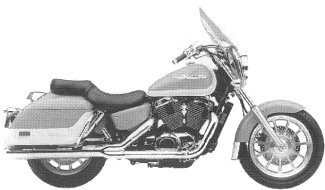

1998 VT1100T ACE Tourer 1100 (American Classic Edition Tourer

• Hard saddle bags and windshield (standard equipment)
• Exhaust was specially designed 2-into-2 system
• Colors:
  • Black
  • Black with Pearl Ivory Cream
  • Pearl Jade Green with Pearl Ivory Cream
  • Pearl Sedona Red with Black
• Model designation: VT1100T (California designation: VT1100TL)
• Serial number began: 1HFSC370*WA000001 (Calif: 1HFSC371*WA000001)
• Engine serial began: SC37E-2000001 (Calif: SC37E-2000001)

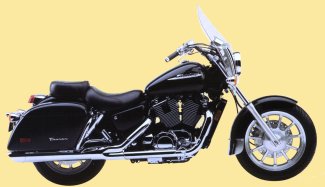

2001 VT1100T'01 ACE Tourer 1100

• Engine Type: Liquid cooled, 45° V-twin, dual offset pin crank
• Displacement: 1099cc
• Bore and Stoke: 87.5mm x 91.4mm
• Compression Ratio: 8:1
• Valve Train: SOHC, 3 valve per cylinder, self-adjusting hydraulic
• Fuel Delivery: Twin 36mm, diaphragm-type CV
• Transmission: Wide-Ratio, 5-speed
• Final Drive: Shaft
• Front Suspension: 41mm fork, 150mm travel
• Rear Suspension: Dual shocks with 5-way spring preload adjustment, 95mm travel
• Front Tire: 130/80H-18
• Rear Tire: 170/70H-16
• Front Brakes: Single 316mm disc with twin piston caliper
• Rear Brake: s: Single 276mm disc with single piston caliper
• Seat Height: 730mm (28.7")
• Wheelbase: 1656mm (65.2")
• Dry Weight: 285 kg (626 lb)
• Fuel Capacity: 15.8 liters
• Color: Black
