2004 Varadero XL1000V
ENGINE
Engine Type: Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Engine Displacement: 996cc
Bore & Stroke: 98 x 66mm
Compression Ratio: 9.8 :1
Fuel Delivery: PGM-FI electronic fuel injection
Max. Power Output: 93 bhp at 8,000 rpm
Max. Torque: 98Nm at 6,000 rpm
Ignition: Computer-controlled digital transistorised with electronic advance and HISS
Starter: Electric
DRIVETRAIN
Transmission: 6-speed
Final Drive: 'O'-Ring sealed chain
Front Wheel: 19 x MT2.50 Hollow-section triple-spoke cast aluminum
Rear Wheel: 17 x MT4.00 Hollow-section triple-spoke cast aluminum
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm telescopic fork, 155mm axle travel
Rear Suspension: Pro-link with spring preload adjustable damper, 145mm axle travel
Front Brakes: ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes: ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Tire: 110/80-R19 59H
Rear Tire: 150/70-R17 69H
DIMENSION
Overall Length: 2295mm (90.4 inches)
Overall Width: 925mm (36.4 inches)
Overall Height: 1500mm (59 inches)
Wheelbase: 1,560mm (61.4 inches)
Seat Height: 838mm (33 inches)
Ground Clearance: 181mm (7.1 inches)
Fuel Capacity: 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve]
Dry Weight: 241.5kg (531 lb)
OTHER

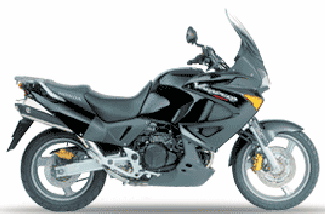

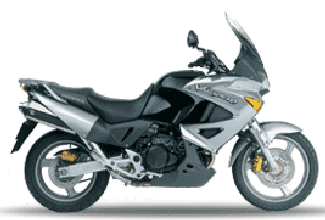

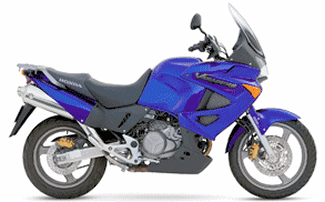

2004 Varadero
2004 Varadero
2004 Varadero
2005 Varadero XL1000
ENGINE
Engine Type: Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Engine Displacement: 996cc
Bore & Stroke: 98 x 66mm
Compression Ratio: 9.8 :1
Fuel Delivery: PGM-FI electronic fuel injection
Max. Power Output: 93 bhp at 8,000 rpm
Max. Torque: 98Nm at 6,000 rpm
Ignition: Computer-controlled digital transistorised with electronic advance and HISS
Starter: Electric
DRIVETRAIN
Transmission: 6-speed
Final Drive: 'O'-Ring sealed chain
Front Wheel: 19 x MT2.50 Hollow-section triple-spoke cast aluminum
Rear Wheel: 17 x MT4.00 Hollow-section triple-spoke cast aluminum
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm telescopic fork, 155mm axle travel
Rear Suspension: Pro-link with spring preload adjustable damper, 145mm axle travel
Front Brakes: ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes: ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Tire: 110/80-R19 59H
Rear Tire: 150/70-R17 69H
DIMENSION
Overall Length: 2295mm (90.4 inches)
Overall Width: 925mm (36.4 inches)
Overall Height: 1500mm (59 inches)
Wheelbase: 1,560mm (61.4 inches)
Seat Height: 838mm (33 inches)
Ground Clearance: 181mm (7.1 inches)
Fuel Capacity: 25 litres (6.6 Gal)[including 4 litre (1 Gal)warning light reserve]
Dry Weight: 241.5kg (531 lb)
OTHER

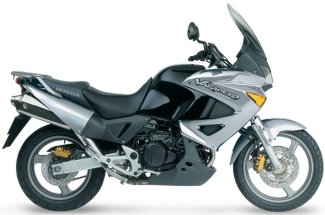

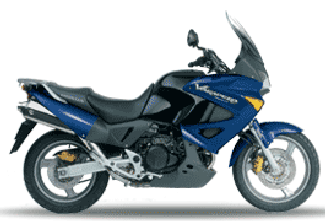

2005 Varadero
2010 XL1000V VARADERO
ENGINE
Engine Type: Liquid-cooled 90-degree V-twin
Displacement: 996 cc
Bore and Stroke: 98 mm x 66 mm
Compression Ratio: 9.8:1
Valve Train: Chain-driven DOHC, 4 valves per cylinder
Fuel Delivery: PGM-FI electronic fuel injection
DRIVETRAIN
Transmission: Six-speed
Final Drive: O-ring-sealed chain; 16T/47T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43 mm telescopic fork; 155 mm (6.1 in.) travel
Rear Suspension: Pro-Link single shock with spring preload and rebound-damping adjustability; 145 mm (5.7 in.) travel
Tires: 110/80R–19 radial front; 150/70R–17 radial rear
Brakes: Front dual 296 mm discs with triple-piston calipers and Combined Braking System with ABS; rear 256 mm disc with triple-piston caliper and Combined Braking System with ABS
DIMENSION
Ground Clearance: N/A
Seat Height: 838 mm (33 in.)
Wheelbase: 1,560 mm (61.4 in.)
Curb Weight: 277 kg (611 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity: 25 litres
OTHER
Color: Concours Black Pearl
MSRP: $13,199
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
2010 XL1000V Varadero
2012 XL1000V VARADERO
ENGINE
Engine Type: Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Engine Displacement: 996cc
Bore and Stroke: 98 x 66mm
Compression Ratio: 9.8:1
Fuel Delivery: PGM-FI electronic fuel injection
Ignition: Computer-controlled digital transistorised with electronic advance
Starter: Electric
Max. Power Output: 69kW/7,500min-1 (95/1/EC)
Max. Torque: 98Nm/6,000min-1 (95/1/EC)
DRIVETRAIN
Transmission: 6-speed
Final Drive: O-ring sealed chain
Front Wheels: Hollow-section triple-spoke cast aluminium, 19M/C x MT2.5
Rear Wheels: Hollow-section triple-spoke cast aluminium, 17M/C x MT4
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm telescopic fork, 155mm axle travel
Rear Suspension: Pro-Link damper with 40-step spring preload (and stepless rebound damping) adjustment, 145mm axle travel
Front Brakes: ABS 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes: ABS 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Tires: 110/80-R19M/C (59H)
Rear Tires: 150/70-R17M/C (69H)
DIMENSION
Weight: 244.2 kg (237 lb)
Fuel Capacity: 25 Litres (6.6 Gal) [including 4-Litre (1 Gal) warning light reserve]
Overall Length: 2,300mm (90.5 inches)
Overall Width: 930mm (36.6 inches)
Overall Height: 1465mm (57.7 inches)
Wheelbase: 1,560mm (61.4 inches)
Ground Clearance: 181mm (7.1 inches)
Seat Height: 838mm (33 inches)
OTHER

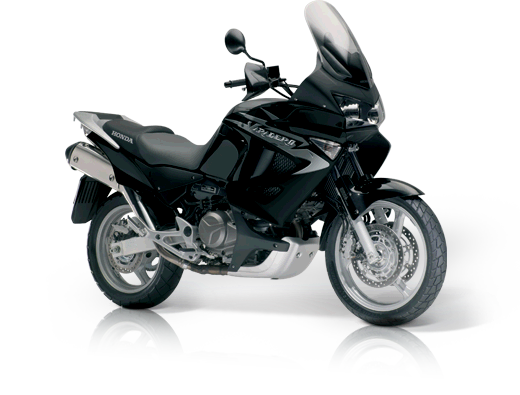

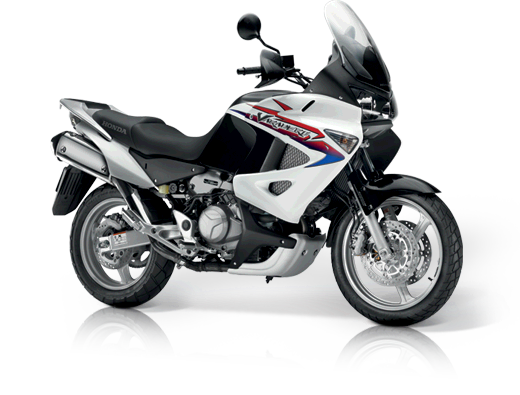

2012 XL1000V Varadero
2012 XL1000V Varadero
