2000 VTR1000SP RC51 (RVT1000R)
- ENGINE
- Engine: 999cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 100mm X 63.6mm
- Compression Ratio: 10.8 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM-FI with two injectors per cylinder
- Ignition: Computer-controlled digital with 3-dimensional mapping
- Starting: Electric
- DRIVETRAIN
- Transmission: Close-ratio 6-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted cartridge fork with spring preload, rebound and compression damping adjustablity; 130mm travel
- Rear Suspension: Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm travel
- Front Brakes: Dual full-floating 320mm discs with four-piston calipers
- Rear Brakes: Single 230mm disc with single-piston caliper
- Front Tires: 120/70ZR-17
- Rear Tires: 190/50ZR-17
- DIMENSION
- Seat Height: 813mm (32.0 in.)
- Wheelbase: 1410mm (55.5 in.)
- Dry Weight: 196 kg. (432 lbs.)
- Fuel Capacity: 18 litres (3.8 Imp. Gal)
- OTHER

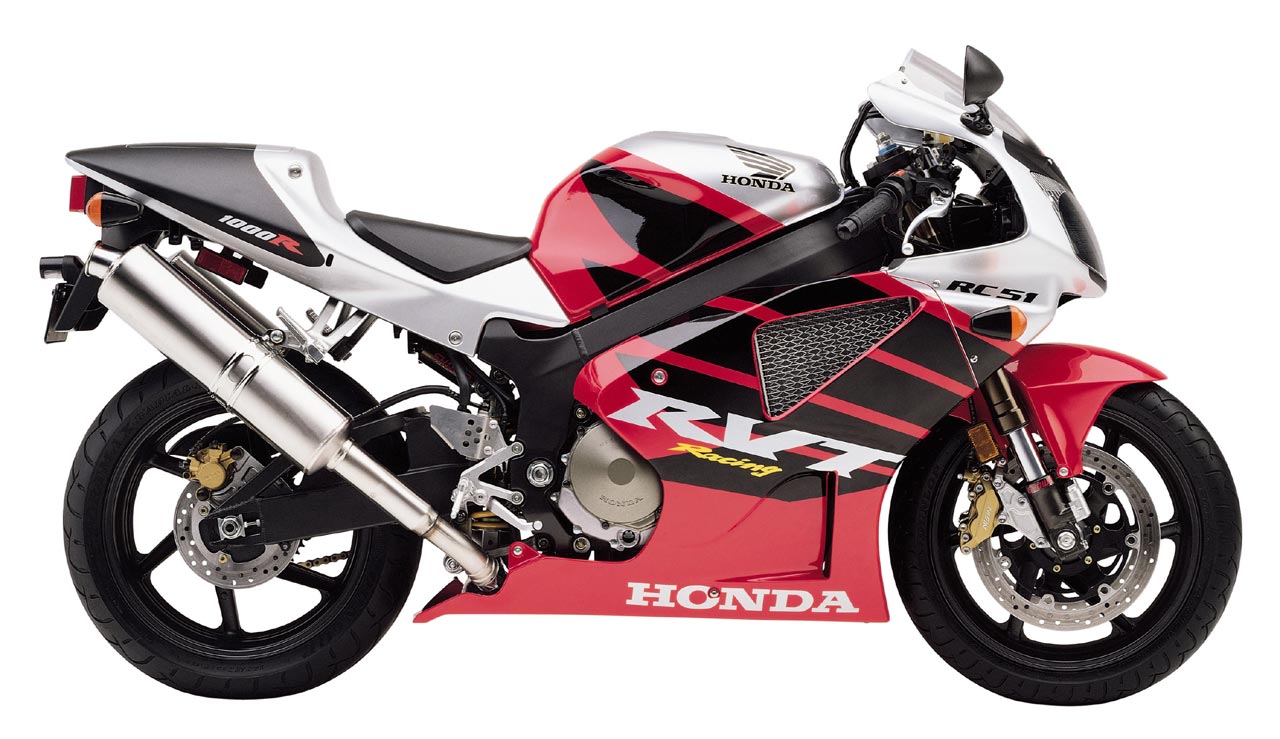

2000 RC51
Click image to enlarge
2001 VTR1000SP RC51 (RVT1000R)
- ENGINE
- Engine: 999cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 100mm X 63.6mm
- Compression Ratio: 10.8 : 1
- Valve Train: DOHC, 4 valve, shim under bucket
- Fuel Delivery: PGM-FI with two injectors per cylinder
- Ignition: Computer-controlled digital with 3-dimensional mapping
- Starting: Electric
- DRIVETRAIN
- Transmission: Close-ratio 6-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted cartridge fork with spring preload, rebound and compression damping adjustablity; 130mm travel
- Rear Suspension: Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm travel
- Front Brakes: Dual full-floating 320mm discs with four-piston calipers
- Rear Brakes: Single 230mm disc with single-piston caliper
- Front Tires: 120/70ZR-17
- Rear Tires: 190/50ZR-17
- DIMENSION
- Seat Height: 813mm (32.0 in.)
- Wheelbase: 1410mm (55.5 in.)
- Dry Weight: 196 kg. (432 lbs.)
- Fuel Capacity: 18 litres (3.8 Imp. Gal)
- OTHER
2001 RC51
2001 RC51
2001 RC51
2002 VTR1000SP RC51 (RVT1000R)
- ENGINE
- Engine: 999cc liquid-cooled 90 degree V-twin
- Bore and Stroke: 100mm x 63.6mm
- Compression Ratio: 10.8: 1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: PGM-FI with 12-hole injectors
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 130mm (5.1 in.) travel
- Rear Suspension: HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm (4.7 in.) travel
- Front Brakes: Dual full-floating 320mm discs with four-piston calipers
- Rear Brake: Single 220mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
- DIMENSION
- Wheelbase: 1420mm (55.9 in.)
- Seat Height: 820mm (32.3 in.)
- Dry Weight: 194 kg (427 pounds)
- Fuel Capacity: 18 litres (3.8 Imp. gal.)
- OTHER

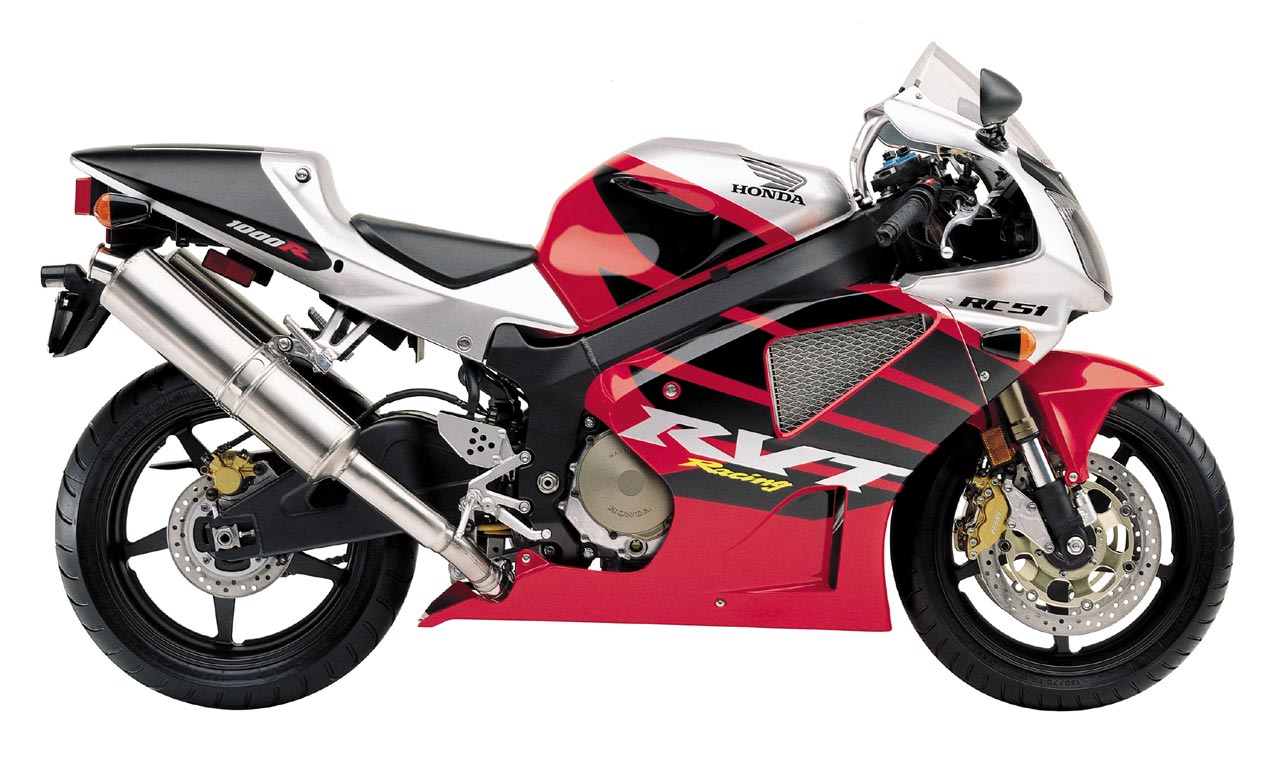

2002 RC51
Click image to enlarge
2002 RC51
Click image to enlarge
2003 VTR1000SP RC51 (RVT1000R'03)
- ENGINE
- Engine: 999cc liquid-cooled 90 degree V-twin
- Bore and Stroke: 100mm x 63.6mm
- Compression Ratio: 10.8: 1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: PGM-FI with two injectors per cylinder
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 130mm travel
- Rear Suspension: HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm travel
- Front Brakes: Dual full-floating 320mm discs with four-piston calipers
- Rear Brake: Single 220mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50R-17 radial
- DIMENSION
- Wheelbase: 1420mm (55.9 in.)
- Seat Height: 818mm (32.3 in.)
- Dry Weight: 195 kg (430 lb.)
- Fuel Capacity: 18 litres (4.8 GalUS)
- OTHER
- Color: Red/Metallic Silver

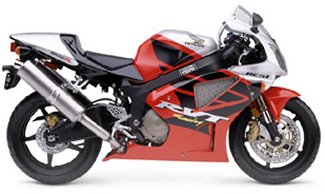

2003 RC51
2004 VTR1000SP RC51 1000cc (RVT1000R)
- ENGINE
- Engine Type: 999cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 100.0mm x 63.6mm
- Compression Ratio: 10.8:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with two injectors per cylinder
- Ignition: Computer-controlled digital with three-dimensional mapping
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 5.1-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
- Front Brakes: Dual full-floating 320.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
- DIMENSION
- Rake: 23.5 degrees
- Trail: 94.6mm (3.7 inches)
- Wheelbase: 55.9 inches
- Seat Height: 32.3 inches
- Dry Weight: 430.0 pounds
- Fuel Capacity: 4.8 gallons, including 1.2-gallon reserve
- OTHER
- Emissions: California version differs slightly due to emissions equipment.
- Colors: Red/Metallic Silver
- Model ID: RVT1000R
- Waranty: 1 year

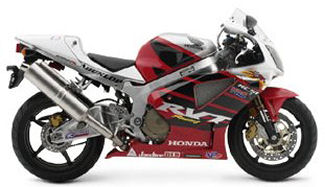

2004 RC51
2005 VTR1000SP RC51 1000cc (RVT1000R)
- ENGINE
- Engine Type: 999cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 100.0mm x 63.6mm
- Compression Ratio: 10.8:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with two injectors per cylinder
- Ignition: Computer-controlled digital with three-dimensional mapping
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Front Brakes: Dual full-floating 320.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
- DIMENSION
- Rake: 23.5 degrees
- Trail: 94.6mm (3.7 inches)
- Wheelbase: 55.9 inches
- Seat Height: 32.3 inches
- Dry Weight: 430 pounds
- Fuel Capacity: 4.8 gallons, including 1.2-gallon reserve
- OTHER
- Emissions: California version differs slightly due to emissions equipment.
- Colors: Black/Metallic Gray
- Model ID: RVT1000R
- Warranty: 1 year

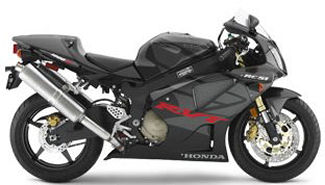

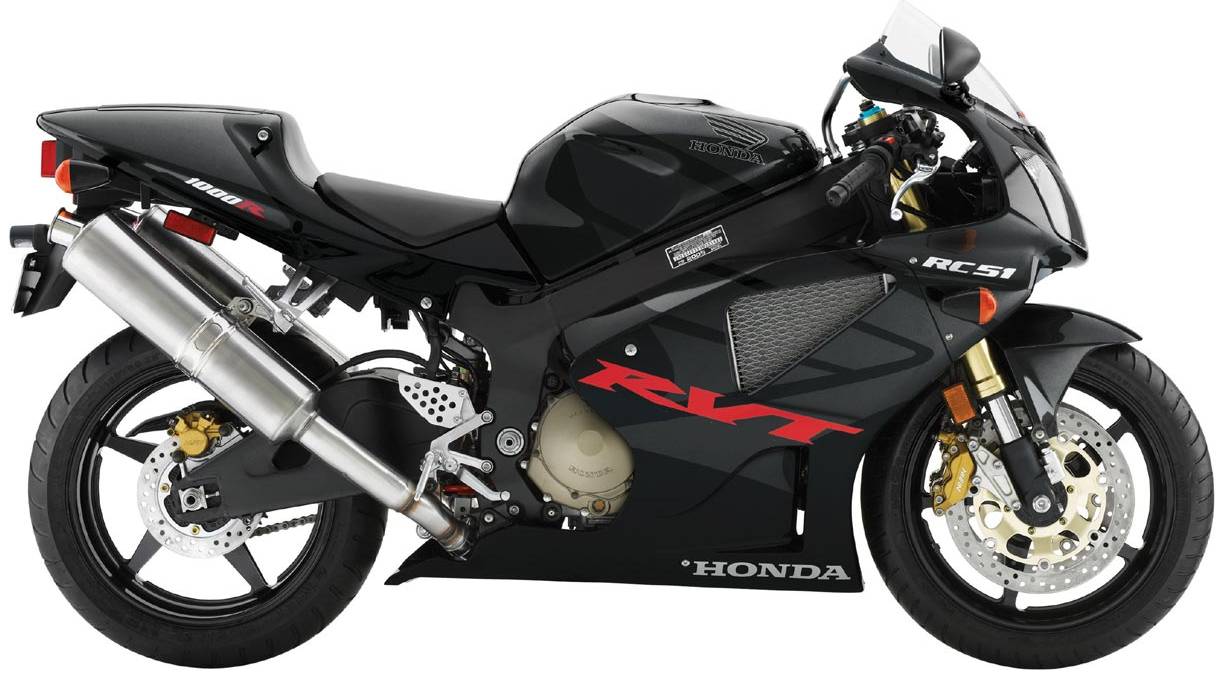

2005 RC51
Click image to enlarge
2006 VTR1000SP RVT1000R RC51
- ENGINE
- Engine Type: 999cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 100.0mm x 63.6mm
- Compression Ratio: 10.8:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with two injectors per cylinder
- Ignition: Computer-controlled digital with three-dimensional mapping
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #530 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Front Brakes: Dual full-floating 320.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 190/50ZR-17 radial
- DIMENSION
- Rake: 23.3 degrees
- Trail: 94.6mm (3.7 inches)
- Wheelbase: 55.9 inches
- Seat Height: 32.5 inches
- Dry Weight: 439 pounds
- Fuel Capacity: 4.8 gallons, including 1.2-gallon reserve
- OTHER
- Emissions: Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
- Colors:
- Black/Metallic Gray
- Black/Metallic Gray
- Model ID: RVT1000R

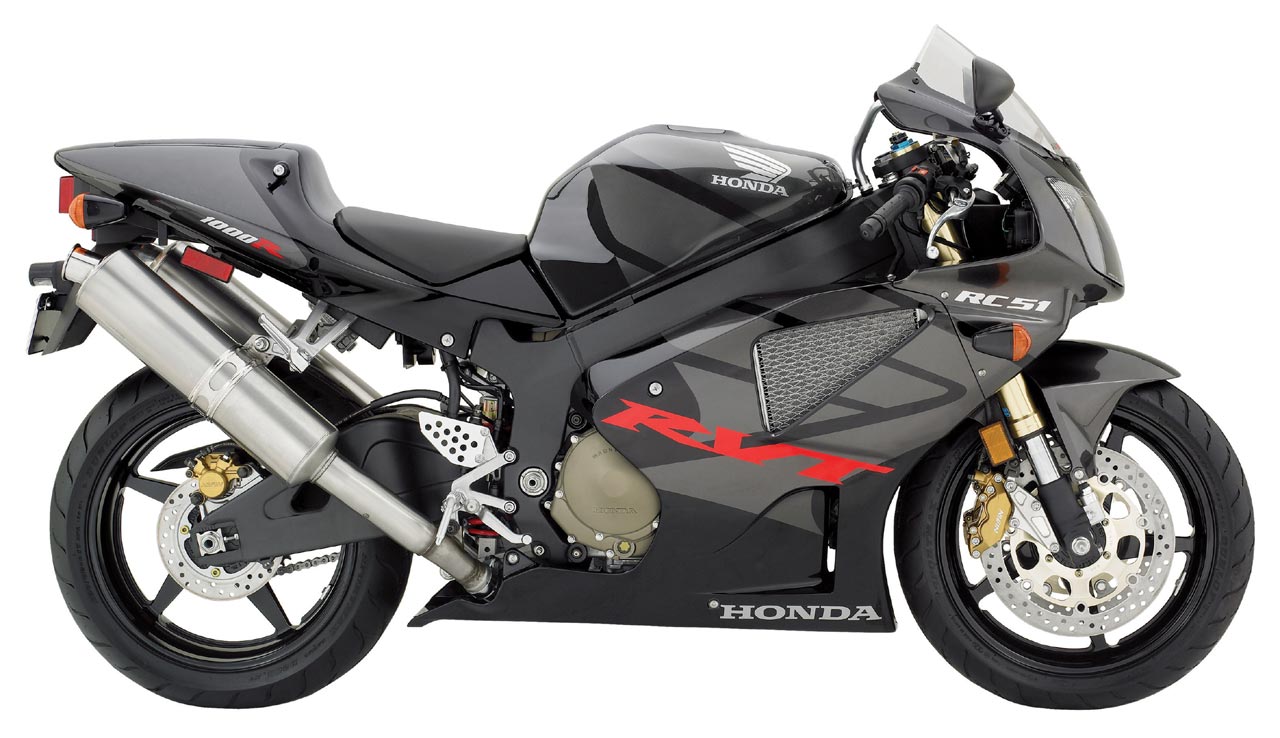

2006 RVT1000R RC51
Click image to enlarge
