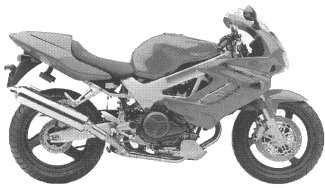

1998 VTR1000F'98 Super Hawk
1998 VTR1000F
- It came in one color: Italian Red
- This was a new V-twin sport model with a new engine: 996cc 90° V-twin
- The serial number began JH2SC360*WM000001.

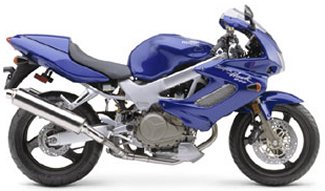

2003 VTR1000F'03 Super Hawk
2003 VTR1000F
- Available color: Candy Blue
- Engine: 996cc DOHC liquid-cooled 90° V-twin, 4-valves per cylinder
- Bore and Stroke: 98.0 x 66.0 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: Two 48mm slanted flat-side CV
- Ignition: Computer-controlled digital transistorized with electronic advance
- Transmission: Close-ratio six-speed
- Final Drive: O-ring chain
- Front Suspension: 41mm HMASTM cartridge fork with spring-preload and rebound-damping adjustability, 4.7-inch travel
- Rear Suspension: Pro-Link HMASTM single-shock with spring-preload and rebound-damping adjustability, 4.9-inch travel
- Front brake: Dual full-floating 296mm discs with four-piston calipers
- Rear Brake: Single 220mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- Rake: 24.9 degrees
- Trail: 97.0mm (3.8 inches)
- Wheelbase: 1430mm (56.3 in.)
- Seat height: 810mm (31.9 in.)
- Dry weight: 194 kg (426 lb)
- Fuel capacity: 16 liters (4.2 gallons, including 0.7-gallon reserve)

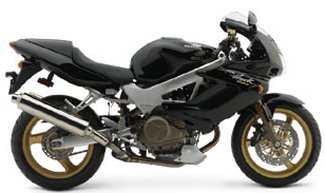

2004 Super Hawk 1000cc
2004 VTR1000F
- Engine Type: 996cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 98.0mm x 66.0mm
- Compression Ratio: 9.4:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Two 48.0mm slanted flat-slide CV
- Ignition: Computer-controlled digital transistorized with electronic advance
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- Front Suspension: 41.0mm HMAS cartridge fork with spring-preload and rebound-damping adjustability; 4.7-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload and rebound-damping adjustability; 4.9-inch travel
- Front Brakes: Dual full-floating 296.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- Rake: 24.9 degrees
- Trail: 97.0mm (3.8 inches)
- Wheelbase: 56.3 inches
- Seat Height: 31.9 inches
- Dry Weight: 426.0 pounds
- Fuel Capacity: 4.2 gallons, including 0.7-gallon reserve
- Emissions: California version differs slightly due to emissions equipment.
- Colors: Black
- Model ID: VTR1000F
- Warranty: 1 year

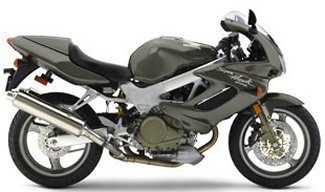

2005 Super Hawk 1000cc
2005 VTR1000F
- Engine Type: 996cc liquid-cooled 90-degree V-twin
- Bore and Stroke: 98.0mm x 66.0mm
- Compression Ratio: 9.4:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Two 48.0mm slanted flat-slide CV
- Ignition: Computer-controlled digital transistorized with electronic advance
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- Front Suspension: 41.0mm HMAS cartridge fork with spring-preload and rebound-damping adjustability; 4.7-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload and rebound-damping adjustability; 4.9-inch travel
- Front Brakes: Dual full-floating 296.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- Rake: 24.9 degrees
- Trail: 97.0mm (3.8 inches)
- Wheelbase: 56.3 inches
- Seat Height: 31.9 inches
- Dry Weight: 426 pounds
- Fuel Capacity: 4.2 gallons, including 0.7-gallon reserve
- Emissions: California version differs slightly due to emissions equipment.
- Colors: Titanium
- Model ID: VTR1000F
- Warranty: 1 year
